SPX431M5 Datasheet

  • SPX431M5

  • Precision Adjustable Shunt Regulator

  • 8頁

  • SIPEX

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

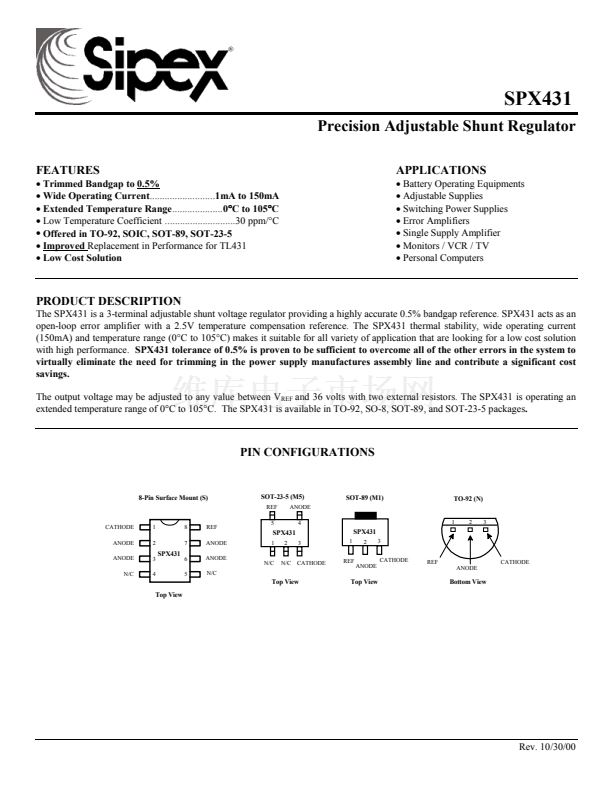

SPX431
Precision Adjustable Shunt Regulator
FEATURES
鈥?/div>
Trimmed Bandgap to 0.5%
鈥?/div>
Wide Operating Current..........................1mA to 150mA
鈥?/div>
Extended Temperature Range....................0擄C to 105擄C
擄
擄
鈥?/div>
Low Temperature Coefficient ............................30 ppm/擄C
鈥?/div>
Offered in TO-92, SOIC, SOT-89, SOT-23-5
鈥?/div>
Improved
Replacement in Performance for TL431
鈥?/div>
Low Cost Solution
APPLICATIONS
鈥?/div>
Battery Operating Equipments
鈥?/div>
Adjustable Supplies
鈥?/div>
Switching Power Supplies
鈥?/div>
Error Amplifiers
鈥?/div>
Single Supply Amplifier
鈥?/div>
Monitors / VCR / TV
鈥?/div>
Personal Computers
PRODUCT DESCRIPTION
The SPX431 is a 3-terminal adjustable shunt voltage regulator providing a highly accurate 0.5% bandgap reference. SPX431 acts as an
open-loop error amplifier with a 2.5V temperature compensation reference. The SPX431 thermal stability, wide operating current
(150mA) and temperature range (0擄C to 105擄C) makes it suitable for all variety of application that are looking for a low cost solution
with high performance.
SPX431 tolerance of 0.5% is proven to be sufficient to overcome all of the other errors in the system to
virtually eliminate the need for trimming in the power supply manufactures assembly line and contribute a significant cost
savings.
The output voltage may be adjusted to any value between V
REF
and 36 volts with two external resistors. The SPX431 is operating an
extended temperature range of 0擄C to 105擄C. The SPX431 is available in TO-92, SO-8, SOT-89, and SOT-23-5 packages.
PIN CONFIGURATIONS
8-Pin Surface Mount (S)
SOT-23-5 (M5)
REF
ANODE
4
SOT-89 (M1)
TO-92 (N)
1
2
3
CATHODE
ANODE
ANODE
N/C
1
2
3
4
8
7
REF
ANODE
ANODE
N/C
5
SPX431
1
N/C
2
N/C
3
CATHODE
1
SPX431
2
3
CATHODE
REF
CATHODE
SPX431
6
5
REF
ANODE
ANODE
Top View
Top View
Top View
Bottom View
Rev. 10/30/00
