SPX4040B3N-5.0 Datasheet

  • SPX4040B3N-5.0

  • Precision Micropower 2.5V Shunt Voltage Reference

  • 8頁

  • SIPEX

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

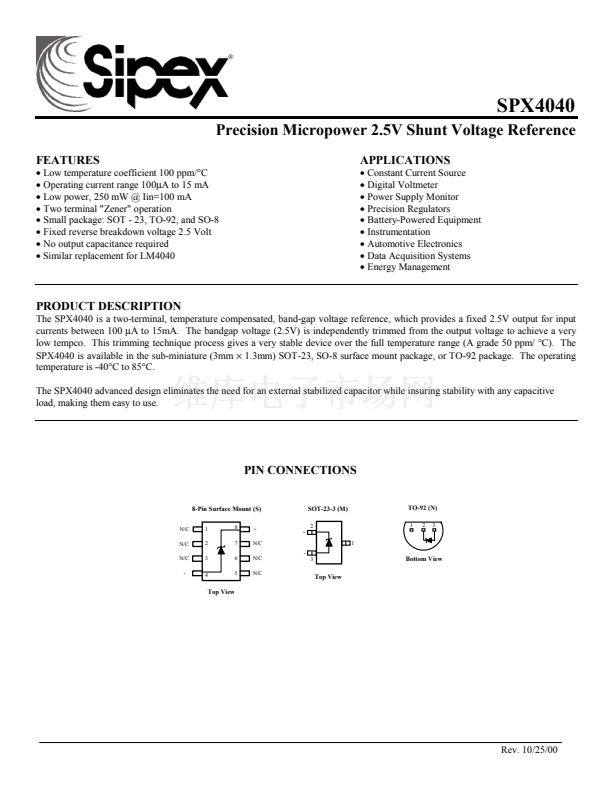

SPX4040
Precision Micropower 2.5V Shunt Voltage Reference
鈥?/div>
Low temperature coefficient 100 ppm/擄C
鈥?/div>
Operating current range 100碌A(chǔ) to 15 mA
鈥?/div>
Low power, 250 mW @ Iin=100 mA
鈥?/div>
Two terminal "Zener" operation
鈥?/div>
Small package: SOT - 23, TO-92, and SO-8
鈥?/div>
Fixed reverse breakdown voltage 2.5 Volt
鈥?/div>
No output capacitance required
鈥?/div>
Similar replacement for LM4040
FEATURES
鈥?/div>
Constant Current Source
鈥?/div>
Digital Voltmeter
鈥?/div>
Power Supply Monitor
鈥?/div>
Precision Regulators
鈥?/div>
Battery-Powered Equipment
鈥?/div>
Instrumentation
鈥?/div>
Automotive Electronics
鈥?/div>
Data Acquisition Systems
鈥?/div>
Energy Management
APPLICATIONS
PRODUCT DESCRIPTION
The SPX4040 is a two-terminal, temperature compensated, band-gap voltage reference, which provides a fixed 2.5V output for input
currents between 100
碌A(chǔ)
to 15mA. The bandgap voltage (2.5V) is independently trimmed from the output voltage to achieve a very
low tempco. This trimming technique process gives a very stable device over the full temperature range (A grade 50 ppm/
擄C).
The
SPX4040 is available in the sub-miniature (3mm
脳
1.3mm) SOT-23, SO-8 surface mount package, or TO-92 package. The operating
temperature is -40擄C to 85擄C.
The SPX4040 advanced design eliminates the need for an external stabilized capacitor while insuring stability with any capacitive
load, making them easy to use.
PIN CONNECTIONS
8-Pin Surface Mount (S)
N/C
N/C
N/C
-
1
2
3
4
8
7
6
5
+
N/C
N/C
N/C
-
3
SOT-23-3 (M)
2
1
TO-92 (N)
1
2
3
+
Bottom View
Top View
Top View
Rev. 10/25/00
