SPT9689BIC Datasheet

  • SPT9689BIC

  • DUAL ULTRAFAST VOLTAGE COMPARATOR

  • 8頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

SPT9689
DUAL ULTRAFAST VOLTAGE COMPARATOR
TECHNICAL DATA
FEBRUARY 20, 2001
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
650 ps propagation delay
100 ps propagation delay variation
70 dB CMRR
Low feedthrough and crosstalk
Differential latch control
ECL compatible
APPLICATIONS
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Automated test equipment
High-speed instrumentation
Window comparators
High-speed timing
Line receivers
High-speed triggers
Threshold detection
Peak detection
GENERAL DESCRIPTION
The SPT9689 is a
Subnanosecond
monolithic dual com-
parator. The propagation delay variation is less than
100 ps from 5 to 50 mV input overdrive voltage. The input
slew rate is 10 V/ns. The device utilizes a high precision
differential input stage with a common-mode range of
鈥?.5 V to +4.0 V.
ECL-compatible complementary digital outputs are ca-
pable of driving 50
鈩?/div>
terminated transmission lines and
providing 30 mA output drive. The SPT9689 is pin compat-
ible with the SPT9687. It is available in 20-lead PLCC and
20-contact LCC packages over the industrial temperature
range. The SPT9689 is also available in die form.
BLOCK DIAGRAM
INVERTING
INPUT
LATCH ENABLE
NONINVERTING
INPUT
聳
A
+
LATCH ENABLE
Q OUTPUT
Q OUTPUT
V
EE
V
CC
GND
B
GND
A
Q OUTPUT
Q OUTPUT
LATCH ENABLE
B
聳
+
LATCH ENABLE
NONINVERTING
INPUT
INVERTING
INPUT

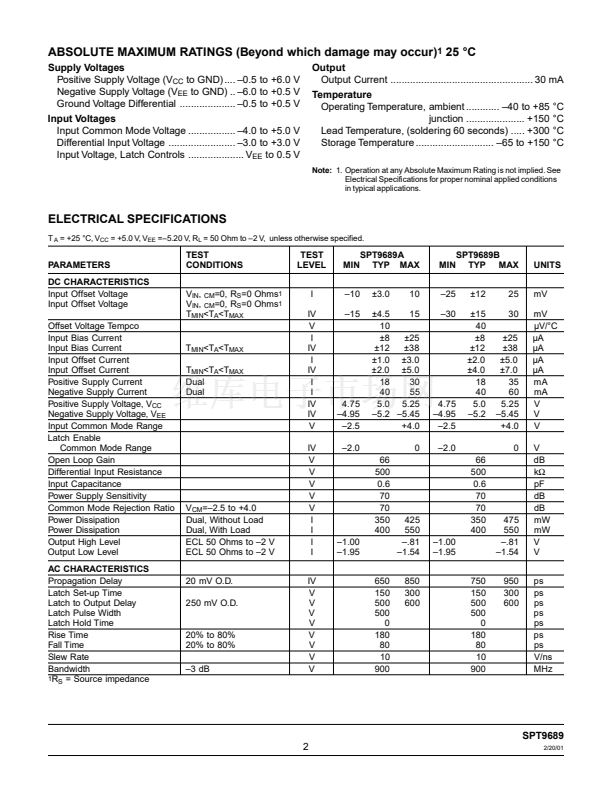

SPT9689BIC 產品屬性

  • Cadeka Microcircuits

  • 校驗器 IC

  • 2 Channels

  • Digital Comparators

  • 30 mV

  • 60 mA

  • 550 mW

  • + 85 C

  • SMD/SMT

  • PLCC-20

  • Tube

  • - 25 C

  • 5 V
