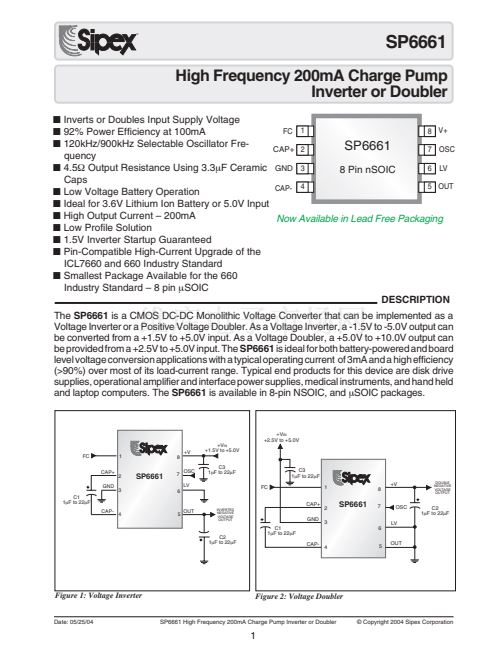

SP6661

High Frequency 200mA Charge Pump

Inverter or Doubler

鈻?/div>

Inverts or Doubles Input Supply Voltage

V+

鈻?/div>

92% Power Efficiency at 100mA

鈻?/div>

120kHz/900kHz Selectable Oscillator Fre-

SP6661

CAP+

OSC

quency

鈻?/div>

4.5鈩?Output Resistance Using 3.3碌F Ceramic

GND

8 Pin nSOIC

Caps

OUT

CAP-

鈻?/div>

Low Voltage Battery Operation

鈻?/div>

Ideal for 3.6V Lithium Ion Battery or 5.0V Input

鈻?/div>

High Output Current 鈥?200mA

Now Available in Lead Free Packaging

鈻?/div>

Low Profile Solution

鈻?/div>

1.5V Inverter Startup Guaranteed

鈻?/div>

Pin-Compatible High-Current Upgrade of the

ICL7660 and 660 Industry Standard

鈻?/div>

Smallest Package Available for the 660

Industry Standard 鈥?8 pin

碌SOIC

DESCRIPTION

The

SP6661

is a CMOS DC-DC Monolithic Voltage Converter that can be implemented as a

Voltage Inverter or a Positive Voltage Doubler. As a Voltage Inverter, a -1.5V to -5.0V output can

be converted from a +1.5V to +5.0V input. As a Voltage Doubler, a +5.0V to +10.0V output can

be provided from a +2.5V to +5.0V input. The

SP6661

is ideal for both battery-powered and board

level voltage conversion applications with a typical operating current of 3mA and a high efficiency

(>90%) over most of its load-current range. Typical end products for this device are disk drive

supplies, operational amplifier and interface power supplies, medical instruments, and hand held

and laptop computers. The

SP6661

is available in 8-pin NSOIC, and

碌SOIC

packages.

+2.5V to +5.0V

廬

CAP+

GND

1碌F to 22碌F

CAP-

+1.5V to +5.0V

1碌F to 22碌F

SP6661

OSC

1碌F to 22碌F

CAP+

廬

DOUBLE

NEGATIVE

VOLTAGE

OUTPUT

OUT

INVERTED

NEGATIVE

VOLTAGE

OUTPUT

SP6661

OSC

1碌F to 22碌F

GND

1碌F to 22碌F

CAP-

1碌F to 22碌F

OUT

Figure 1: Voltage Inverter

Date: 05/25/04

Figure 2: Voltage Doubler
