SP385E-1 Datasheet

  • SP385E-1

  • True +3V or +5V RS-232 Line Driver/Receiver

  • 99.21KB

  • 11頁

  • SIPEX

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

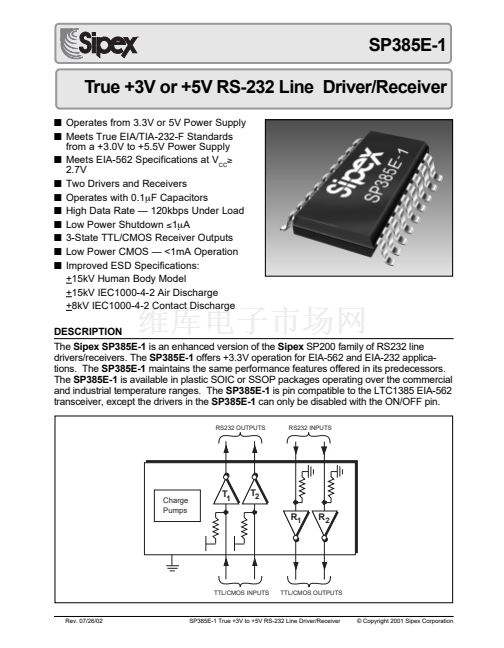

SP385E-1
True +3V or +5V RS-232 Line Driver/Receiver
鈻?/div>
Operates from 3.3V or 5V Power Supply
鈻?/div>
Meets True EIA/TIA-232-F Standards
from a +3.0V to +5.5V Power Supply
鈻?/div>
Meets EIA-562 Specifications at V
CC
鈮?/div>
2.7V
鈻?/div>
Two Drivers and Receivers
鈻?/div>
Operates with 0.1碌F Capacitors
鈻?/div>
High Data Rate 鈥?120kbps Under Load
鈻?/div>
Low Power Shutdown
鈮?碌A(chǔ)
鈻?/div>
3-State TTL/CMOS Receiver Outputs
鈻?/div>
Low Power CMOS 鈥?<1mA Operation
鈻?/div>

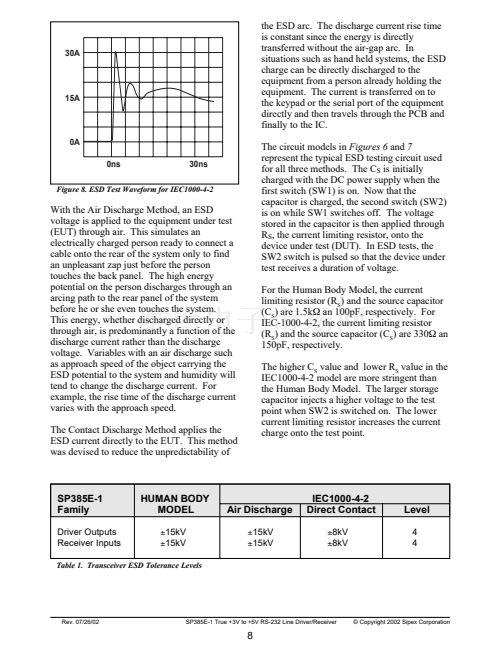

Improved ESD Specifications:
+15kV Human Body Model
+15kV IEC1000-4-2 Air Discharge
+8kV IEC1000-4-2 Contact Discharge
DESCRIPTION
The
Sipex SP385E-1
is an enhanced version of the
Sipex
SP200 family of RS232 line
drivers/receivers. The
SP385E-1
offers +3.3V operation for EIA-562 and EIA-232 applica-
tions. The
SP385E-1
maintains the same performance features offered in its predecessors.
The
SP385E-1

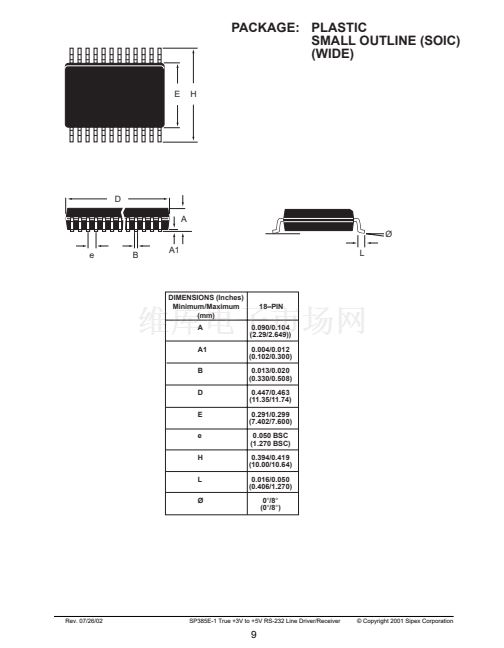

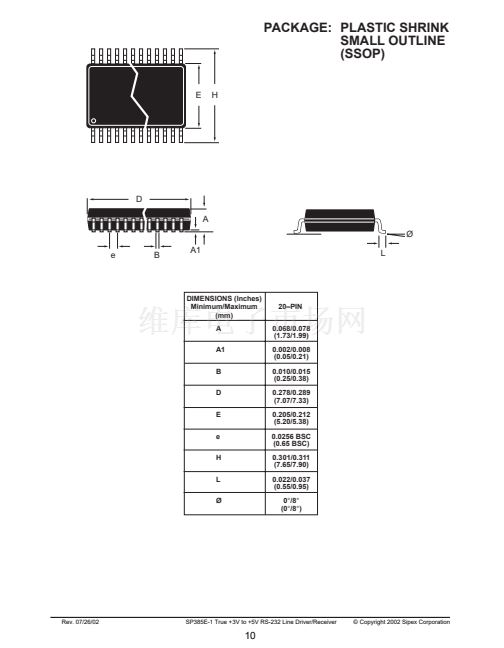

is available in plastic SOIC or SSOP packages operating over the commercial
and industrial temperature ranges. The
SP385E-1
is pin compatible to the LTC1385 EIA-562
transceiver, except the drivers in the
SP385E-1
can only be disabled with the ON/OFF pin.
RS232 OUTPUTS
RS232 INPUTS

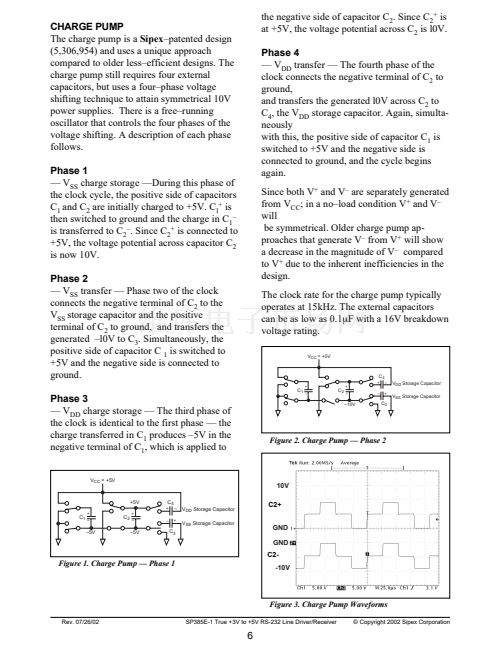

Charge
Pumps
T
1
T
2
R
1
R
2
TTL/CMOS INPUTS
TTL/CMOS OUTPUTS
Rev. 07/26/02
SP385E-1 True +3V to +5V RS-232 Line Driver/Receiver
漏 Copyright 2001 Sipex Corporation
1
