SP3493 Datasheet

  • SP3493

  • +3.3V Low Power RS-485/RS-422 Transceivers

  • 11頁

  • SIPEX

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬
SP3493/SP3494
+3.3V Low Power
RS-485/RS-422 Transceivers
鈻?/div>
Operates From A Single +3.3V Supply
鈻?/div>
Interoperable With +5V Logic
鈻?/div>
+200mV Receiver Input Sensitivity
鈻?/div>
-7V to +12V Common-Mode Input
Voltage Range
鈻?/div>
Devices Allow Up To 32 Transceivers
On The Serial Bus
鈻?/div>
Driver/Receiver Enable Lines (SP3494)
鈻?/div>
2nA Low-Power Shutdown Mode (SP3494)
鈻?/div>
Compatible With The MAX3488, LTC490
and 75179 Industry Standard Pinouts
(SP3493)
鈻?/div>
Compatible With The MAX3486 and 75176
Industry Standard Pinouts (SP3494)

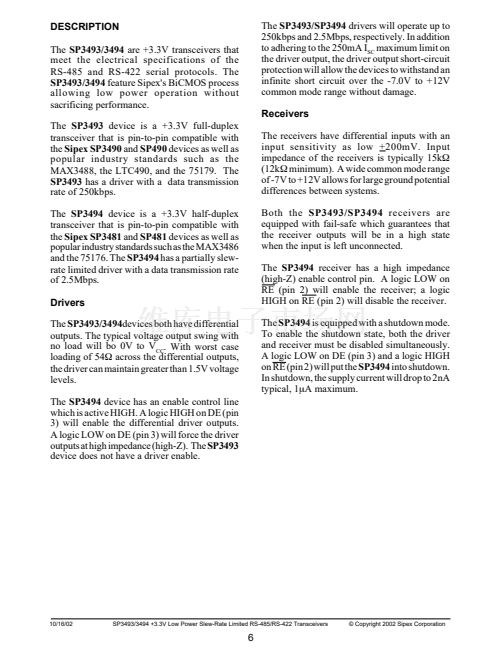

DESCRIPTION
The
SP3493
and the
3494
devices are +3.3V, low power transceivers that meet the
specifications of the RS-485 and RS-422 serial protocols. The
SP3493
and the
3494
devices
are pin-to-pin compatible with the
Sipex SP3490
and the
SP3481
devices, respectively, as well
as other popular industry standards. The devices feature
Sipex's
BiCMOS process, allowing
low power operation without sacrificing performance. The partially slew-rate limited drivers
minimize EMI and reduce reflections caused by improperly terminated cables allowing
error-free data transmission. The
SP3493
is a full-duplex low power transceiver that will
deliver a data transmission rate up to 250kbps. The
SP3494
is a half-duplex partially slew-rate
limited transceiver that will deliver a data transmission rate up to 2.5Mbps. The
SP3494
is
equipped with a low-power shutdown mode and driver/receiver high-Z enable lines.

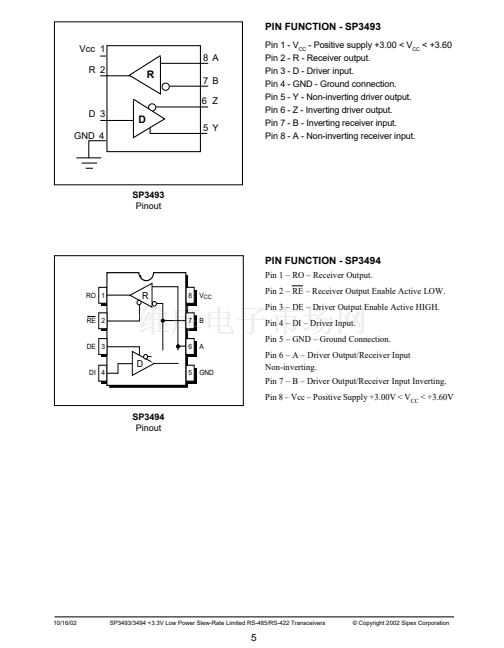

Vcc 1
R 2
8 A
R
RO 1
R
8
V
CC
7 B
RE 2
7
B
6 Z
D 3
GND 4
D
DE 3
6
A
5 Y
DI 4
D
5
GND
SP3493
10/16/02
SP3493/3494 +3.3V Low Power Slew-Rate Limited RS-485/RS-422 Transceivers
SP3494
漏 Copyright 2002 Sipex Corporation
1
