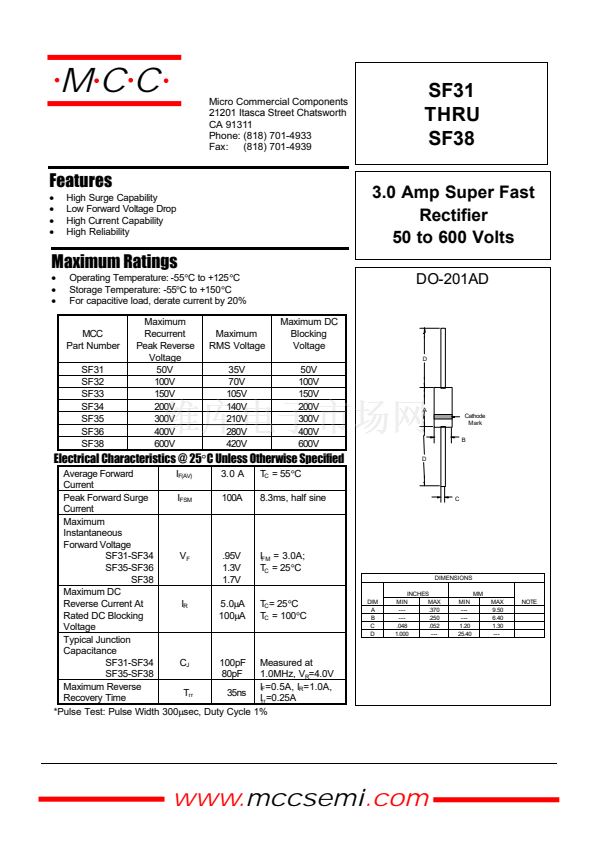

Maximum Ratings
Operating Temperature: -55擄C to +125擄C
Storage Temperature: -55擄C to +150擄C
For capacitive load, derate current by 20%
MCC
Part Number
SF31
SF32
SF33
SF34
SF35
SF36
SF38
Maximum
Recurrent
Peak Reverse
Voltage
50V
100V
150V
200V
300V
400V
600V
Maximum
RMS Voltage
35V
70V
105V
140V
210V
280V
420V
Maximum DC
Blocking
Voltage
D
50V
100V
150V
200V
300V
400V
600V
A
Cathode
Mark
B
D
Electrical Characteristics @ 25擄C Unless Otherwise Specified
Average Forward
I
F(AV)
3.0 A
T
C
= 55擄C
Current
Peak Forward Surge
I
FSM
100A
8.3ms, half sine
Current
Maximum
Instantaneous
Forward Voltage
I
FM
= 3.0A;
V
F
.95V
SF31-SF34
1.3V
SF35-SF36
T
C
= 25擄C
1.7V
SF38
Maximum DC
I
R
Reverse Current At
5.0碌A
T
C
= 25擄C
Rated DC Blocking
100碌A T
C
= 100擄C
Voltage
Typical Junction
Capacitance
C
J
SF31-SF34
100pF Measured at
1.0MHz, V
R
=4.0V
SF35-SF38
80pF
Maximum Reverse
I
F
=0.5A, I
R
=1.0A,
T
rr
35ns
Recovery Time
I
rr
=0.25A
*Pulse Test: Pulse Width 300碌sec, Duty Cycle 1%
C
DIMENSIONS
INCHES
MIN
MAX
---
.370
---
.250
.048
.052
1.000
---
MM
MIN
---
---
1.20
25.40
MAX
9.50
6.40
1.30
---
NOTE
DIM
A
B
C
D
www.mccsemi.com
