SC16C750BIBS Datasheet

  • SC16C750BIBS

  • 5 V, 3.3 V and 2.5 V UART with 64-byte FIFOs

  • 210.40KB

  • 44頁

  • PHILIPS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

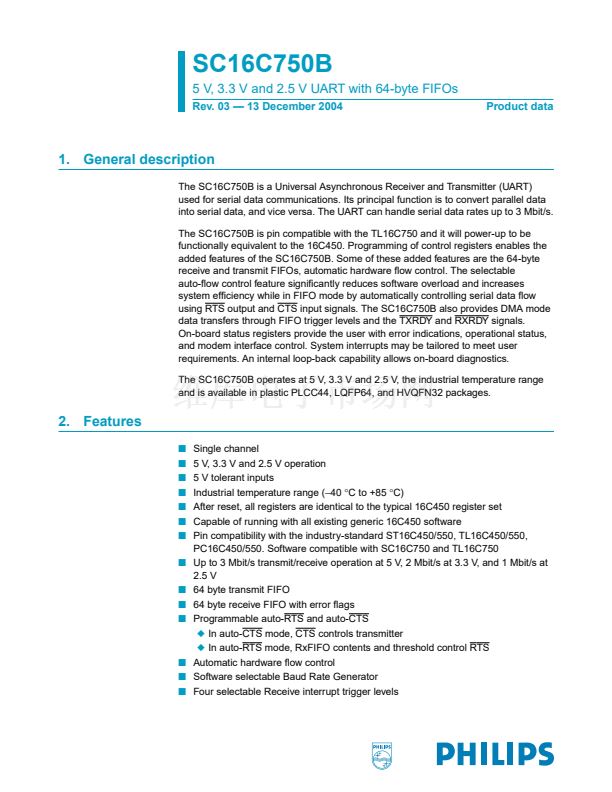

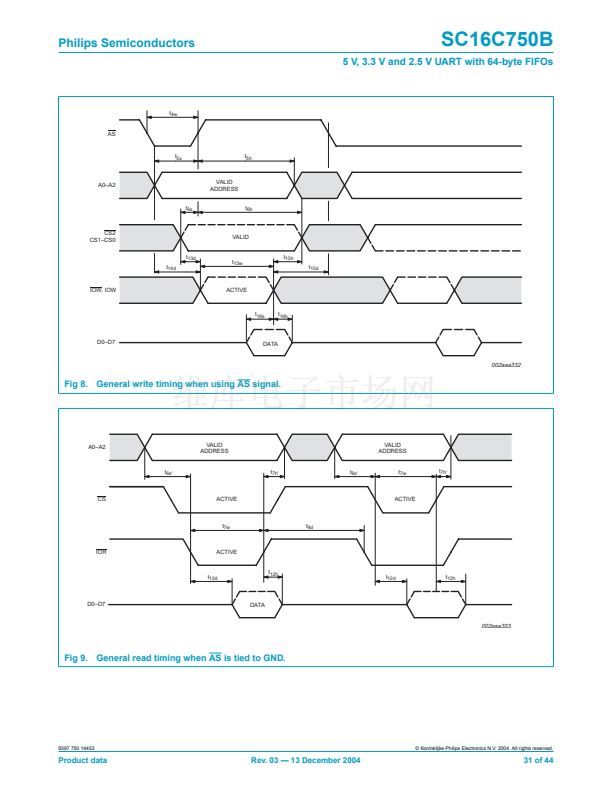

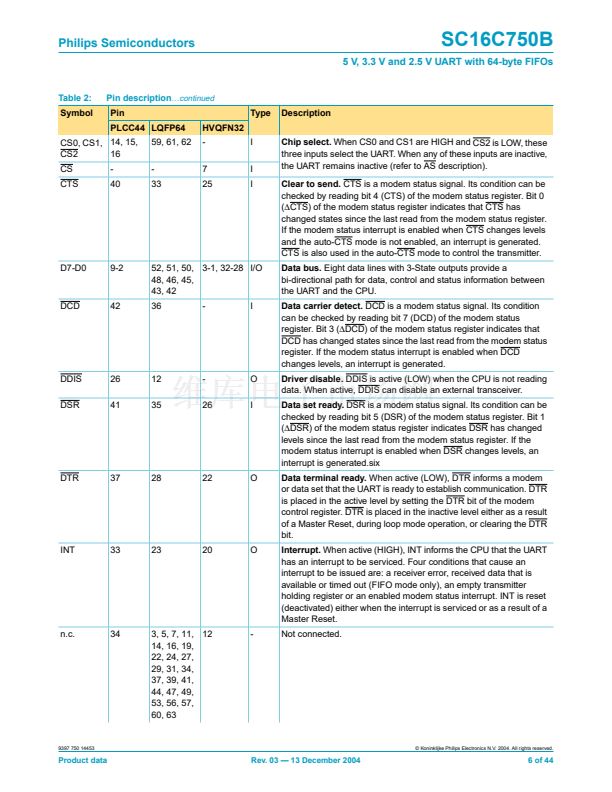

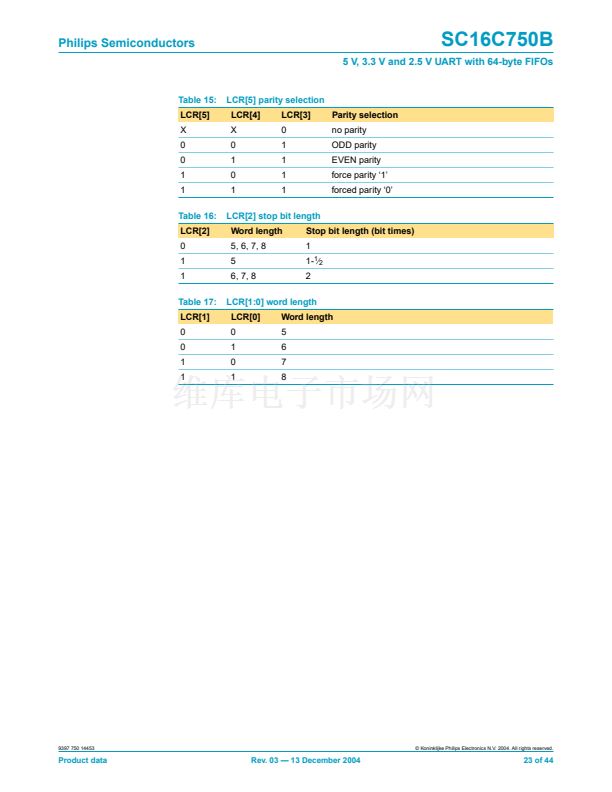

SC16C750B
5 V, 3.3 V and 2.5 V UART with 64-byte FIFOs
Rev. 03 鈥?13 December 2004
Product data
1. General description

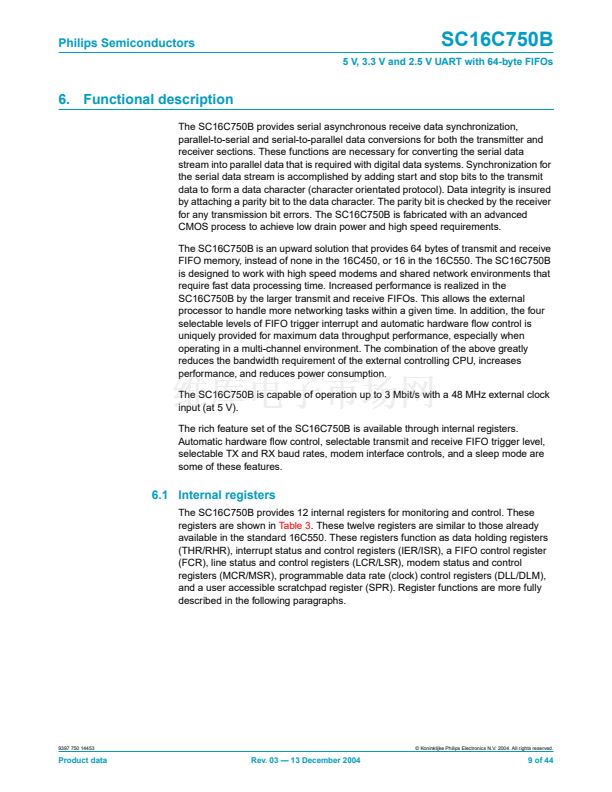

The SC16C750B is a Universal Asynchronous Receiver and Transmitter (UART)
used for serial data communications. Its principal function is to convert parallel data
into serial data, and vice versa. The UART can handle serial data rates up to 3 Mbit/s.
The SC16C750B is pin compatible with the TL16C750 and it will power-up to be

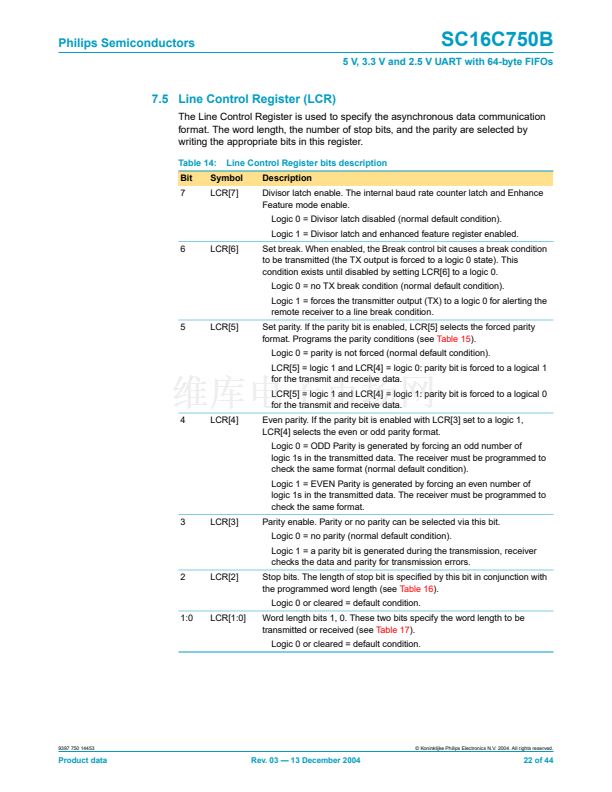

functionally equivalent to the 16C450. Programming of control registers enables the
added features of the SC16C750B. Some of these added features are the 64-byte
receive and transmit FIFOs, automatic hardware 鏗俹w control. The selectable
auto-鏗俹w control feature signi鏗乧antly reduces software overload and increases
system ef鏗乧iency while in FIFO mode by automatically controlling serial data 鏗俹w

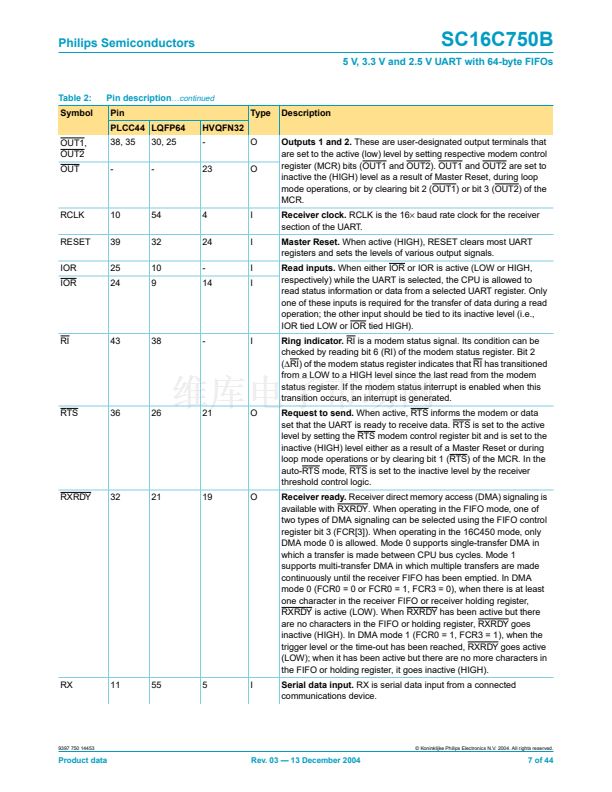

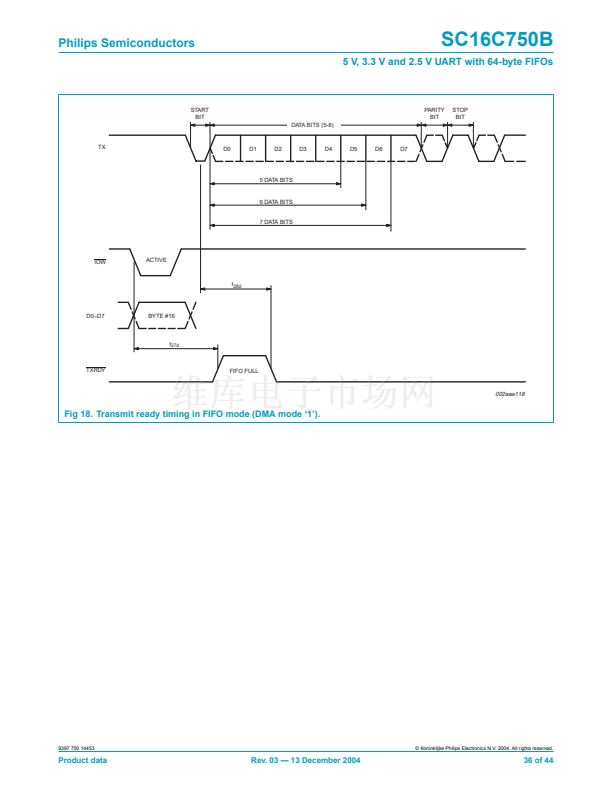

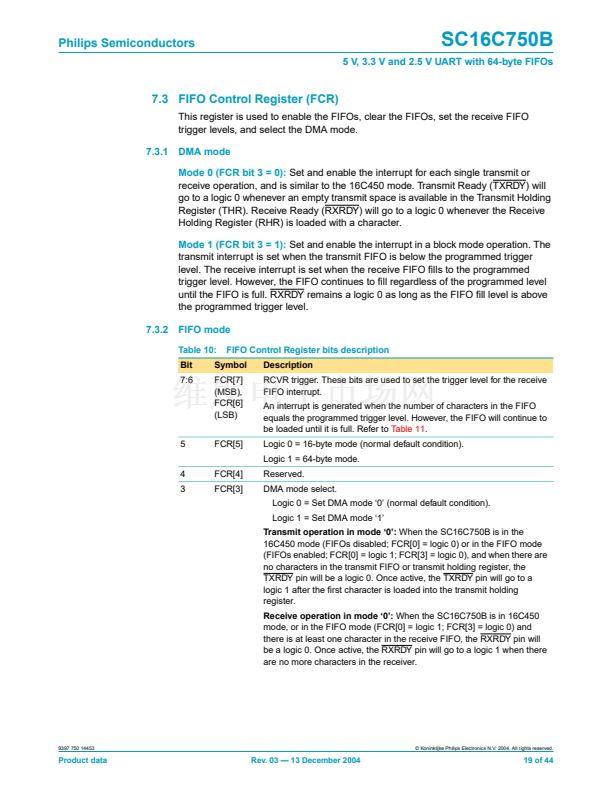

using RTS output and CTS input signals. The SC16C750B also provides DMA mode

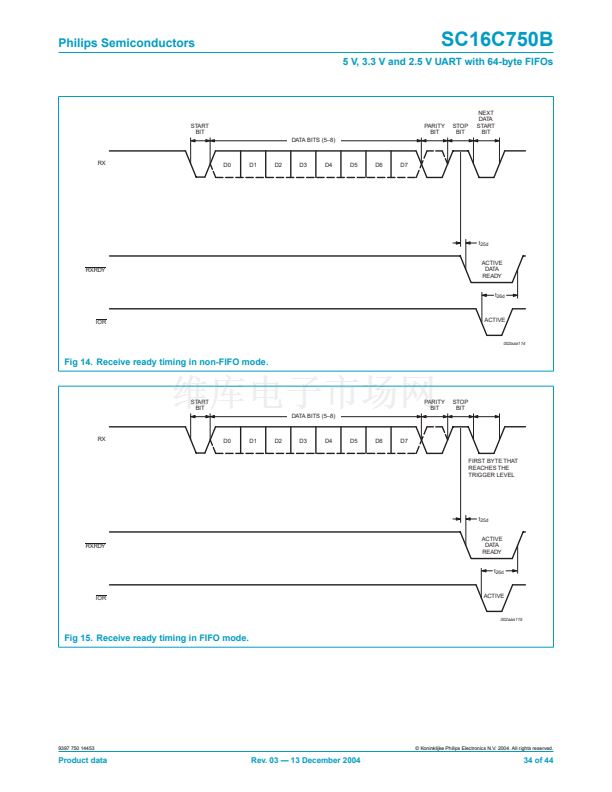

data transfers through FIFO trigger levels and the TXRDY and RXRDY signals.

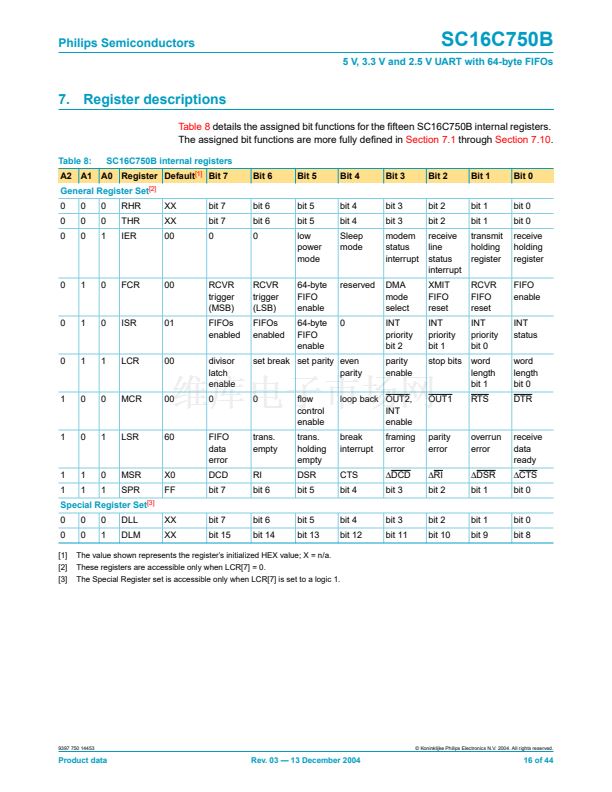

On-board status registers provide the user with error indications, operational status,

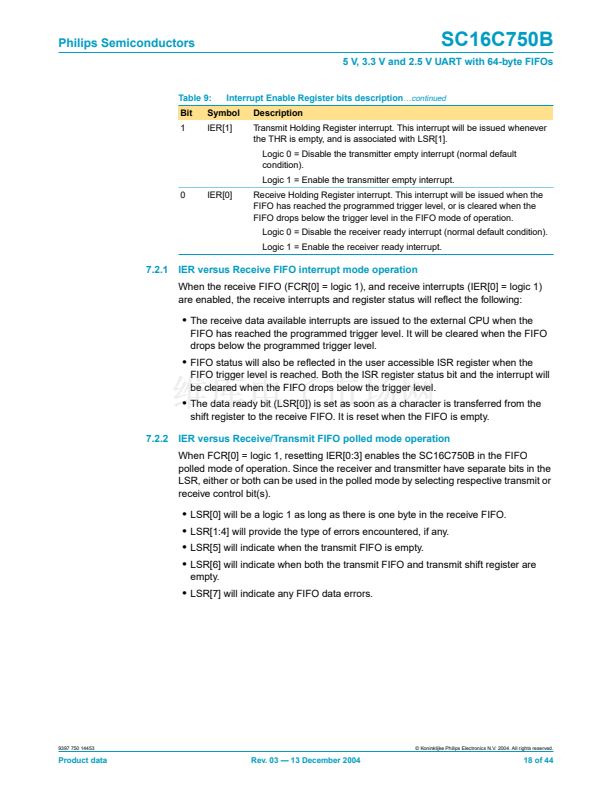

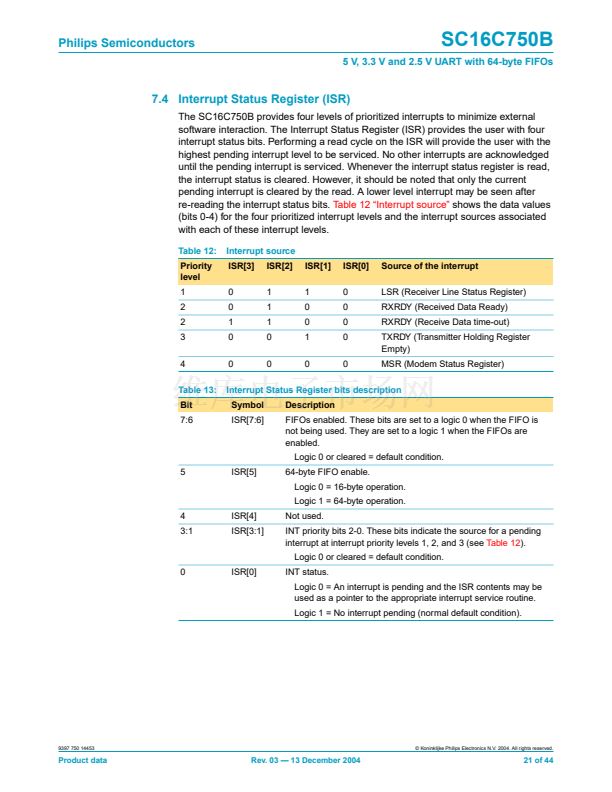

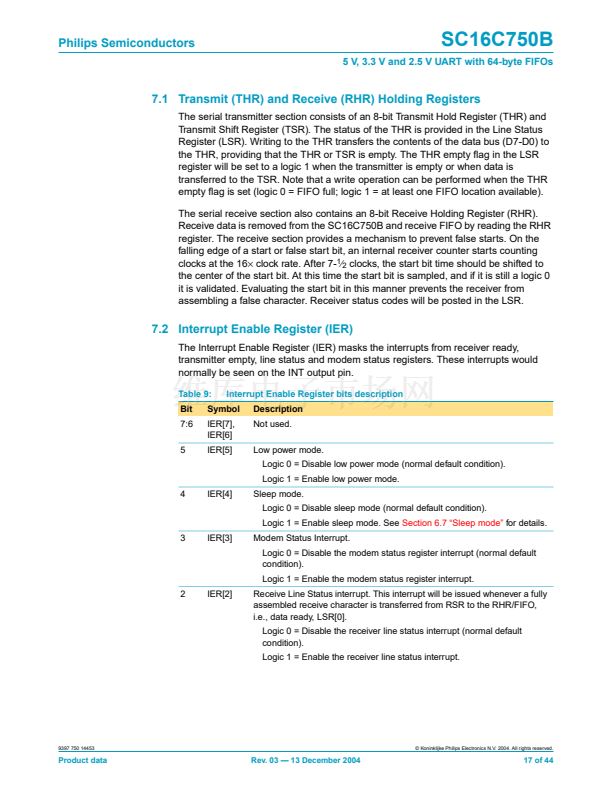

and modem interface control. System interrupts may be tailored to meet user

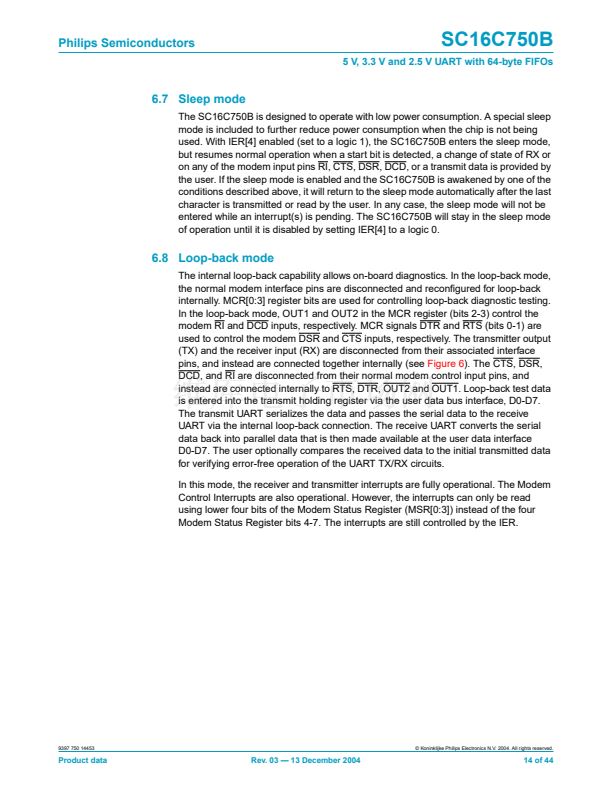

requirements. An internal loop-back capability allows on-board diagnostics.

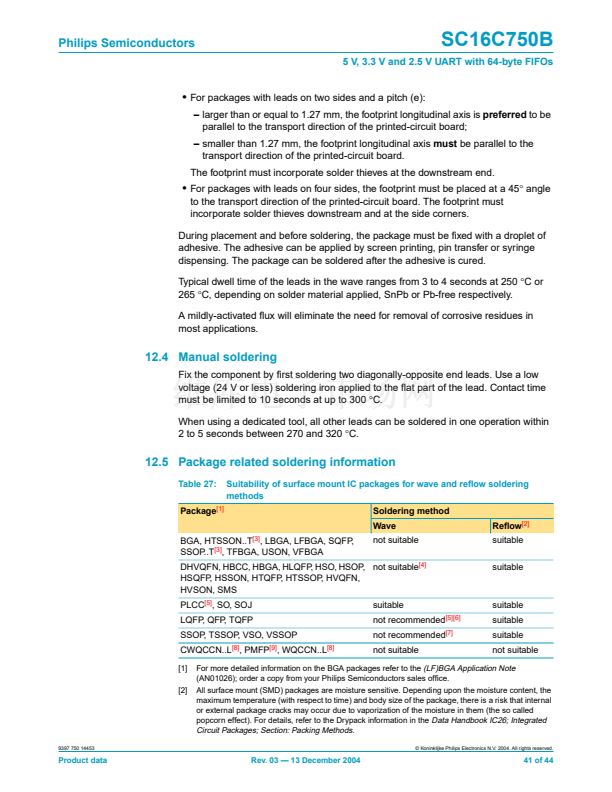

The SC16C750B operates at 5 V, 3.3 V and 2.5 V, the industrial temperature range

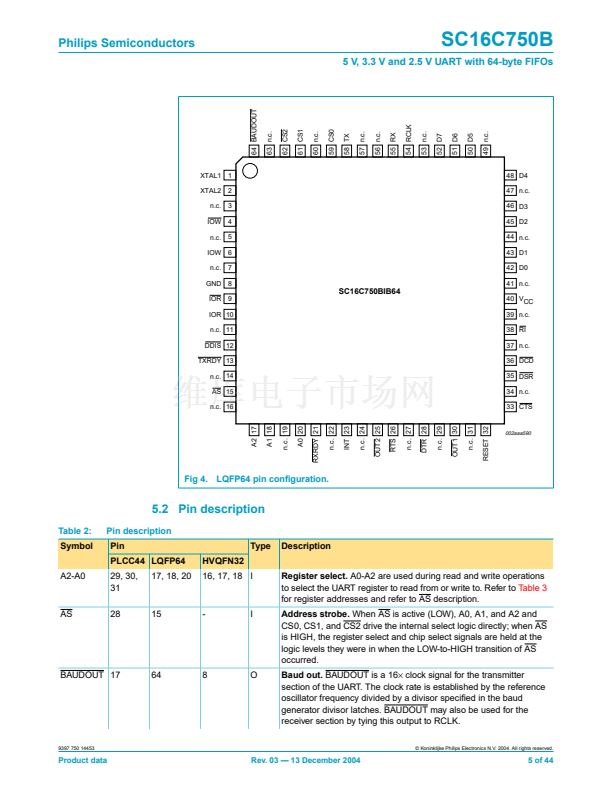

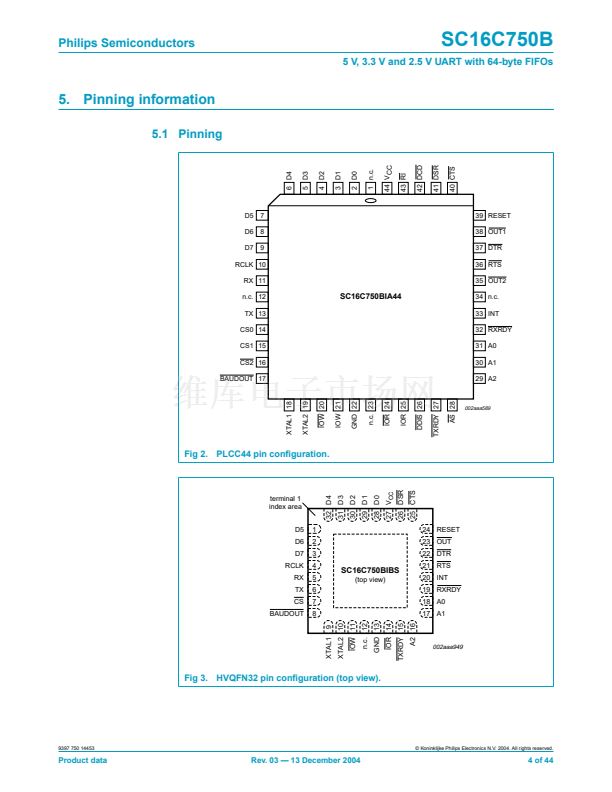

and is available in plastic PLCC44, LQFP64, and HVQFN32 packages.

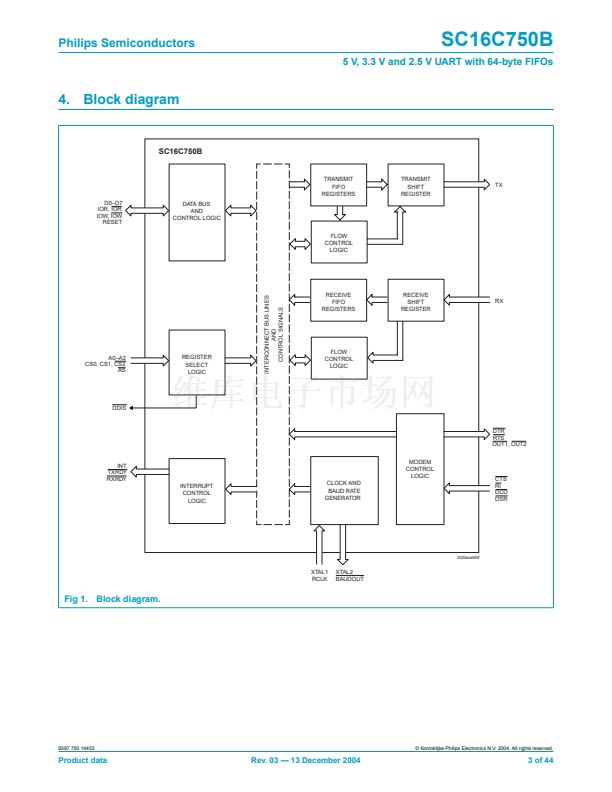

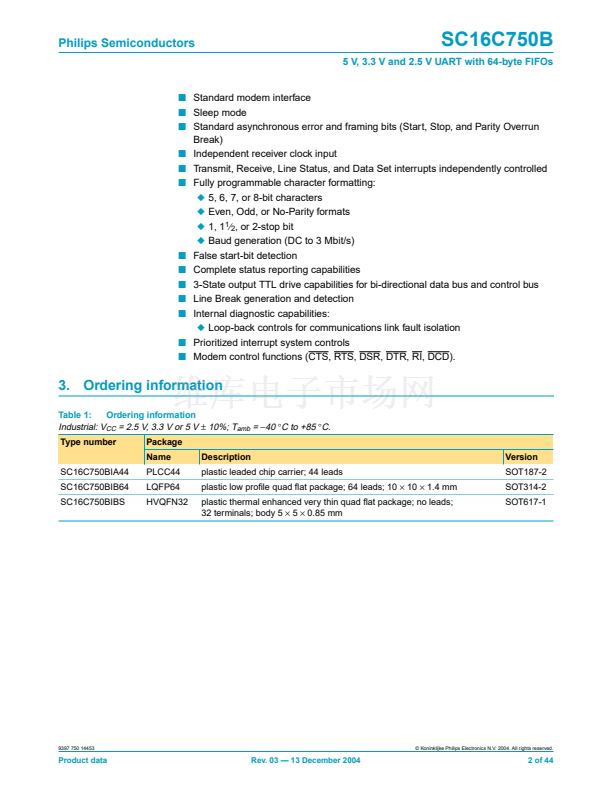

2. Features
s
s
s
s
s
s
s
s
s
s
s
Single channel
5 V, 3.3 V and 2.5 V operation
5 V tolerant inputs
Industrial temperature range (鈭?0
擄C
to +85
擄C)
After reset, all registers are identical to the typical 16C450 register set
Capable of running with all existing generic 16C450 software
Pin compatibility with the industry-standard ST16C450/550, TL16C450/550,
PC16C450/550. Software compatible with SC16C750 and TL16C750

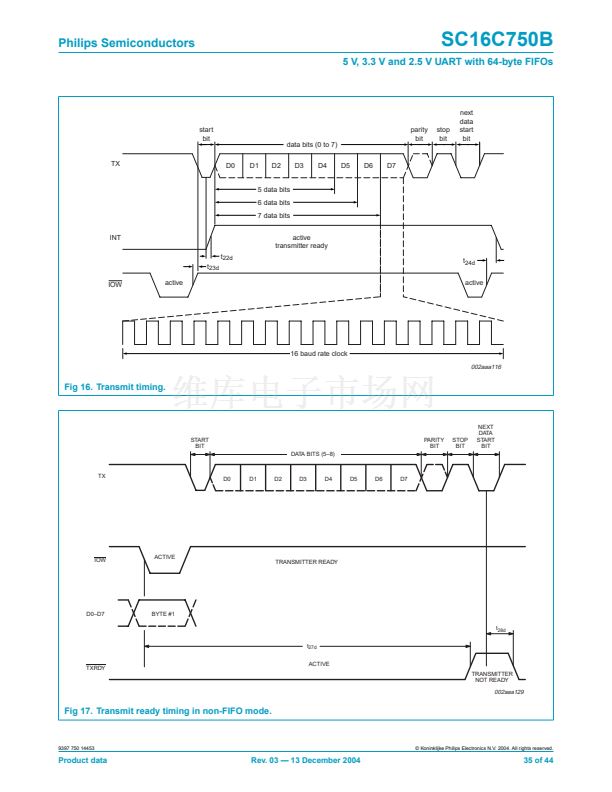

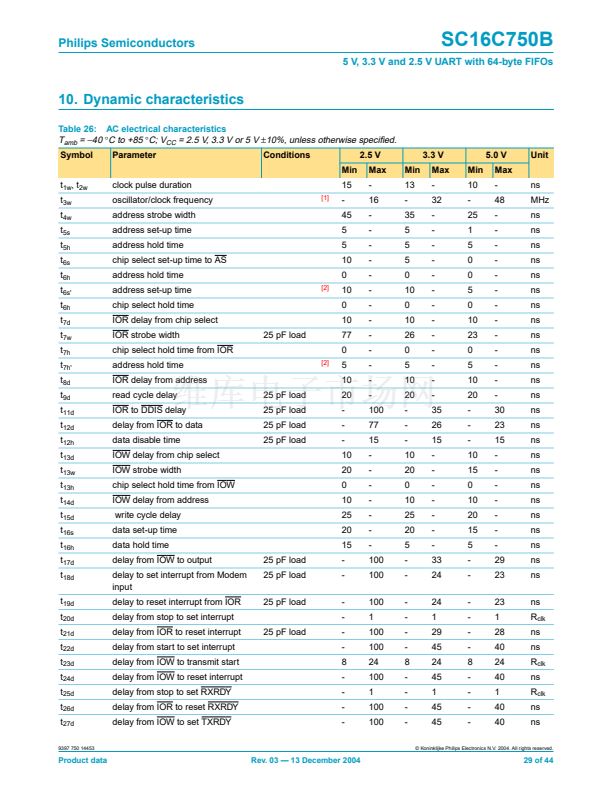

Up to 3 Mbit/s transmit/receive operation at 5 V, 2 Mbit/s at 3.3 V, and 1 Mbit/s at
2.5 V

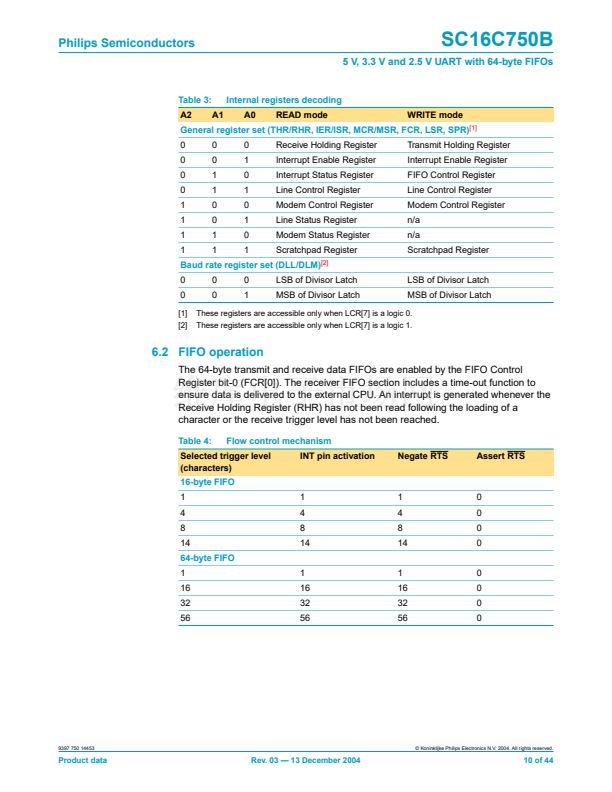

64 byte transmit FIFO
64 byte receive FIFO with error 鏗俛gs

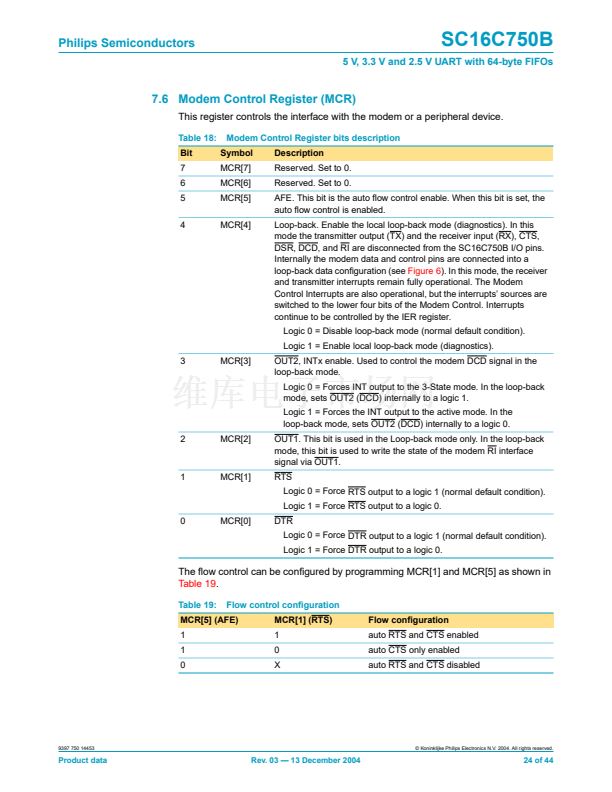

Programmable auto-RTS and auto-CTS
x
In auto-CTS mode, CTS controls transmitter
x
In auto-RTS mode, RxFIFO contents and threshold control RTS

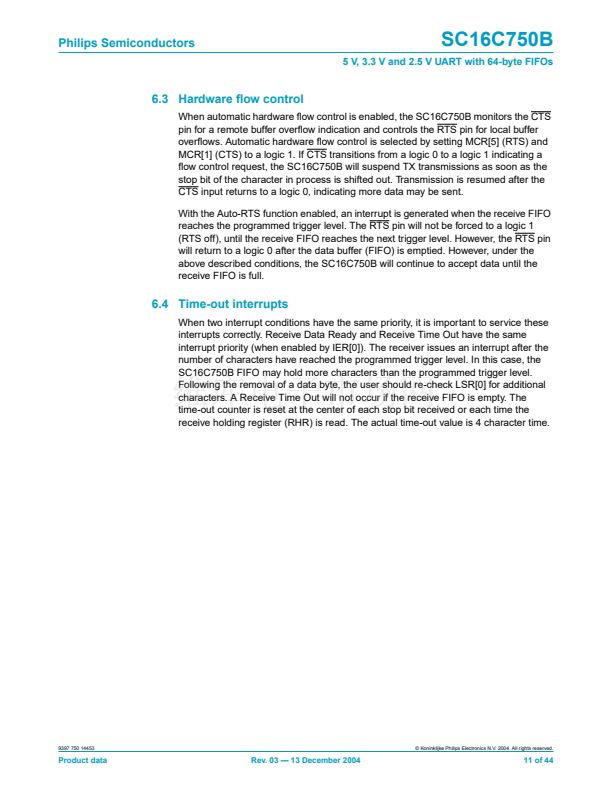

Automatic hardware 鏗俹w control

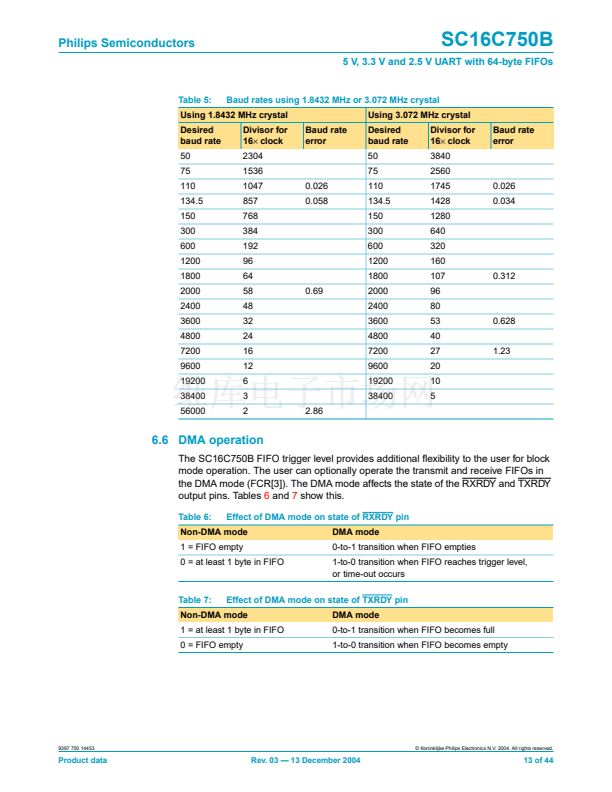

Software selectable Baud Rate Generator

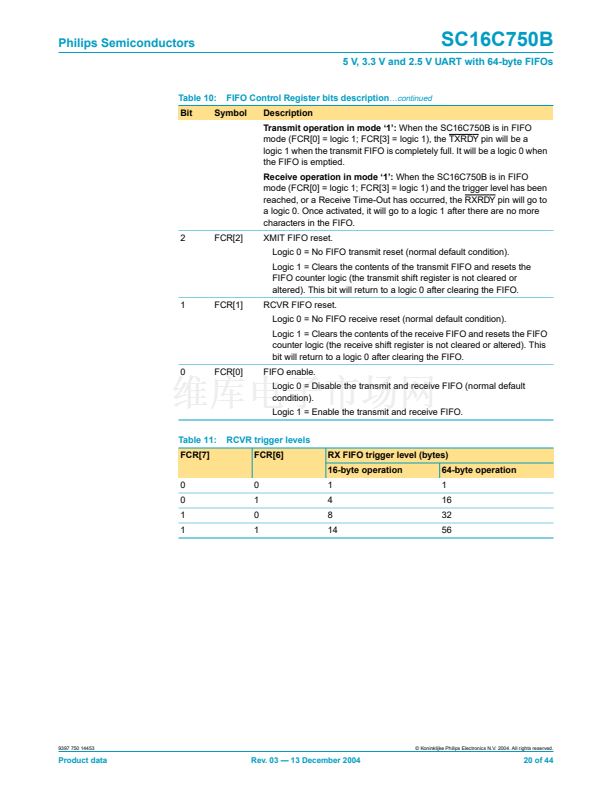

Four selectable Receive interrupt trigger levels
s
s
s

SC16C750BIBS 產品屬性

  • NXP

  • UART 接口集成電路

  • 1

  • 3 Mbps

  • 5.5 V

  • 2.25 V

  • 4.5 mA

  • + 85 C

  • - 40 C

  • HVQFN-32

  • Bulk

  • SMD/SMT

  • 2.5 V, 3.3 V, 5 V

  • 2450

  • 5 V, 3.3 V and 2.5 V UART with 64-byte FIFOs

  • SC16C750BIBS,157
