SC16C650BIA44 Datasheet

  • SC16C650BIA44

  • 5 V, 3.3 V and 2.5 V UART with 32-byte FIFOs and infrared (I...

  • 51頁

  • PHILIPS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

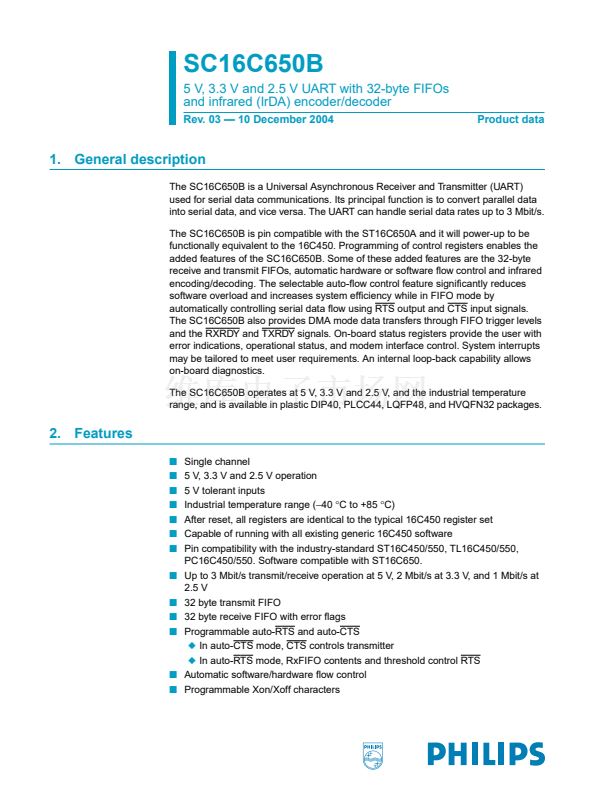

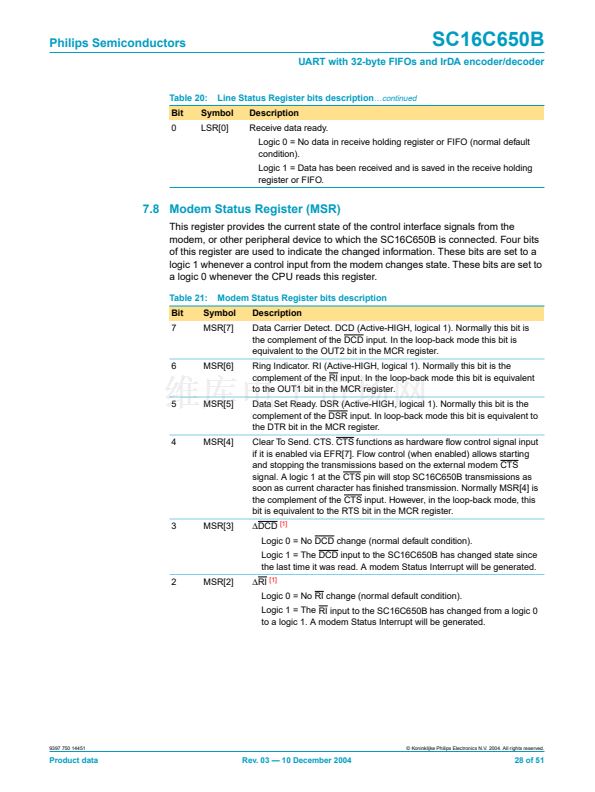

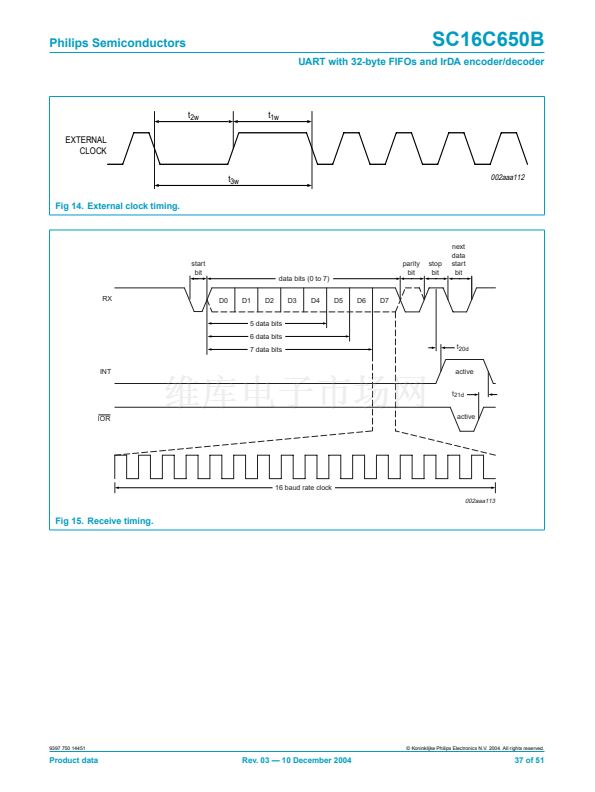

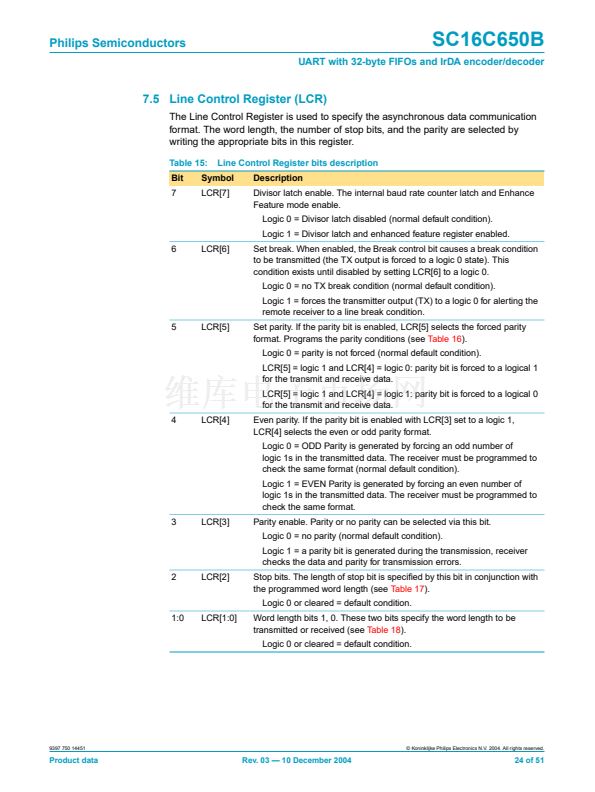

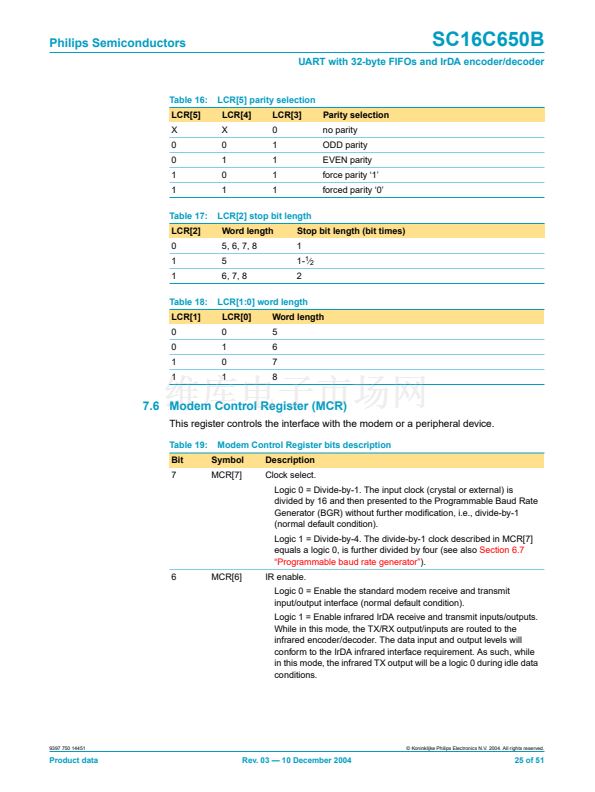

SC16C650B
5 V, 3.3 V and 2.5 V UART with 32-byte FIFOs
and infrared (IrDA) encoder/decoder
Rev. 03 鈥?10 December 2004
Product data
1. General description

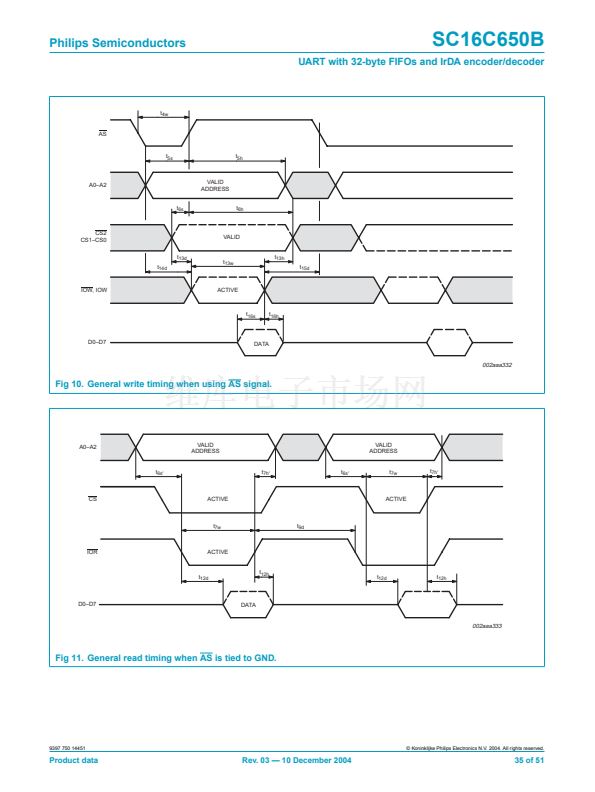

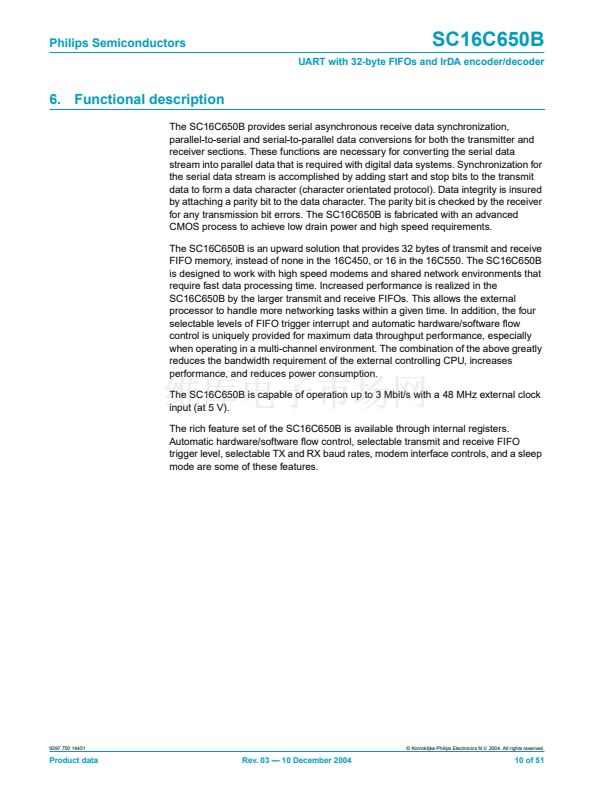

The SC16C650B is a Universal Asynchronous Receiver and Transmitter (UART)
used for serial data communications. Its principal function is to convert parallel data
into serial data, and vice versa. The UART can handle serial data rates up to 3 Mbit/s.
The SC16C650B is pin compatible with the ST16C650A and it will power-up to be
functionally equivalent to the 16C450. Programming of control registers enables the
added features of the SC16C650B. Some of these added features are the 32-byte
receive and transmit FIFOs, automatic hardware or software 鏗俹w control and infrared
encoding/decoding. The selectable auto-鏗俹w control feature signi鏗乧antly reduces
software overload and increases system ef鏗乧iency while in FIFO mode by
automatically controlling serial data 鏗俹w using RTS output and CTS input signals.

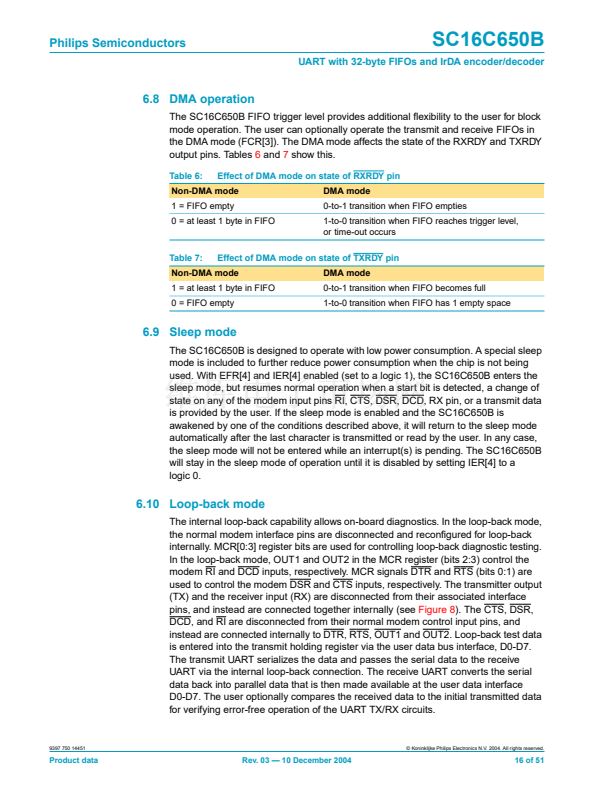

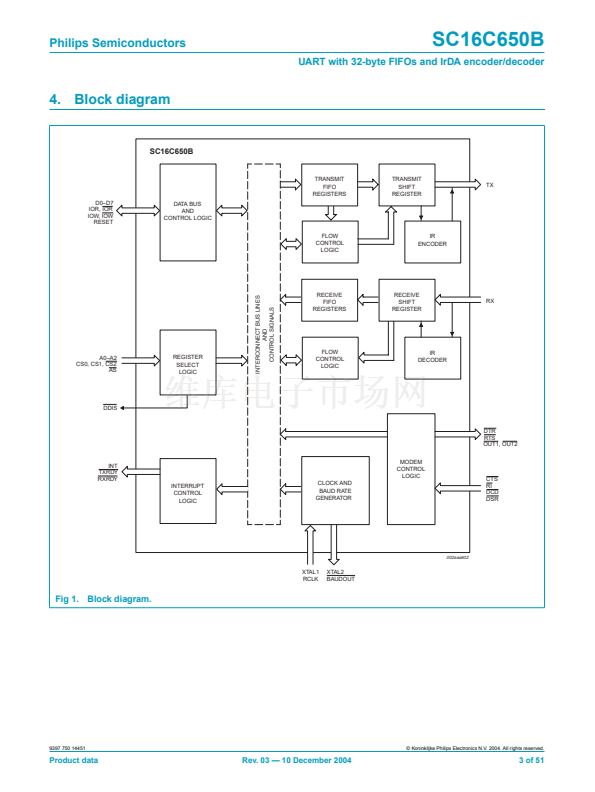

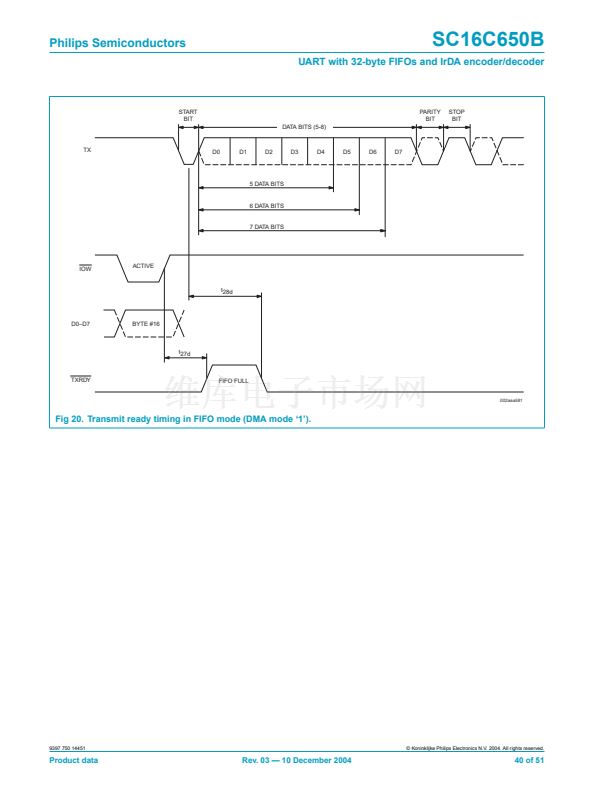

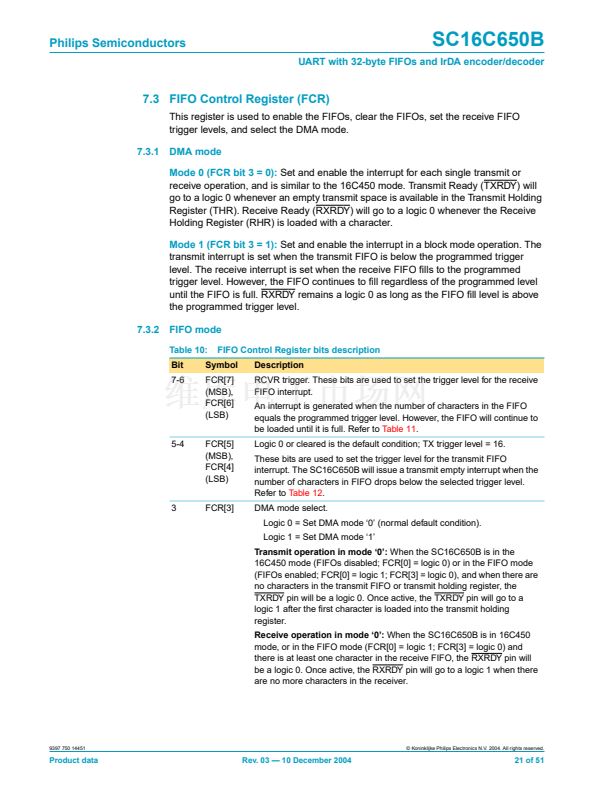

The SC16C650B also provides DMA mode data transfers through FIFO trigger levels

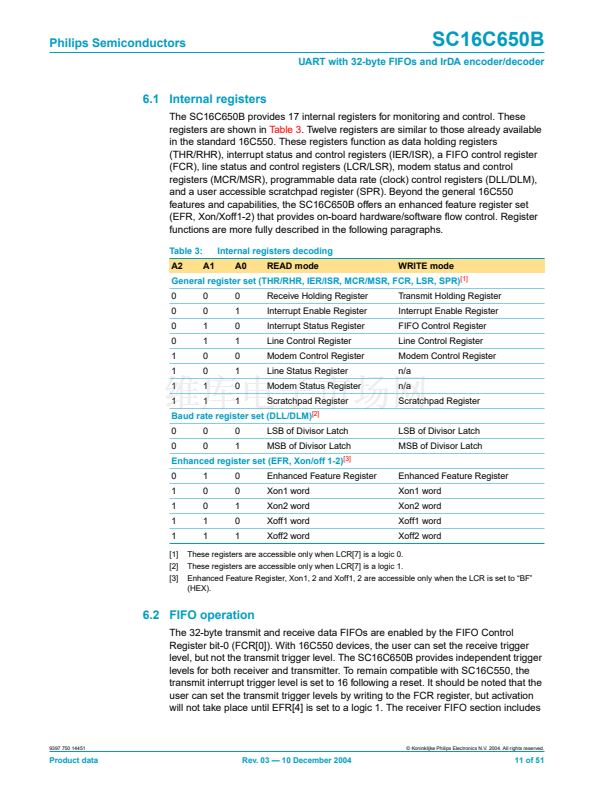

and the RXRDY and TXRDY signals. On-board status registers provide the user with

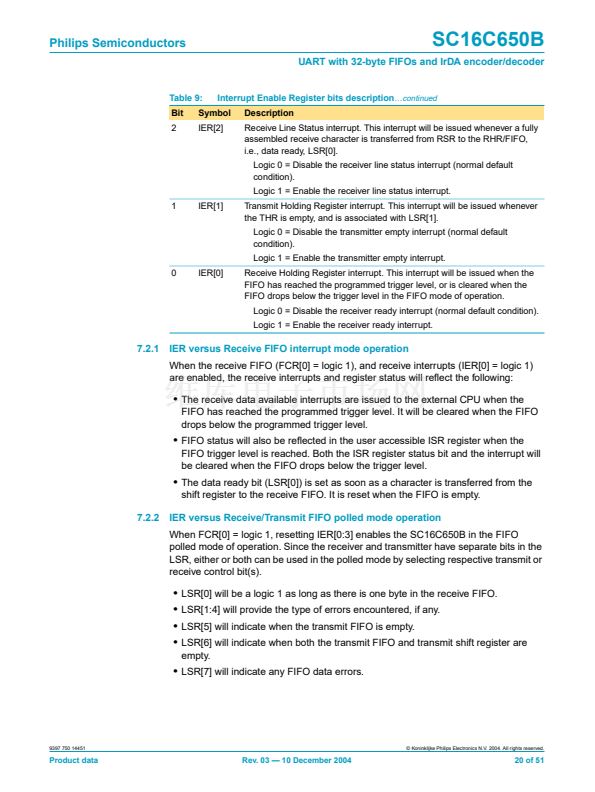

error indications, operational status, and modem interface control. System interrupts
may be tailored to meet user requirements. An internal loop-back capability allows
on-board diagnostics.
The SC16C650B operates at 5 V, 3.3 V and 2.5 V, and the industrial temperature

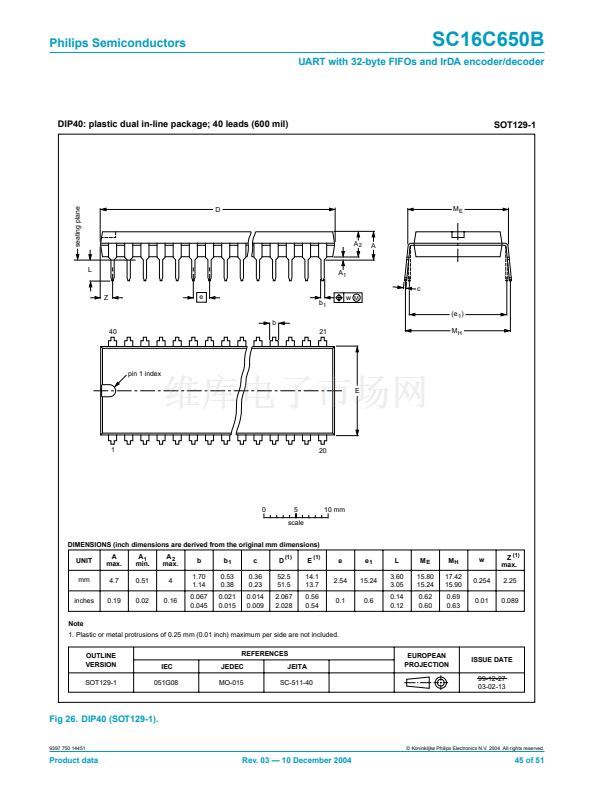

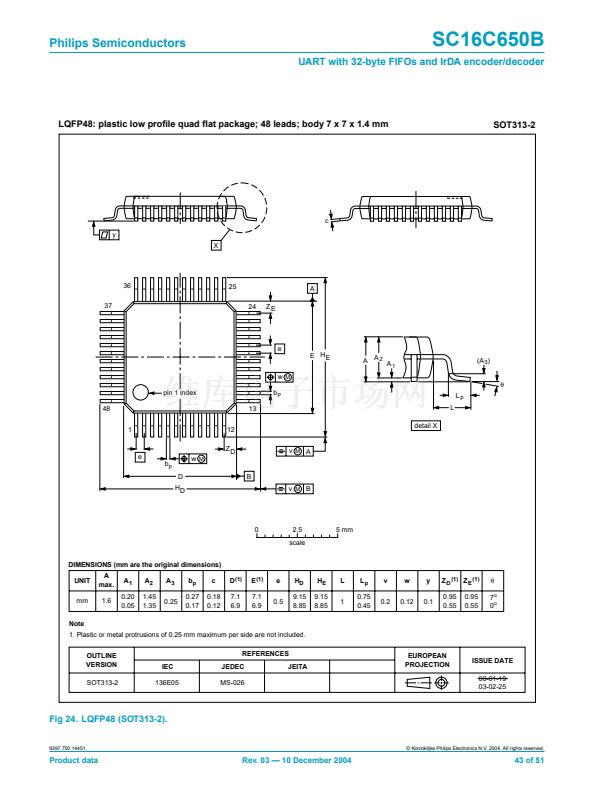

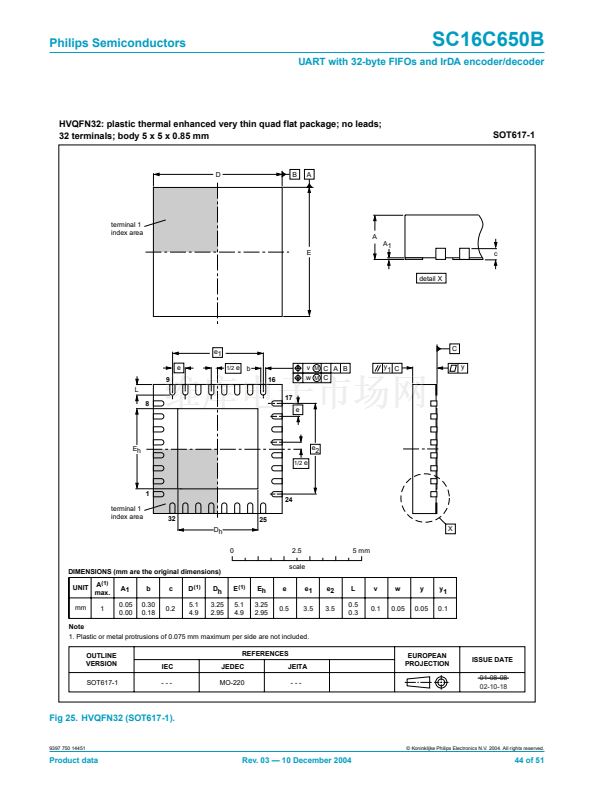

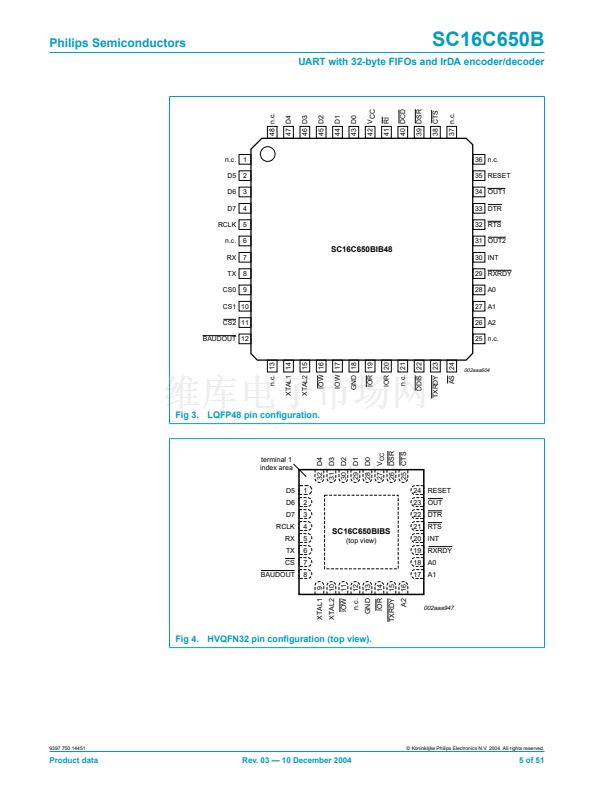

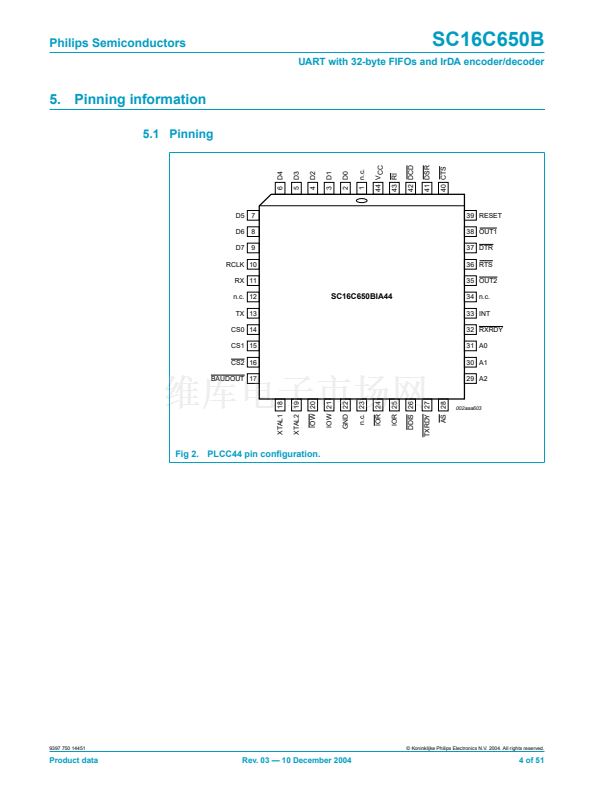

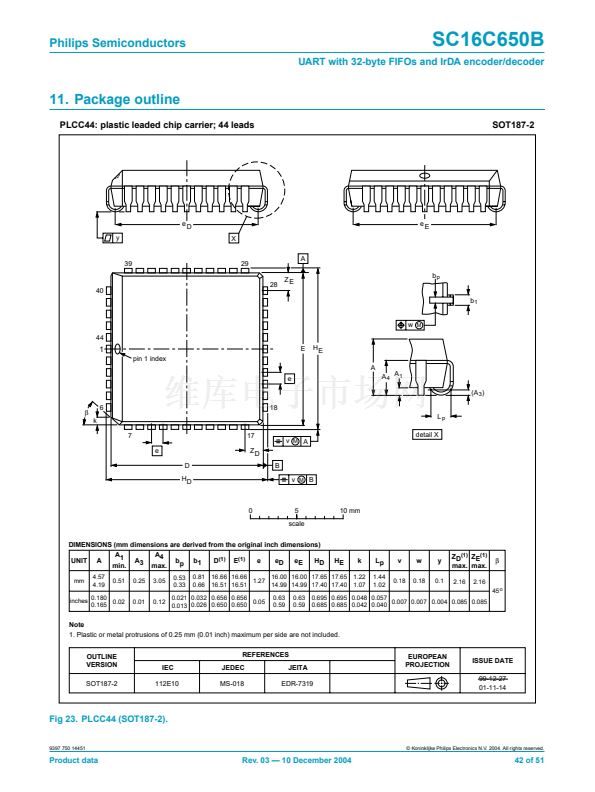

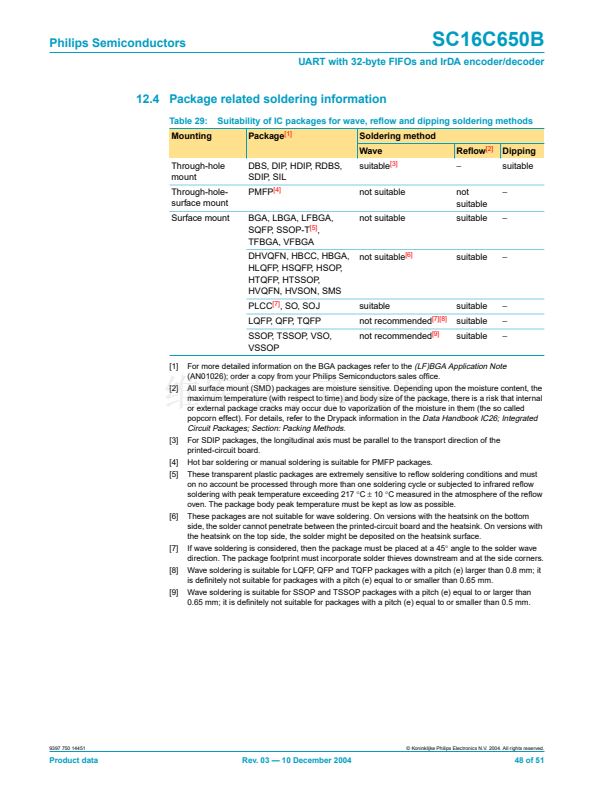

range, and is available in plastic DIP40, PLCC44, LQFP48, and HVQFN32 packages.

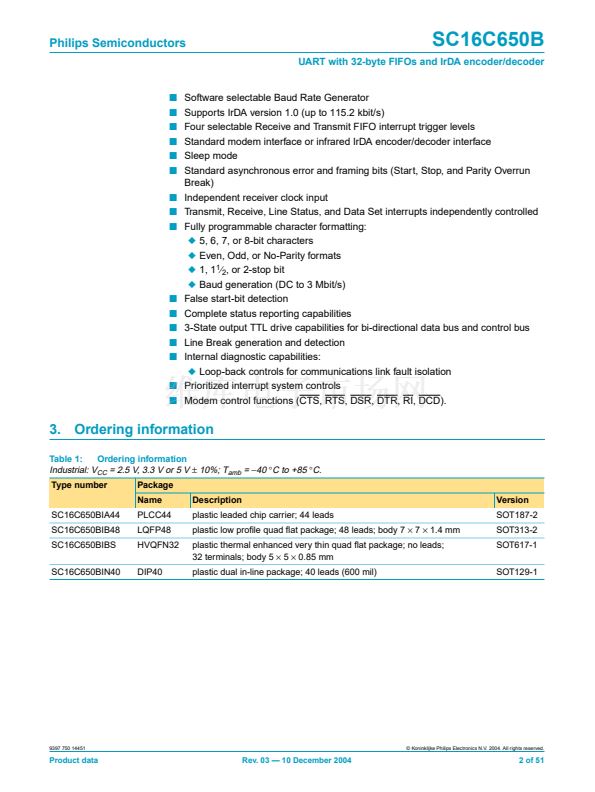

2. Features
s
s
s
s
s
s
s
s
s
s
s
Single channel
5 V, 3.3 V and 2.5 V operation
5 V tolerant inputs
Industrial temperature range (鈭?0
擄C
to +85
擄C)
After reset, all registers are identical to the typical 16C450 register set
Capable of running with all existing generic 16C450 software
Pin compatibility with the industry-standard ST16C450/550, TL16C450/550,
PC16C450/550. Software compatible with ST16C650.
Up to 3 Mbit/s transmit/receive operation at 5 V, 2 Mbit/s at 3.3 V, and 1 Mbit/s at
2.5 V
32 byte transmit FIFO
32 byte receive FIFO with error 鏗俛gs

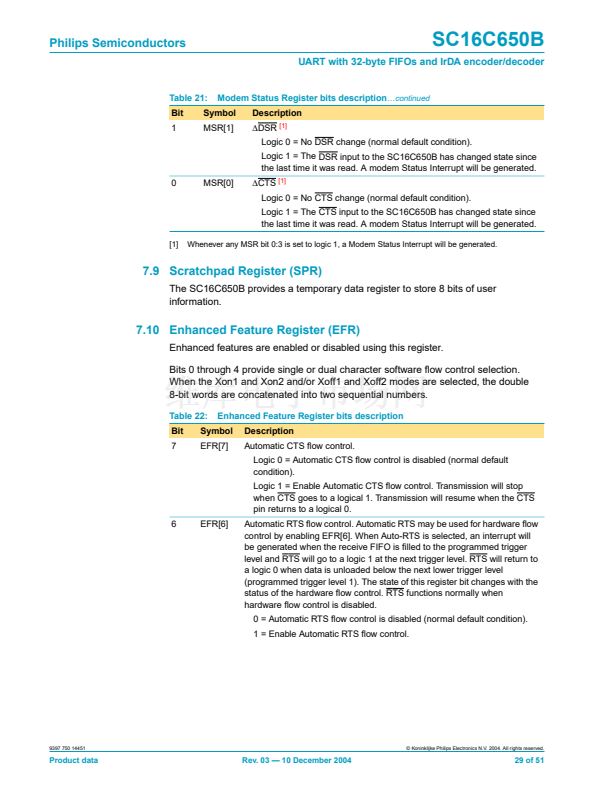

Programmable auto-RTS and auto-CTS
x
In auto-CTS mode, CTS controls transmitter
x
In auto-RTS mode, RxFIFO contents and threshold control RTS

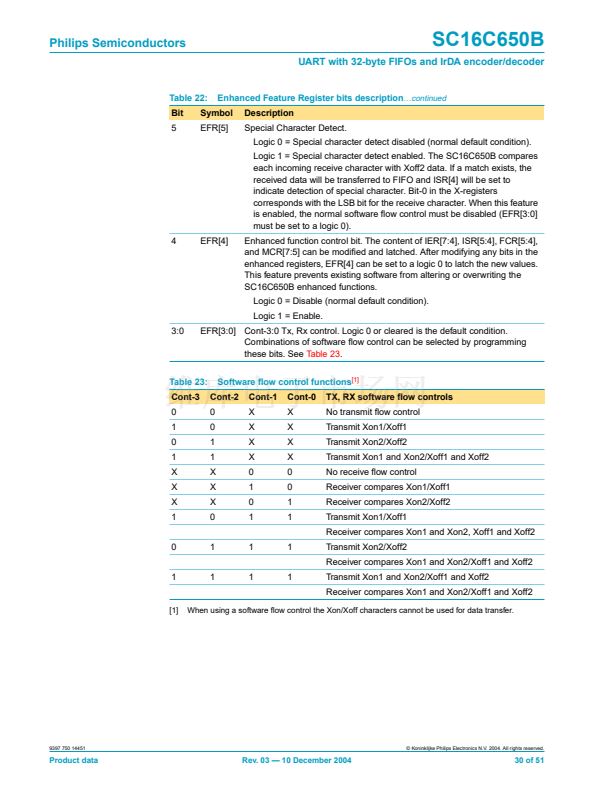

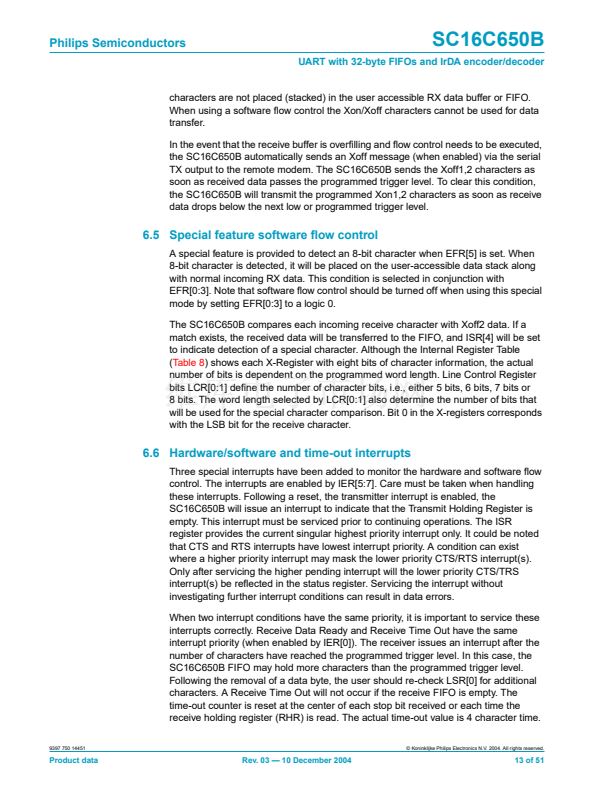

Automatic software/hardware 鏗俹w control
Programmable Xon/Xoff characters
s
s

SC16C650BIA44 產品屬性

  • NXP

  • UART 接口集成電路

  • 1

  • 3 Mbps

  • 5.5 V

  • 2.25 V

  • 4.5 mA

  • + 85 C

  • - 40 C

  • PLCC-44

  • Tube

  • SMD/SMT

  • 2.5 V, 3.3 V, 5 V

  • 26

  • IrDA

  • SC16C650BIA44,512
