SC16C550BIA44 Datasheet

  • SC16C550BIA44

  • 5 V, 3.3 V and 2.5 V UART with 16-byte FIFOs

  • 47頁

  • PHILIPS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

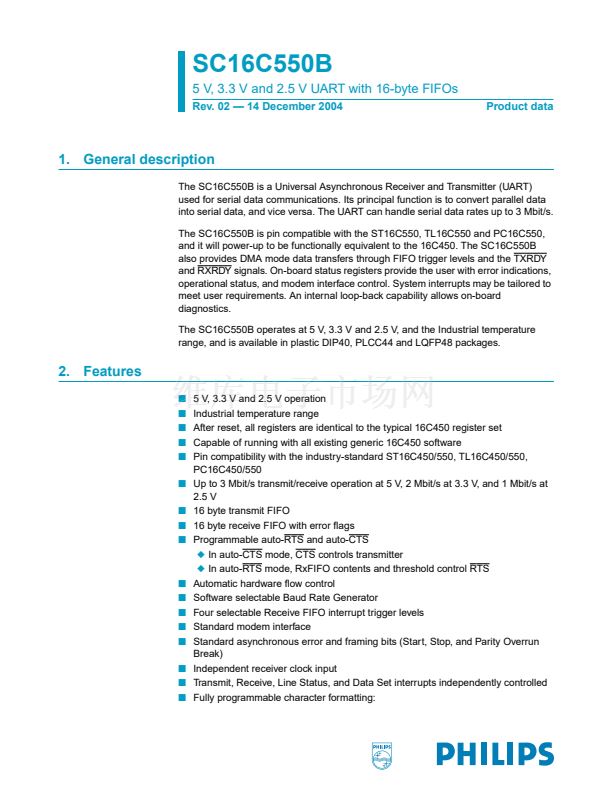

SC16C550B
5 V, 3.3 V and 2.5 V UART with 16-byte FIFOs
Rev. 02 鈥?14 December 2004
Product data
1. General description
The SC16C550B is a Universal Asynchronous Receiver and Transmitter (UART)
used for serial data communications. Its principal function is to convert parallel data
into serial data, and vice versa. The UART can handle serial data rates up to 3 Mbit/s.
The SC16C550B is pin compatible with the ST16C550, TL16C550 and PC16C550,
and it will power-up to be functionally equivalent to the 16C450. The SC16C550B

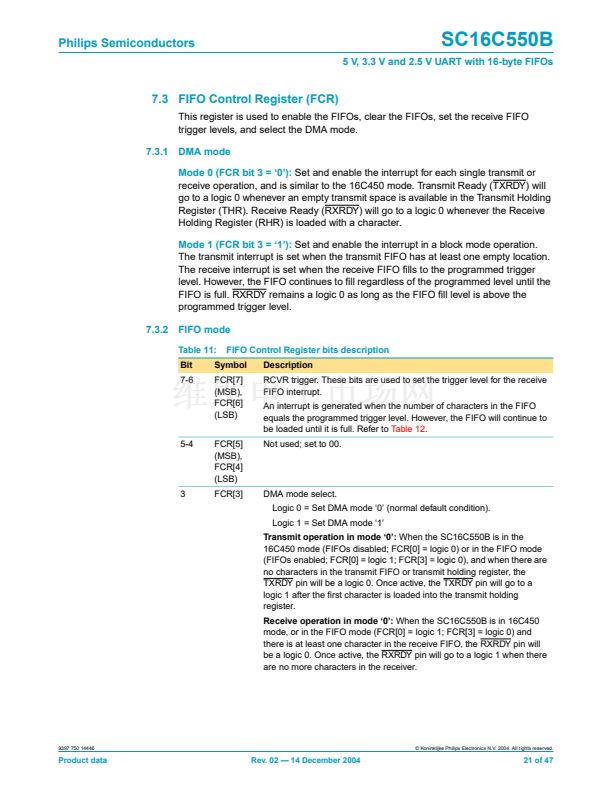

also provides DMA mode data transfers through FIFO trigger levels and the TXRDY
and RXRDY signals. On-board status registers provide the user with error indications,
operational status, and modem interface control. System interrupts may be tailored to
meet user requirements. An internal loop-back capability allows on-board
diagnostics.
The SC16C550B operates at 5 V, 3.3 V and 2.5 V, and the Industrial temperature

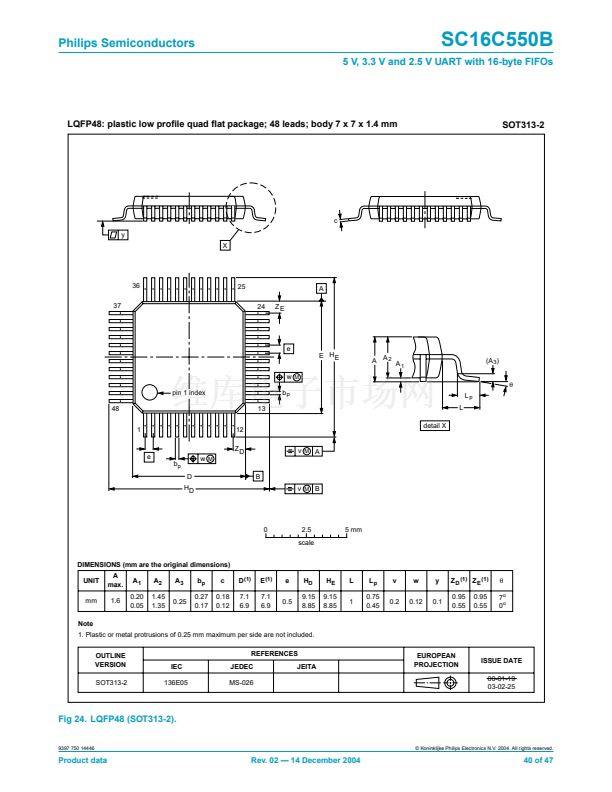

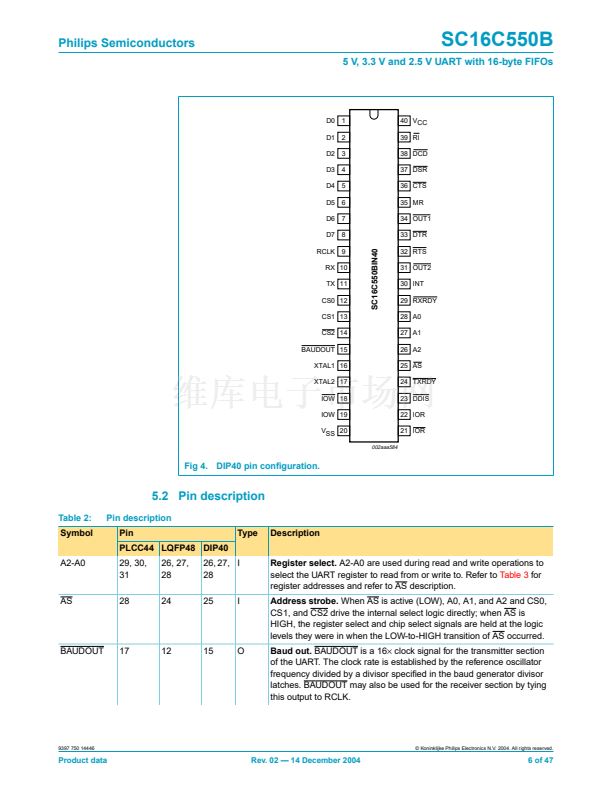

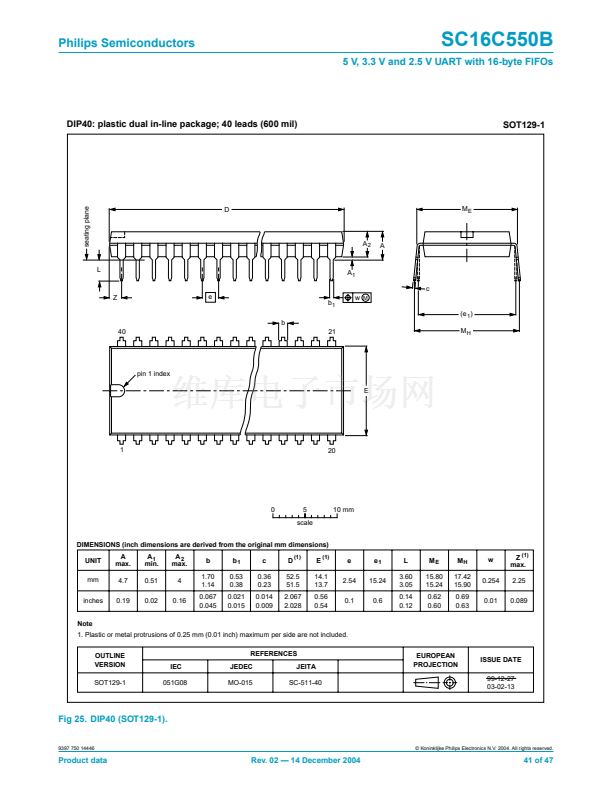

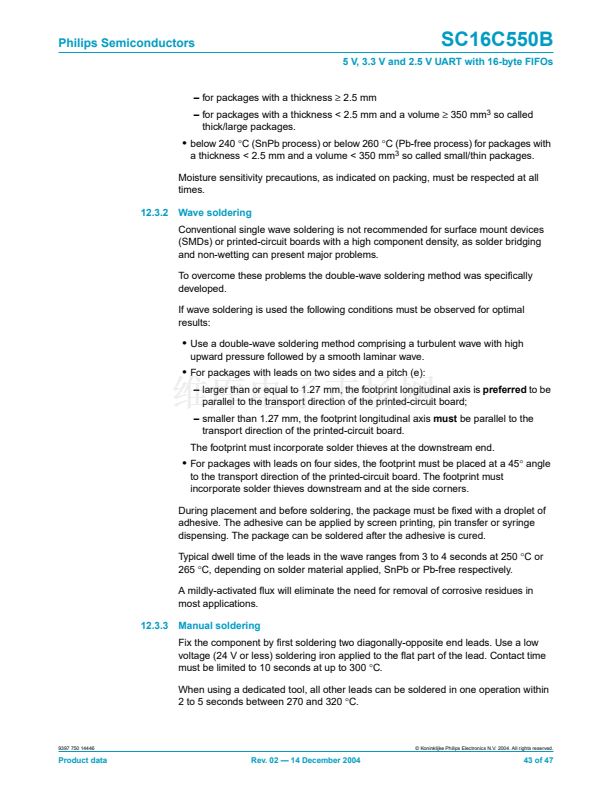

range, and is available in plastic DIP40, PLCC44 and LQFP48 packages.
2. Features
s
s
s
s
s
s
s
s
s
5 V, 3.3 V and 2.5 V operation
Industrial temperature range

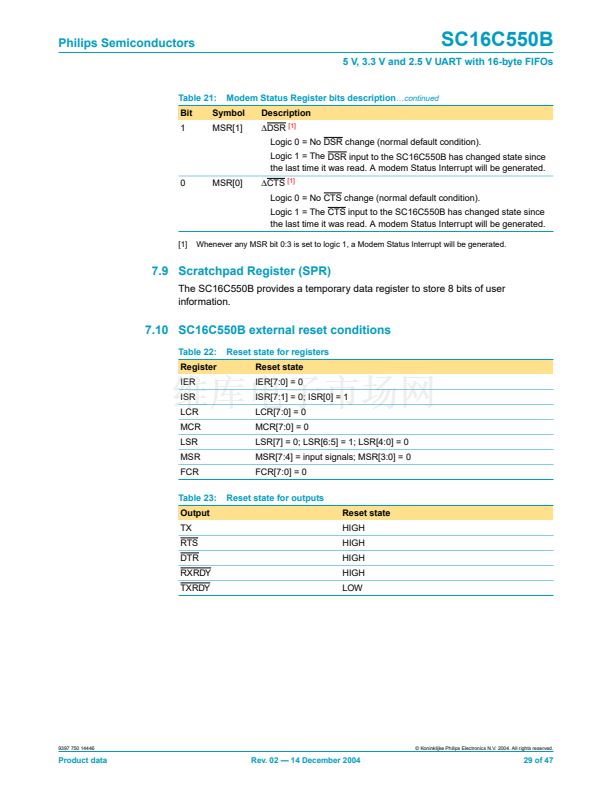

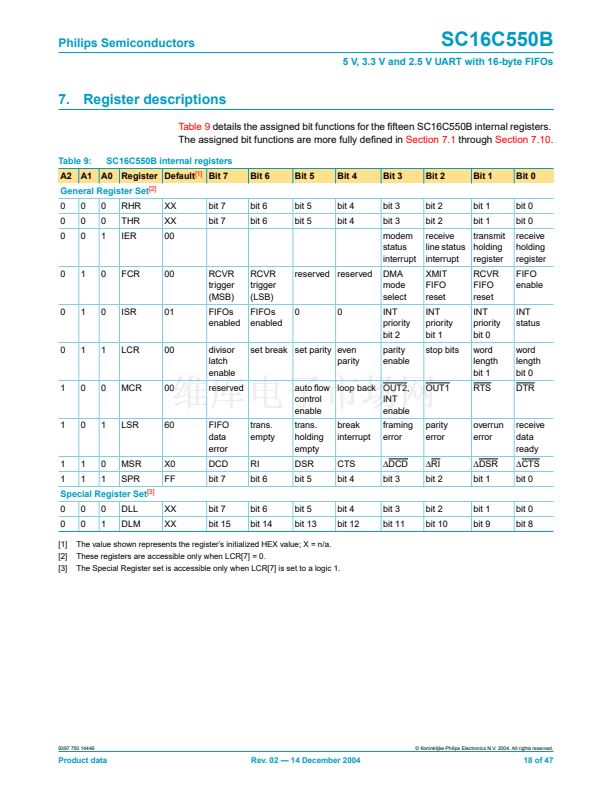

After reset, all registers are identical to the typical 16C450 register set
Capable of running with all existing generic 16C450 software
Pin compatibility with the industry-standard ST16C450/550, TL16C450/550,
PC16C450/550
Up to 3 Mbit/s transmit/receive operation at 5 V, 2 Mbit/s at 3.3 V, and 1 Mbit/s at
2.5 V

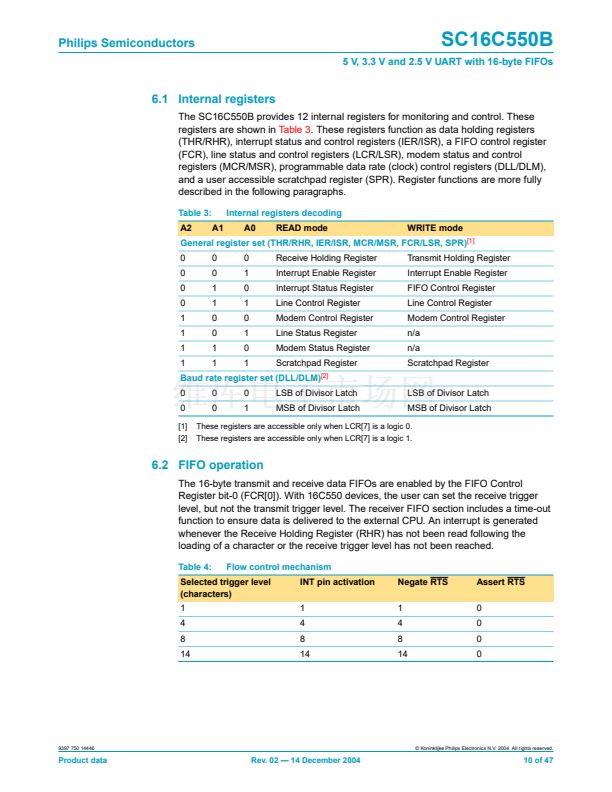

16 byte transmit FIFO
16 byte receive FIFO with error 鏗俛gs

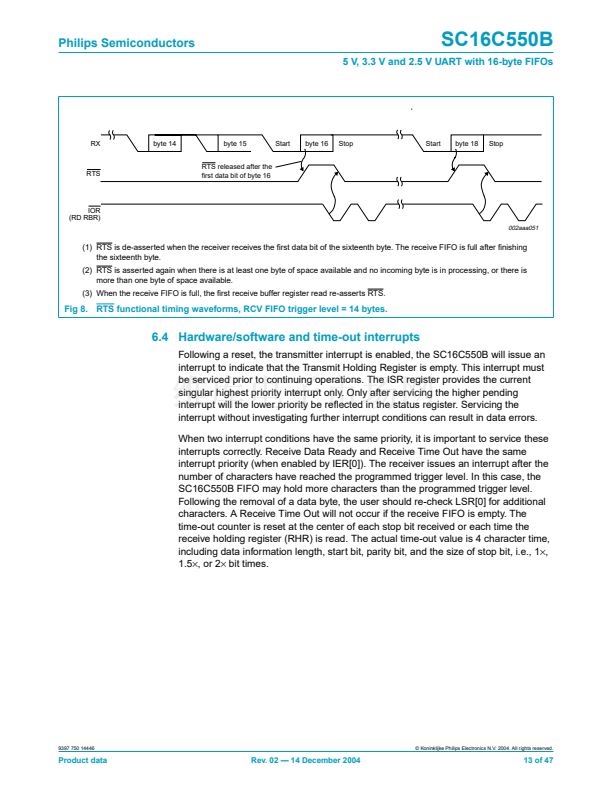

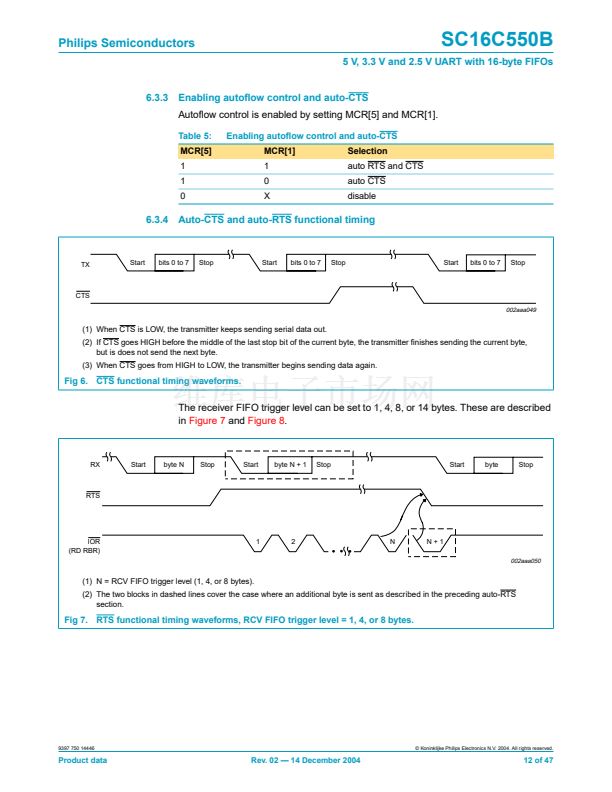

Programmable auto-RTS and auto-CTS
x
In auto-CTS mode, CTS controls transmitter
x
In auto-RTS mode, RxFIFO contents and threshold control RTS
Automatic hardware 鏗俹w control
Software selectable Baud Rate Generator

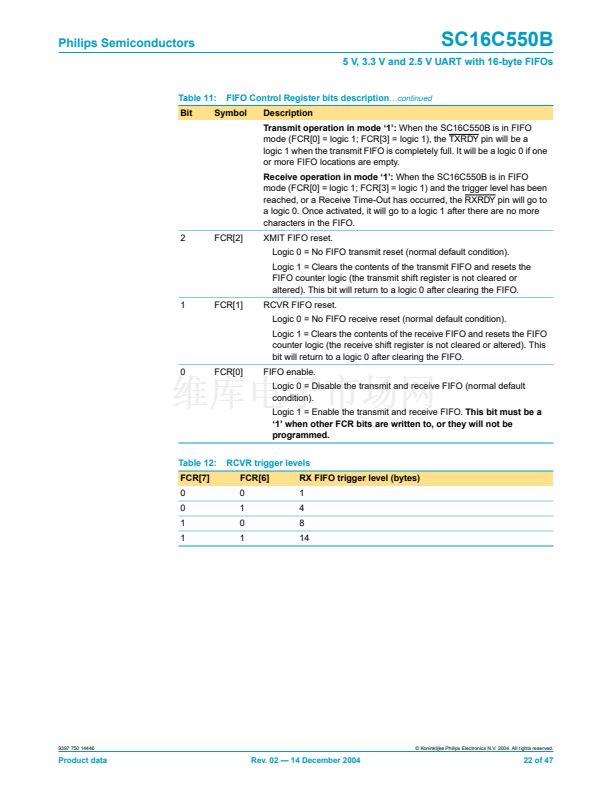

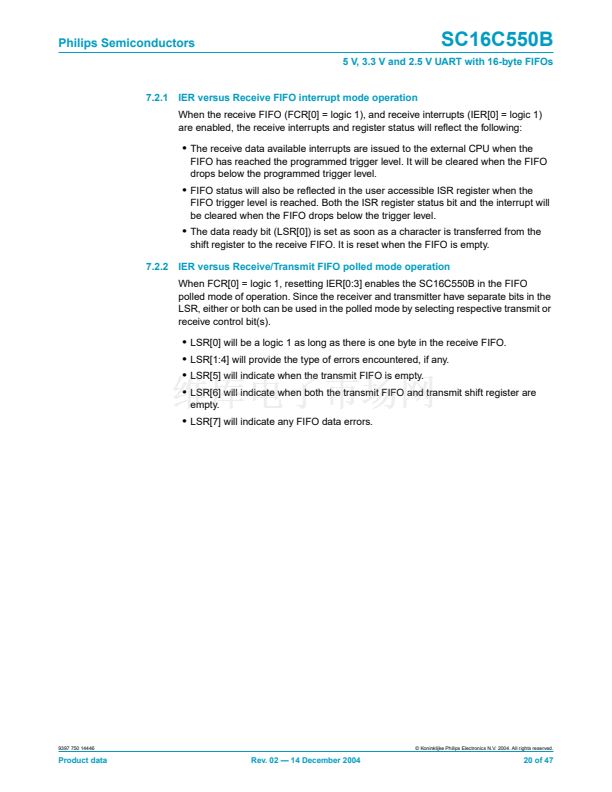

Four selectable Receive FIFO interrupt trigger levels
Standard modem interface
Standard asynchronous error and framing bits (Start, Stop, and Parity Overrun
Break)

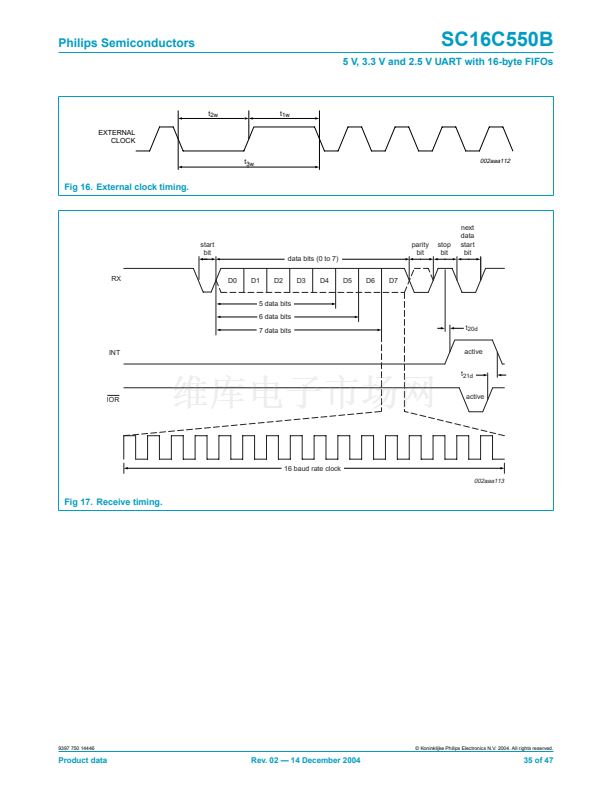

Independent receiver clock input

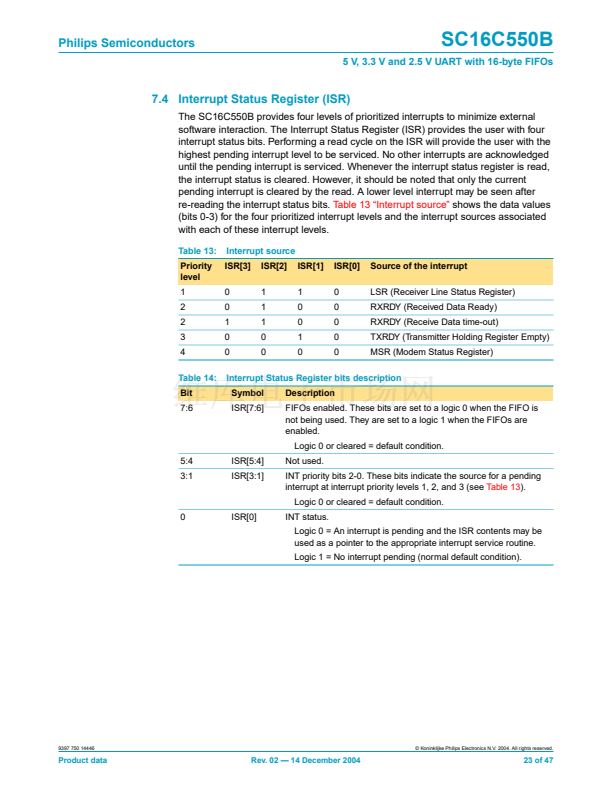

Transmit, Receive, Line Status, and Data Set interrupts independently controlled

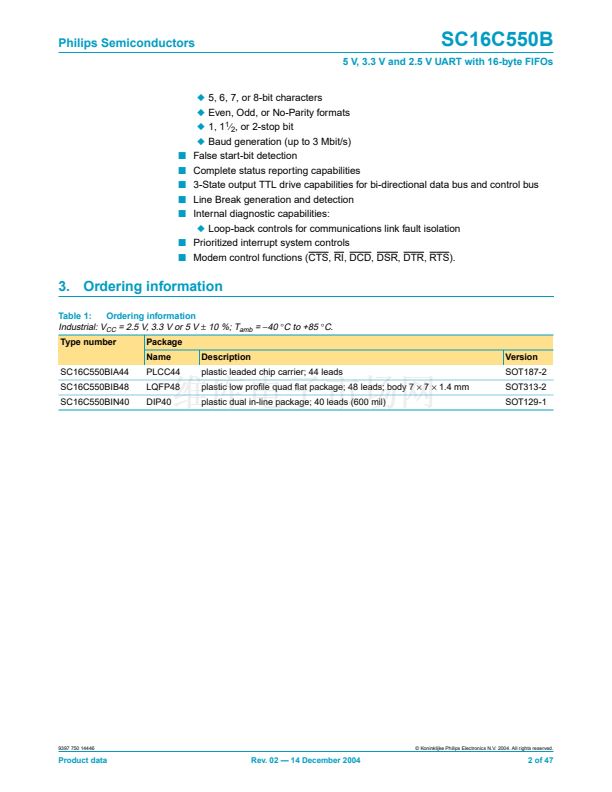

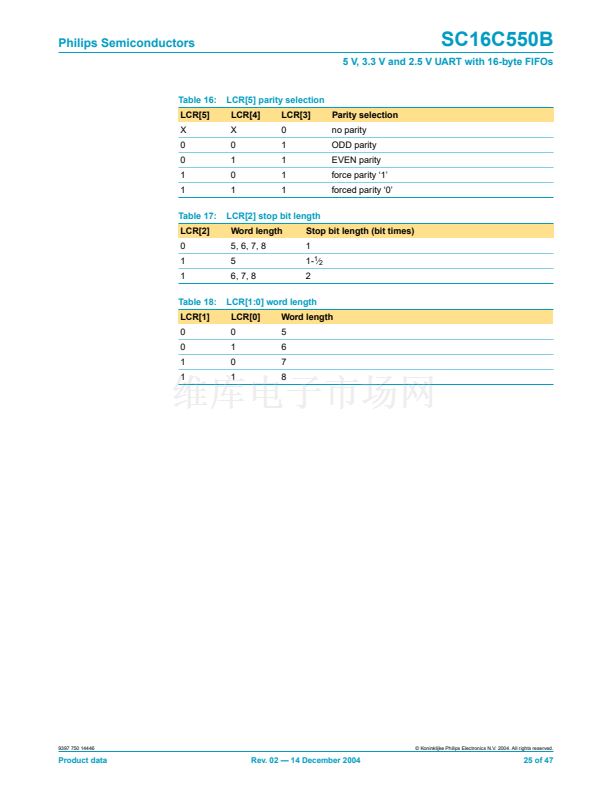

Fully programmable character formatting:
s
s
s
s
s
s
s
s

SC16C550BIA44 產品屬性

  • NXP

  • UART 接口集成電路

  • 1

  • 3 Mbps

  • 5.5 V

  • 2.25 V

  • 4.5 mA

  • + 85 C

  • - 40 C

  • PLCC-44

  • Tube

  • SMD/SMT

  • 2.5 V, 3.3 V, 5 V

  • 26

  • SC16C550BIA44,512
