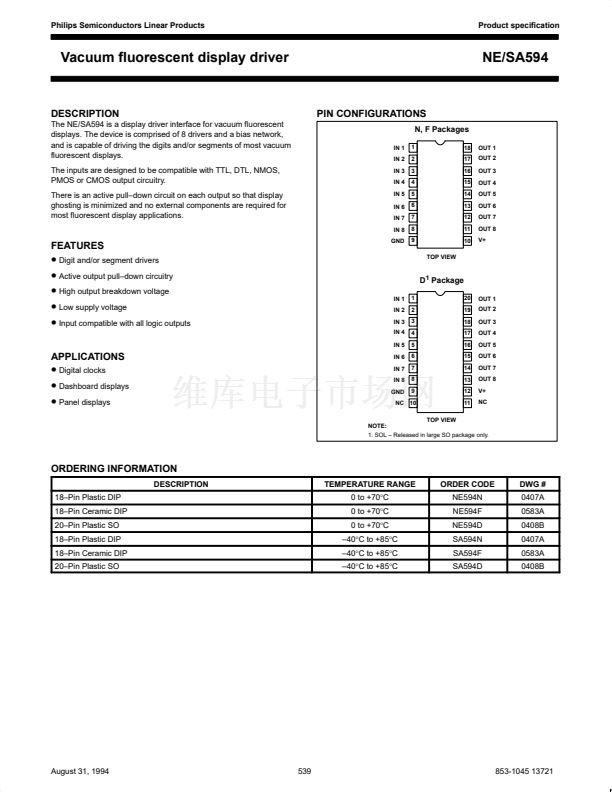

Philips Semiconductors Linear Products
Product specification
Vacuum fluorescent display driver
NE/SA594
DESCRIPTION
The NE/SA594 is a display driver interface for vacuum fluorescent
displays. The device is comprised of 8 drivers and a bias network,
and is capable of driving the digits and/or segments of most vacuum
fluorescent displays.
The inputs are designed to be compatible with TTL, DTL, NMOS,
PMOS or CMOS output circuitry.
There is an active pull鈥揹own circuit on each output so that display
ghosting is minimized and no external components are required for
most fluorescent display applications.
PIN CONFIGURATIONS
N, F Packages
IN 1
IN 2
IN 3
IN 4
IN 5
IN 6
IN 7
IN 8
1
2
3
4
5
6
7
8
9
TOP VIEW
18
17
16
15
14
13
12
11
10
OUT 1
OUT 2
OUT 3
OUT 4
OUT 5
OUT 6
OUT 7
OUT 8
V+
FEATURES
GND
鈥?/div>
Digit and/or segment drivers
鈥?/div>
Active output pull鈥揹own circuitry
鈥?/div>
High output breakdown voltage
鈥?/div>
Low supply voltage
鈥?/div>
Input compatible with all logic outputs
APPLICATIONS
D
1
Package
IN 1
IN 2
IN 3
IN 4
IN 5
IN 6
IN 7
IN 8
GND
1
2
3
4
5
6
7
8
9
20
19
18
17
16
15
14
13
12
11
OUT 1
OUT 2
OUT 3
OUT 4
OUT 5
OUT 6
OUT 7
OUT 8
V+
NC
鈥?/div>
Digital clocks
鈥?/div>
Dashboard displays
鈥?/div>
Panel displays
NC 10
TOP VIEW
NOTE:
1. SOL 鈥?Released in large SO package only.
ORDERING INFORMATION
DESCRIPTION
18鈥揚in Plastic DIP
18鈥揚in Ceramic DIP
20鈥揚in Plastic SO
18鈥揚in Plastic DIP
18鈥揚in Ceramic DIP
20鈥揚in Plastic SO
TEMPERATURE RANGE
0 to +70擄C
0 to +70擄C
0 to +70擄C
鈥?0擄C to +85擄C
鈥?0擄C to +85擄C
鈥?0擄C to +85擄C
ORDER CODE
NE594N
NE594F
NE594D
SA594N
SA594F
SA594D
DWG #
0407A
0583A
0408B
0407A
0583A
0408B

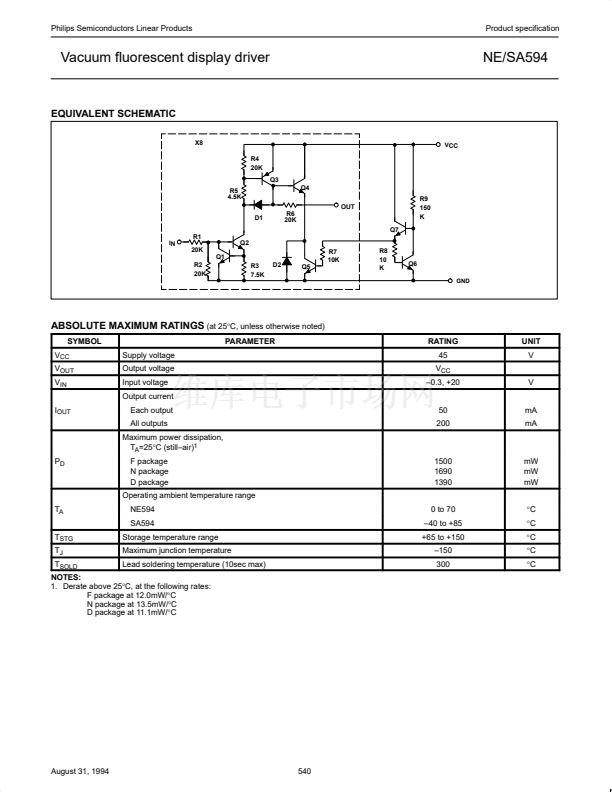

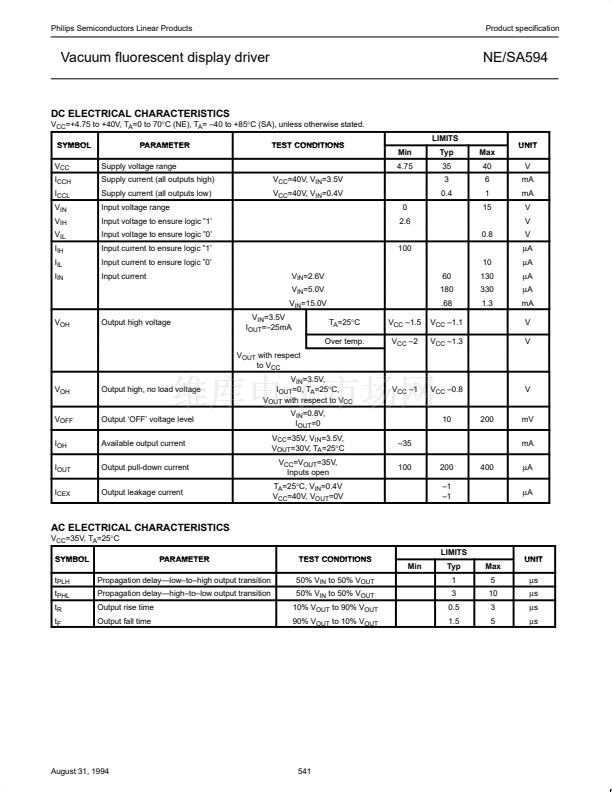

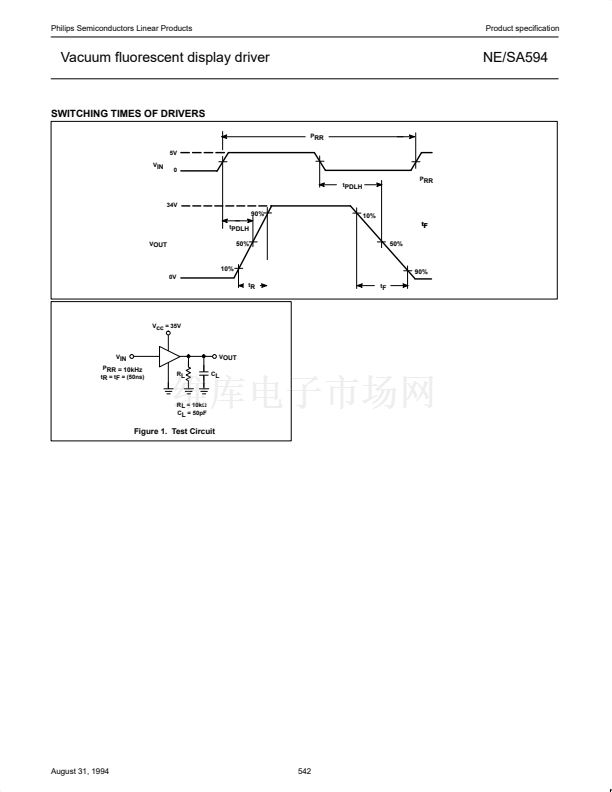

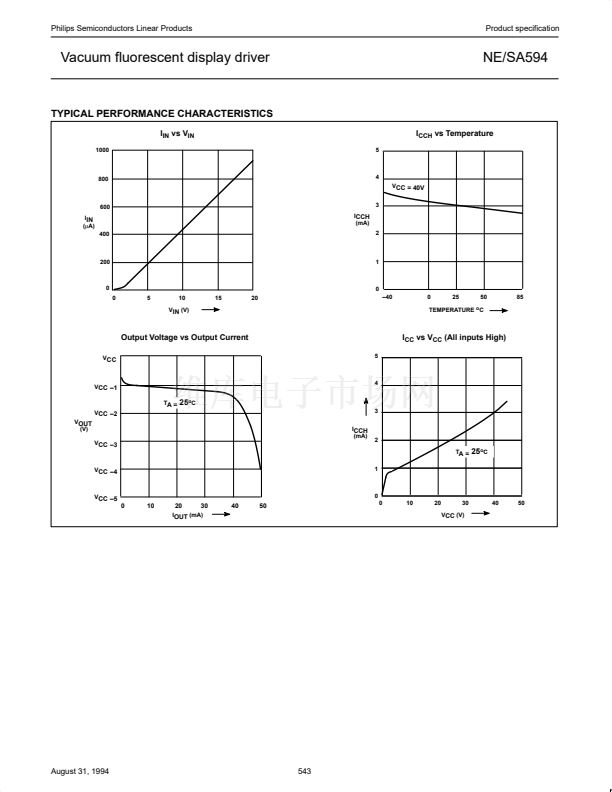

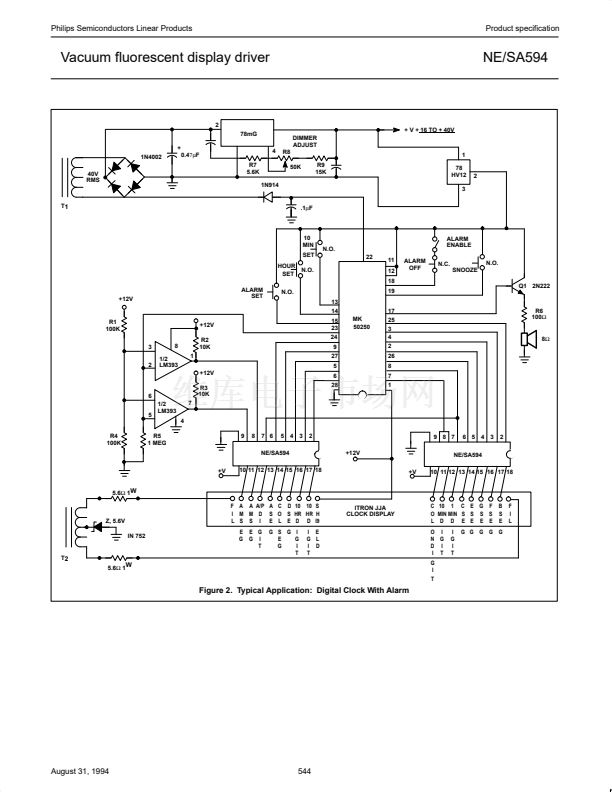

August 31, 1994
539
853-1045 13721
