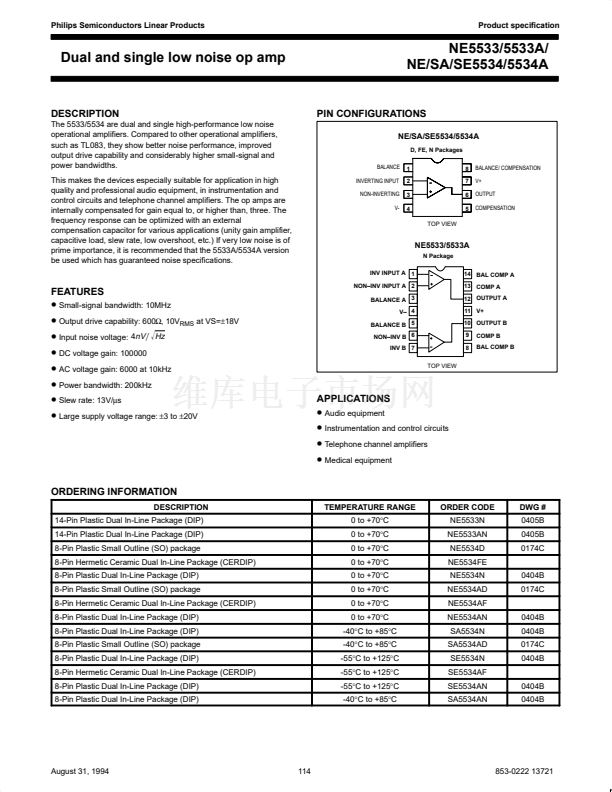

Philips Semiconductors Linear Products
Product specification
Dual and single low noise op amp
NE5533/5533A/
NE/SA/SE5534/5534A
DESCRIPTION
The 5533/5534 are dual and single high-performance low noise
operational amplifiers. Compared to other operational amplifiers,
such as TL083, they show better noise performance, improved
output drive capability and considerably higher small-signal and
power bandwidths.
This makes the devices especially suitable for application in high
quality and professional audio equipment, in instrumentation and
control circuits and telephone channel amplifiers. The op amps are
internally compensated for gain equal to, or higher than, three. The
frequency response can be optimized with an external
compensation capacitor for various applications (unity gain amplifier,
capacitive load, slew rate, low overshoot, etc.) If very low noise is of
prime importance, it is recommended that the 5533A/5534A version
be used which has guaranteed noise specifications.
PIN CONFIGURATIONS
NE/SA/SE5534/5534A
D, FE, N Packages
BALANCE
INVERTING INPUT
NON-INVERTING
V-
1
2
3
4
TOP VIEW
8
7
6
5
BALANCE/ COMPENSATION
V+
OUTPUT
COMPENSATION
NE5533/5533A
N Package
INV INPUT A 1
14 BAL COMP A
13 COMP A
12 OUTPUT A
11 V+
10 OUTPUT B
9
8
TOP VIEW
COMP B
BAL COMP B
FEATURES
NON鈥揑NV INPUT A 2
BALANCE A 3
V鈥?4
BALANCE B 5
NON鈥揑NV B 6
INV B 7
鈥?/div>
Small-signal bandwidth: 10MHz
鈥?/div>
Output drive capability: 600鈩? 10V
RMS
at VS=鹵18V
鈥?/div>
Input noise voltage: 4
nV Hz
鈥?/div>
DC voltage gain: 100000
鈥?/div>
AC voltage gain: 6000 at 10kHz
鈥?/div>
Power bandwidth: 200kHz
鈥?/div>
Slew rate: 13V/碌s
鈥?/div>
Large supply voltage range:
鹵3
to
鹵20V
APPLICATIONS
鈥?/div>
Audio equipment
鈥?/div>
Instrumentation and control circuits
鈥?/div>
Telephone channel amplifiers
鈥?/div>
Medical equipment
ORDERING INFORMATION
DESCRIPTION
14-Pin Plastic Dual In-Line Package (DIP)
14-Pin Plastic Dual In-Line Package (DIP)
8-Pin Plastic Small Outline (SO) package
8-Pin Hermetic Ceramic Dual In-Line Package (CERDIP)
8-Pin Plastic Dual In-Line Package (DIP)
8-Pin Plastic Small Outline (SO) package
8-Pin Hermetic Ceramic Dual In-Line Package (CERDIP)
8-Pin Plastic Dual In-Line Package (DIP)
8-Pin Plastic Dual In-Line Package (DIP)
8-Pin Plastic Small Outline (SO) package
8-Pin Plastic Dual In-Line Package (DIP)
8-Pin Hermetic Ceramic Dual In-Line Package (CERDIP)
8-Pin Plastic Dual In-Line Package (DIP)
8-Pin Plastic Dual In-Line Package (DIP)
TEMPERATURE RANGE
0 to +70擄C
0 to +70擄C
0 to +70擄C
0 to +70擄C
0 to +70擄C
0 to +70擄C
0 to +70擄C
0 to +70擄C
-40擄C to +85擄C
-40擄C to +85擄C
-55擄C to +125擄C
-55擄C to +125擄C
-55擄C to +125擄C
-40擄C to +85擄C
ORDER CODE
NE5533N
NE5533AN
NE5534D
NE5534FE
NE5534N
NE5534AD
NE5534AF
NE5534AN
SA5534N
SA5534AD
SE5534N
SE5534AF
SE5534AN
SA5534AN
0404B
0404B
0404B
0404B
0174C
0404B
0404B
0174C
DWG #
0405B
0405B
0174C
August 31, 1994
114
853-0222 13721
