SA170CA Datasheet

IC型號：
SA170CA
PDF描述：
500W TRANSIENT VOLTAGE SUPPRESSORS
文件大?。?/label>
70.31KB
PDF頁數：
5頁
芯片廠家：
WTE

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

W TE

PO WE R SEM IC O ND UC TO R S

SA5.0/A/C/CA 鈥?SA170/A/C/CA

500W TRANSIENT VOLTAGE SUPPRESSORS

Features

Glass Passivated Die Construction

500W Peak Pulse Power Dissipation

5.0V 鈥?170V Standoff Voltage

Uni- and Bi-Directional Versions Available

Excellent Clamping Capability

Fast Response Time

Plastic Case Material has UL Flammability

Classification Rating 94V-O

Mechanical Data

Case: JEDEC DO-15 Low Profile Molded Plastic

Terminals: Axial Leads, Solderable per

MIL-STD-750, Method 2026

Polarity: Cathode Band or Cathode Notch

Marking:

Unidirectional 鈥?Device Code and Cathode Band

Bidirectional 鈥?Device Code Only

Weight: 0.40 grams (approx.)

DO-15

Dim

Min

Max

25.4

鈥?/div>

5.50

7.62

0.71

0.864

2.60

3.60

All Dimensions in mm

鈥淐鈥?Suffix Designates Bi-directional Devices

鈥淎鈥?Suffix Designates 5% Tolerance Devices

No Suffix Designates 10% Tolerance Devices

Maximum Ratings and Electrical Characteristics

Characteristic

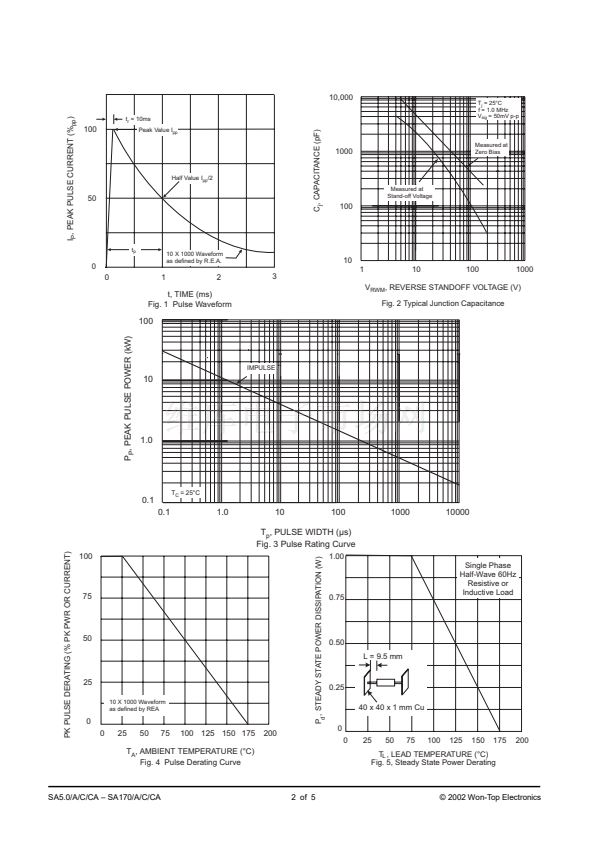

Peak Pulse Power Dissipation at T

= 25擄C (Note 1, 2, 5) Figure 3

Peak Forward Surge Current (Note 3)

Peak Pulse Current on 10/1000碌S Waveform (Note 1) Figure 1

Steady State Power Dissipation (Note 2, 4)

Operating and Storage Temperature Range

=25擄C unless otherwise specified

Symbol

PPM

FSM

PPM

M(AV)

, T

STG

Value

500 Minimum

See Table 1

1.0

-65 to +175

Unit

擄C

Note: 1. Non-repetitive current pulse, per Figure 1 and derated above T

= 25擄C per Figure 4.

2. Mounted on 40mm

copper pad.

3. 8.3ms single half sine-wave duty cycle = 4 pulses per minutes maximum.

4. Lead temperature at 75擄C = T

L .

5. Peak pulse power waveform is 10/1000碌S.

SA5.0/A/C/CA 鈥?SA170/A/C/CA

1 of 5

漏 2002 Won-Top Electronics

標準包裝
4,000
類別
過電壓，電流，溫度裝置
家庭
TVS - 二極管
系列
-
電壓 - 反向隔離（標準值）
170V
電壓 - 擊穿
189V
功率（瓦特）
500W
電極標記
雙向
安裝類型
通孔
封裝/外殼
DO-204AC，DO-15，軸向
供應商設備封裝
DO-15
包裝
帶卷 (TR)
其它名稱
SA170CAFS
