SA5.0 THRU SA170CA

T

RANS

Z

ORB

鈩?TRANSIENT VOLTAGE SUPPRESSOR

Stand-off Voltage -

5.0 to 170 Volts

DO-204AC

Peak Pulse Power -

500 Watts

FEATURES

0.034 (0.86)

1.0

(25.4)

MIN.

0.028 (0.71)

DIA.

0.300 (7.6)

0.230 (5.8)

0.140 (3.6)

0.104 (2.6)

DIA.

1.0

(25.4)

MIN.

鈾?/div>

Plastic package has Underwriters Laboratory

Flammability Classification 94V-0

鈾?/div>

Glass passivated junction

鈾?/div>

500W peak pulse power surge capability with a

10/1000碌s waveform, repetition rate (duty cycle): 0.01%

鈾?/div>

Excellent clamping capability

鈾?/div>

Low incremental surge resistance

鈾?/div>

Fast response time: typically less

than 1.0ps from 0 Volts to V

(BR)

for uni-directional and

5.0ns for bi-directional types

鈾?/div>

For devices with V

(BR)

鈮?0V,

I

D

are typically less than

1.0碌A(chǔ)

鈾?/div>

High temperature soldering guaranteed:

265擄C/10 seconds 0.375鈥?(9.5mm) lead length,

5lbs (2.3 kg) tension

MECHANICAL DATA

Case:

JEDEC DO-204AC molded plastic body over

passivated junction

Terminals:

Solder plated axial leads, solderable per

MIL-STD-750, Method 2026

Polarity:

For uni-directional types the color band denotes

the cathode, which is positive with respect to the anode

under normal TVS operation

Mounting Position:

Any

Weight:

0.015 ounce, 0.4 gram

Dimensions in inches and (millimeters)

DEVICES FOR BIDIRECTIONAL APPLICATIONS

For bi-directional use C or CA Suffix. (e.g. SA5.0C, SA170CA).

Electrical characteristics apply in both directions.

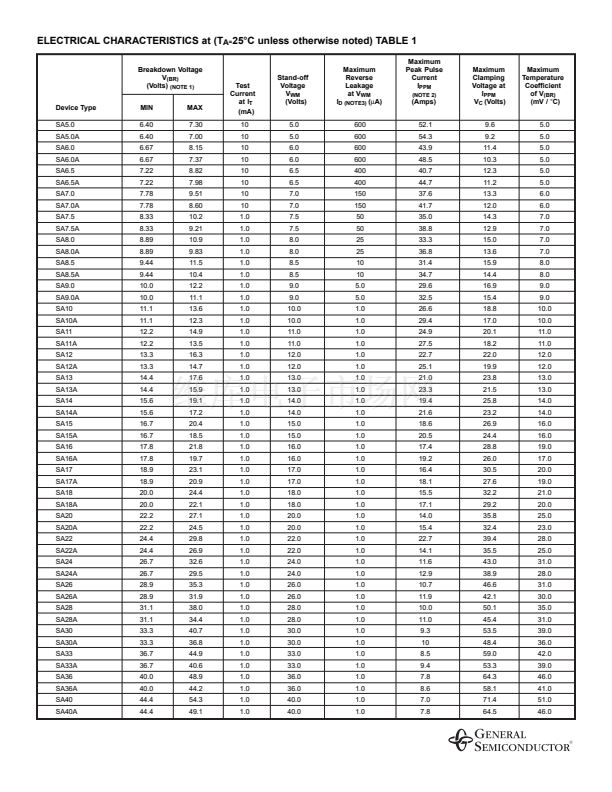

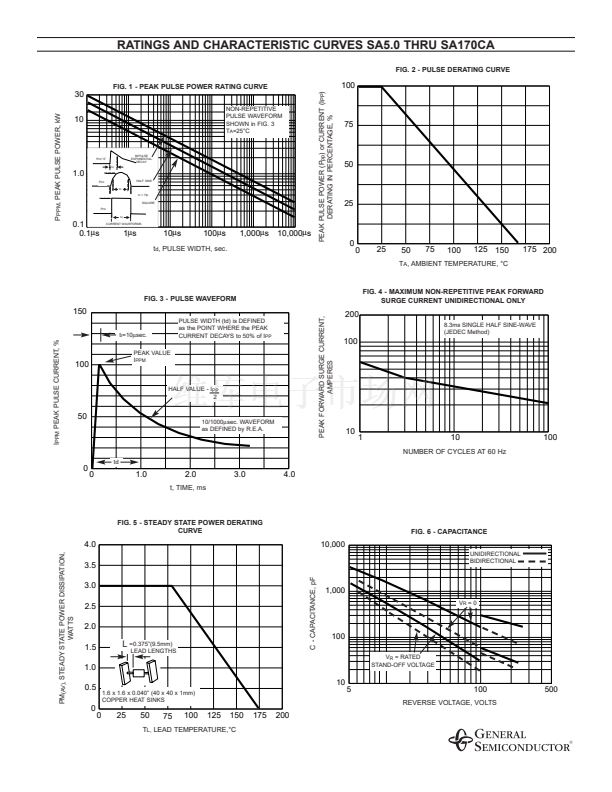

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25擄C ambient temperature unless otherwise specified

SYMBOL

VALUE

UNITS

Peak pulse power dissipation with a 10/1000碌s waveform

(NOTE 1, FIG. 1)

P

PPM

I

PPM

P

M(AV)

Minimum 500

SEE TABLE 1

Watts

Amps

Watts

Peak pulse current with a 10/1000碌s waveform

(NOTE 1)

Steady state power dissipation at T

L

=75擄C

lead lengths 0.375" (9.5mm)

(NOTE 2)

Peak forward surge current, 8.3ms single half

sine-wave superimposed on rated load, unidirectional only

(JEDEC Method)

(NOTE 3)

Maximum instantaneous forward voltage at 35A for

unidirectional only

Operating junction and storage temperature range

NOTES

(1) Non-repetitive current pulse, per Fig. 3 and derated above T

A

=25擄C per Fig. 2

(2) Mounted on copper pad area of 1.6 x 1.6鈥?(40 x 40mm) per Fig. 5

(3) 8.3ms single half sine-wave or equivalent square wave, duty cycle=4 pulses per minute maximum

3.0

I

FSM

70

Amps

V

F

T

J

, T

STG

3.5

-55 to +175

Volts

擄C

1/25/99

標準包裝
4,000
類別
過電壓，電流，溫度裝置
家庭
TVS - 二極管
系列
-
電壓 - 反向隔離（標準值）
160V
電壓 - 擊穿
178V
功率（瓦特）
500W
電極標記
單向
安裝類型
通孔
封裝/外殼
DO-204AC，DO-15，軸向
供應商設備封裝
DO-15
包裝
帶卷 (TR)
其它名稱
SA160AFS
