S3205QA Datasheet

  • S3205QA

  • 21/32/43/60 VOICE ROM

  • 27頁

  • MOSEL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

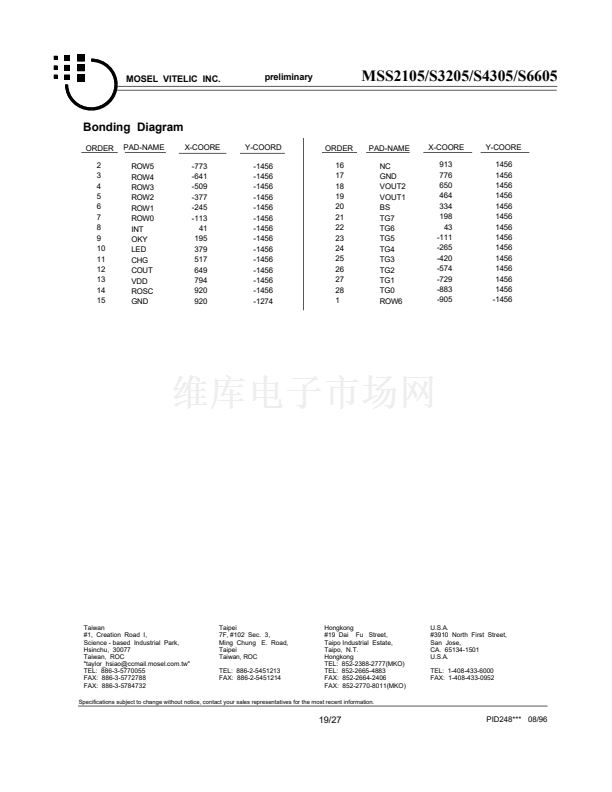

MOSEL VITELIC INC.
preliminary
MSS2105/S3205/S4305/S6605
21"/32"/43"/60 " VOICE ROM

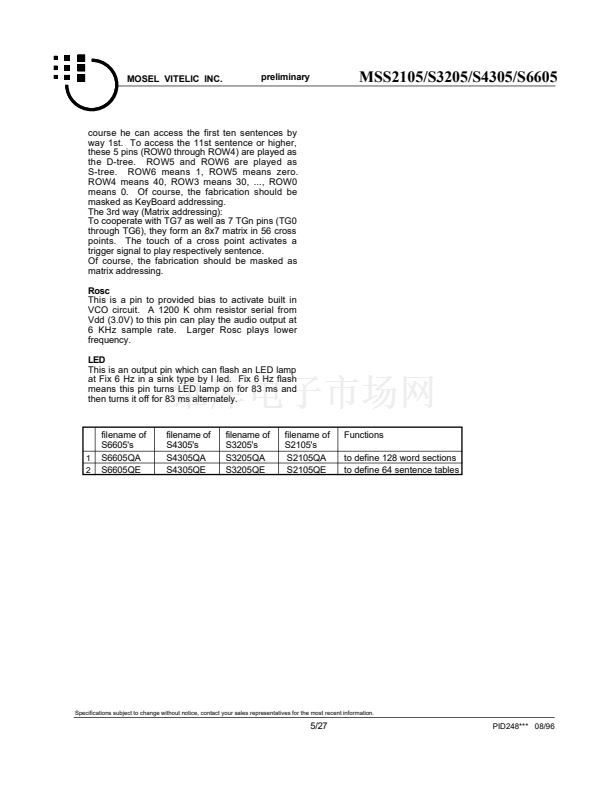

Matrix addressing mode:
a. 56 sentences can be accessed by 8x7
wiring matrix.
b. Sentence is numbered by 00 through 55.
c. Section is located and numbered by 0 through
127.
d. Total section number of all sentences is up to
256.

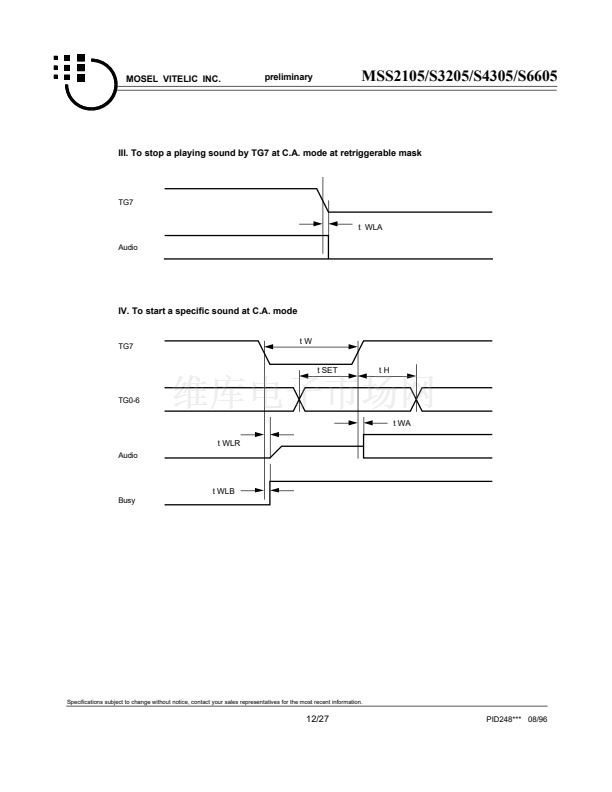

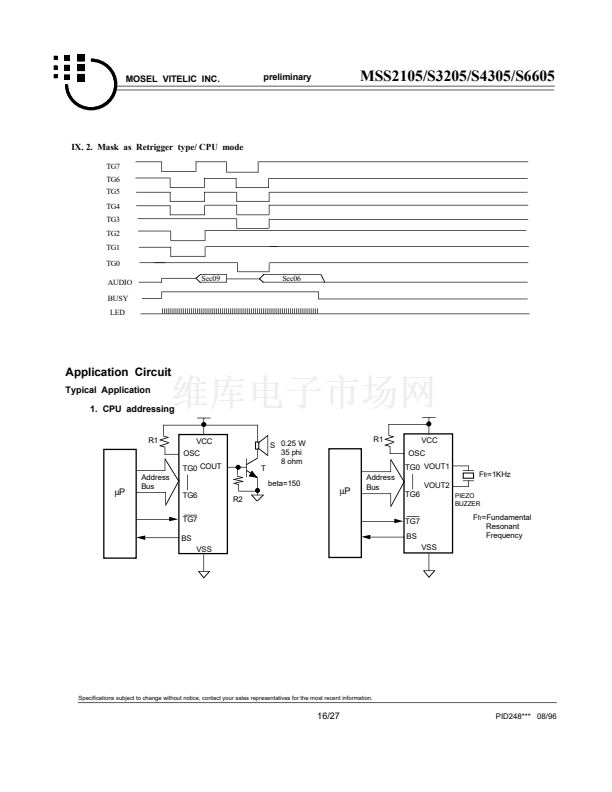

CPU addressing mode:
a. 128 sections can be accessed by 7 address bits
with an enable strobe trigger.
b. Section is located and numbered by 00 through
127 .

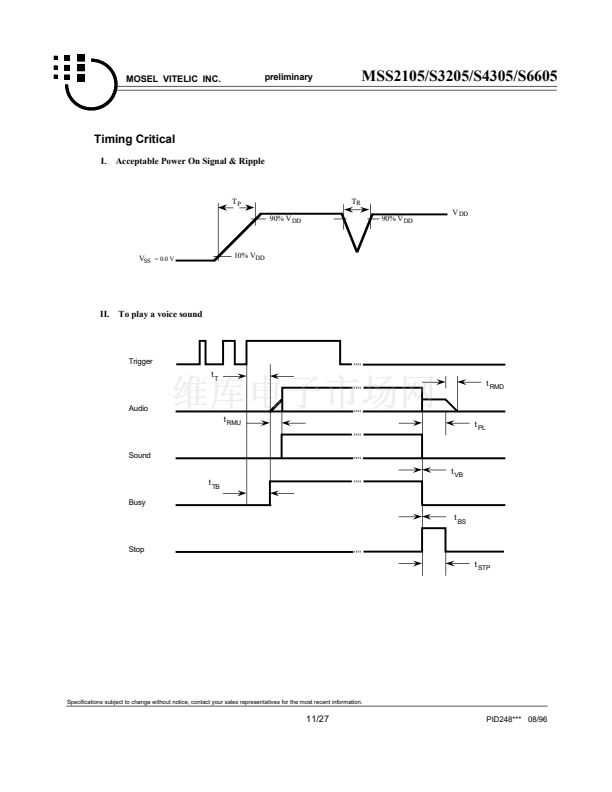

Power on trigger play is available by bonding V
SS
and
trigger together.

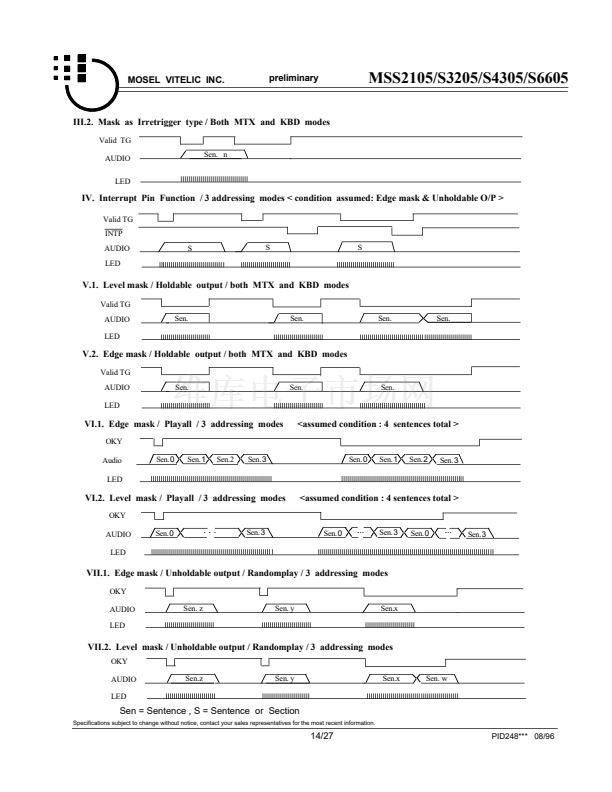

A dedicate LED output pin with 6 Hz flash is
provided to tell the audio status.

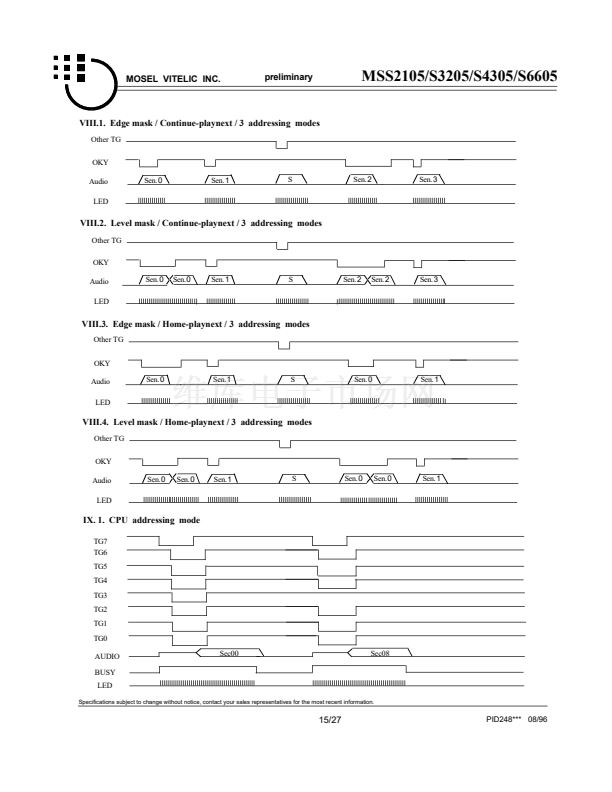

Playall function (OKY) plays all up to 64 defined
sentences one by one by single trigger.
Playnext (sequential) function (OKY) : one trigger
plays next sentence of up to 64 defined
sentences circularly.
Random-play function (OKY) : one trigger plays one
of 64 defined sentences randomly.
Continue sequence(PLAYNEXT):The first OKY trigger
after any addressing will keep current sequence
continuously.
Home sequence(PLAYNEXT):The first OKY trigger
after any addressing will return the sequence to the
first sentence.
Automatically ramp up & ramp down.
Sound Sentence & quality could be emulated on 9009
board.
August 1996

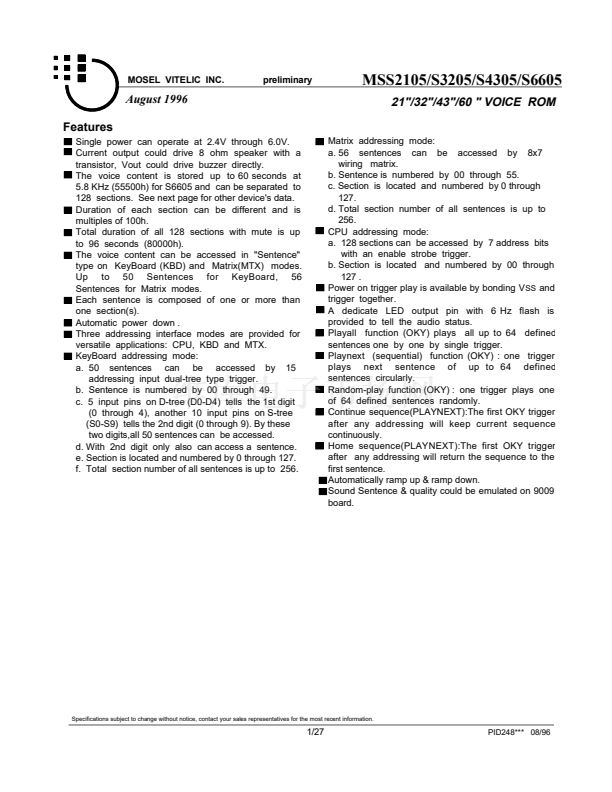

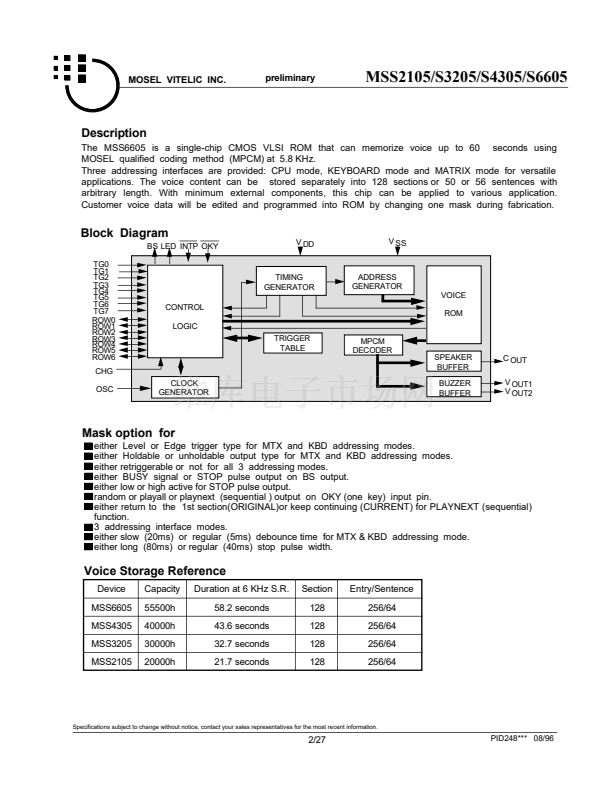

Features

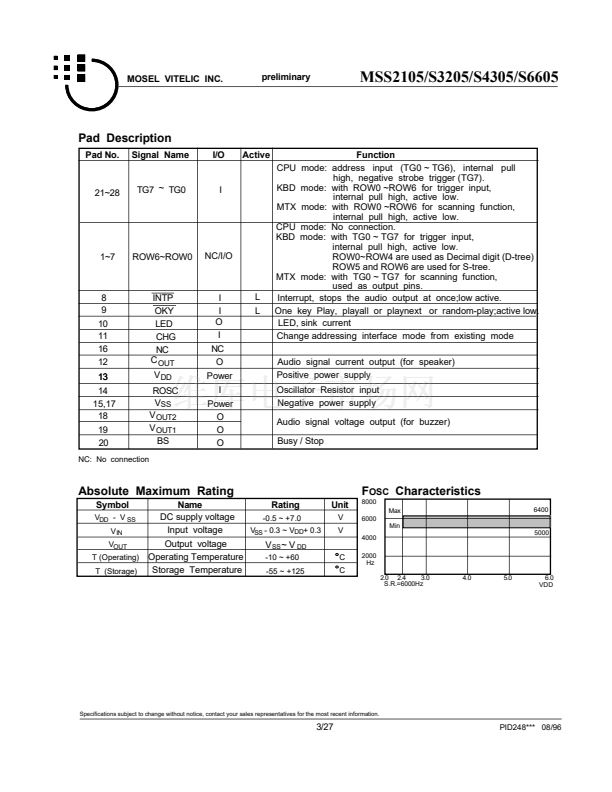

Single power can operate at 2.4V through 6.0V.

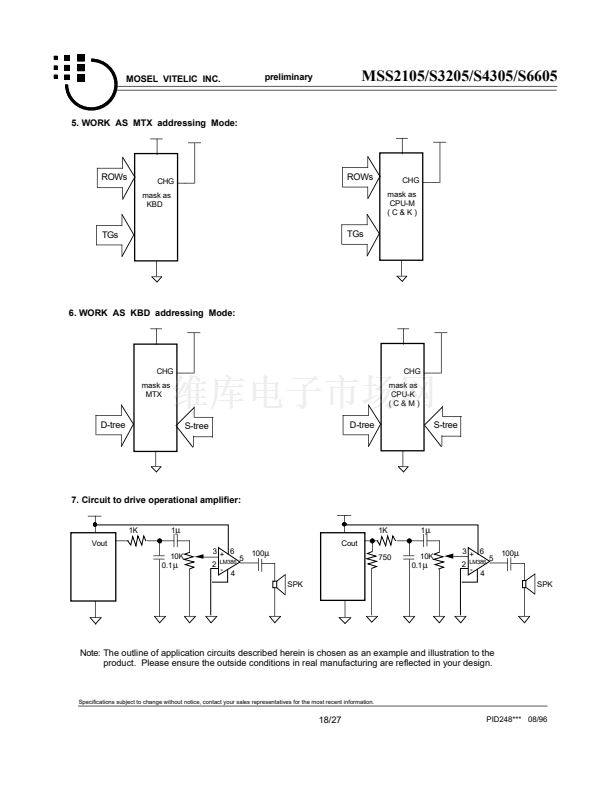

Current output could drive 8 ohm speaker with a
transistor, Vout could drive buzzer directly.
The voice content is stored up to 60 seconds at
5.8 KHz (55500h) for S6605 and can be separated to
128 sections. See next page for other device's data.
Duration of each section can be different and is
multiples of 100h.
Total duration of all 128 sections with mute is up
to 96 seconds (80000h).

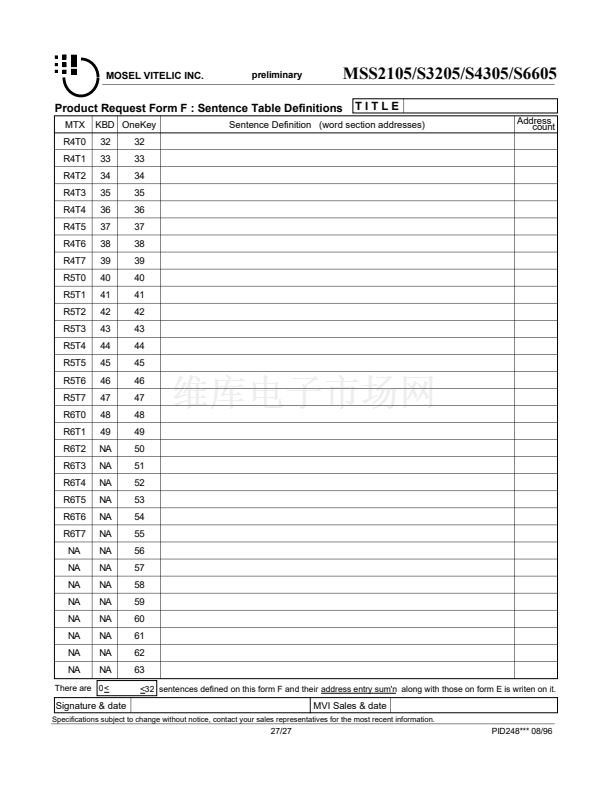

The voice content can be accessed in "Sentence"
type on KeyBoard (KBD) and Matrix(MTX) modes.
Up to 50 Sentences for KeyBoard, 56
Sentences for Matrix modes.
Each sentence is composed of one or more than
one section(s).
Automatic power down .

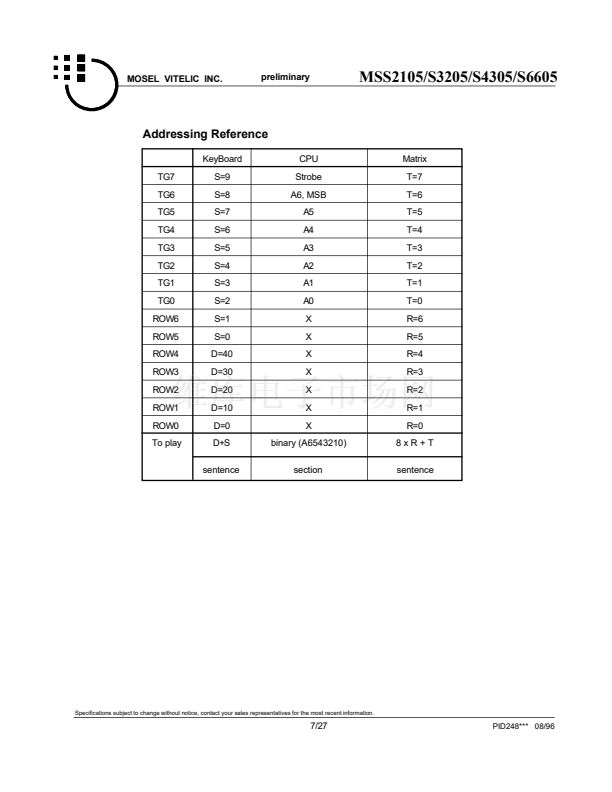

Three addressing interface modes are provided for
versatile applications: CPU, KBD and MTX.

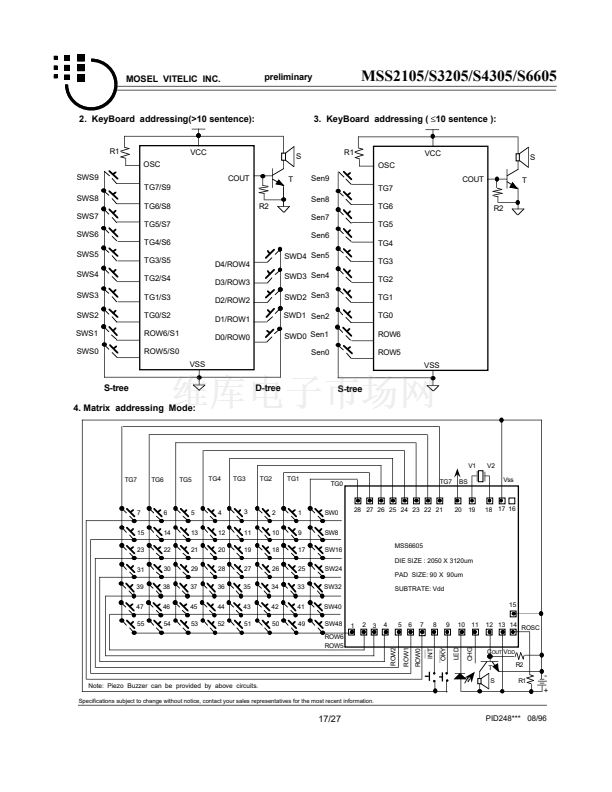

KeyBoard addressing mode:
a. 50 sentences can be accessed by 15
addressing input dual-tree type trigger.
b. Sentence is numbered by 00 through 49.
c. 5 input pins on D-tree (D0-D4) tells the 1st digit
(0 through 4), another 10 input pins on S-tree
(S0-S9) tells the 2nd digit (0 through 9). By these
two digits,all 50 sentences can be accessed.
d. With 2nd digit only also can access a sentence.
e. Section is located and numbered by 0 through 127.
f. Total section number of all sentences is up to 256.
Specifications subject to change without notice, contact your sales representatives for the most recent information.
1/27
PID248*** 08/96
