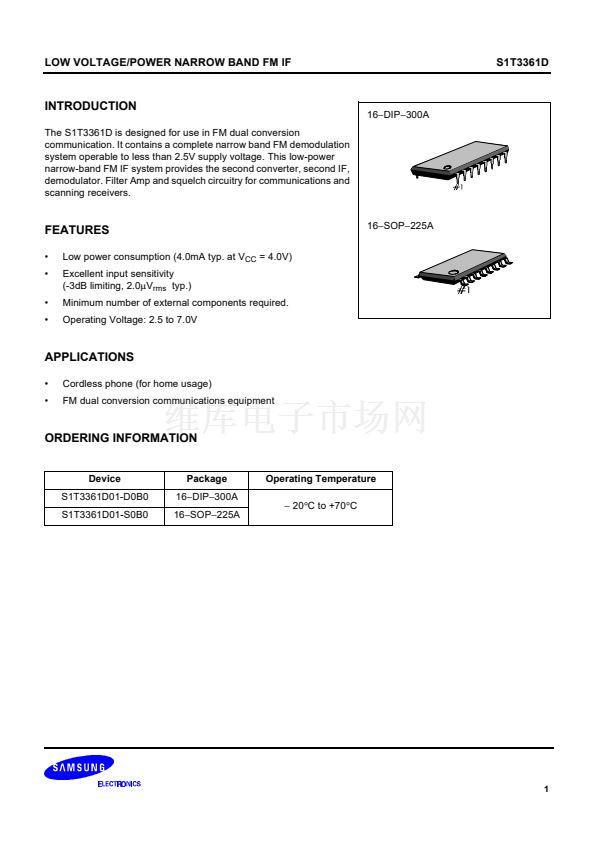

LOW VOLTAGE/POWER NARROW BAND FM IF
S1T3361D
INTRODUCTION
The S1T3361D is designed for use in FM dual conversion
communication. It contains a complete narrow band FM demodulation
system operable to less than 2.5V supply voltage. This low-power
narrow-band FM IF system provides the second converter, second IF,
demodulator. Filter Amp and squelch circuitry for communications and
scanning receivers.
16鈭扗IP鈭?00A
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Low power consumption (4.0mA typ. at V
CC
= 4.0V)
Excellent input sensitivity
(-3dB limiting, 2.0碌V
rms
typ.)
Minimum number of external components required.
Operating Voltage: 2.5 to 7.0V
16鈭扴OP鈭?25A
APPLICATIONS
鈥?/div>
鈥?/div>
Cordless phone (for home usage)
FM dual conversion communications equipment
ORDERING INFORMATION
Device
S1T3361D01-D0B0
S1T3361D01-S0B0
Package
16鈭扗IP鈭?00A
16鈭扴OP鈭?25A
Operating Temperature
