S1M8657X01-F0T0 Datasheet

  • S1M8657X01-F0T0

  • TX IF/BBA WITH AGC

  • 34頁

  • SAMSUNG   SAMSUNG

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TX IF/BBA WITH AGC
S1M8657

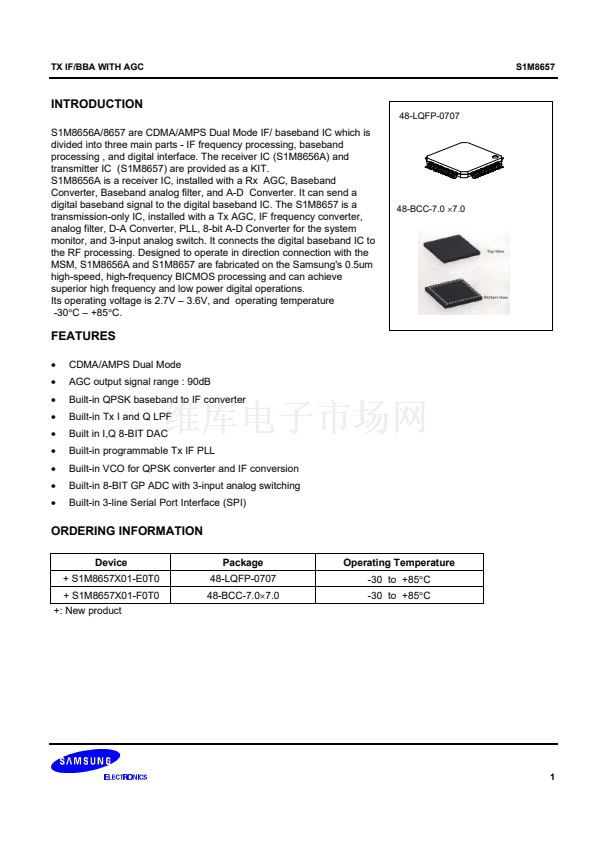

INTRODUCTION

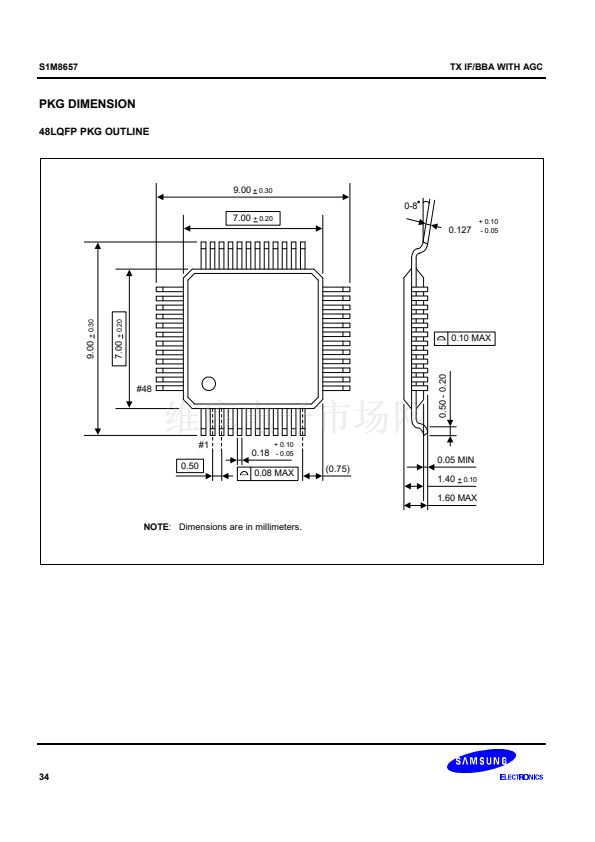

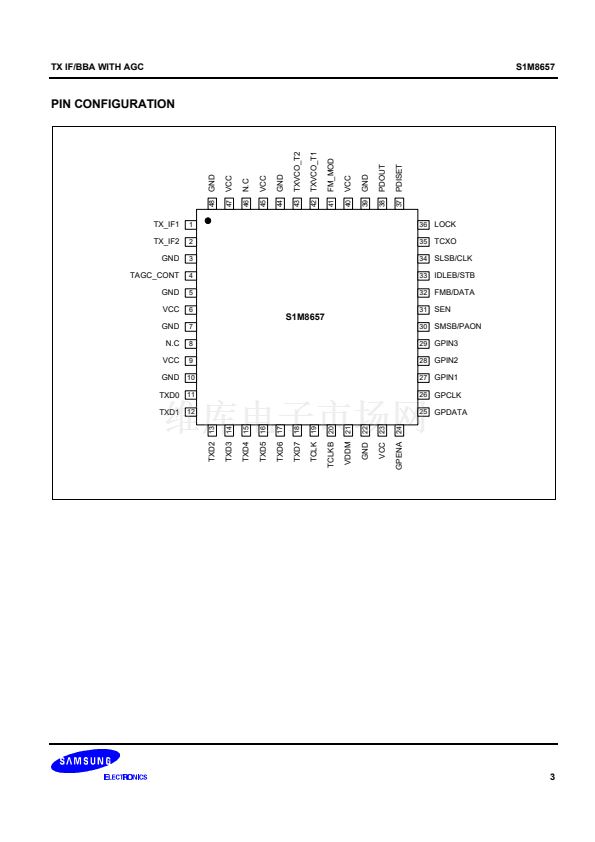

48-LQFP-0707

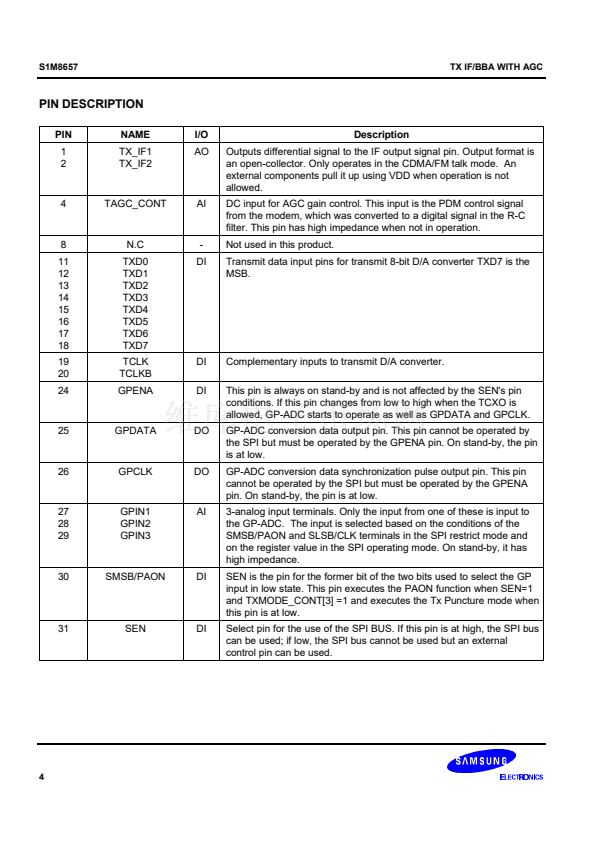

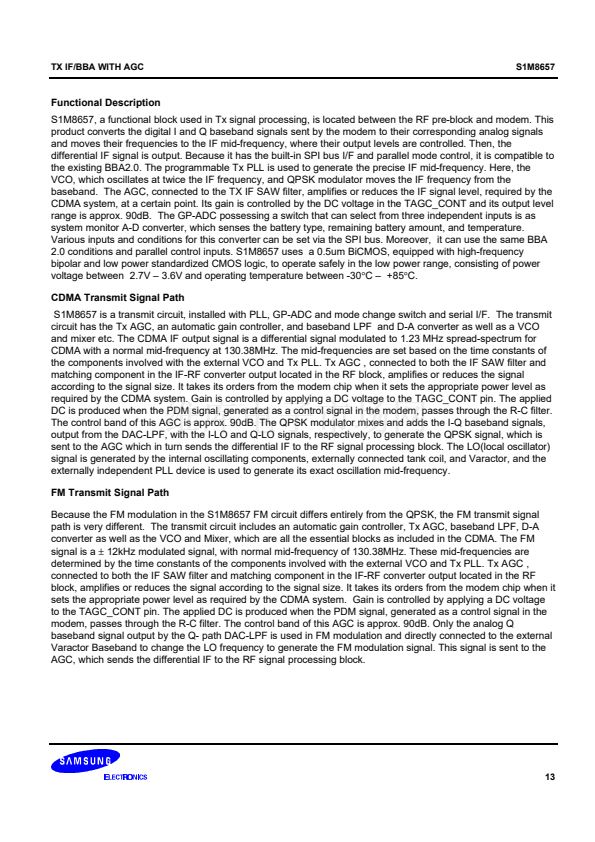

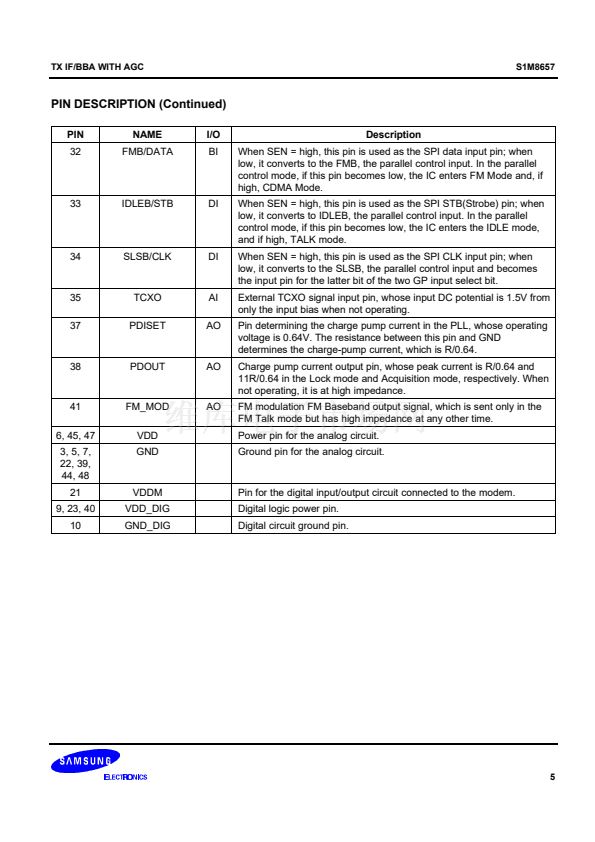

S1M8656A/8657 are CDMA/AMPS Dual Mode IF/ baseband IC which is
divided into three main parts - IF frequency processing, baseband
processing , and digital interface. The receiver IC (S1M8656A) and
transmitter IC (S1M8657) are provided as a KIT.
S1M8656A is a receiver IC, installed with a Rx AGC, Baseband
Converter, Baseband analog filter, and A-D Converter. It can send a
digital baseband signal to the digital baseband IC. The S1M8657 is a

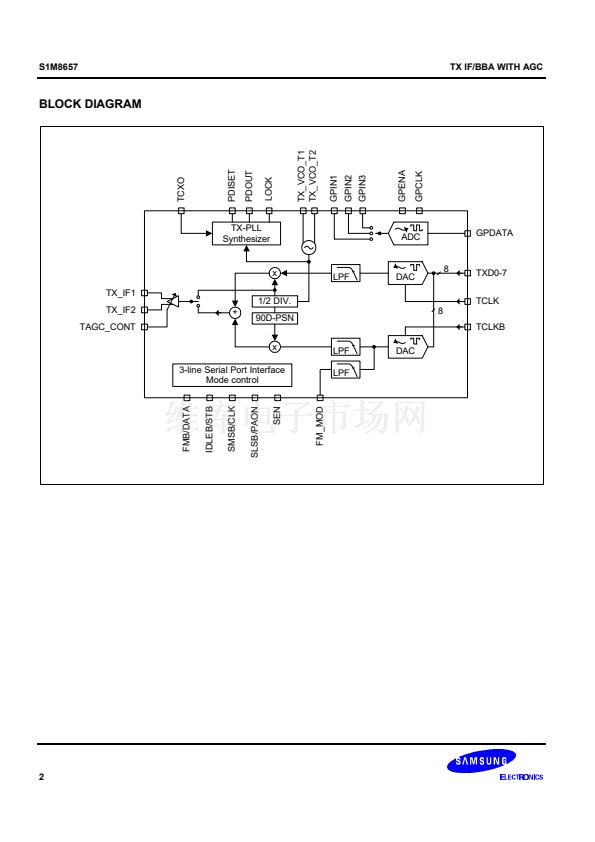

transmission-only IC, installed with a Tx AGC, IF frequency converter,
analog filter, D-A Converter, PLL, 8-bit A-D Converter for the system
monitor, and 3-input analog switch. It connects the digital baseband IC to
the RF processing. Designed to operate in direction connection with the
MSM, S1M8656A and S1M8657 are fabricated on the Samsung's 0.5um
high-speed, high-frequency BICMOS processing and can achieve
superior high frequency and low power digital operations.

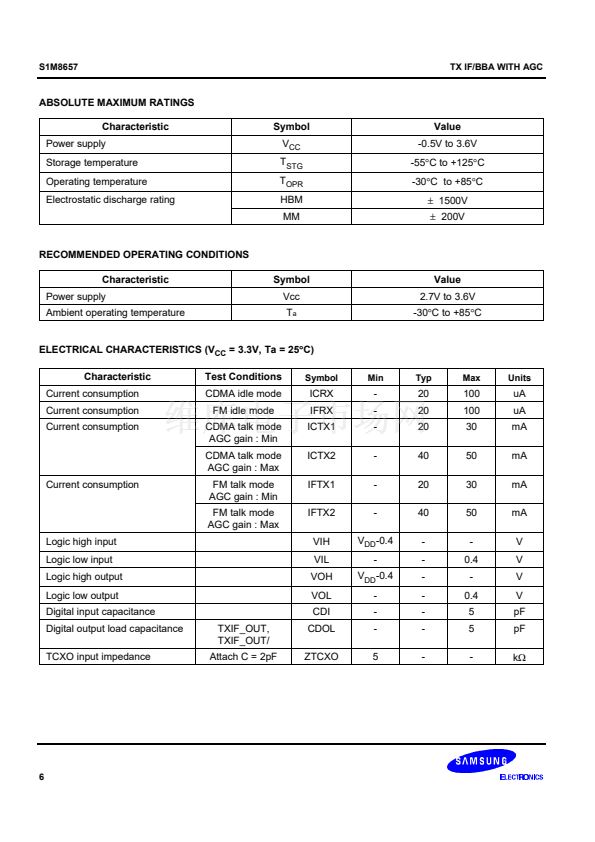

Its operating voltage is 2.7V 鈥?3.6V, and operating temperature
-30擄C 鈥?+85擄C.

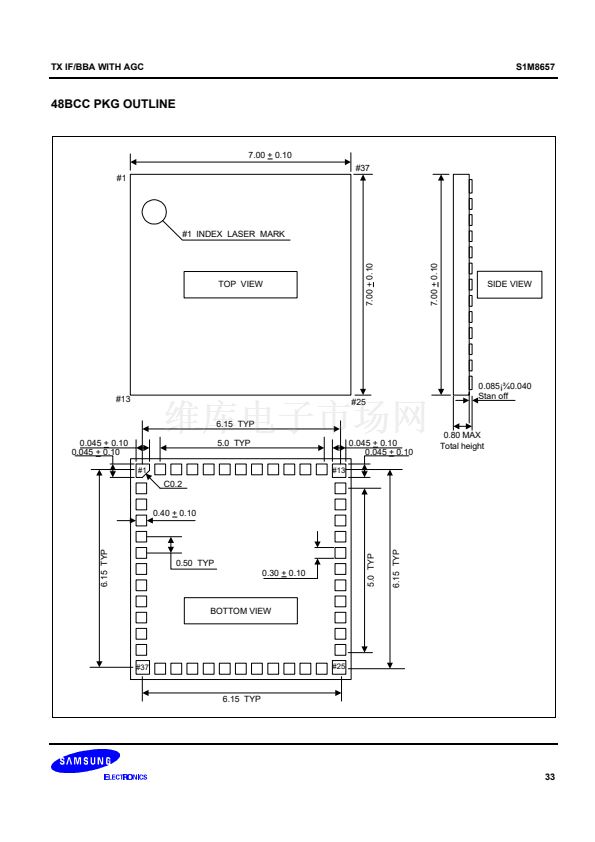

48-BCC-7.0
脳7.0
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
CDMA/AMPS Dual Mode

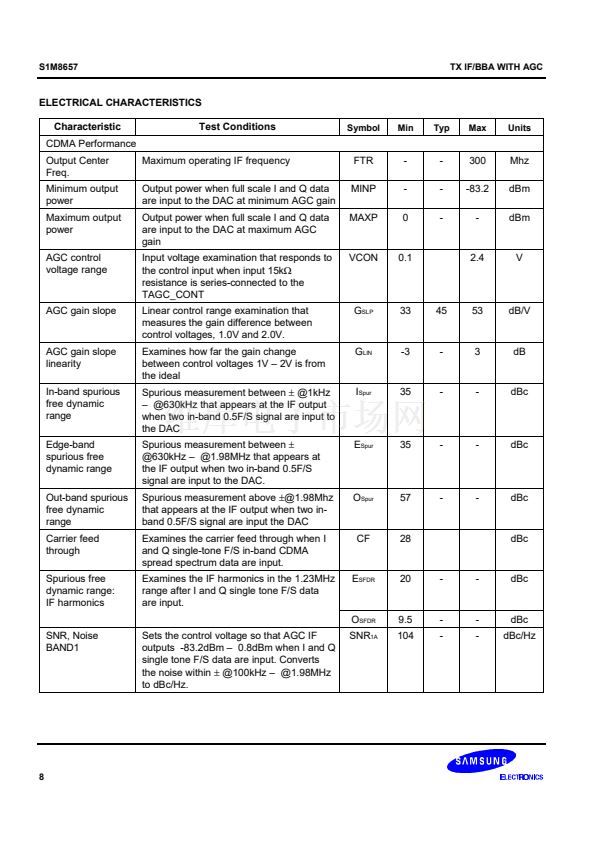

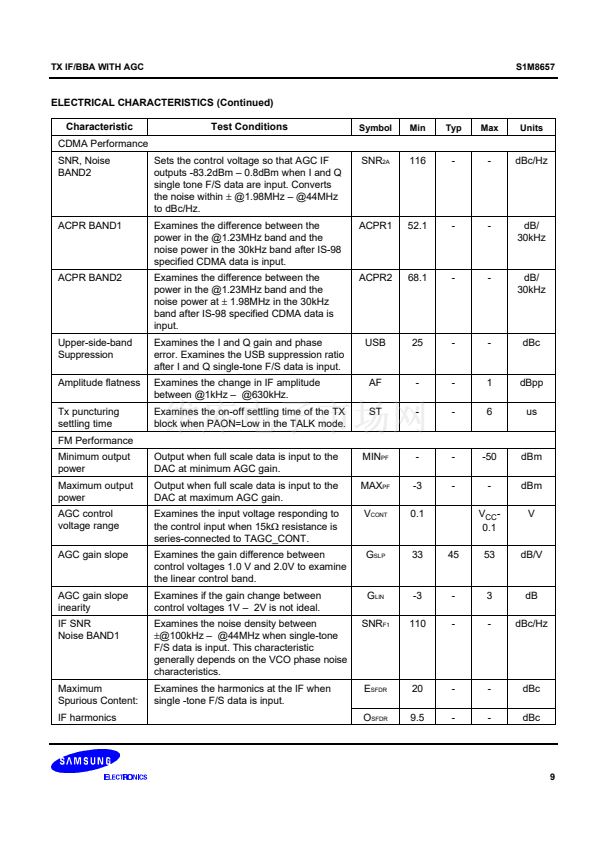

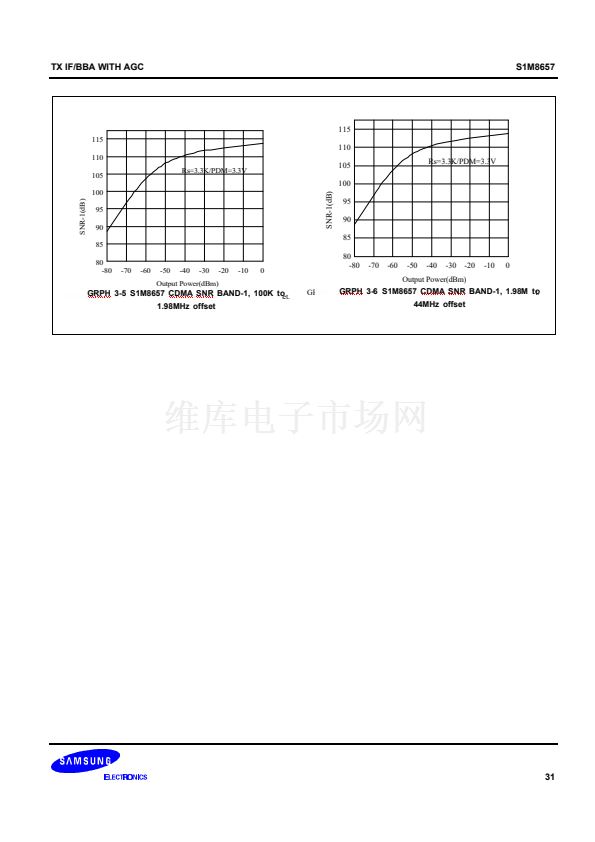

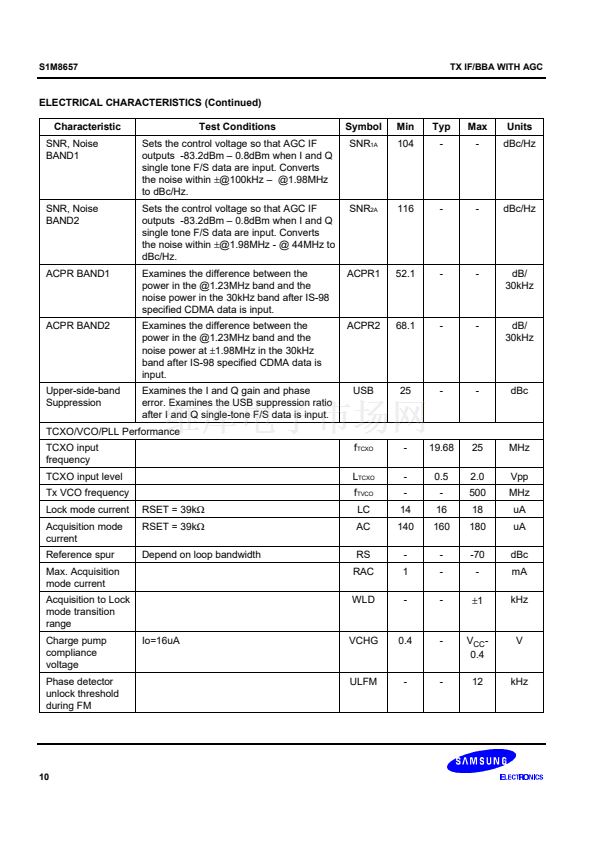

AGC output signal range : 90dB
Built-in QPSK baseband to IF converter
Built-in Tx I and Q LPF

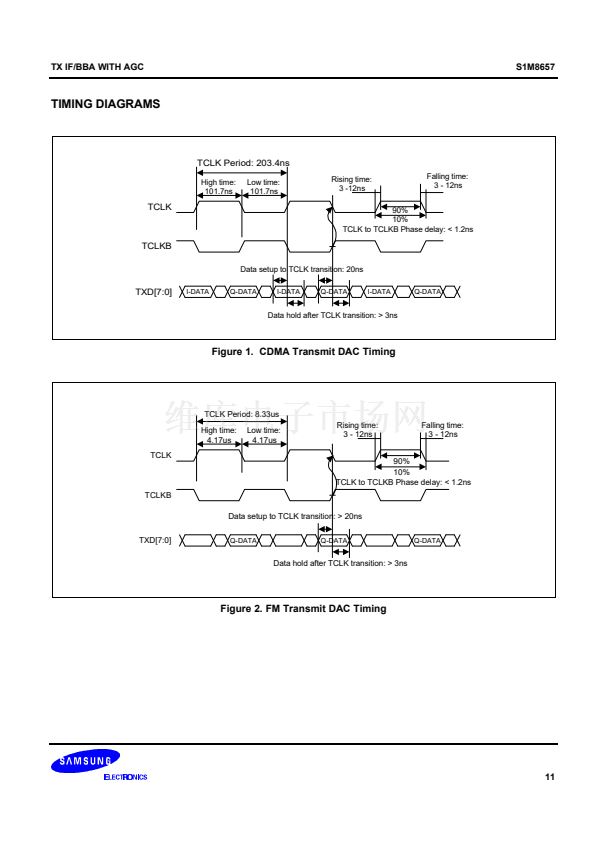

Built in I,Q 8-BIT DAC

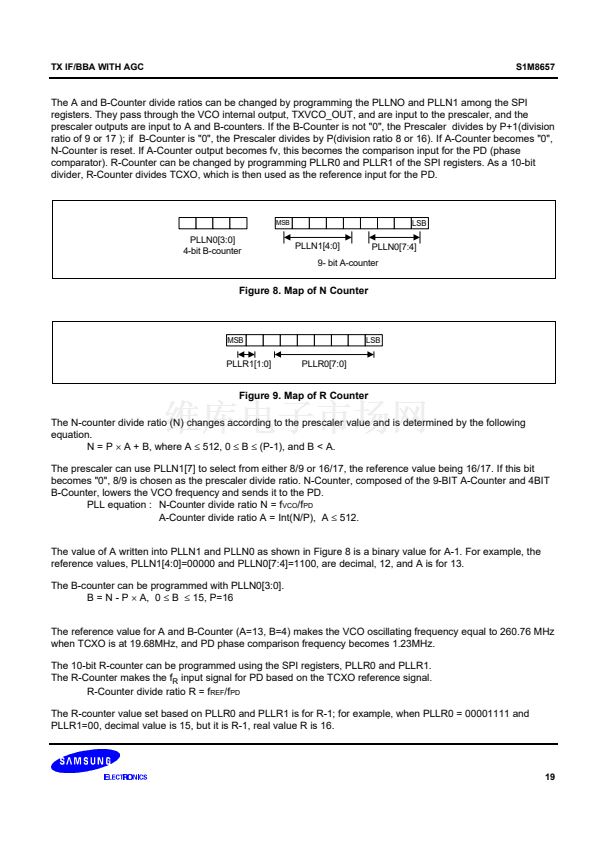

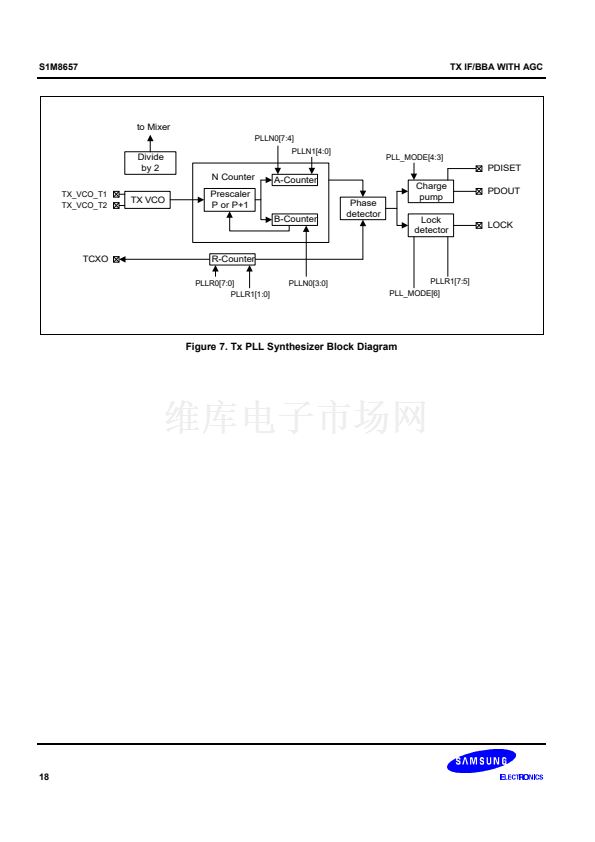

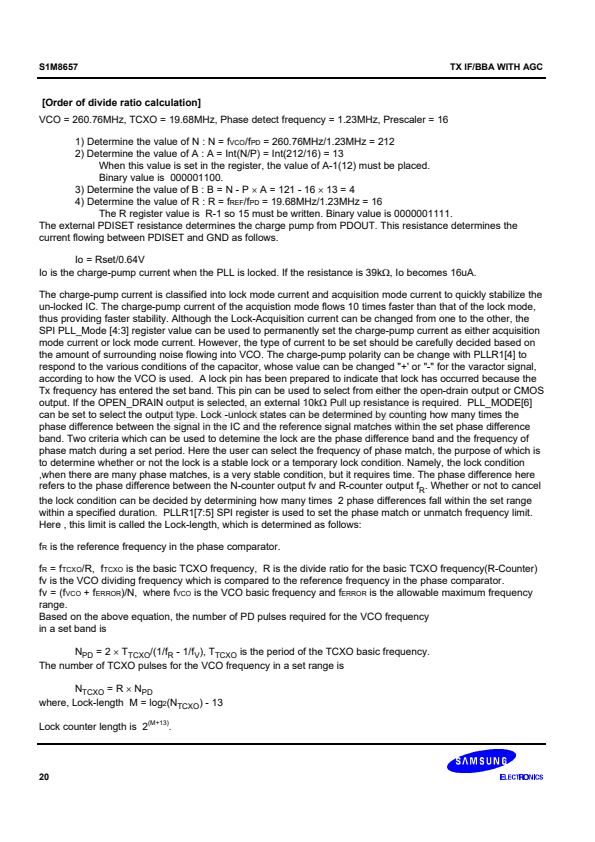

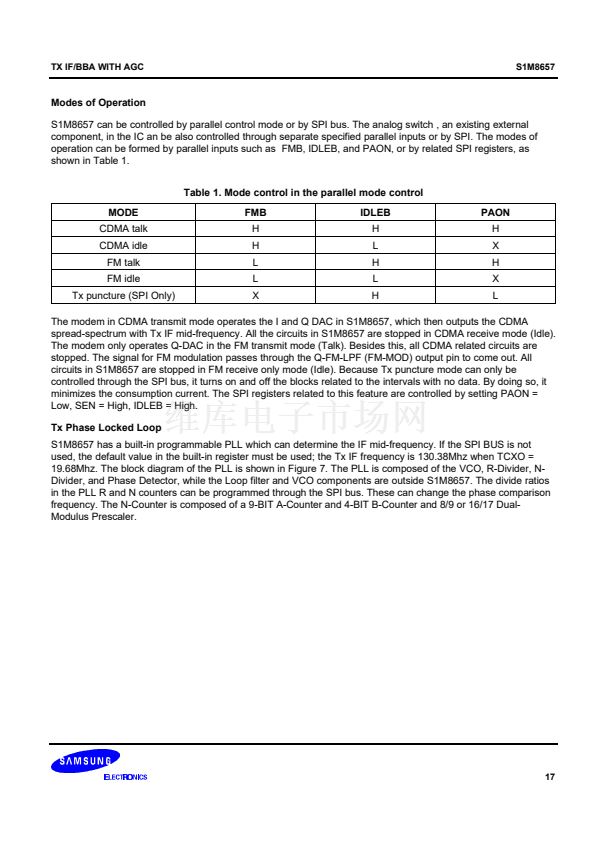

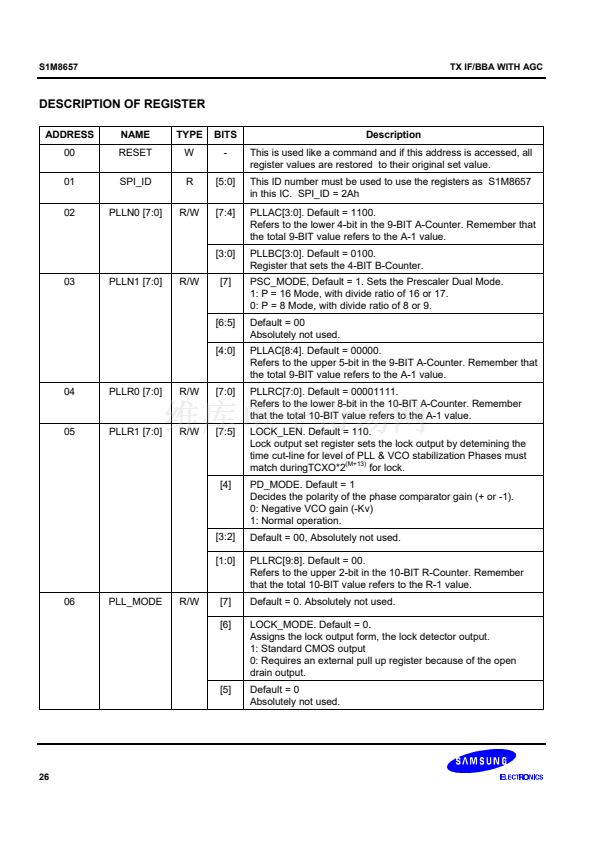

Built-in programmable Tx IF PLL
Built-in VCO for QPSK converter and IF conversion

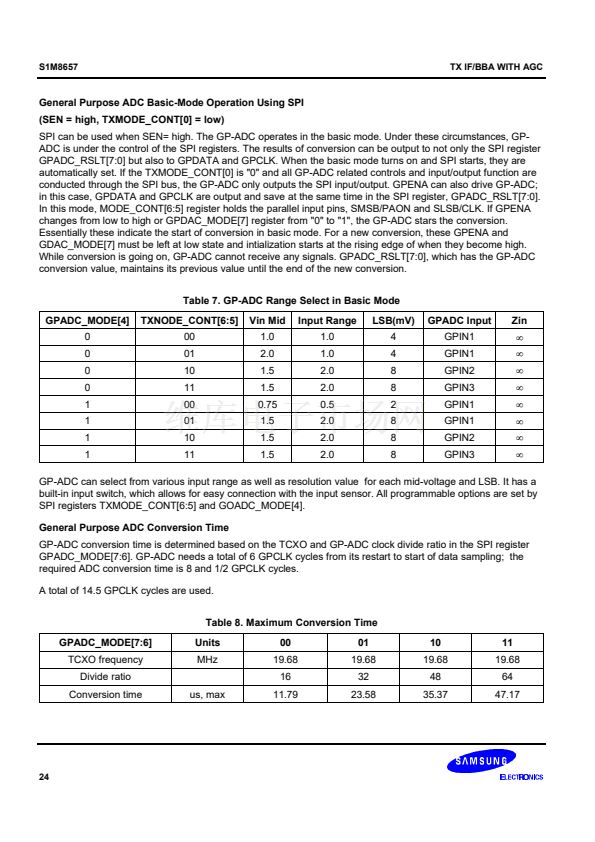

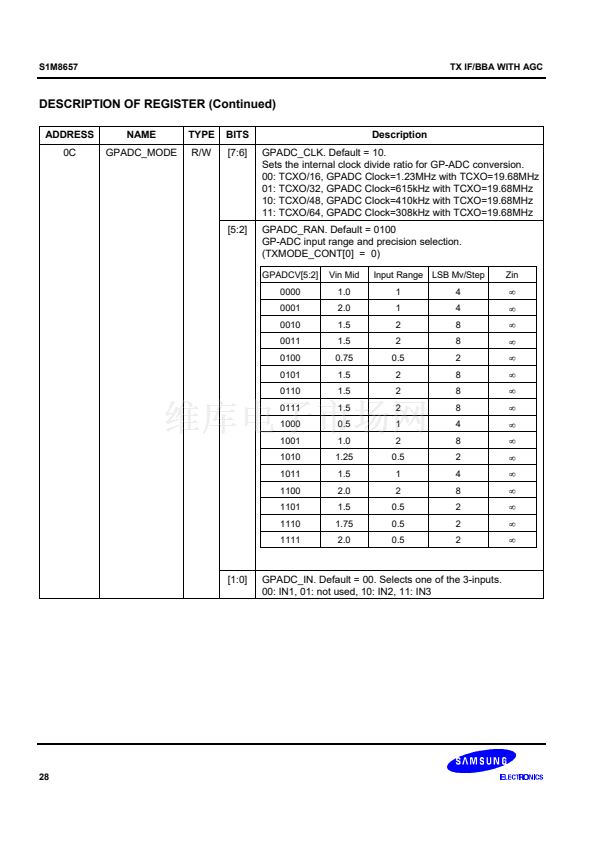

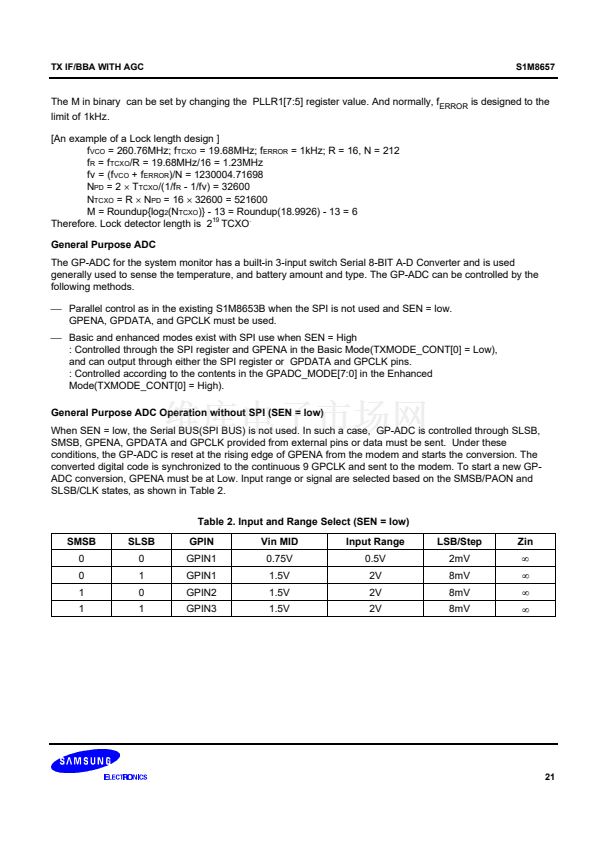

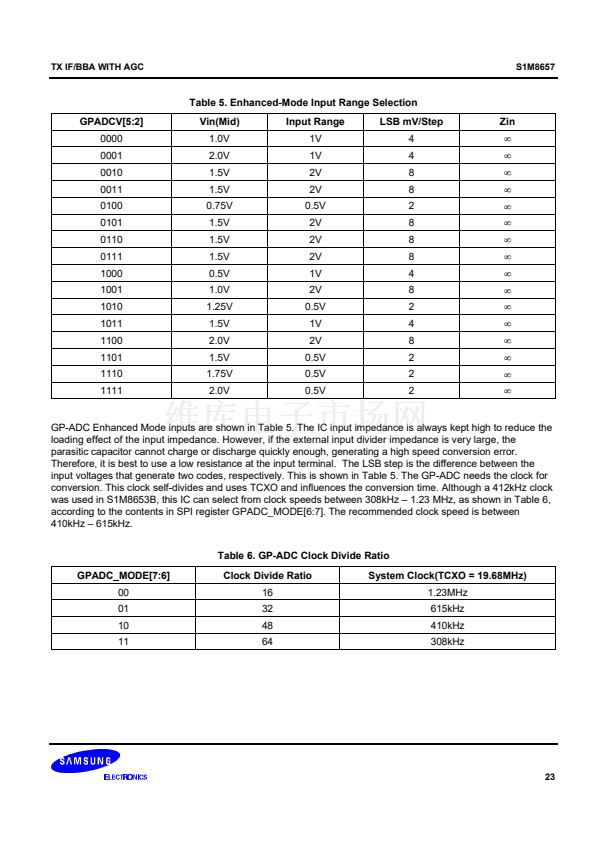

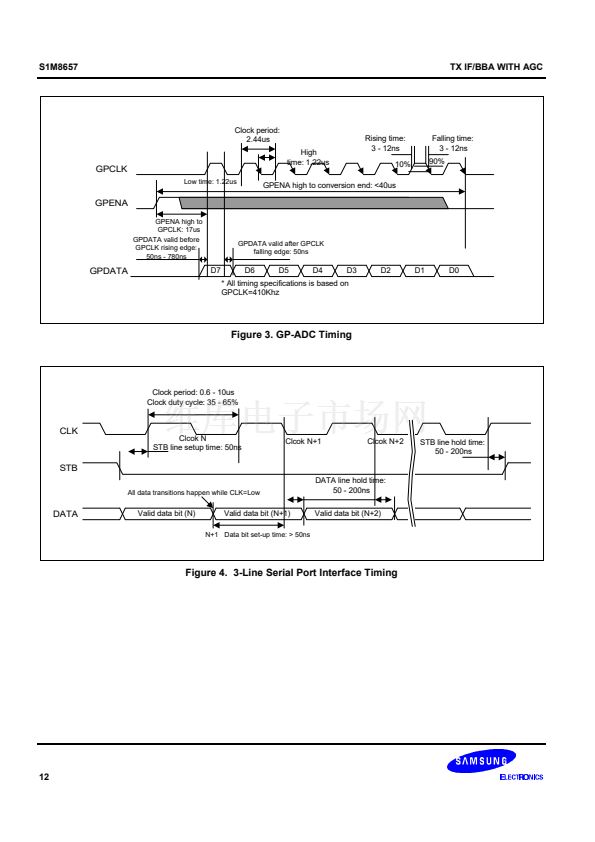

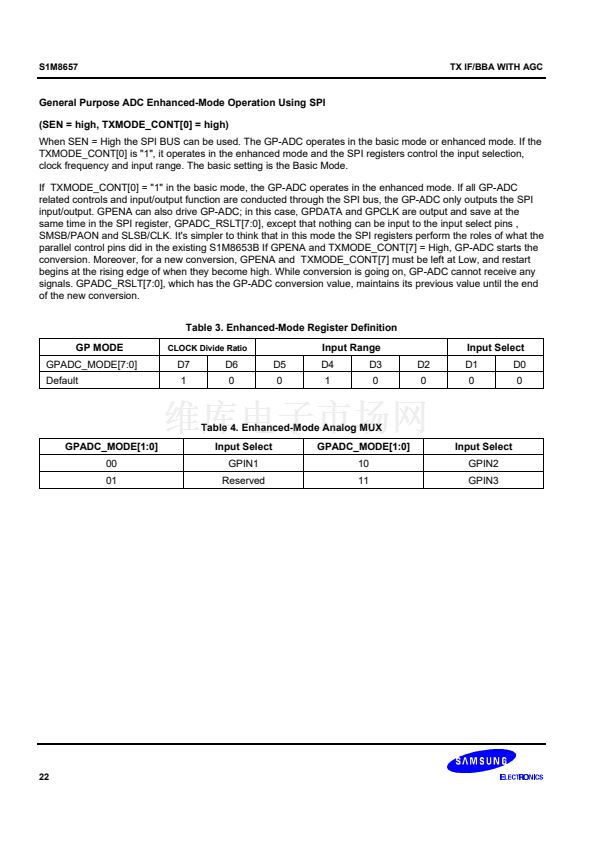

Built-in 8-BIT GP ADC with 3-input analog switching

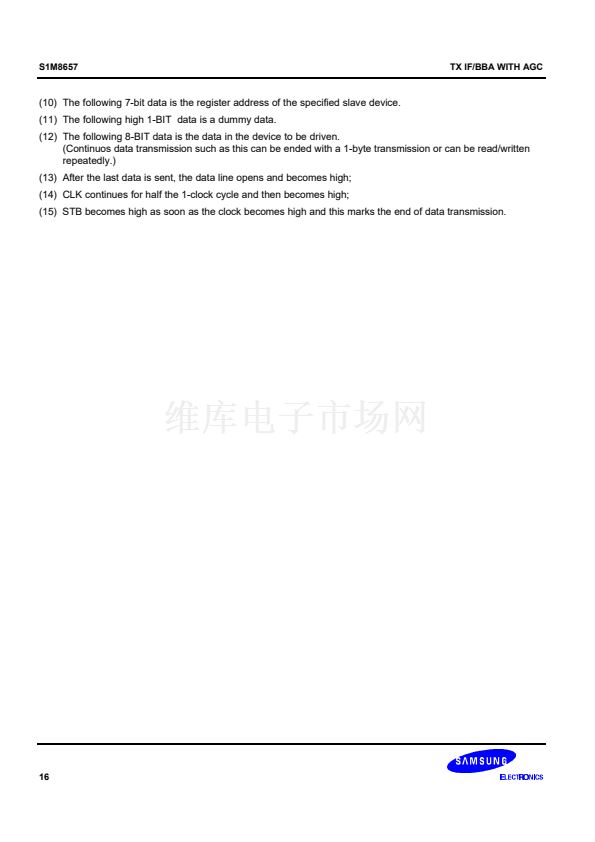

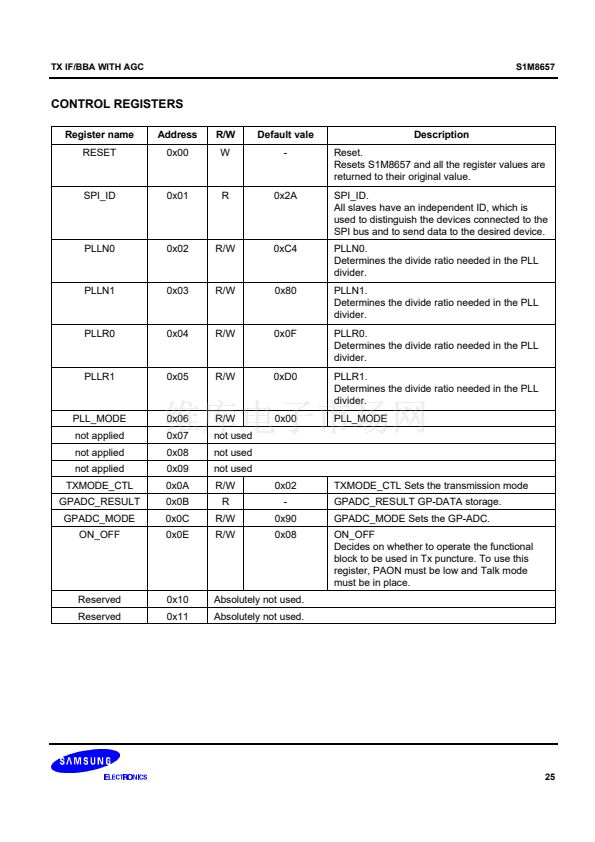

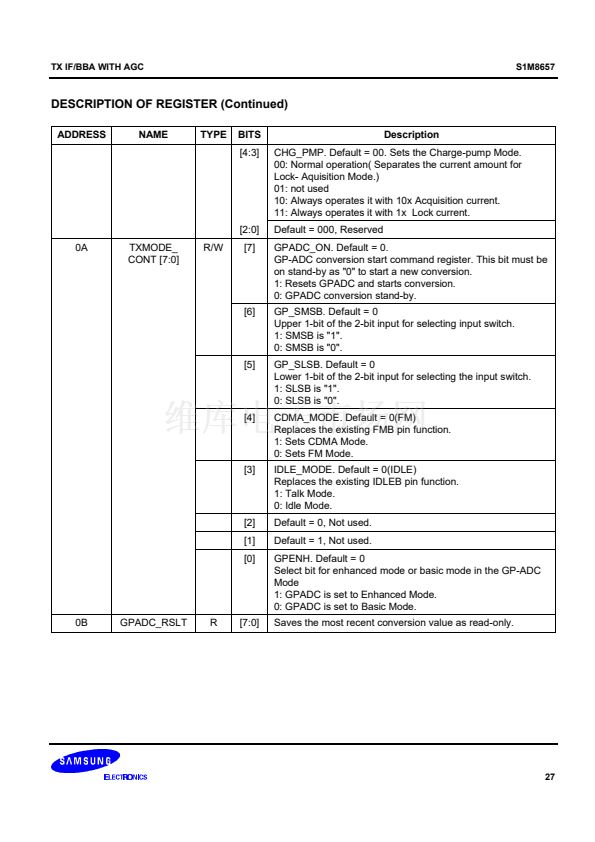

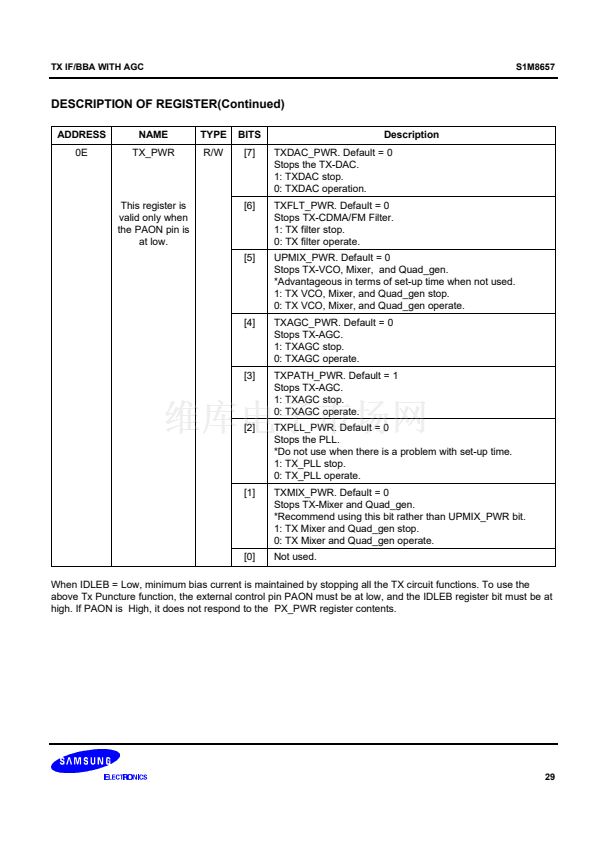

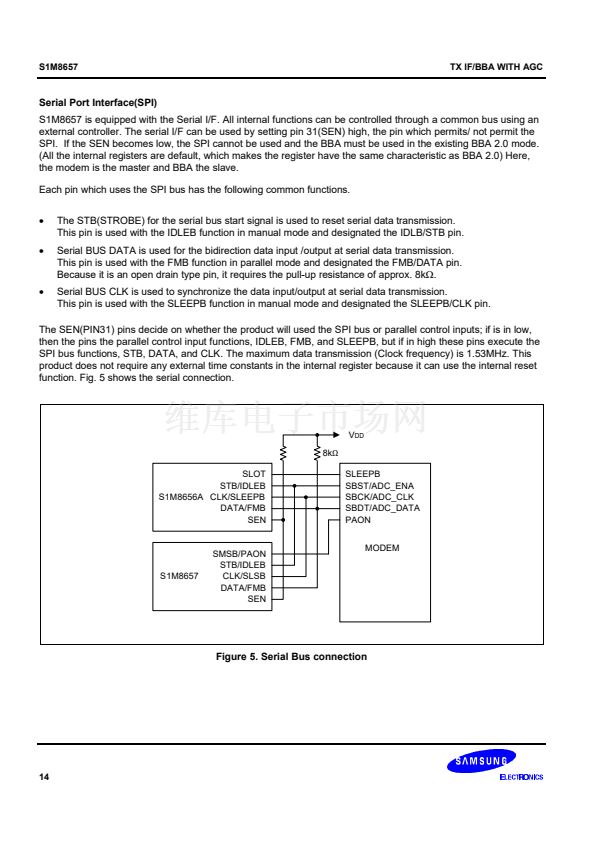

Built-in 3-line Serial Port Interface (SPI)
ORDERING INFORMATION
Device
+ S1M8657X01-E0T0
+ S1M8657X01-F0T0
+: New product
Package
48-LQFP-0707
48-BCC-7.0脳7.0
Operating Temperature
-30 to +85擄C
-30 to +85擄C
1
