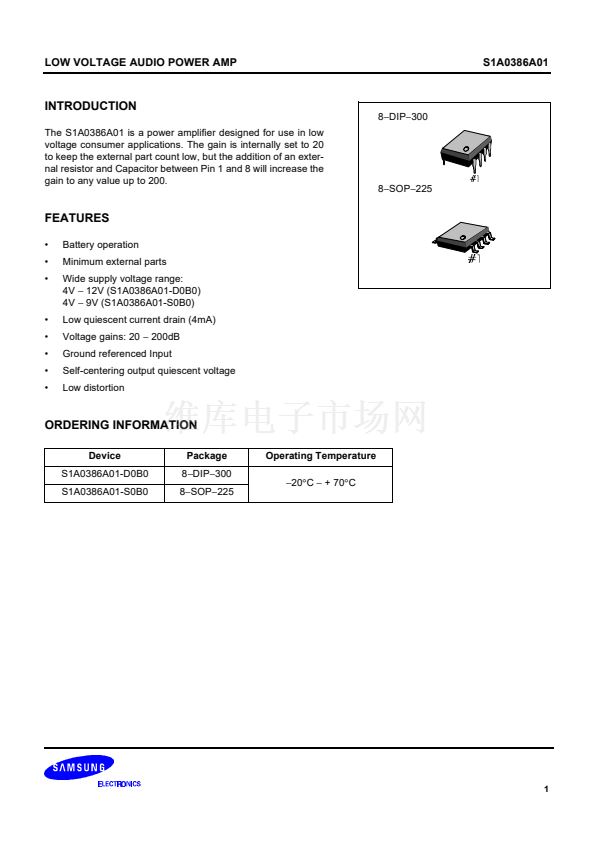

LOW VOLTAGE AUDIO POWER AMP
S1A0386A01
INTRODUCTION
8鈭扗IP鈭?00
The S1A0386A01 is a power amplifier designed for use in low
voltage consumer applications. The gain is internally set to 20
to keep the external part count low, but the addition of an exter-
nal resistor and Capacitor between Pin 1 and 8 will increase the
gain to any value up to 200.
8鈭扴OP鈭?25
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
Battery operation
Minimum external parts
Wide supply voltage range:
4V
鈭?/div>
12V (S1A0386A01-D0B0)
4V
鈭?/div>
9V (S1A0386A01-S0B0)
Low quiescent current drain (4mA)
Voltage gains: 20
鈭?/div>
200dB
Ground referenced Input
Self-centering output quiescent voltage
Low distortion
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
ORDERING INFORMATION
Device
S1A0386A01-D0B0
S1A0386A01-S0B0
Package
8鈭扗IP鈭?00
8鈭扴OP鈭?25
Operating Temperature
