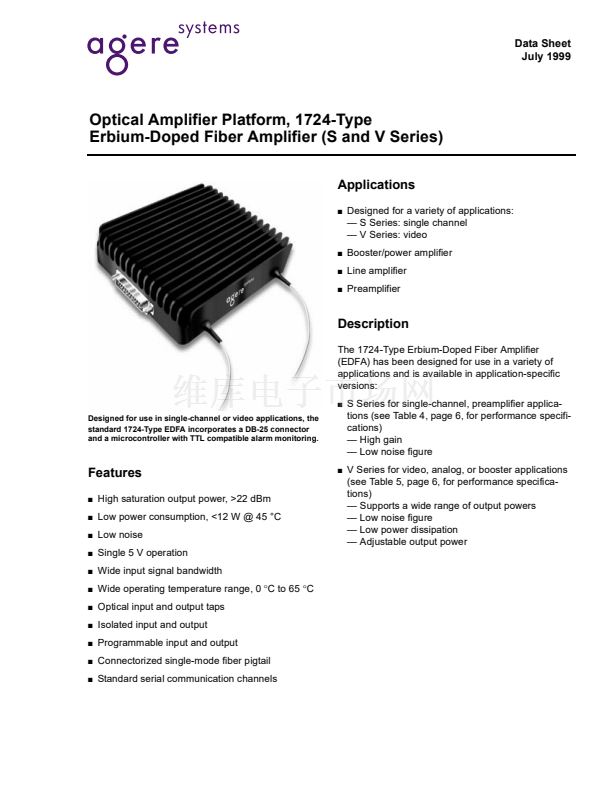

Data Sheet
July 1999
Optical Amplifier Platform, 1724-Type
Erbium-Doped Fiber Amplifier (S and V Series)
Applications
s
Designed for a variety of applications:
鈥?S Series: single channel
鈥?V Series: video
Booster/power amplifier
Line amplifier
Preamplifier
s
s
s
Description
The 1724-Type Erbium-Doped Fiber Amplifier
(EDFA) has been designed for use in a variety of
applications and is available in application-specific
versions:
s
Designed for use in single-channel or video applications, the
standard 1724-Type EDFA incorporates a DB-25 connector
and a microcontroller with TTL compatible alarm monitoring.

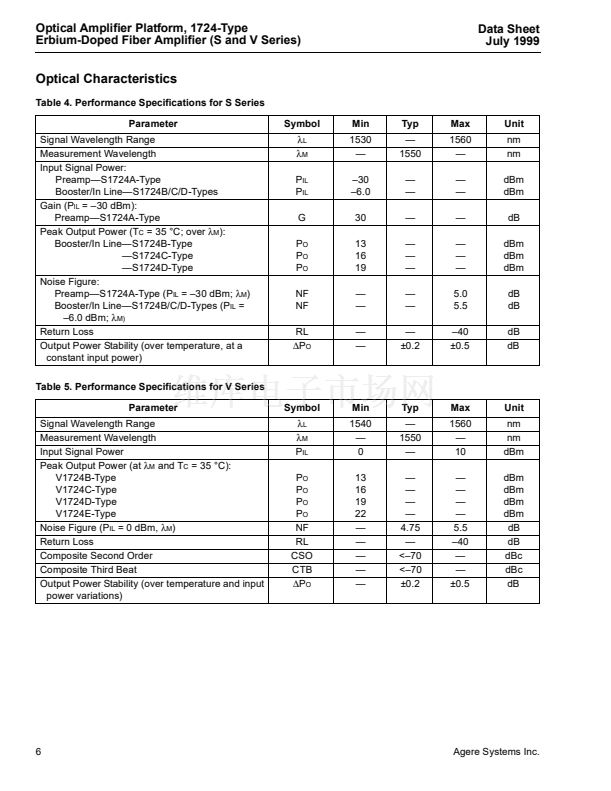

S Series for single-channel, preamplifier applica-
tions (see Table 4, page 6, for performance specifi-
cations)
鈥?High gain
鈥?Low noise figure
V Series for video, analog, or booster applications
(see Table 5, page 6, for performance specifica-
tions)
鈥?Supports a wide range of output powers
鈥?Low noise figure
鈥?Low power dissipation
鈥?Adjustable output power
Features
s
s
s
s
s
s
s
s
s
s
s
s
High saturation output power, >22 dBm
Low power consumption, <12 W @ 45 擄C
Low noise
Single 5 V operation
Wide input signal bandwidth
Wide operating temperature range, 0
擄C
to 65
擄C
Optical input and output taps
Isolated input and output
Programmable input and output
Connectorized single-mode fiber pigtail
Standard serial communication channels
