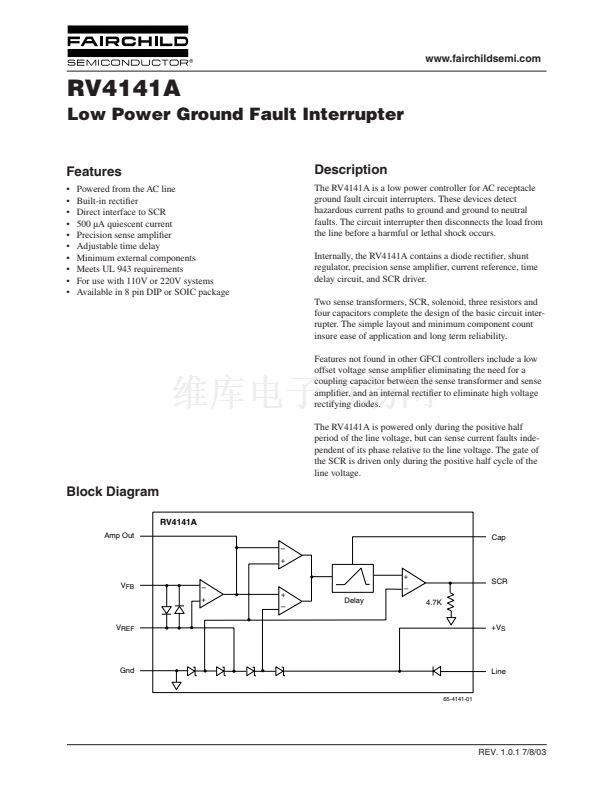

www.fairchildsemi.com
RV4141A
Low Power Ground Fault Interrupter
Description
The RV4141A is a low power controller for AC receptacle
ground fault circuit interrupters. These devices detect
hazardous current paths to ground and ground to neutral
faults. The circuit interrupter then disconnects the load from
the line before a harmful or lethal shock occurs.
Internally, the RV4141A contains a diode recti鏗乪r, shunt
regulator, precision sense ampli鏗乪r, current reference, time
delay circuit, and SCR driver.
Two sense transformers, SCR, solenoid, three resistors and
four capacitors complete the design of the basic circuit inter-
rupter. The simple layout and minimum component count
insure ease of application and long term reliability.
Features not found in other GFCI controllers include a low
offset voltage sense ampli鏗乪r eliminating the need for a
coupling capacitor between the sense transformer and sense
ampli鏗乪r, and an internal recti鏗乪r to eliminate high voltage
rectifying diodes.
The RV4141A is powered only during the positive half
period of the line voltage, but can sense current faults inde-
pendent of its phase relative to the line voltage. The gate of
the SCR is driven only during the positive half cycle of the
line voltage.
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Powered from the AC line
Built-in recti鏗乪r
Direct interface to SCR
500 碌A(chǔ) quiescent current
Precision sense ampli鏗乪r
Adjustable time delay
Minimum external components
Meets UL 943 requirements
For use with 110V or 220V systems
Available in 8 pin DIP or SOIC package
Block Diagram
RV4141A
Amp Out
鈥?/div>
+
+
V
FB
鈥?/div>
+
+
鈥?/div>
V
REF
Delay
鈥?/div>
4.7K
+V
S
SCR
Cap
Gnd
Line
65-4141-01
REV. 1.0.1 7/8/03

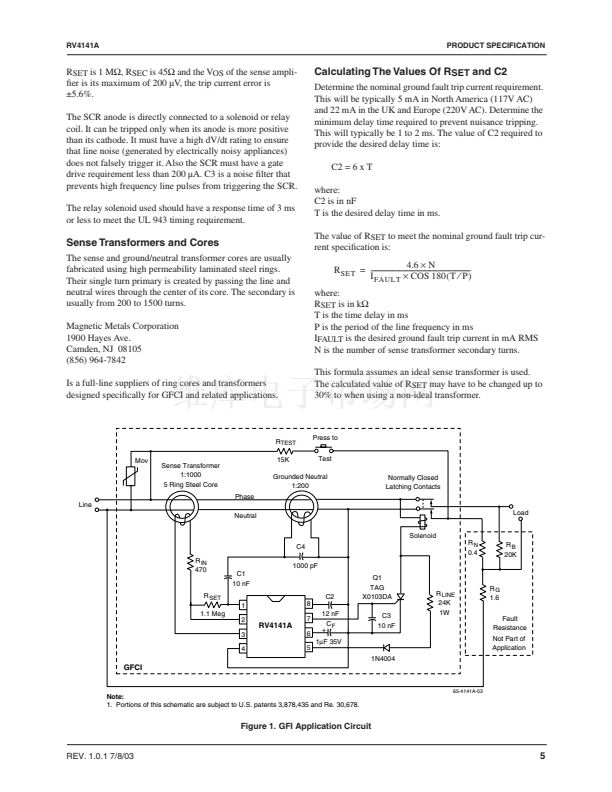

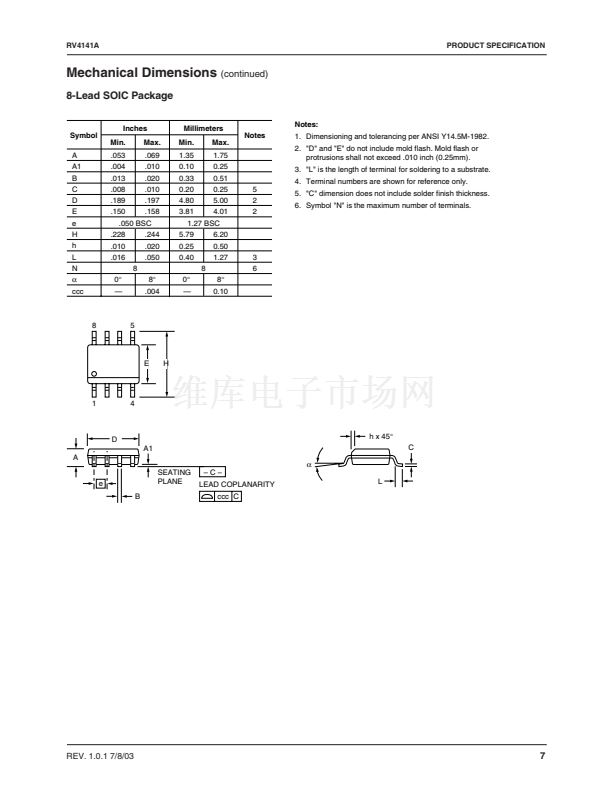

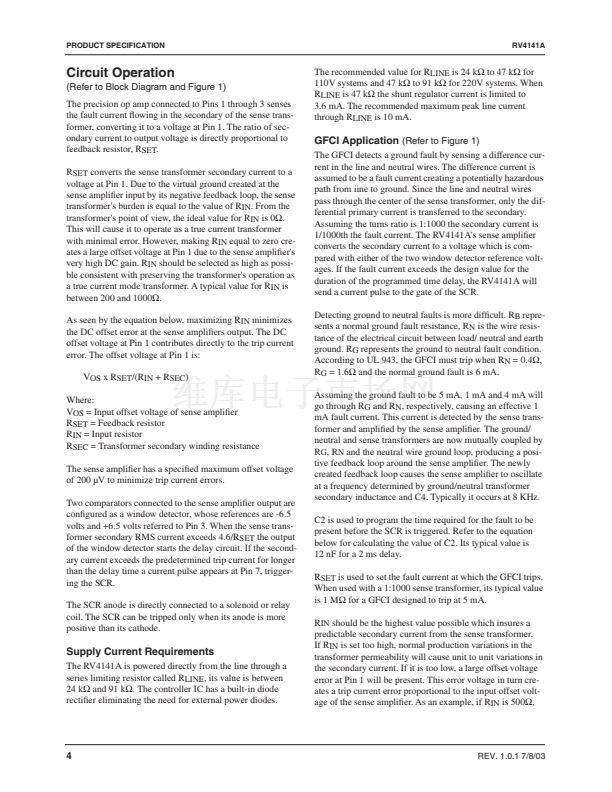

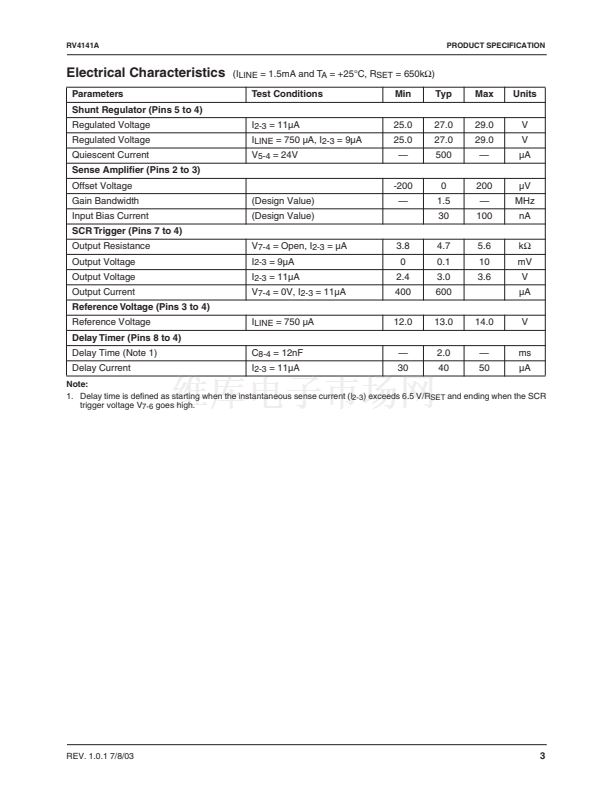

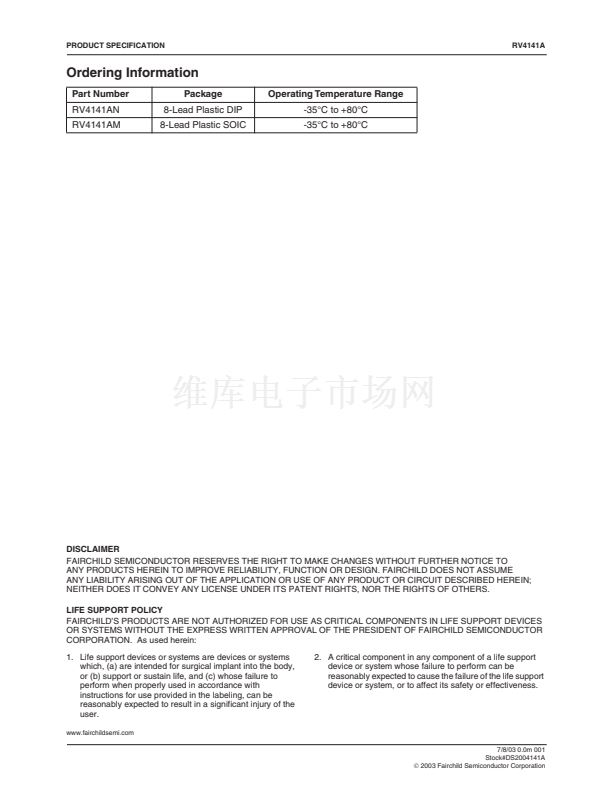

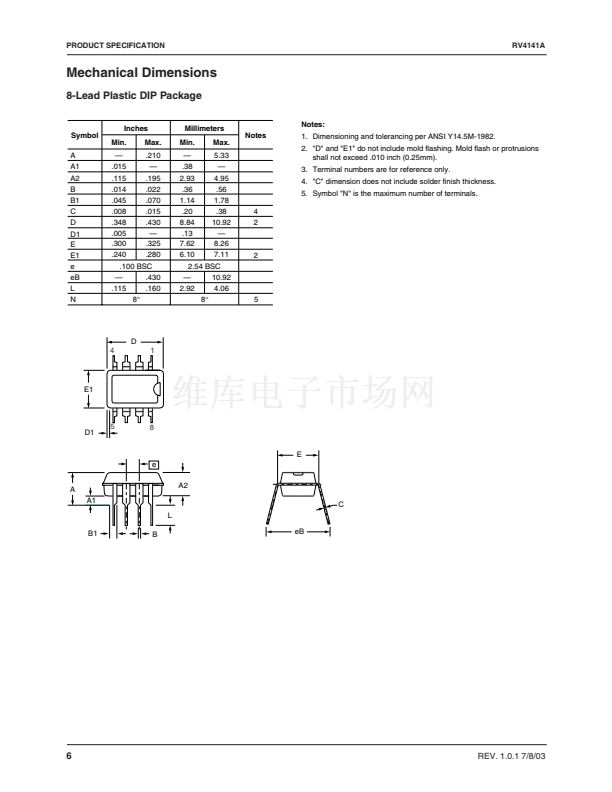

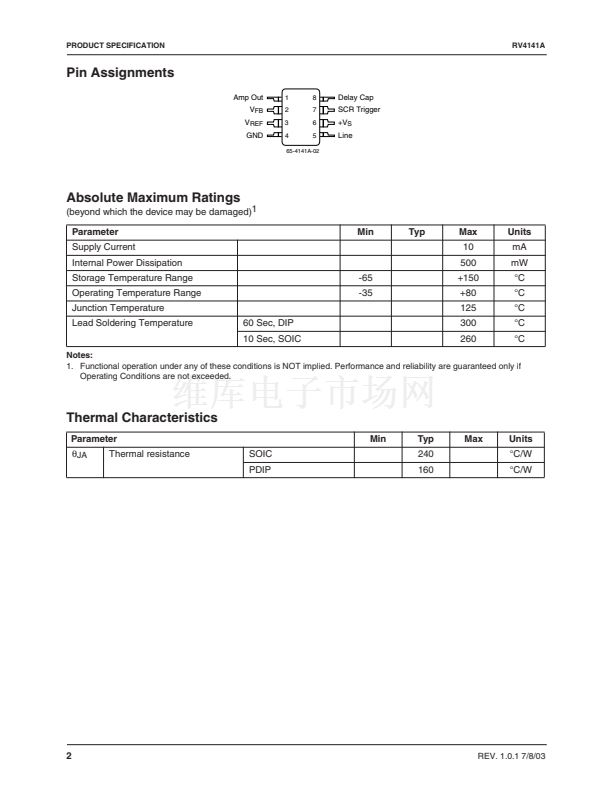

RV4141AN 產(chǎn)品屬性
40
集成電路 (IC)
PMIC - 電源管理 - 專用
-
接地故障保護
10mA
-
-35°C ~ 80°C
通孔
8-DIP（0.300"，7.62mm）
8-DIP
管件
RV4141AN-NDRV4141ANFS
