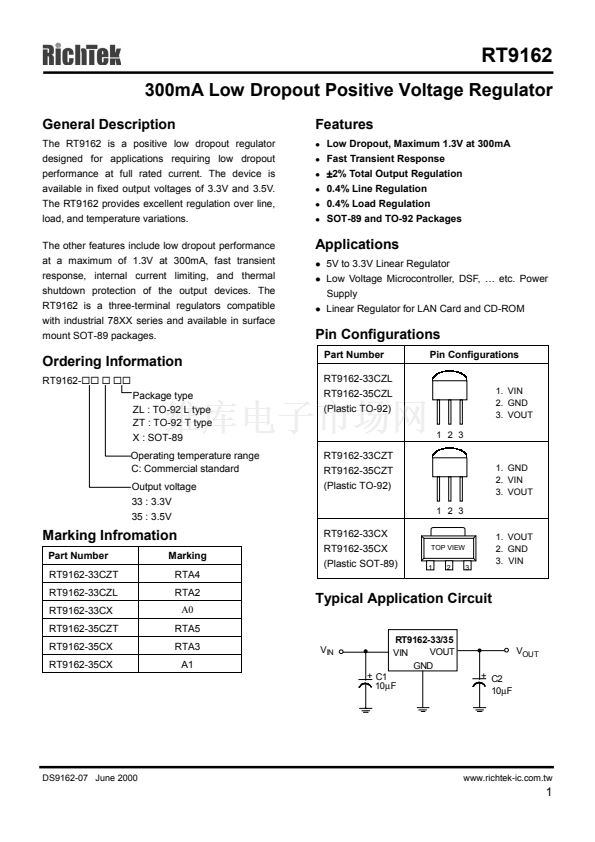

RT9162

300mA Low Dropout Positive Voltage Regulator

General Description

The RT9162 is a positive low dropout regulator

designed for applications requiring low dropout

performance at full rated current. The device is

available in fixed output voltages of 3.3V and 3.5V.

The RT9162 provides excellent regulation over line,

load, and temperature variations.

The other features include low dropout performance

at a maximum of 1.3V at 300mA, fast transient

response, internal current limiting, and thermal

shutdown protection of the output devices. The

RT9162 is a three-terminal regulators compatible

with industrial 78XX series and available in surface

mount SOT-89 packages.

Features

Low Dropout, Maximum 1.3V at 300mA

Fast Transient Response

鹵

2% Total Output Regulation

0.4% Line Regulation

0.4% Load Regulation

SOT-89 and TO-92 Packages

Applications

5V to 3.3V Linear Regulator

Low Voltage Microcontroller, DSF, 鈥?etc. Power

Supply

Linear Regulator for LAN Card and CD-ROM

Pin Configurations

Part Number

RT9162-33CZL

Pin Configurations

Ordering Information

RT9162-

Package type

ZL : TO-92 L type

ZT : TO-92 T type

X : SOT-89

Operating temperature range

C: Commercial standard

Output voltage

33 : 3.3V

35 : 3.5V

RT9162-35CZL

(Plastic TO-92)

1 2 3

1. VIN

2. GND

3. VOUT

RT9162-33CZT

RT9162-35CZT

(Plastic TO-92)

1 2 3

1. GND

2. VIN

3. VOUT

Marking Infromation

Part Number

RT9162-33CZT

RT9162-33CZL

RT9162-33CX

RT9162-35CZT

RT9162-35CX

RT9162-35CX

Marking

RTA4

RTA2

A0

RTA5

RTA3

A1

RT9162-33CX

RT9162-35CX

(Plastic SOT-89)

TOP VIEW

1

2

3

1. VOUT

2. GND

3. VIN

Typical Application Circuit

RT9162-33/35

VOUT

VIN

GND

V

IN

V

OUT

+ C2

10碌F

+ C1

10

碌

F

DS9162-07 June 2000

www.richtek-ic.com.tw

1
