PARM-SIZED,
16-CHANNEL
RELAY TERMINALS
FEATURES
鈥?Compact, space-saving design:
The Relay Terminal with 16 I/O channels
measures only (W)116
脳
(D)52
脳
(H)37
mm
(W)4.57
脳
(D)2.047
脳
(H)1.457 inch.
The compact design contributes to
equipment downsizing.
鈥?Incorporates PA Relays with high-
sensitivity twin contacts and Au-clad-
ding:
The Relay Terminal incorporates 5 mm
.197 inch
wide PA relays. The PA relay
features high sensitivity (12 V type = 120
mW, 24 V type = 180 mW) and twin con-
tacts with Au-cladding, which combine to
ensure high reliability under low-level
loads.
鈥?Available in input and output devices
鈥?Available in Pressure connector con-
nect type and wire-direct connect
type:
Pressure connector connect type has a
single common for four I/O channels.
The Wire-direct connect type has a sin-
gle common for each I/O channel.
鈥?Incorporates a surge absorber:
The RT-2 Series incorporates a surge
absorber to protect the programmable
controller internal electronics from in-
ductor turn-off surges.
RT-2 RELAY
TERMINAL
鈥?Equipped with LED indicator lights:
LED indicators allow the user to identify
the relay status at a glance.
鈥?Comes with AXM connector (long le-
ver version):
The RT-2 Series comes with the AXM
connector (complying with the MIL stan-
dard) for single connections. Cable de-
signed for use with AXM connectors are
also available.
鈥?Ease of mounting on DIN rails:
The DIN rail mounting hook of relay ter-
minal is provided with a release/reten-
tion mechanism to ease mounting and
removal.
鈥?Available with a wide variety of ca-
bles:
A wide variety of assembled cables of-
fers compatibility with our programmable
controllers, and wire-pressed terminal
cables provide compatibility with other
controllers.
Pressure connector connect type
Wire-direct connect type
ORDERING INFORMATION
Ex. RT2S
M
C
ID
16
12V
Installation type
Blank: DIN rail mounting type
M:
Direct mounting type
Termination type
Blank: Pressure connector connect type
C:
Wire-direct connect type
I/O type
ID: Input device (DC)
OD: Output device (DC)
No. of I/O channels
16: 16 channels
Rated voltage
12 V: 12 V DC
24 V: 24 V DC

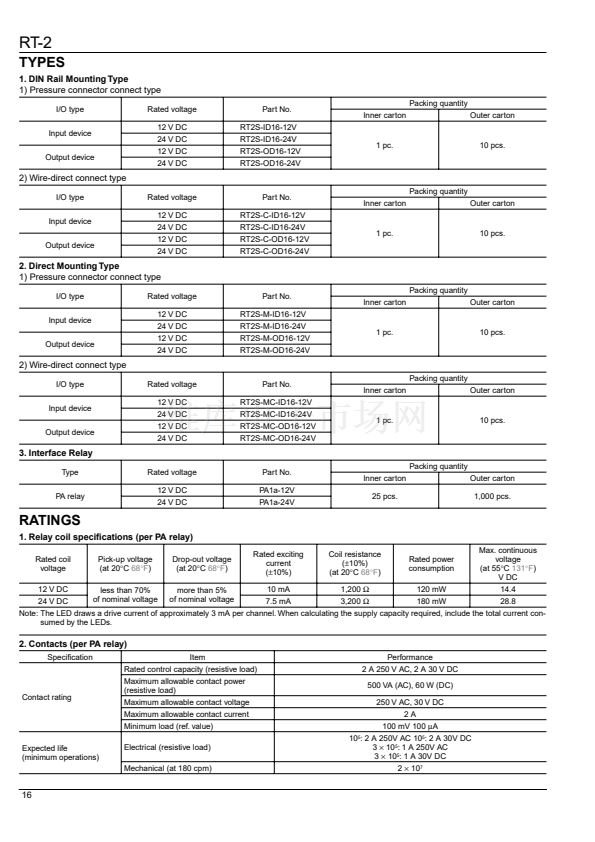

Note: Please consult us regarding minus common types for input.
