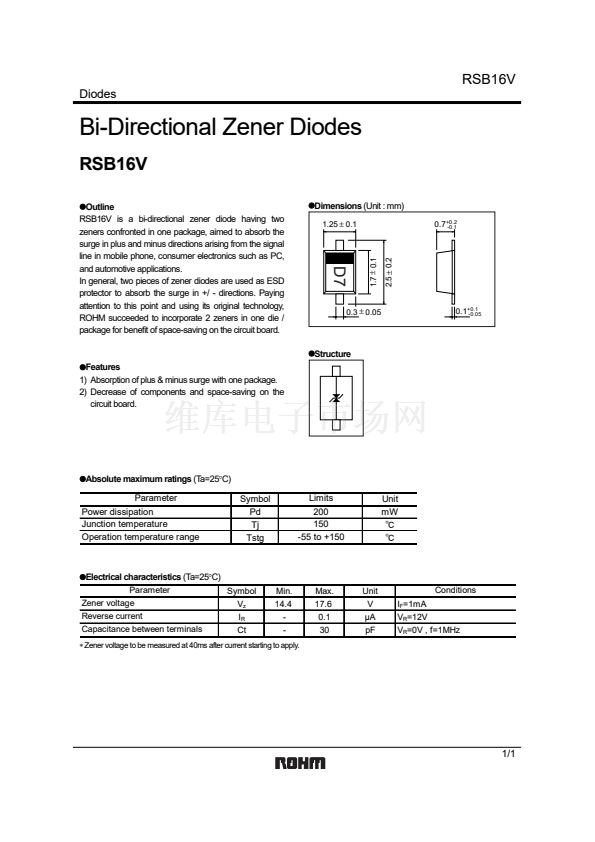

RSB16V
Diodes
Bi-Directional Zener Diodes
RSB16V
Outline
RSB16V is a bi-directional zener diode having two
zeners confronted in one package, aimed to absorb the
surge in plus and minus directions arising from the signal
line in mobile phone, consumer electronics such as PC,
and automotive applications.
In general, two pieces of zener diodes are used as ESD
protector to absorb the surge in +/ - directions. Paying
attention to this point and using its original technology,
ROHM succeeded to incorporate 2 zeners in one die /
package for benefit of space-saving on the circuit board.
Dimensions
(Unit : mm)
1.25
鹵
0.1
0.7
+0.2
-0.1
1.7
鹵
0.1
0.3
鹵
0.05
2.5
鹵
0.2
Structure
Features
1) Absorption of plus & minus surge with one package.
2) Decrease of components and space-saving on the
circuit board.
D7
0.1
+0.1
-0.05
Absolute maximum ratings
(Ta=25擄C)
Parameter
Power dissipation
Junction temperature
Operation temperature range
Symbol
Pd
Tj
Tstg
Limits
200
150
-55 to +150
Unit
mW
鈩?/div>
鈩?/div>
Electrical characteristics
(Ta=25擄C)
Parameter
Symbol
Zener voltage
V
z
Reverse current
I
R
Capacitance between terminals
Ct
Min.
14.4
-
-
Max.
17.6
0.1
30
Unit
V
碌A(chǔ)
pF
Conditions
I
F
=1mA
V
R
=12V
V
R
=0V , f=1MHz
鈭?/div>
Zener voltage to be measured at 40ms after current starting to apply.
