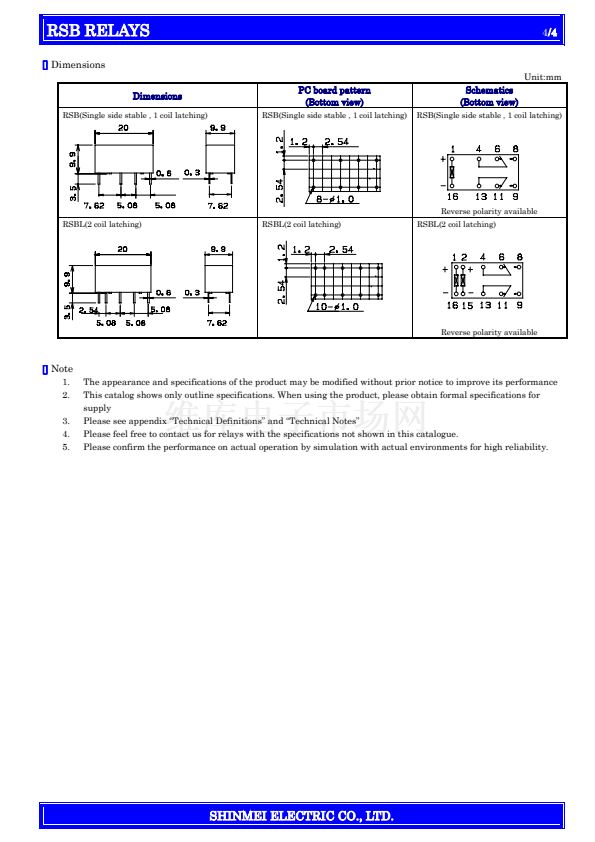

Using Permanent Magnet, High sensitivity Two Poles Signal Relay
RSB RELAYS
1/4
[]

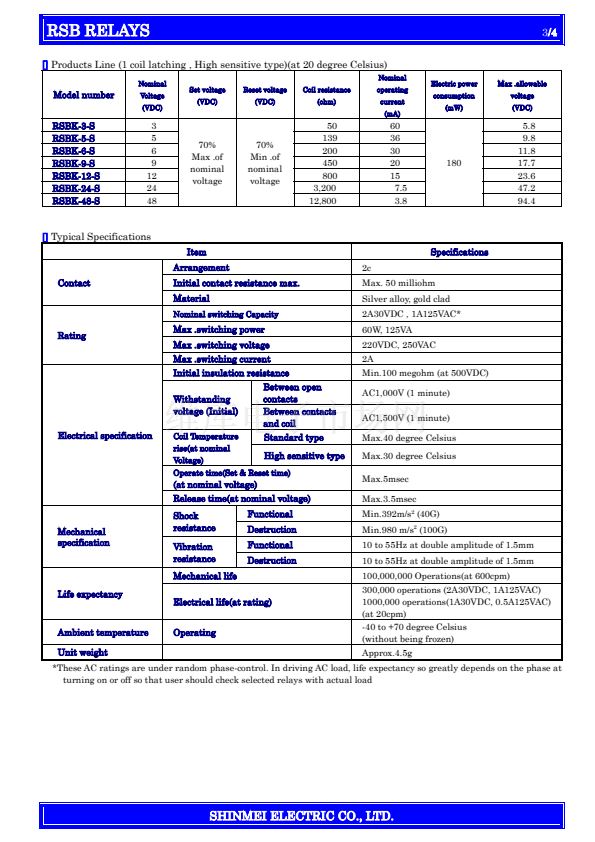

Features
<>2
pole relay suitable for signal circuit.
<>High
sensitive polarized relay.
100mW pick-up power. (200mW Electric power consumption)
<>150mW
Electric power consumption available.
<>High
reliability and long life.
1 x 10
8
(mechanical life), 3 x 10
5
(2A 30VDC electrical life)
<>High
breakdown voltage.
1,500VAC Between coil and contact.
1,000VAC Between open contacts.
<>Gold-clad
Silver palladium contact available, too.
<>Sealed
construction.
<>Approved
by UL , CSA , BABT
Actual size
[]
Applications
<>Switch
board, Facsimile, Telephones
<>Audio
equipment, Industrial machines
[]
UL , CSA Rating , BABT Approval Number
2A 30VDC , 1A120VAC (UL File No.E128155 , CSA File No.LR700170)
(BABT Certificate No.608150)
[]
Model Number
RSB
Nil
L
K
: Single side stable
: 2 coil latching
: 1 coil latching
Coil voltage(3,5,6,9,12,24,48VDC)
Nil
S
:400mW
: Standard type
: High sensitive type :200mW
[]

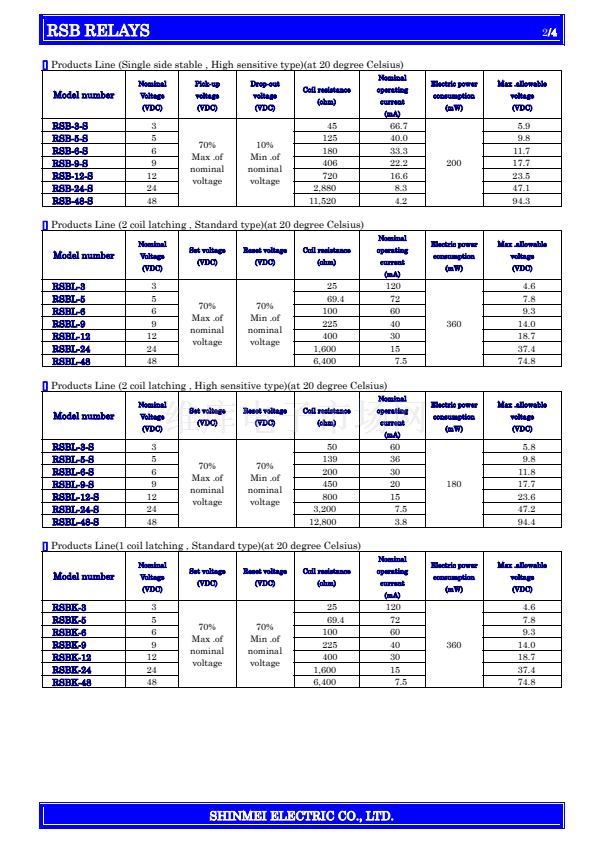

Products Line (Single side stable , Standard type)(at 20 degree Celsius)
Nominal
Pick-up
voltage
(VDC)
Drop-out
voltage
(VDC)
Nominal
Coil resistance
(ohm)
operating
current
(mA)
Electric power
consumption
(mW)
Max .allowable
voltage
(VDC)
Model number
RSB-3
RSB-5
RSB-6
RSB-9
RSB-12
RSB-24
RSB-48
Voltage
(VDC)
3
5
6
9
12
24
48
70%
Max .of
nominal
voltage
10%
Min .of
nominal
voltage
22.5
62.5
90
203
360
1,440
5,760
133.3
80.0
66.7
44.3
33.3
16.7
8.3
400
4.6
7.7
9.3
14.0
18.7
37.4
74.8
