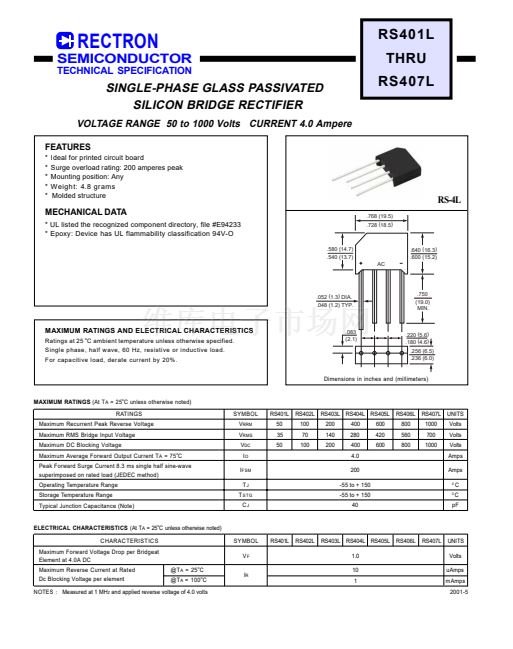

RECTRON
SEMICONDUCTOR
TECHNICAL SPECIFICATION
RS401L
THRU
RS407L
SINGLE-PHASE GLASS PASSIVATED
SILICON BRIDGE RECTIFIER
VOLTAGE RANGE 50 to 1000 Volts CURRENT 4.0 Ampere
FEATURES
*
*
*
*
*
Ideal for printed circuit board
Surge overload rating: 200 amperes peak
Mounting position: Any
Weight: 4.8 grams
Molded structure
RS-4L
.768 (19.5)
.728 (18.5)
MECHANICAL DATA
* UL listed the recognized component directory, file #E94233
* Epoxy: Device has UL flammability classification 94V-O
.580 (14.7)
.540 (13.7)
.640 (16.3)
.600 (15.2)
AC
.052 (1.3) DIA.
.048 (1.2) TYP.
.750
(19.0)
MIN.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
o
.083
(2.1)
.220 (5.6)
.180 (4.6)
.256 (6.5)
.236 (6.0)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(At T
A
= 25
o
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Bridge Input Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Output Current T
A
= 75 C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Operating Temperature Range
Storage Temperature Range
Typical Junction Capacitance (Note)
o
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
T
J
T
STG
C
J
RS401L
50
35
50
RS402L
100
70
100
RS403L RS404L RS405L
200
140
200
400
280
400
4.0
200
-55 to + 150
-55 to + 150
40
600
420
600
RS406L
800
560
800
RS407L
1000
700
1000
UNITS
Volts
Volts
Volts
Amps
Amps
0
0
C
C
pF
ELECTRICAL CHARACTERISTICS
(At T
A
= 25 C unless otherwise noted)
CHARACTERISTICS
Maximum Forward Voltage Drop per Bridgeat
Element at 4.0A DC
Maximum Reverse Current at Rated
Dc Blocking Voltage per element
@T
A
= 25
o
C
@T
A
= 100 C
o
o
SYMBOL
V
F
I
R
RS401L
RS402L
RS403L RS404L RS405L
1.0
10
1
RS406L
RS407L
UNITS
Volts
uAmps
mAmps
2001-5
NOTES : Measured at 1 MH
Z
and applied reverse voltage of 4.0 volts
RECTRON
1
2
