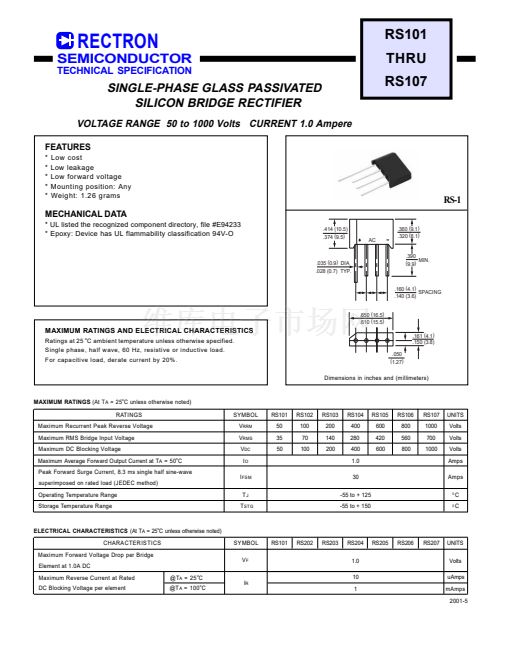

RECTRON
SEMICONDUCTOR
TECHNICAL SPECIFICATION
RS101
THRU
RS107
SINGLE-PHASE GLASS PASSIVATED
SILICON BRIDGE RECTIFIER
VOLTAGE RANGE 50 to 1000 Volts CURRENT 1.0 Ampere
FEATURES
*
*
*
*
*
Low cost
Low leakage
Low forward voltage
Mounting position: Any
Weight: 1.26 grams
RS-1
.414 (10.5)
.374 (9.5)
.360 (9.1)
.320 (8.1)
MECHANICAL DATA
* UL listed the recognized component directory, file #E94233
* Epoxy: Device has UL flammability classification 94V-O
AC
.035 (0.9) DIA
.028 (0.7) TYP.
.390
MIN.
(9.9)
.160 (4.1)
SPACING
.140 (3.6)
.650 (16.5)
.610 (15.5)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
.050
(1.27)
.161 (4.1)
.150 (3.8)
Dimensions in inches and (millimeters)
MAXIMUM RATINGS
(At T
A
= 25
o
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Bridge Input Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Output Current at T
A
= 50 C
Peak Forward Surge Current, 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Operating Temperature Range
Storage Temperature Range
T
J
T
STG
-55 to + 125
-55 to + 150
0
0
o
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
RS101
50
35
50
RS102
100
70
100
RS103
200
140
200
RS104
400
280
400
1.0
30
RS105
600
420
600
RS106
800
560
800
RS107
1000
700
1000
UNITS
Volts
Volts
Volts
Amps
Amps
C
C
ELECTRICAL CHARACTERISTICS
(At T
A
= 25
o
C unless otherwise noted)
CHARACTERISTICS
Maximum Forward Voltage Drop per Bridge
Element at 1.0A DC
Maximum Reverse Current at Rated
DC Blocking Voltage per element
@T
A
= 25
o
C
@T
A
= 100
o
C
SYMBOL
V
F
RS101
RS202
RS203
RS204
1.0
10
I
R
1
mAmps
2001-5
RS205
RS206
RS207
UNITS
Volts
uAmps
RECTRON
