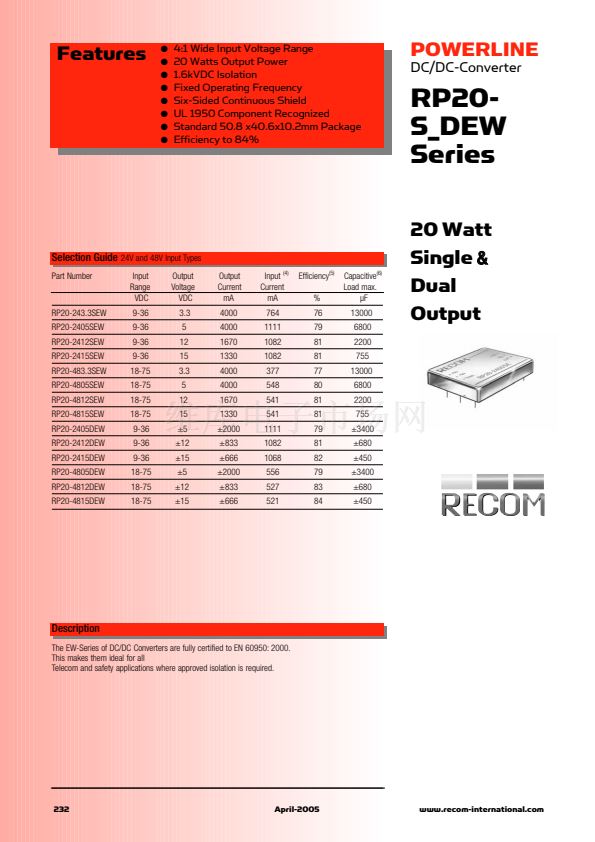

4:1 Wide Input Voltage Range
20 Watts Output Power
1.6kVDC Isolation
Fixed Operating Frequency
Six-Sided Continuous Shield
UL 1950 Component Recognized
Standard 50.8 x40.6x10.2mm Package
Efficiency to 84%
POWERLINE
DC/DC-Converter
RP20-
S_DEW
Series
20 Watt
Single
&
Dual
Output
Selection Guide
24V and 48V Input Types
Part Number
Input
Range
VDC
9-36
9-36
9-36
9-36
18-75
18-75
18-75
18-75
9-36
9-36
9-36
18-75
18-75
18-75
Output
Voltage
VDC
3.3
5
12
15
3.3
5
12
15
鹵5
鹵12
鹵15
鹵5
鹵12
鹵15
Output
Current
mA
4000
4000
1670
1330
4000
4000
1670
1330
鹵2000
鹵833
鹵666
鹵2000
鹵833
鹵666
Input
(4)
Current
mA
764
1111
1082
1082
377
548
541
541
1111
1082
1068
556
527
521
Efficiency
(5)
%
76
79
81
81
77
80
81
81
79
81
82
79
83
84
Capacitive
(6)
Load max.
碌F
13000
6800
2200
755
13000
6800
2200
755
鹵3400
鹵680
鹵450
鹵3400
鹵680
鹵450
RP20-243.3SEW
RP20-2405SEW
RP20-2412SEW
RP20-2415SEW
RP20-483.3SEW
RP20-4805SEW
RP20-4812SEW
RP20-4815SEW
RP20-2405DEW
RP20-2412DEW
RP20-2415DEW
RP20-4805DEW
RP20-4812DEW
RP20-4815DEW
Description
The EW-Series of DC/DC Converters are fully certified to EN 60950: 2000.
This makes them ideal for all
Telecom and safety applications where approved isolation is required.
232
April-2005
