RNS01EG-M6 Datasheet

  • RNS01EG-M6

  • RNS Series: 5-10W DC/DC Converters 18-72 & 38-75V Input 3.3V...

  • 16頁

  • POWER-ONE   POWER-ONE

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

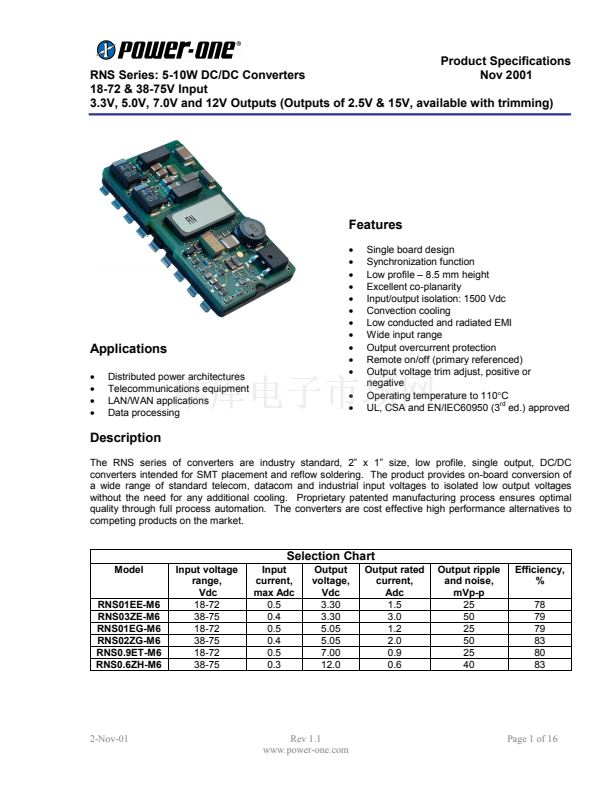

RNS Series: 5-10W DC/DC Converters
18-72 & 38-75V Input
3.3V, 5.0V, 7.0V and 12V Outputs (Outputs of 2.5V & 15V, available with trimming)
Product Specifications
Nov 2001
Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Single board design
Synchronization function
Low profile 鈥?8.5 mm height
Excellent co-planarity
Input/output isolation: 1500 Vdc
Convection cooling
Low conducted and radiated EMI
Wide input range
Output overcurrent protection
Remote on/off (primary referenced)
Output voltage trim adjust, positive or
negative
Operating temperature to 110擄C
rd
UL, CSA and EN/IEC60950 (3 ed.) approved
Applications
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Distributed power architectures
Telecommunications equipment
LAN/WAN applications
Data processing
Description
The RNS series of converters are industry standard, 2鈥?x 1鈥?size, low profile, single output, DC/DC
converters intended for SMT placement and reflow soldering. The product provides on-board conversion of
a wide range of standard telecom, datacom and industrial input voltages to isolated low output voltages
without the need for any additional cooling. Proprietary patented manufacturing process ensures optimal
quality through full process automation. The converters are cost effective high performance alternatives to
competing products on the market.
Selection Chart
Model
RNS01EE-M6
RNS03ZE-M6
RNS01EG-M6
RNS02ZG-M6
RNS0.9ET-M6
RNS0.6ZH-M6
Input voltage
range,
Vdc
18-72
38-75
18-72
38-75
18-72
38-75
Input
current,
max Adc
0.5
0.4
0.5
0.4
0.5
0.3
Output
voltage,
Vdc
3.30
3.30
5.05
5.05
7.00
12.0
Output rated
current,
Adc
1.5
3.0
1.2
2.0
0.9
0.6
Output ripple
and noise,
mVp-p
25
50
25
50
25
40
Efficiency,
%
78
79
79
83
80
83
2-Nov-01
Rev 1.1
www.power-one.com
Page 1 of 16

RNS01EG-M6 產品屬性

  • Power-One

  • Isolated

  • 10 W

  • 18 V to 72 V

  • 48 V

  • 1

  • 5.05 V

  • 1.2 A

  • DIP

  • 1500 V

  • Isolated
