RN5RY202C-TR Datasheet

  • RN5RY202C-TR

  • VFM STEP-UP DC/DC CONVERTER CONTROLLER

  • 9頁

  • RICOH

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

VFM STEP-UP DC/DC
CONVERTER CONTROLLER
RN5RY202
NO.EA-042-0006
OUTLINE
The RN5RY202 Series are VFM (chopper) Control ICs for step-up DC/DC converter with an external power transis-
tor featuring high output voltage accuracy and low supply current by CMOS process. Each of the RN5RY202
Series ICs consists of a voltage reference unit, an error amplifier, an oscillator, a VFM control circuit and feed back
resistors.
Output voltage is fixed at 2V in the IC.

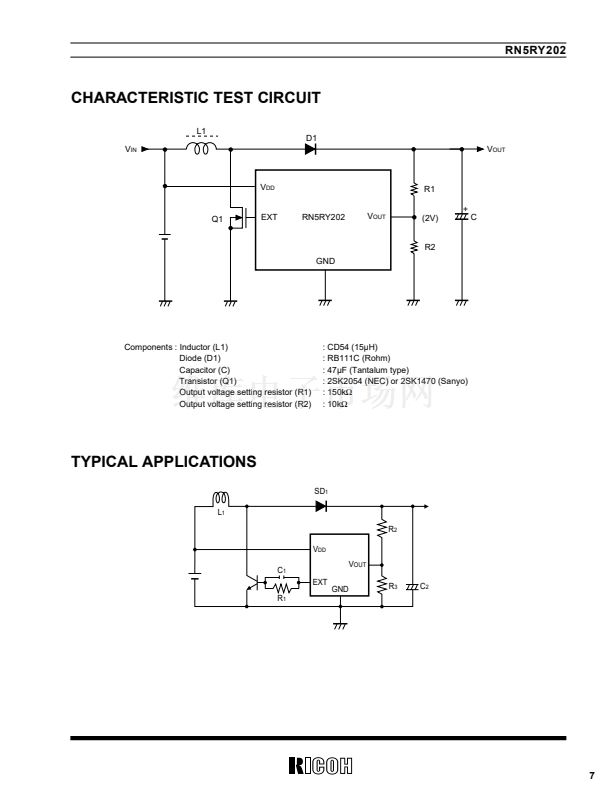

A low ripple, high efficiency step-up DC/DC converter can be constructed by simply adding an inductor, a diode, a
capacitor, and a drive transistor and feed back resistors.
Although the series have no CE pins unlike RN5RY
脳脳
1A, high voltage (V
OUT
=30V) can be also output by using
external feed back resistors.
FEATURES
鈥?Low Supply Current ............................................................................TYP. 3碌A(chǔ)
鈥?Low Temperature-Drift Coefficient of Output Voltage ...................TYP. 鹵50ppm/藲C
鈥?High Accuracy Output Voltage .........................................................鹵2.5%
鈥?Low Oscillation Start-up Voltage (no load) ......................................MAX. 0.8V
鈥?Any output voltage can be set with external resistors
鈥?Small Package SOT-23-5 (Mini-Mold)
APPLICATIONS
鈥?Constant voltage power source for battery-powered instruments.
鈥?Constant power source for cameras, camcorders, pagers, and other hand-held communication tools.
鈥?Constant power source for devices that require higher voltages than battery voltages.
BLOCK DIAGRAM
V
DD
2
Oscillator
3
V
OUT
5
EXT
Output
Buffer
鈥?/div>
+
Vref
1
GND

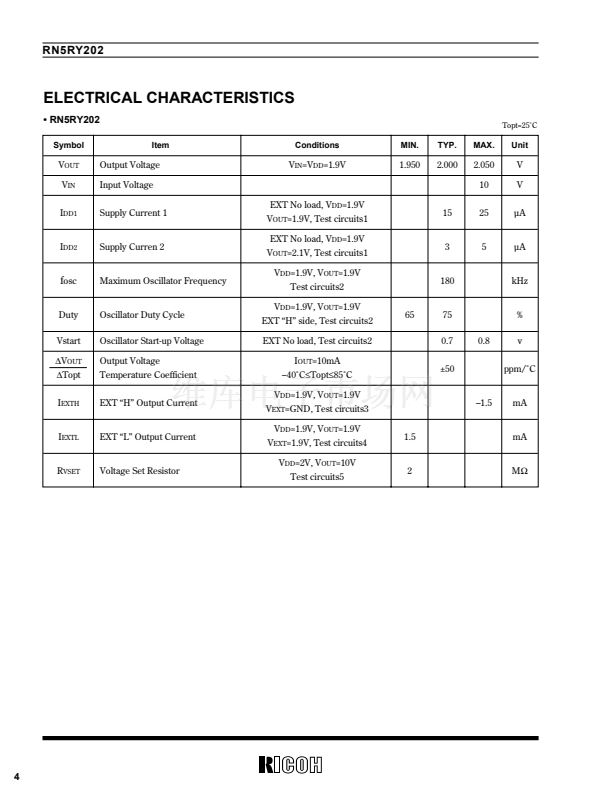

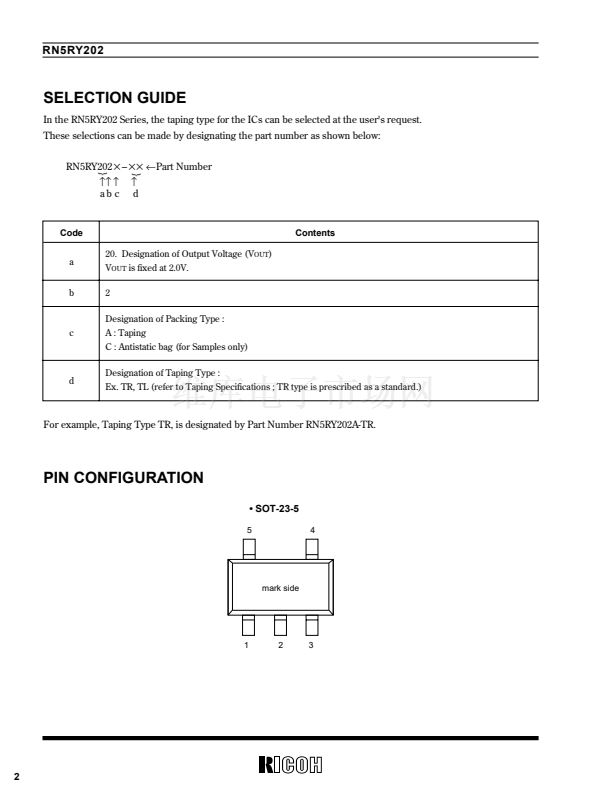

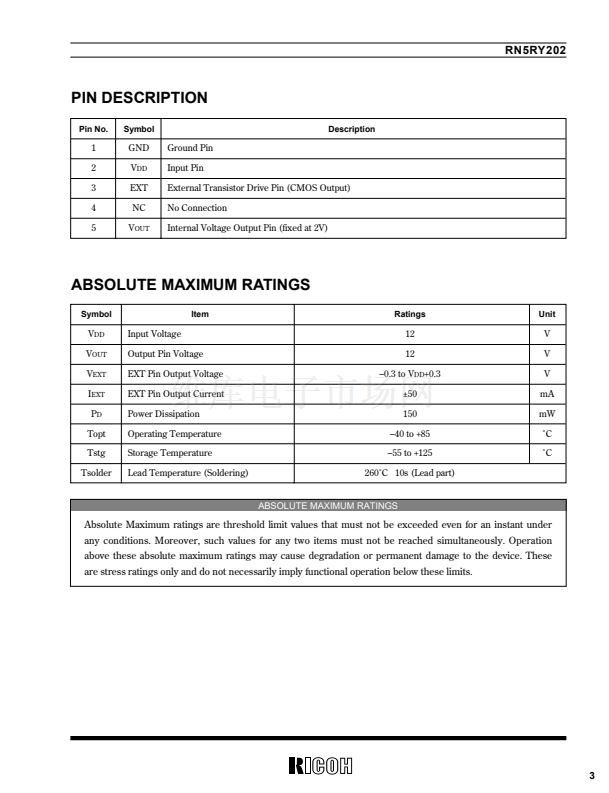

1
