RM/92020/M/25 Datasheet

  • RM/92020/M/25

  • ZYLINDER KOMPAKT BOHR 20 HUB 25MM

  • 7頁

  • ETC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

RM/92000/M
Compact Cylinders
Magnetic Piston
Double Acting
鈭?/div>
12 to 100 mm
q
Very compact 鈥?approximately one third the basic
length of a corresponding ISO model
q
Entirely manufactured from non-corrodible materials
q
Magnetic piston as standard provides a wide range
of control options
Technical Data
Medium:
Compressed air, filtered, lubricated or non-lubricated
Operation:
Double acting, non-cushioned and magnetic piston
Operating Pressure:
1 to 10 bar
Operating Temperature:
-5擄C* to +80擄C
*Consult our Technical Service for use below +2擄C
Ordering Information
To order a basic 80 mm bore cylinder with
a 50 mm stroke quote: RM/92080/M/50
To order a basic 100 mm bore cylinder with
a 100 mm stroke quote: RM/92100/M/100
To order mounting brackets refer to appropriate
cylinder mounting table.
Order magnetically operated switches separately.
Cylinder Diameters:
12, 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
Standard Strokes (short stroke version):
5, 10 mm
鈭?/div>
12 to 63 mm
15, 20, 25, 30 mm
鈭?/div>
12 to 100 mm
40, 50 mm
鈭?/div>
20 to 100 mm
Standard Strokes (long stroke version):
60, 80 mm
鈭?/div>
32 to 100 mm
100 mm
鈭?/div>
50 to 100 mm
Non-standard Strokes:
Non-standard strokes available
200 mm max.
鈭?/div>
16 to 25 mm
250 mm max.
鈭?/div>
32 and 40 mm
300 mm max.
鈭?/div>
50 to 100 mm
Materials:
Anodised aluminium alloy barrel and end caps, stainless steel
(鈭?12 to 40 mm Austenitic,
鈭?/div>
50 to 100 mm Martensitic)
piston rod, polyurethane and / or nitrile rubber seals
Accessories
Switches M/40, TM/40
Switches M/41, M/42
See page
N
4.3.041.01
N
4.3.044.01
Magnetic piston

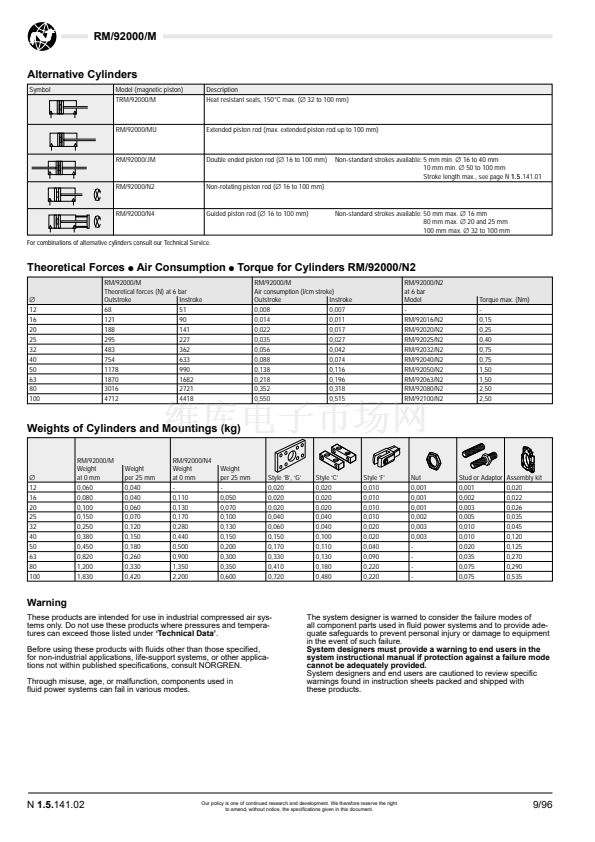

Alternative Cylinders:
See page N
1.5.141.02
9/96
Our policy is one of continued research and development. We therefore reserve the right
to amend, without notice, the specifications given in this document.
N
1.5.141.01

RM/92020/M/25 產品屬性

  • RM/92000/M

  • 雙

  • 20mm

  • 32mm

  • 57 x 32 x 32mm

  • -5°C

  • 10 bar

  • +80°C

  • 單

  • M5

  • 沒有緩沖

  • 25mm

  • 0.4kg

  • 57mm

  • 32mm
