RLD03N06CLE Datasheet

  • RLD03N06CLE

  • 0.3A, 60V, 6 Ohm, ESD Rated, Current Limited, Voltage Clampe...

  • 97.12KB

  • 9頁

  • INTERSIL   INTERSIL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

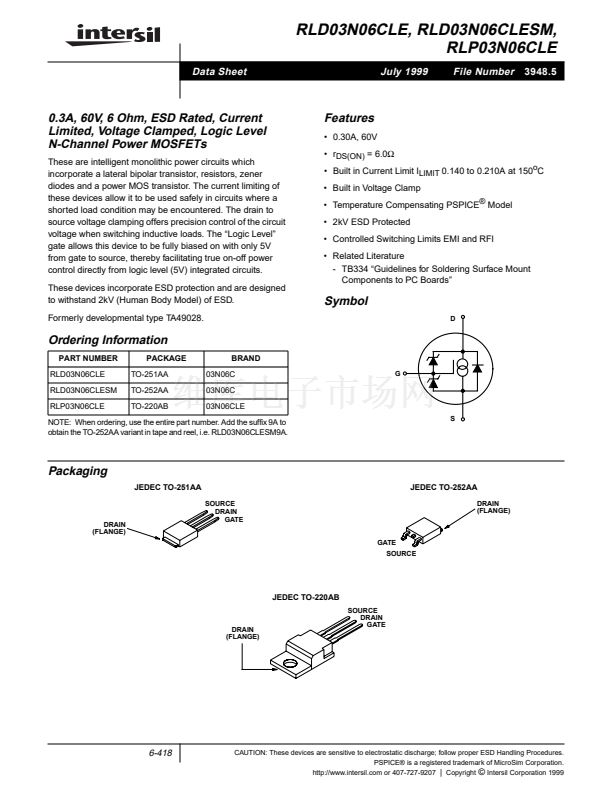

RLD03N06CLE, RLD03N06CLESM,
RLP03N06CLE
Data Sheet
July 1999
File Number
3948.5
0.3A, 60V, 6 Ohm, ESD Rated, Current
Limited, Voltage Clamped, Logic Level
N-Channel Power MOSFETs
These are intelligent monolithic power circuits which
incorporate a lateral bipolar transistor, resistors, zener
diodes and a power MOS transistor. The current limiting of
these devices allow it to be used safely in circuits where a
shorted load condition may be encountered. The drain to
source voltage clamping offers precision control of the circuit
voltage when switching inductive loads. The 鈥淟ogic Level鈥?/div>
gate allows this device to be fully biased on with only 5V
from gate to source, thereby facilitating true on-off power
control directly from logic level (5V) integrated circuits.
These devices incorporate ESD protection and are designed
to withstand 2kV (Human Body Model) of ESD.
Formerly developmental type TA49028.
Features
鈥?0.30A, 60V
鈥?r
DS(ON)
= 6.0鈩?/div>
鈥?Built in Current Limit I
LIMIT
0.140 to 0.210A at 150
o
C
鈥?Built in Voltage Clamp
鈥?Temperature Compensating PSPICE
廬
Model
鈥?2kV ESD Protected
鈥?Controlled Switching Limits EMI and RFI
鈥?Related Literature
- TB334 鈥淕uidelines for Soldering Surface Mount
Components to PC Boards鈥?/div>
Symbol
D
Ordering Information
PART NUMBER
RLD03N06CLE
RLD03N06CLESM
RLP03N06CLE
PACKAGE
TO-251AA
TO-252AA
TO-220AB
BRAND
03N06C
03N06C
03N06CLE
S
G
NOTE: When ordering, use the entire part number. Add the suffix 9A to
obtain the TO-252AA variant in tape and reel, i.e. RLD03N06CLESM9A.
Packaging
JEDEC TO-251AA
SOURCE
DRAIN
GATE
GATE
SOURCE
JEDEC TO-252AA
DRAIN
(FLANGE)
DRAIN
(FLANGE)
JEDEC TO-220AB
SOURCE
DRAIN
GATE
DRAIN
(FLANGE)
6-418
CAUTION: These devices are sensitive to electrostatic discharge; follow proper ESD Handling Procedures.
PSPICE廬 is a registered trademark of MicroSim Corporation.
http://www.intersil.com or 407-727-9207
|
Copyright
漏
Intersil Corporation 1999
