D A T A S H E E T
Lighting
Imaging
Telecom

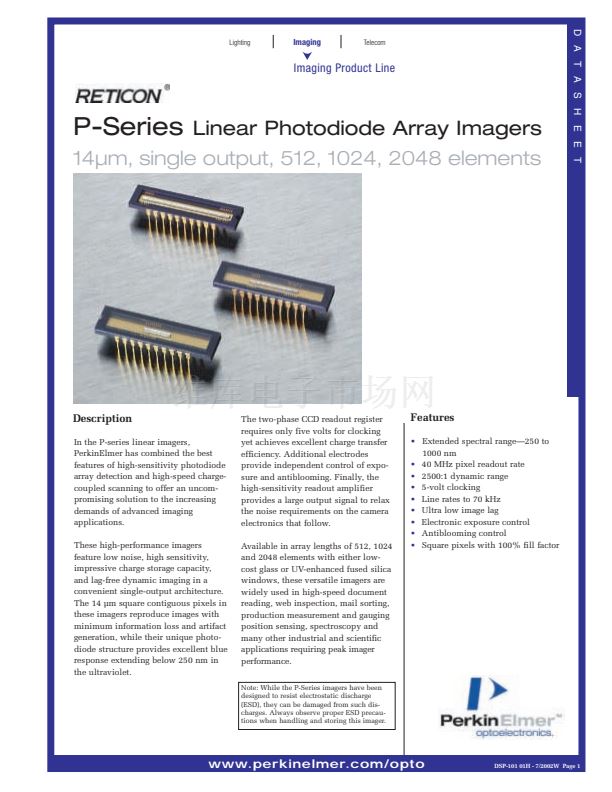

Imaging Product Line
P-Series
Linear Photodiode Array Imagers
14碌m, single output, 512, 1024, 2048 elements
Description
In the P-series linear imagers,
PerkinElmer has combined the best
features of high-sensitivity photodiode
array detection and high-speed charge-
coupled scanning to offer an uncom-
promising solution to the increasing
demands of advanced imaging
applications.
These high-performance imagers
feature low noise, high sensitivity,
impressive charge storage capacity,
and lag-free dynamic imaging in a
convenient single-output architecture.
The 14 碌m square contiguous pixels in
these imagers reproduce images with
minimum information loss and artifact
generation, while their unique photo-
diode structure provides excellent blue
response extending below 250 nm in
the ultraviolet.
The two-phase CCD readout register
requires only five volts for clocking
yet achieves excellent charge transfer
efficiency. Additional electrodes
provide independent control of expo-
sure and antiblooming. Finally, the
high-sensitivity readout amplifier
provides a large output signal to relax
the noise requirements on the camera
electronics that follow.
Available in array lengths of 512, 1024
and 2048 elements with either low-
cost glass or UV-enhanced fused silica
windows, these versatile imagers are
widely used in high-speed document
reading, web inspection, mail sorting,
production measurement and gauging
position sensing, spectroscopy and
many other industrial and scientific
applications requiring peak imager
performance.
Note: While the P-Series imagers have been
designed to resist electrostatic discharge
(ESD), they can be damaged from such dis-
charges. Always observe proper ESD precau-
tions when handling and storing this imager.
Features
鈥?/div>
Extended spectral range鈥?50 to
1000 nm
鈥?/div>
40 MHz pixel readout rate
鈥?/div>
2500:1 dynamic range
鈥?/div>
5-volt clocking
鈥?/div>
Line rates to 70 kHz
鈥?/div>
Ultra low image lag
鈥?/div>
Electronic exposure control
鈥?/div>
Antiblooming control
鈥?/div>
Square pixels with 100% fill factor
www.perkinelmer.com/opto
DSP-101 01H - 7/2002W Page 1
