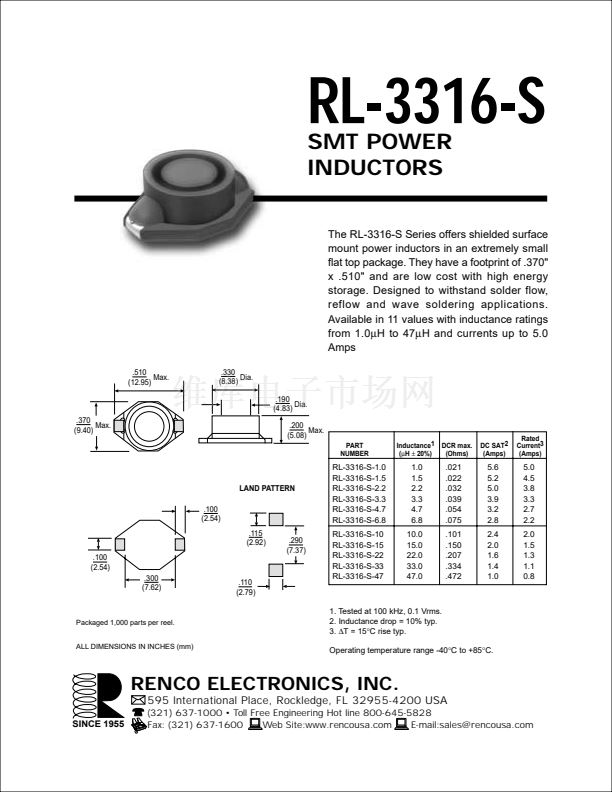

RL-3316-S
SMT POWER
INDUCTORS
The RL-3316-S Series offers shielded surface
mount power inductors in an extremely small
flat top package. They have a footprint of .370"
x .510" and are low cost with high energy
storage. Designed to withstand solder flow,
reflow and wave soldering applications.
Available in 11 values with inductance ratings
from 1.0碌H to 47碌H and currents up to 5.0
Amps
.510
Max.
(12.95)
.330
Dia.
(8.38)
.190
Dia.
(4.83)
.370
Max.
(9.40)
.200
Max.
(5.08)
PART
NUMBER
Inductance1 DCR max.
(碌H
鹵
20%)
(Ohms)
DC
SAT2
(Amps)
Rated
Current3
(Amps)
LAND PATTERN
.100
(2.54)
.115
(2.92)
.100
(2.54)
.300
(7.62)
.110
(2.79)
.290
(7.37)
RL-3316-S-1.0
RL-3316-S-1.5
RL-3316-S-2.2
RL-3316-S-3.3
RL-3316-S-4.7
RL-3316-S-6.8
RL-3316-S-10
RL-3316-S-15
RL-3316-S-22
RL-3316-S-33
RL-3316-S-47
1.0
1.5
2.2
3.3
4.7
6.8
10.0
15.0
22.0
33.0
47.0
.021
.022
.032
.039
.054
.075
.101
.150
.207
.334
.472
5.6
5.2
5.0
3.9
3.2
2.8
2.4
2.0
1.6
1.4
1.0
5.0
4.5
3.8
3.3
2.7
2.2
2.0
1.5
1.3
1.1
0.8
Packaged 1,000 parts per reel.
ALL DIMENSIONS IN INCHES (mm)
1. Tested at 100 kHz, 0.1 Vrms.
2. Inductance drop = 10% typ.
3.
鈭員
= 15擄C rise typ.
Operating temperature range -40擄C to +85擄C.
