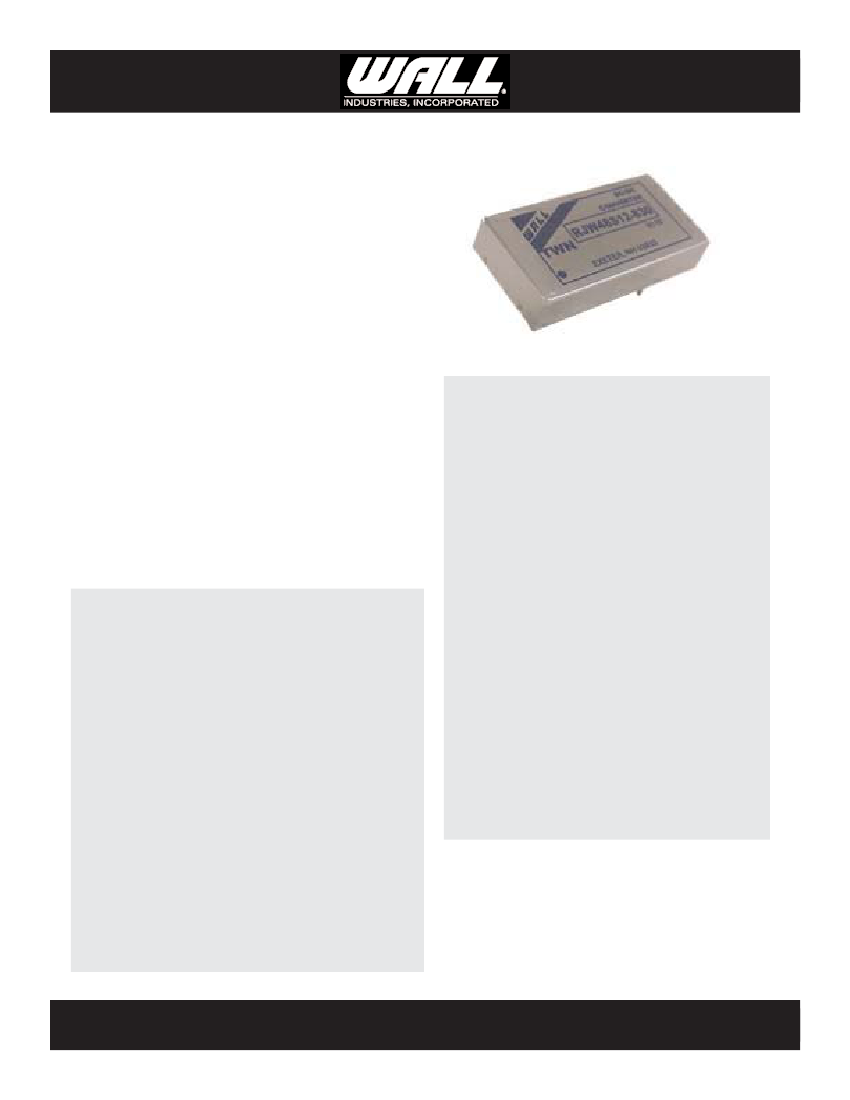

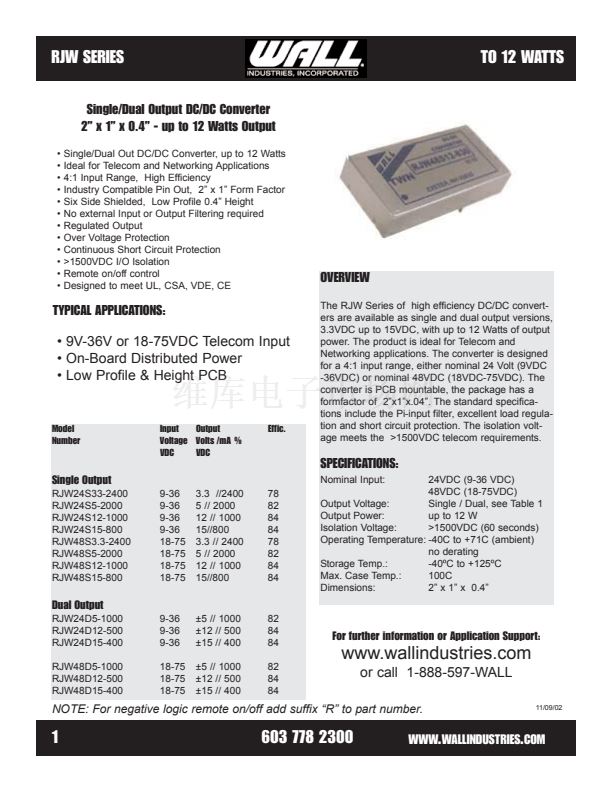

Single/Dual Out DC/DC Converter, up to 12 Watts
Ideal for Telecom and Networking Applications
4:1 Input Range, High Efficiency
Industry Compatible Pin Out, 2鈥?x 1鈥?Form Factor
Six Side Shielded, Low Profile 0.4鈥?Height
No external Input or Output Filtering required
Regulated Output
Over Voltage Protection
Continuous Short Circuit Protection
>1500VDC I/O Isolation
Remote on/off control
Designed to meet UL, CSA, VDE, CE
TO 12 WATTS
OVERVIEW
The RJW Series of high efficiency DC/DC convert-
ers are available as single and dual output versions,
3.3VDC up to 15VDC, with up to 12 Watts of output
power. The product is ideal for Telecom and
Networking applications. The converter is designed
for a 4:1 input range, either nominal 24 Volt (9VDC
-36VDC) or nominal 48VDC (18VDC-75VDC). The
converter is PCB mountable, the package has a
formfactor of 2鈥漻1鈥漻.04鈥? The standard specifica-
tions include the Pi-input filter, excellent load regula-
tion and short circuit protection. The isolation volt-
age meets the >1500VDC telecom requirements.
TYPICAL APPLICATIONS:
鈥?9V-36V or 18-75VDC Telecom Input
鈥?On-Board Distributed Power
鈥?Low Profile & Height PCB
Model
Number
Input
Output
Voltage Volts /mA %
VDC
VDC
Effic.

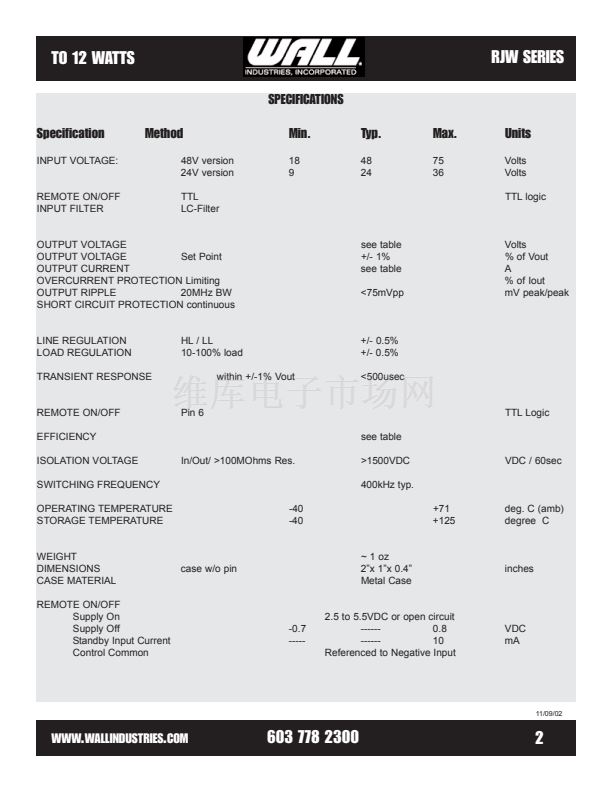

SPECIFICATIONS:
Single Output
RJW24S33-2400
RJW24S5-2000
RJW24S12-1000
RJW24S15-800
RJW48S3.3-2400
RJW48S5-2000
RJW48S12-1000
RJW48S15-800
9-36
9-36
9-36
9-36
18-75
18-75
18-75
18-75
3.3 //2400
5 // 2000
12 // 1000
15//800
3.3 // 2400
5 // 2000
12 // 1000
15//800
78
82
84
84
78
82
84
84
24VDC (9-36 VDC)
48VDC (18-75VDC)
Output Voltage:
Single / Dual, see Table 1
Output Power:
up to 12 W
Isolation Voltage:
>1500VDC (60 seconds)
Operating Temperature: -40C to +71C (ambient)
no derating
Storage Temp.:
-40潞C to +125潞C
Max. Case Temp.:
100C

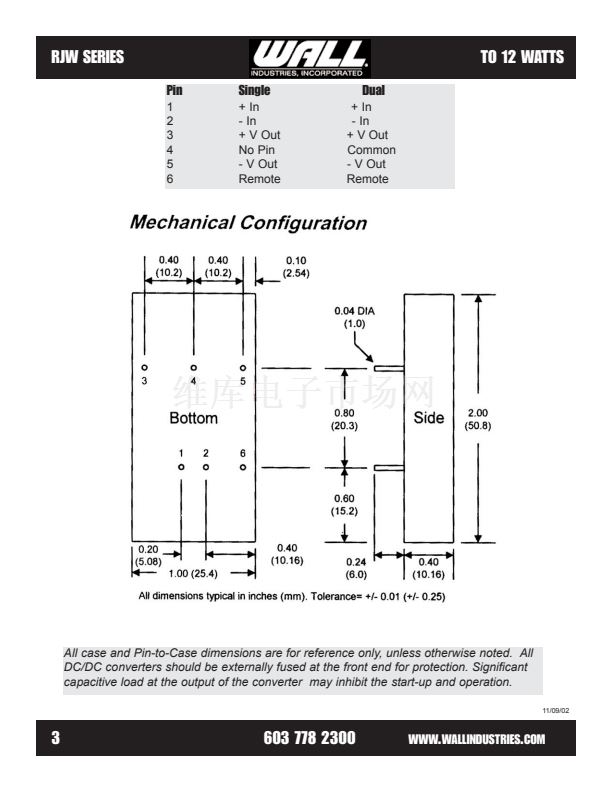

Dimensions:
2鈥?x 1鈥?x 0.4鈥?/div>
Nominal Input:
Dual Output
RJW24D5-1000
RJW24D12-500
RJW24D15-400
RJW48D5-1000
RJW48D12-500
RJW48D15-400
9-36
9-36
9-36
18-75
18-75
18-75
鹵5 // 1000
鹵12 // 500
鹵15 // 400
鹵5 // 1000
鹵12 // 500
鹵15 // 400
82
84
84
82
84
84
For further information or Application Support:
www.wallindustries.com
or call 1-888-597-WALL
11/09/02
NOTE: For negative logic remote on/off add suffix 鈥淩鈥?to part number.
