RHRD6120, RHRD6120S
Data Sheet
January 2000
File Number
3981.1
6A, 1200V Hyperfast Diodes

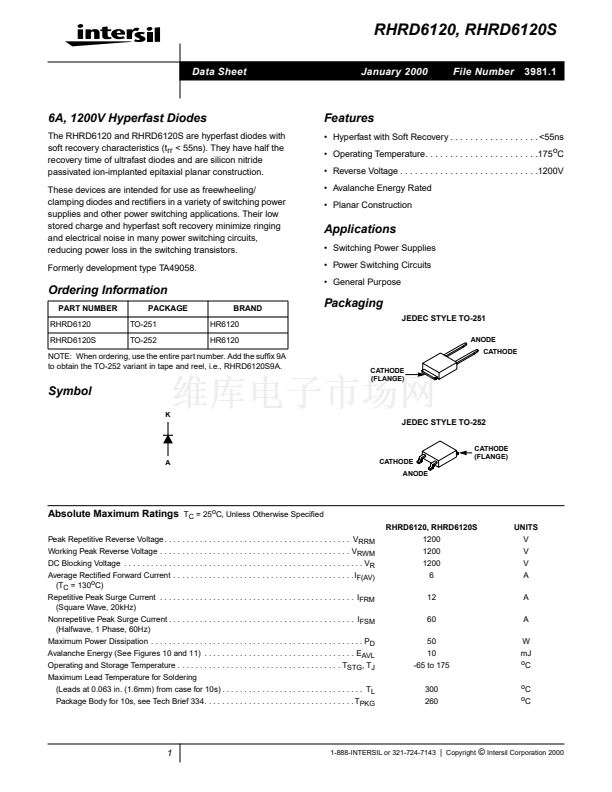

The RHRD6120 and RHRD6120S are hyperfast diodes with
soft recovery characteristics (t
rr
< 55ns). They have half the
recovery time of ultrafast diodes and are silicon nitride
passivated ion-implanted epitaxial planar construction.
These devices are intended for use as freewheeling/
clamping diodes and recti鏗乪rs in a variety of switching power
supplies and other power switching applications. Their low
stored charge and hyperfast soft recovery minimize ringing
and electrical noise in many power switching circuits,
reducing power loss in the switching transistors.
Formerly development type TA49058.
Features
鈥?Hyperfast with Soft Recovery . . . . . . . . . . . . . . . . . . <55ns
鈥?Operating Temperature. . . . . . . . . . . . . . . . . . . . . . .175
o
C
鈥?Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . .1200V
鈥?Avalanche Energy Rated
鈥?Planar Construction
Applications
鈥?Switching Power Supplies
鈥?Power Switching Circuits
鈥?General Purpose
Ordering Information
PART NUMBER
RHRD6120
RHRD6120S
PACKAGE
TO-251
TO-252
BRAND
HR6120
HR6120
Packaging
JEDEC STYLE TO-251
ANODE
CATHODE
CATHODE
(FLANGE)
NOTE: When ordering, use the entire part number. Add the suf鏗亁 9A
to obtain the TO-252 variant in tape and reel, i.e., RHRD6120S9A.
Symbol
K
JEDEC STYLE TO-252
CATHODE
(FLANGE)
A
CATHODE
ANODE
Absolute Maximum Ratings
T
C
= 25
o
C, Unless Otherwise Speci鏗乪d
RHRD6120, RHRD6120S
UNITS
V
V
V
A
A
A
W
mJ
o
C
o
C
o
C
Peak Repetitive Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
RRM
Working Peak Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
RWM
DC Blocking Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
R
Average Recti鏗乪d Forward Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
F(AV)
(T
C
= 130
o
C)
Repetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
FRM
(Square Wave, 20kHz)
Nonrepetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
FSM
(Halfwave, 1 Phase, 60Hz)
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P
D
Avalanche Energy (See Figures 10 and 11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E
AVL
Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T
STG
, T
J
Maximum Lead Temperature for Soldering
(Leads at 0.063 in. (1.6mm) from case for 10s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T
L
Package Body for 10s, see Tech Brief 334. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T
PKG
1200
1200
1200
6
12
60
50
10
-65 to 175
300
260
1
