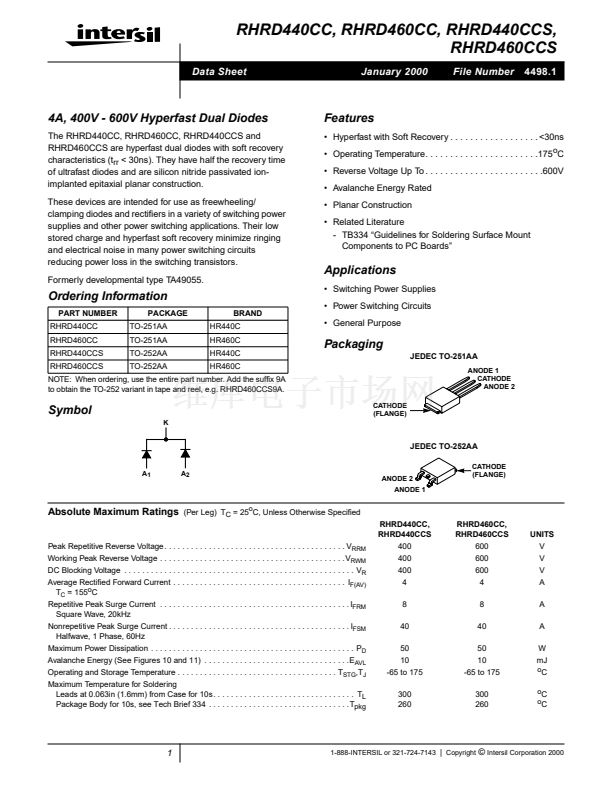

RHRD440CC, RHRD460CC, RHRD440CCS,
RHRD460CCS
Data Sheet
January 2000
File Number
4498.1
4A, 400V - 600V Hyperfast Dual Diodes
The RHRD440CC, RHRD460CC, RHRD440CCS and
RHRD460CCS are hyperfast dual diodes with soft recovery
characteristics (t
rr
< 30ns). They have half the recovery time
of ultrafast diodes and are silicon nitride passivated ion-
implanted epitaxial planar construction.
These devices are intended for use as freewheeling/
clamping diodes and recti鏗乪rs in a variety of switching power
supplies and other power switching applications. Their low
stored charge and hyperfast soft recovery minimize ringing
and electrical noise in many power switching circuits
reducing power loss in the switching transistors.
Formerly developmental type TA49055.
Features
鈥?Hyperfast with Soft Recovery . . . . . . . . . . . . . . . . . . <30ns
鈥?Operating Temperature. . . . . . . . . . . . . . . . . . . . . . .175
o
C
鈥?Reverse Voltage Up To . . . . . . . . . . . . . . . . . . . . . . . .600V
鈥?Avalanche Energy Rated
鈥?Planar Construction
鈥?Related Literature
- TB334 鈥淕uidelines for Soldering Surface Mount
Components to PC Boards鈥?/div>
Applications
鈥?Switching Power Supplies
鈥?Power Switching Circuits
鈥?General Purpose
Ordering Information
PART NUMBER
RHRD440CC
RHRD460CC
RHRD440CCS
RHRD460CCS
PACKAGE
TO-251AA
TO-251AA
TO-252AA
TO-252AA
BRAND
HR440C
HR460C
HR440C
HR460C
Packaging
JEDEC TO-251AA
ANODE 1
CATHODE
ANODE 2
CATHODE
(FLANGE)
NOTE: When ordering, use the entire part number. Add the suffix 9A
to obtain the TO-252 variant in tape and reel, e.g. RHRD460CCS9A.
Symbol
K
JEDEC TO-252AA
A
1
A
2
CATHODE
(FLANGE)
ANODE 2
ANODE 1
Absolute Maximum Ratings
(Per Leg) T
C
= 25
o
C, Unless Otherwise Speci鏗乪d
RHRD440CC,
RHRD440CCS
400
400
400
4
8
40
50
10
-65 to 175
300
260
RHRD460CC,
RHRD460CCS
600
600
600
4
8
40
50
10
-65 to 175
300
260
UNITS
V
V
V
A
A
A
W
mJ
o
C
o
C
o
C
Peak Repetitive Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
RRM
Working Peak Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .V
RWM
DC Blocking Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
R
Average Recti鏗乪d Forward Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
F(AV)
T
C
= 155
o
C
Repetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
FRM
Square Wave, 20kHz
Nonrepetitive Peak Surge Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . I
FSM
Halfwave, 1 Phase, 60Hz
Maximum Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P
D

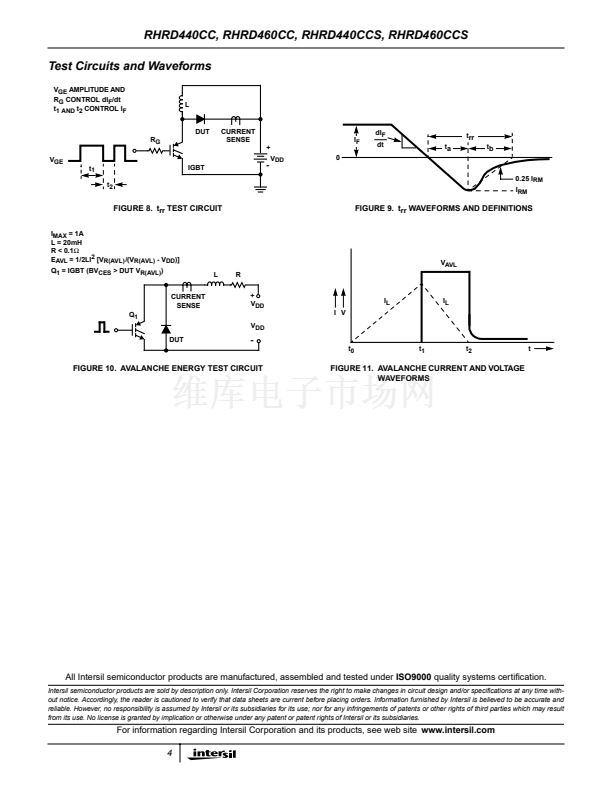

Avalanche Energy (See Figures 10 and 11) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .E
AVL
Operating and Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T
STG
,T
J
Maximum Temperature for Soldering
Leads at 0.063in (1.6mm) from Case for 10s. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . T
L
Package Body for 10s, see Tech Brief 334 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .T
pkg

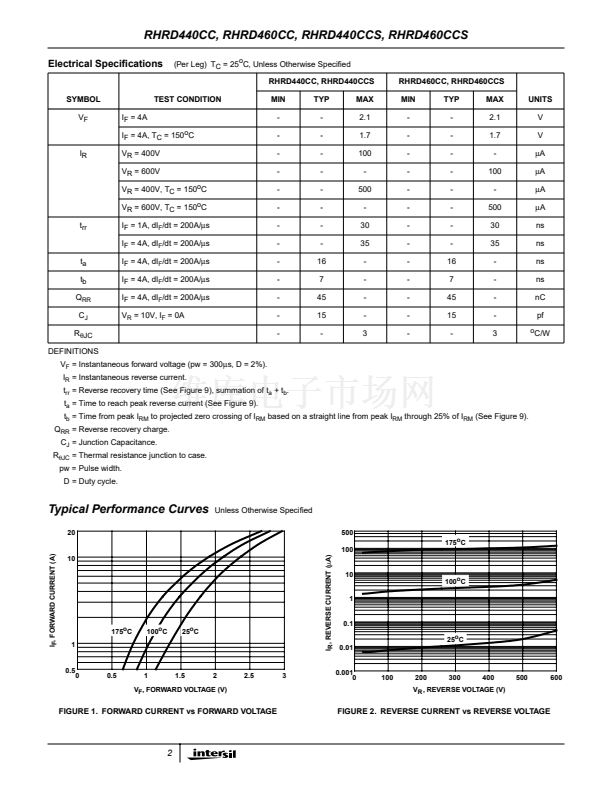

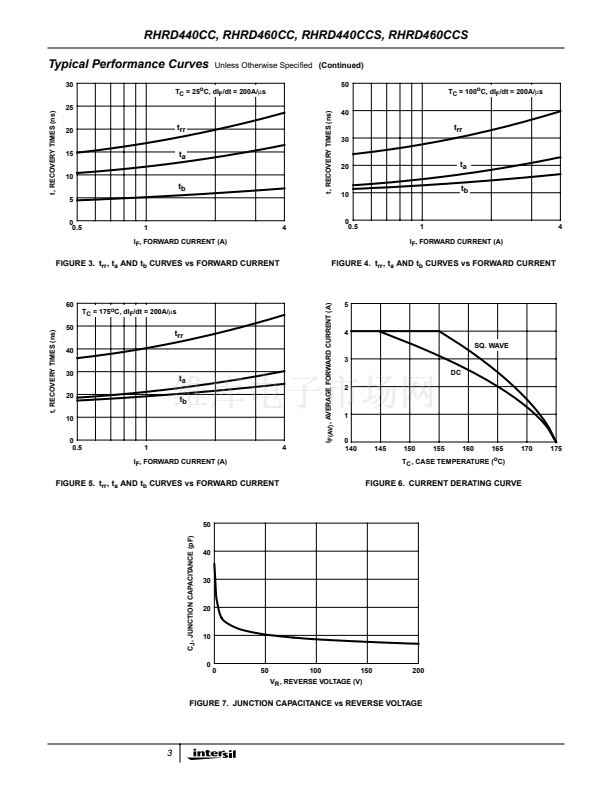

1
