RH1021-5
Precision 5V Reference

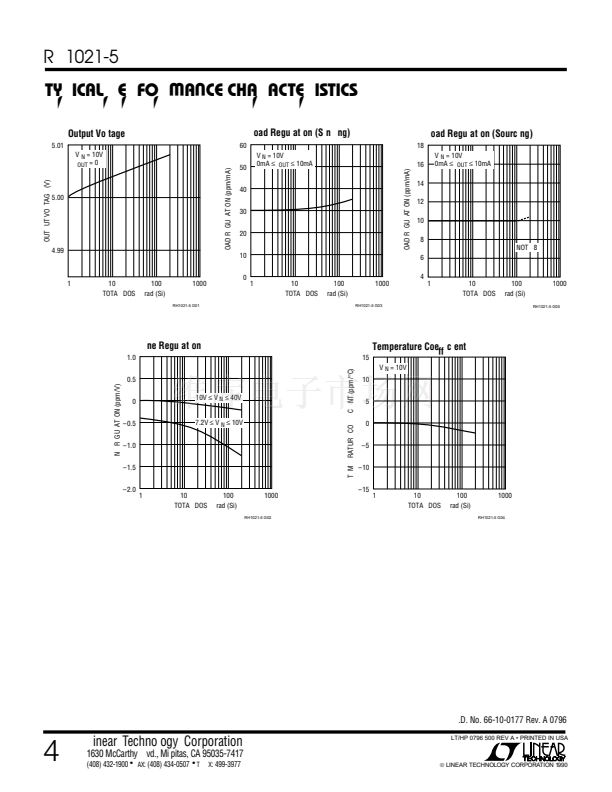

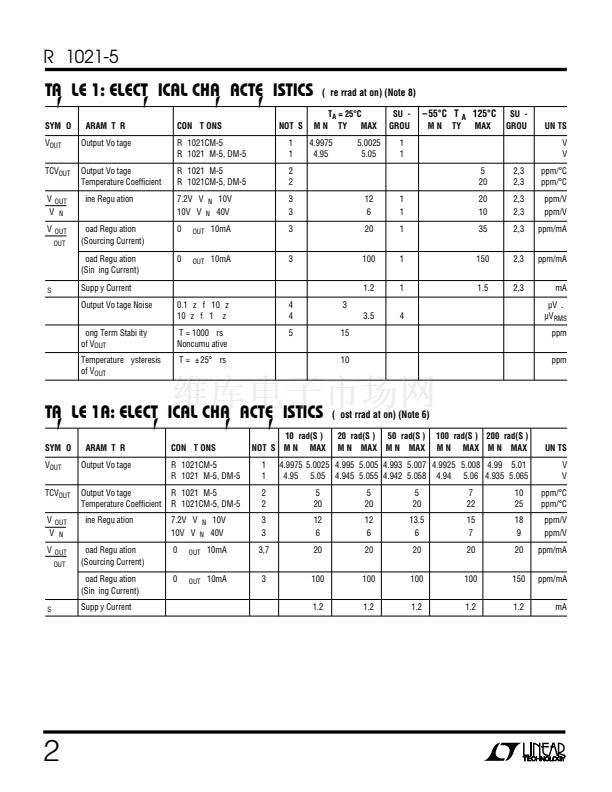

DESCRIPTION
The RH1021-5 is a precision 5V reference with ultralow
drift and noise, extremely good long term stability and
almost total immunity to input voltage variations. The
reference output will source and sink up to 10mA. Unique
circuit design makes the RH1021-5 the first IC reference
to offer ultralow drift without the use of high power on-
chip heaters.
The wafer lots are processed to Linear Technology鈥檚 in-
house Class S flow to yield circuits usable in stringent
military applications.
, LTC and LT are registered trademarks of Linear Technology Corporation.
ABSOLUTE
MAXIMUM
RATINGS
Input Voltage ........................................................... 40V
Input/Output Voltage Differential ............................. 35V
Trim Pin-to-Ground Voltage
Positive................................................ Equal to V
OUT
Negative ........................................................... 鈥?20V
Output Short-Circuit Duration
V
IN
= 35V ........................................................ 10 sec
V
IN
20V ................................................... Indefinite
Operating Temperature Range .............. 鈥?55擄C to 125擄C
Storage Temperature Range ................. 鈥?65擄C to 150擄C
Lead Temperature (Soldering, 10 sec).................. 300擄C

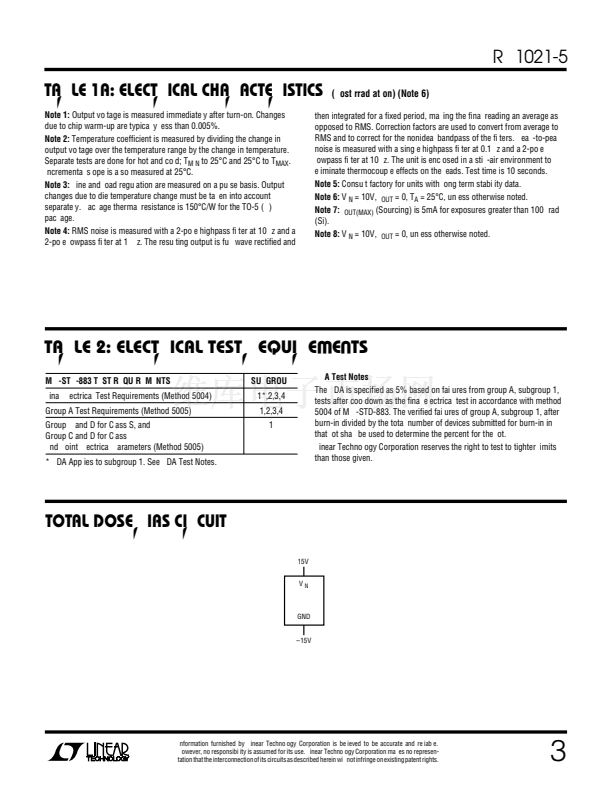

BUR -I CIRCUIT
PACKAGE/ORDER INFORMATION
TOP VIEW
NC*
7
8
1
20V
2
3
4
RH1021-5
5
8
NC* 1
6
7 NC*
6 V
OUT
5 TRIM
4
GND
V
IN
2
NC* 3
鈥?0V
H PACKAGE
8-LEAD TO-5 METAL CAN
* Connected internally. Do not connect external
circuitry to these pins.
U
U
W
W W
U
W
U
U U
1
1
2
3
4
