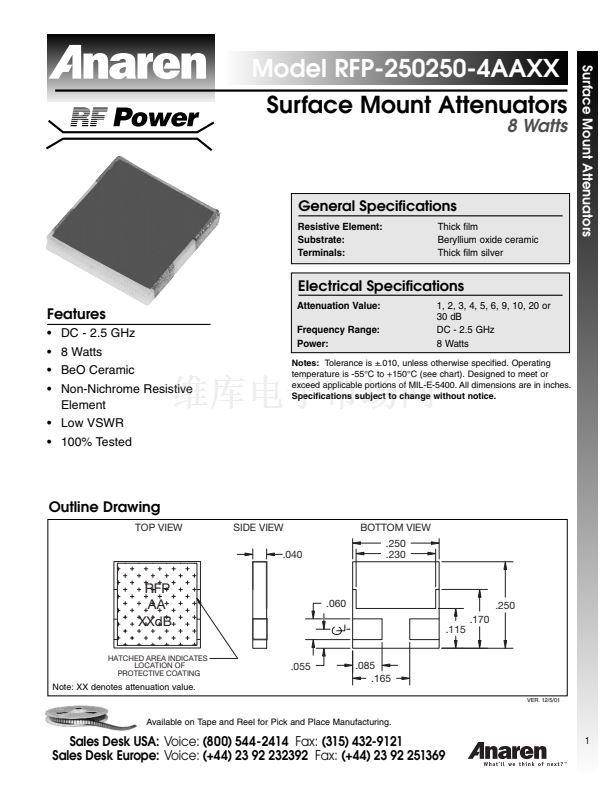

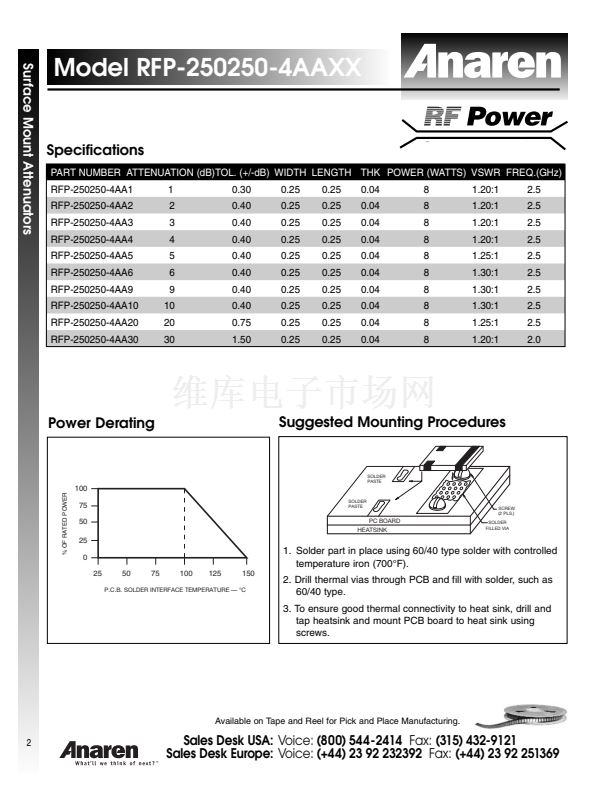

Model RFP-250250-4AAXX
Surface Mount Attenuators
8 Watts
Surface Mount Attenuators
General Specifications
Resistive Element:
Substrate:
Terminals:
Thick film
Beryllium oxide ceramic
Thick film silver
Electrical Specifications
Features
鈥?DC - 2.5 GHz
鈥?8 Watts
鈥?BeO Ceramic
鈥?Non-Nichrome Resistive
Element
鈥?Low VSWR
鈥?100% Tested
Attenuation Value:
Frequency Range:
Power:
1, 2, 3, 4, 5, 6, 9, 10, 20 or
30 dB
DC - 2.5 GHz
8 Watts
Notes:
Tolerance is 鹵.010, unless otherwise specified. Operating
temperature is -55擄C to +150擄C (see chart). Designed to meet or
exceed applicable portions of MIL-E-5400. All dimensions are in inches.
Specifications subject to change without notice.

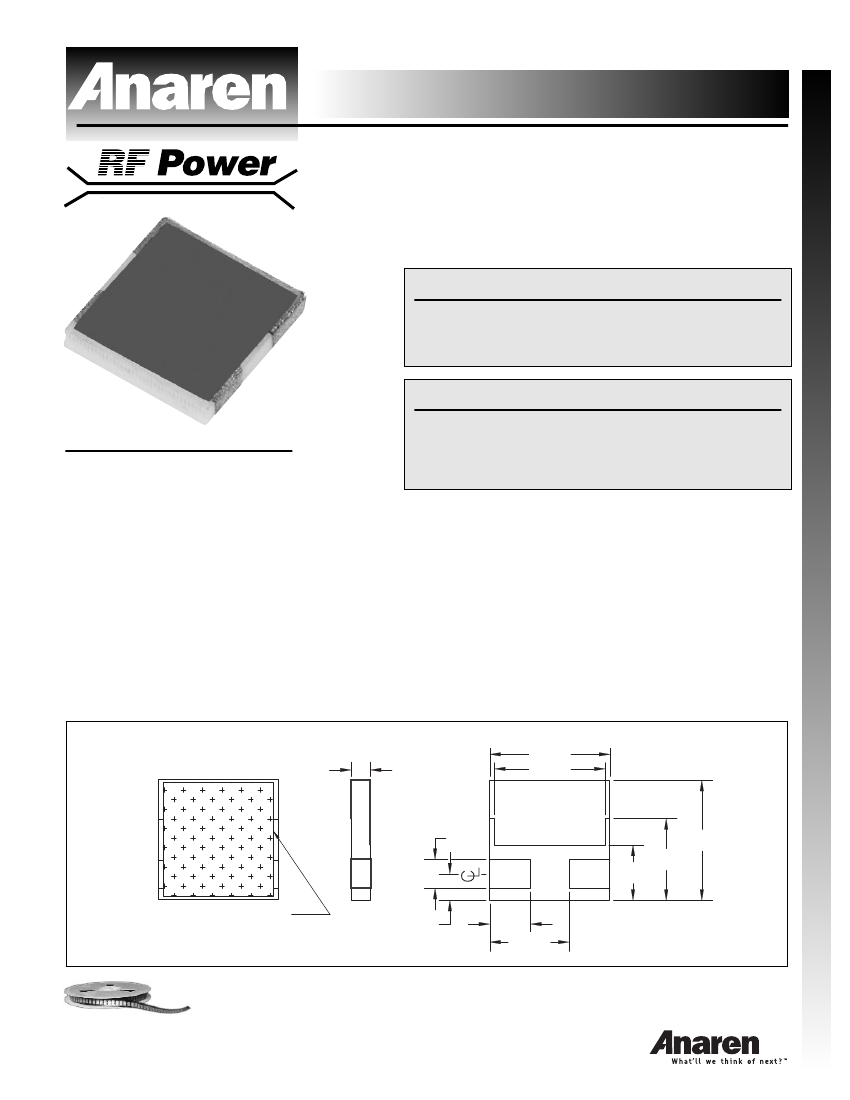

Outline Drawing
TOP VIEW
SIDE VIEW
.040
BOTTOM VIEW
.250
.230
RFP
AA
XXdB
HATCHED AREA INDICATES
LOCATION OF
PROTECTIVE COATING
.060
.170
.115
.250
.055
Note: XX denotes attenuation value.
.085
.165
VER. 12/5/01
Available on Tape and Reel for Pick and Place Manufacturing.
