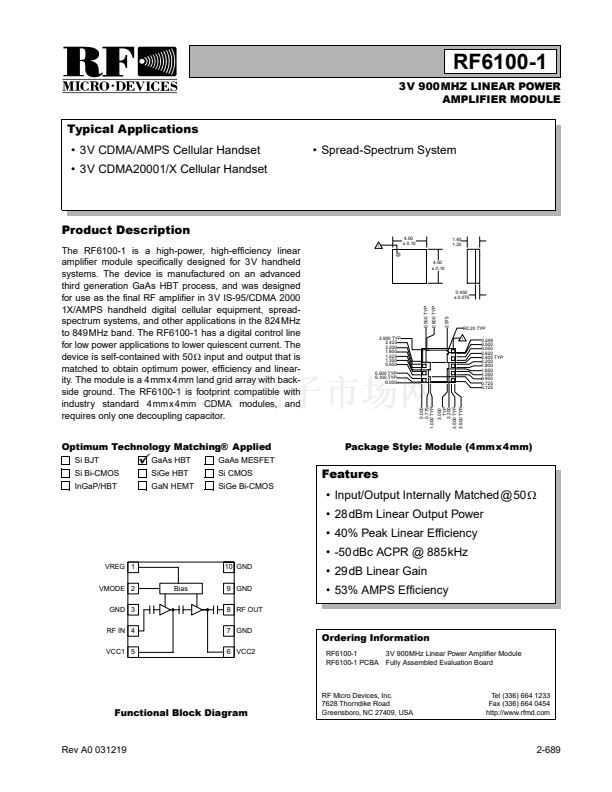

RF6100-1
0
Typical Applications
鈥?3V CDMA/AMPS Cellular Handset
鈥?3V CDMA20001/X Cellular Handset
鈥?Spread-Spectrum System
3V 900MHZ LINEAR POWER
AMPLIFIER MODULE
Product Description
The RF6100-1 is a high-power, high-efficiency linear
amplifier module specifically designed for 3V handheld
systems. The device is manufactured on an advanced
third generation GaAs HBT process, and was designed
for use as the final RF amplifier in 3V IS-95/CDMA 2000
1X/AMPS handheld digital cellular equipment, spread-
spectrum systems, and other applications in the 824MHz
to 849MHz band. The RF6100-1 has a digital control line
for low power applications to lower quiescent current. The
device is self-contained with 50鈩?input and output that is
matched to obtain optimum power, efficiency and linear-
ity. The module is a 4mmx4mm land grid array with back-
side ground. The RF6100-1 is footprint compatible with
industry standard 4mmx4mm CDMA modules, and
requires only one decoupling capacitor.
Optimum Technology Matching廬 Applied
Si BJT
Si Bi-CMOS
InGaP/HBT
GaAs HBT
SiGe HBT
GaN HEMT
GaAs MESFET
Si CMOS
SiGe Bi-CMOS
1
4.00
鹵 0.10
1.40
1.25
4.00
鹵 0.10
0.450
鹵 0.075
0.500 TYP
0.600 TYP
2.975
R0.20 TYP
1
3.900 TYP
2.425
2.200
1.800
1.525
1.350
0.950
0.500 TYP
0.100 TYP
0.000
3.549
3.500
3.050
2.650
2.400 TYP
2.200
1.800
1.650
1.350
0.950
0.725
0.125
Package Style: Module (4mmx4mm)

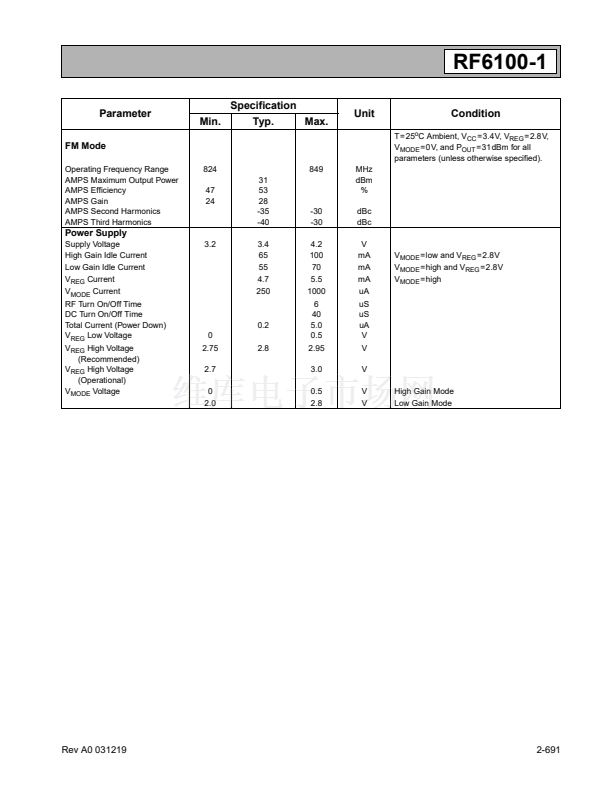

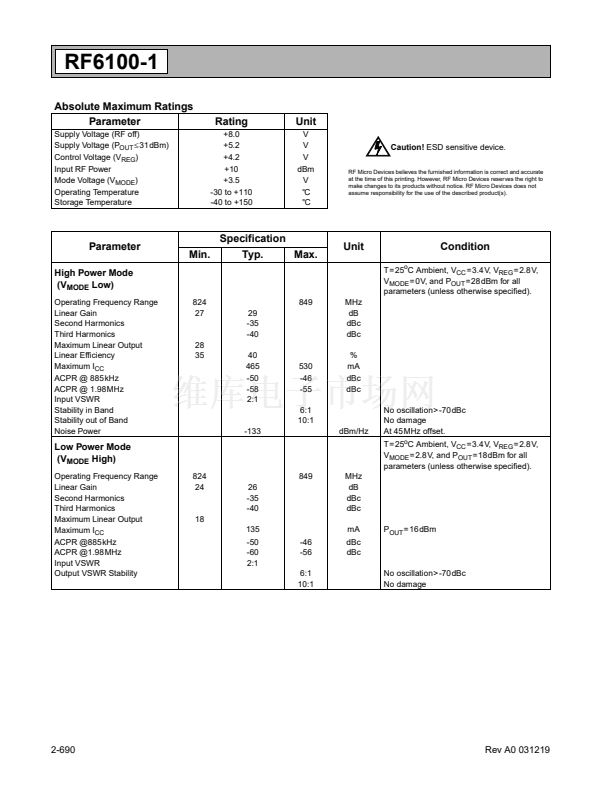

Features
鈥?Input/Output Internally Matched@50鈩?/div>
鈥?28dBm Linear Output Power
鈥?40% Peak Linear Efficiency
鈥?-50dBc ACPR @ 885kHz

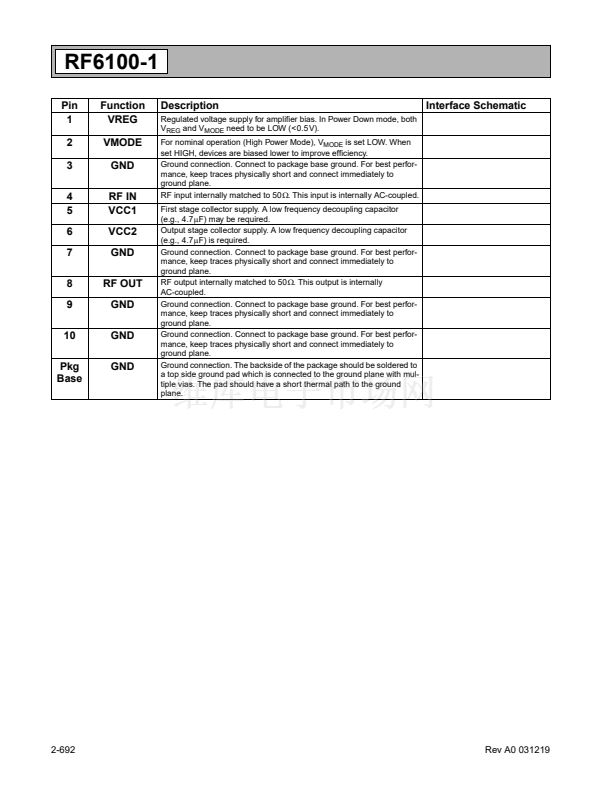

VREG 1
VMODE 2
GND 3
RF IN 4
VCC1 5
Bias
10 GND
9 GND
8 RF OUT
7 GND
6 VCC2
鈥?29dB Linear Gain
鈥?53% AMPS Efficiency
Ordering Information
RF6100-1
3V 900MHz Linear Power Amplifier Module

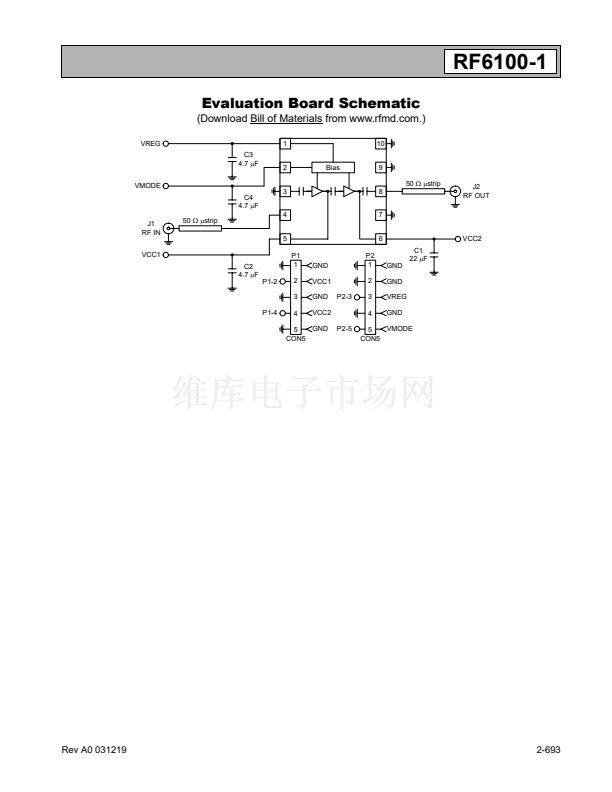

RF6100-1 PCBA Fully Assembled Evaluation Board
Functional Block Diagram
RF Micro Devices, Inc.
7628 Thorndike Road
Greensboro, NC 27409, USA
3.000
TYP
3.200
3.500 TYP
3.900 TYP
0.000
0.775
1.000 TYP
Tel (336) 664 1233
Fax (336) 664 0454
http://www.rfmd.com
Rev A0 031219
2-689
