RF5117 Datasheet

  • RF5117

  • 3V, 1.8GHz TO 2.8GHz LINEAR POWER AMPLIFIER

  • 10頁

  • RFMD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

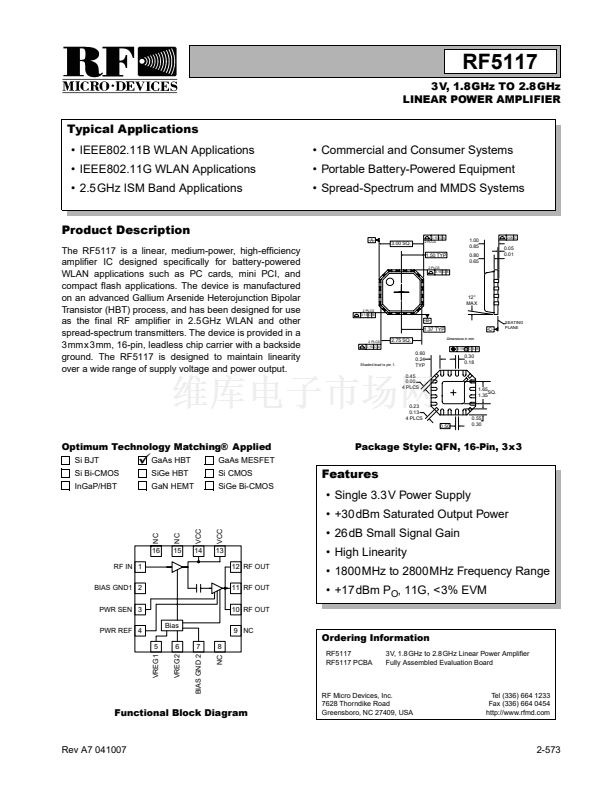

RF5117
0
Typical Applications
鈥?IEEE802.11B WLAN Applications
鈥?IEEE802.11G WLAN Applications
鈥?2.5GHz ISM Band Applications
Product Description
-A-
3.00 SQ.
3V, 1.8GHz TO 2.8GHz
LINEAR POWER AMPLIFIER
鈥?Commercial and Consumer Systems
鈥?Portable Battery-Powered Equipment
鈥?Spread-Spectrum and MMDS Systems
0.15 C A
2 PLCS
The RF5117 is a linear, medium-power, high-efficiency
amplifier IC designed specifically for battery-powered
WLAN applications such as PC cards, mini PCI, and
compact flash applications. The device is manufactured
on an advanced Gallium Arsenide Heterojunction Bipolar
Transistor (HBT) process, and has been designed for use
as the final RF amplifier in 2.5GHz WLAN and other
spread-spectrum transmitters. The device is provided in a
3mmx3mm, 16-pin, leadless chip carrier with a backside
ground. The RF5117 is designed to maintain linearity
over a wide range of supply voltage and power output.
1.00
0.85
0.80
0.65
0.05 C
1.50 TYP
2 PLCS
0.15 C B
0.05
0.01
12擄
MAX
2 PLCS
0.15 C B
-B-
1.37 TYP
2 PLCS
0.15 C A
-C-
Dimensions in mm.
0.10 M C A B
SEATING
PLANE
2.75 SQ.
0.60
0.24
TYP
0.45
0.00
4 PLCS
Shaded lead is pin 1.
0.30
0.18
1.65
SQ.
1.35
0.23
0.13
4 PLCS
0.50
0.55
0.30
Optimum Technology Matching廬 Applied
Si BJT
Si Bi-CMOS
InGaP/HBT
GaAs HBT
SiGe HBT
GaN HEMT
GaAs MESFET
Si CMOS
SiGe Bi-CMOS
Package Style: QFN, 16-Pin, 3x3
Features
鈥?Single 3.3V Power Supply
鈥?+30dBm Saturated Output Power
VCC
VCC
NC
NC
鈥?26dB Small Signal Gain
鈥?High Linearity
12 RF OUT
11 RF OUT
10 RF OUT
16
RF IN 1
BIAS GND1 2
PWR SEN 3
PWR REF 4
5
VREG1
15
14
13
鈥?1800MHz to 2800MHz Frequency Range
鈥?+17dBm P
O
, 11G, <3% EVM
Bias
6
VREG2
7
BIAS GND 2
8
NC
9 NC
Ordering Information
RF5117

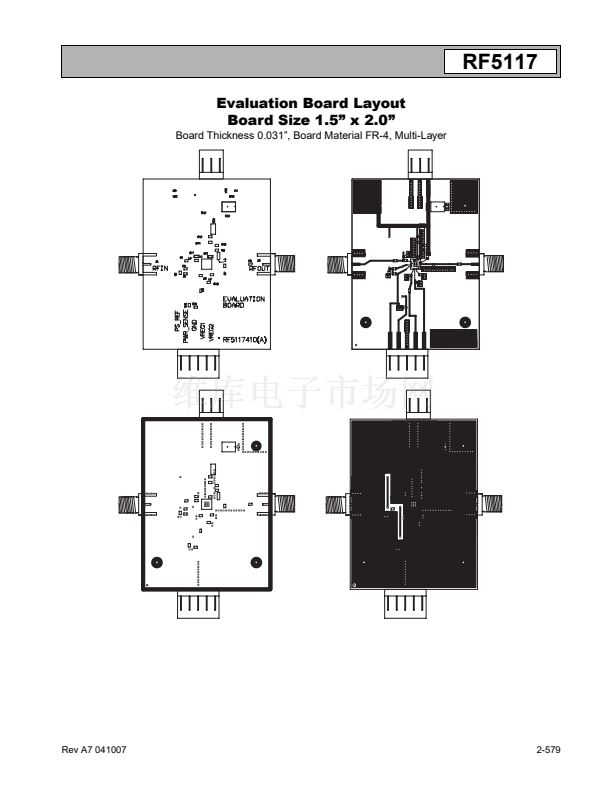

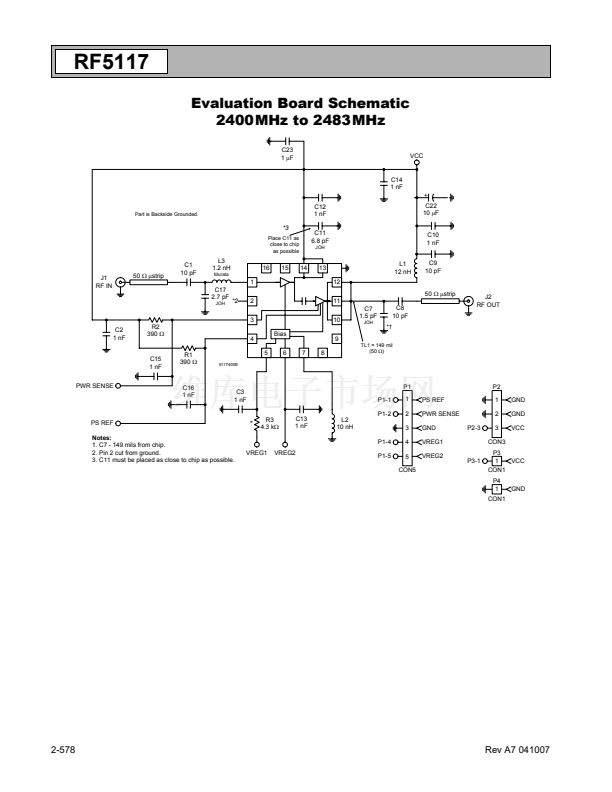

RF5117 PCBA
3V, 1.8GHz to 2.8GHz Linear Power Amplifier
Fully Assembled Evaluation Board
Functional Block Diagram
RF Micro Devices, Inc.
7628 Thorndike Road
Greensboro, NC 27409, USA
Tel (336) 664 1233
Fax (336) 664 0454
http://www.rfmd.com
Rev A7 041007
2-573
