RF3146SB Datasheet

  • RF3146SB

  • QUAD-BAND GSM850/GSM900/DCS/PCS POWER AMP MODULE

  • 18頁

  • RFMD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Preliminary
0
Typical Applications
鈥?3V Quad-Band GSM Handsets
鈥?Commercial and Consumer Systems
鈥?Portable Battery-Powered Equipment

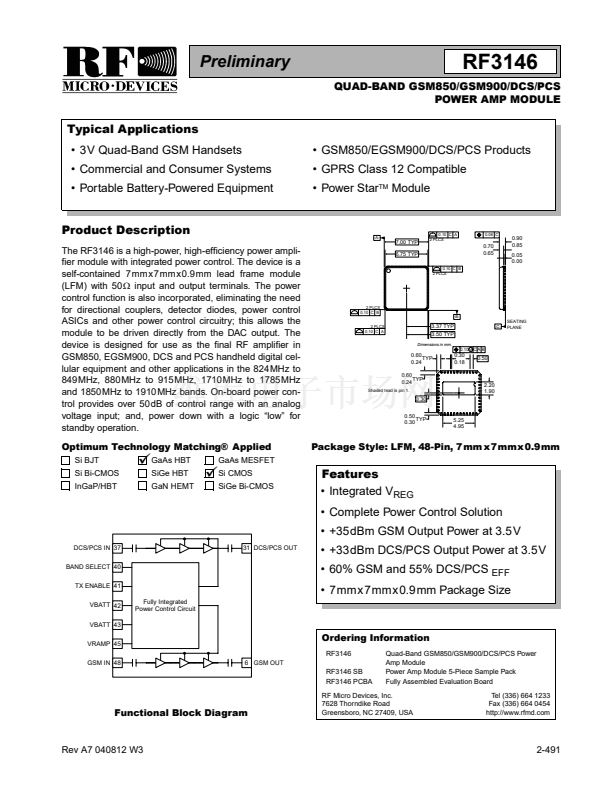

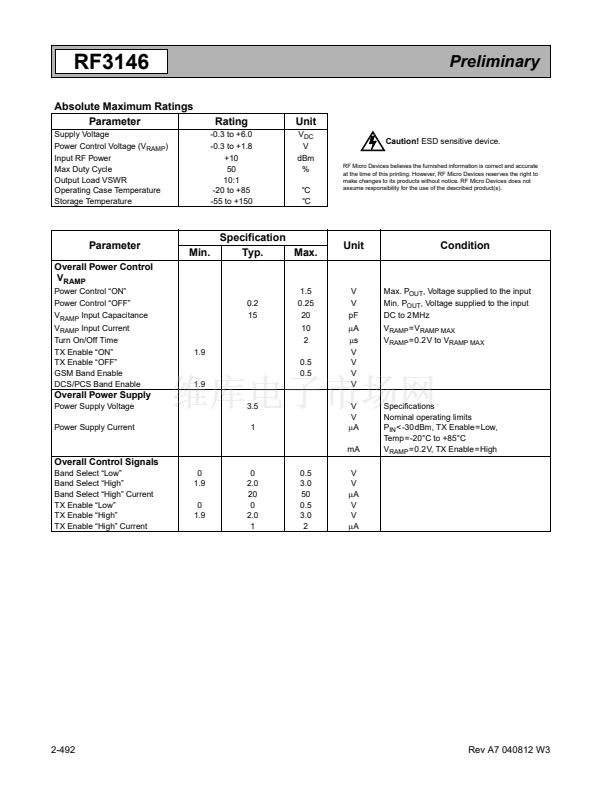

Product Description
The RF3146 is a high-power, high-efficiency power ampli-
fier module with integrated power control. The device is a
self-contained 7mmx7mmx0.9mm lead frame module

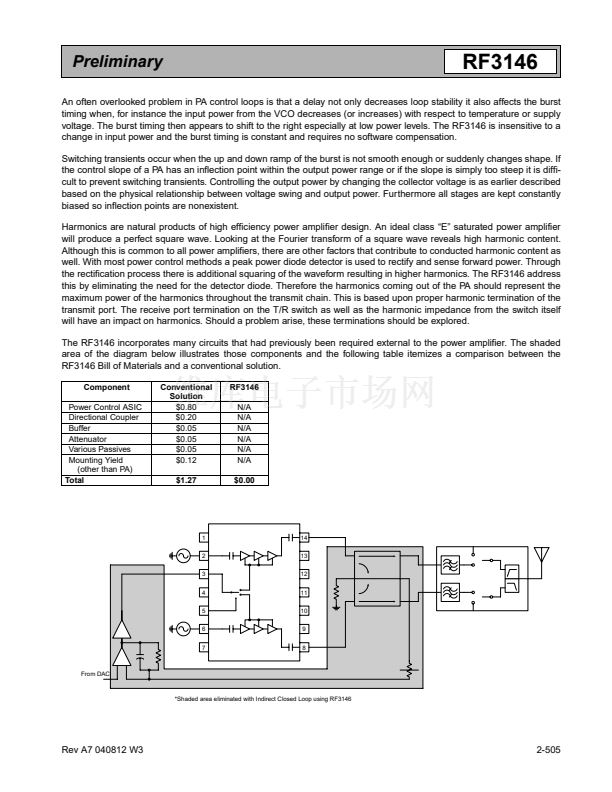

(LFM) with 50鈩?input and output terminals. The power
control function is also incorporated, eliminating the need
for directional couplers, detector diodes, power control
ASICs and other power control circuitry; this allows the
module to be driven directly from the DAC output. The
device is designed for use as the final RF amplifier in
GSM850, EGSM900, DCS and PCS handheld digital cel-
lular equipment and other applications in the 824MHz to
849MHz, 880MHz to 915MHz, 1710MHz to 1785MHz

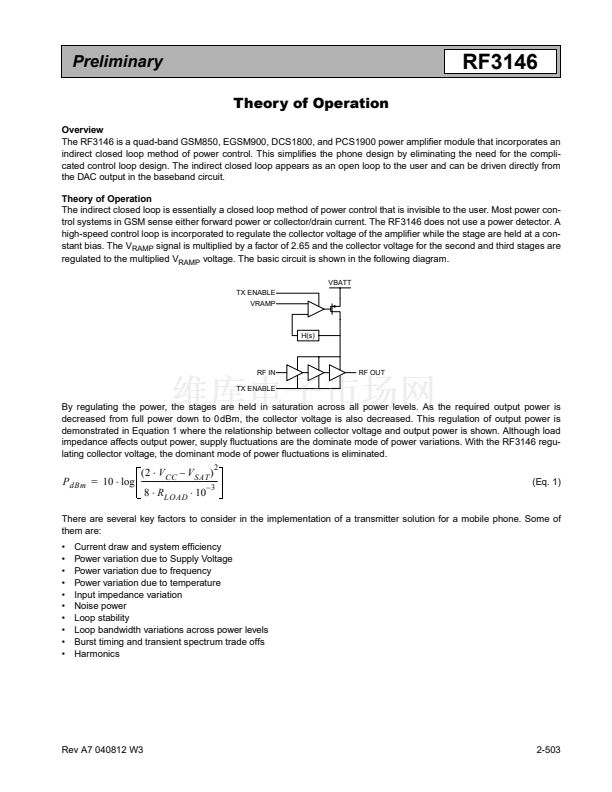

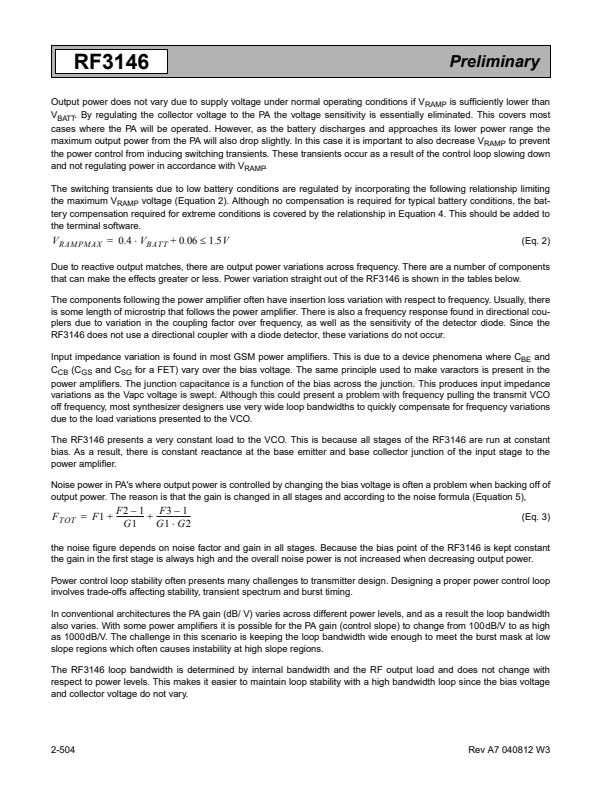

and 1850MHz to 1910MHz bands. On-board power con-
trol provides over 50dB of control range with an analog
voltage input; and, power down with a logic 鈥渓ow鈥?for
standby operation.
Optimum Technology Matching廬 Applied
Si BJT
Si Bi-CMOS
InGaP/HBT
GaAs HBT
SiGe HBT
GaN HEMT
GaAs MESFET
Si CMOS
SiGe Bi-CMOS
RF3146
QUAD-BAND GSM850/GSM900/DCS/PCS
POWER AMP MODULE
鈥?GSM850/EGSM900/DCS/PCS Products
鈥?GPRS Class 12 Compatible
鈥?Power Star
TM
Module
-A-
7.00 TYP
6.75 TYP
0.10 C A
2 PLCS
0.08 C
0.70
0.65
0.10 C B
2 PLCS
0.90
0.85
0.05
0.00
2 PLCS
0.10 C B
-B-
2 PLCS
0.10 C A
3.37 TYP
3.50 TYP
Dimensions in mm.
-C-
SEATING
PLANE
0.10M C A B
0.60
TYP
0.24
0.60
TYP
0.24
Shaded lead is pin 1.
0.30
0.18
0.50
2.20
1.90
0.30
0.50
TYP
0.30
5.25
4.95

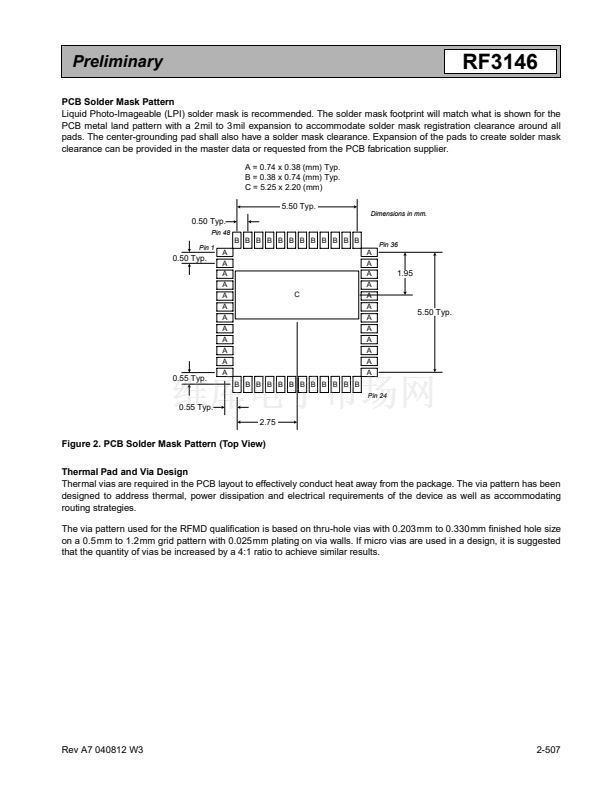

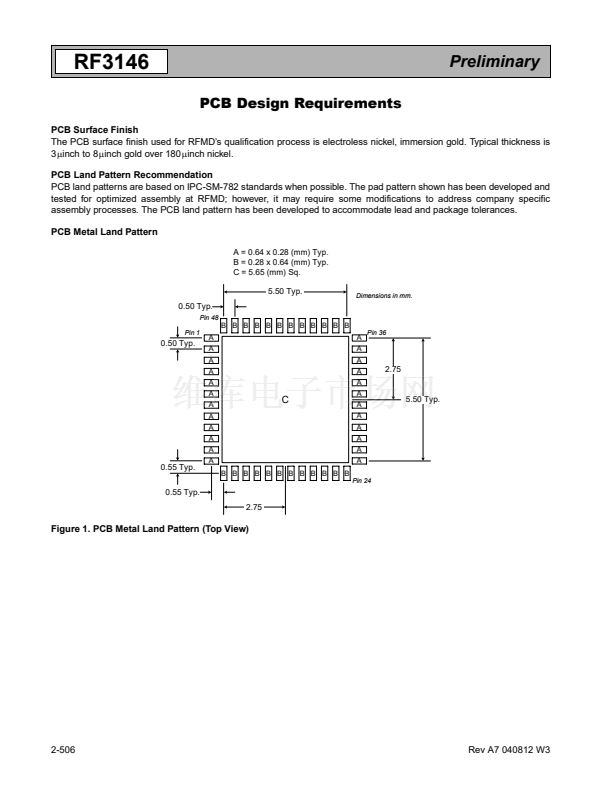

Package Style: LFM, 48-Pin, 7mm x7mmx0.9mm

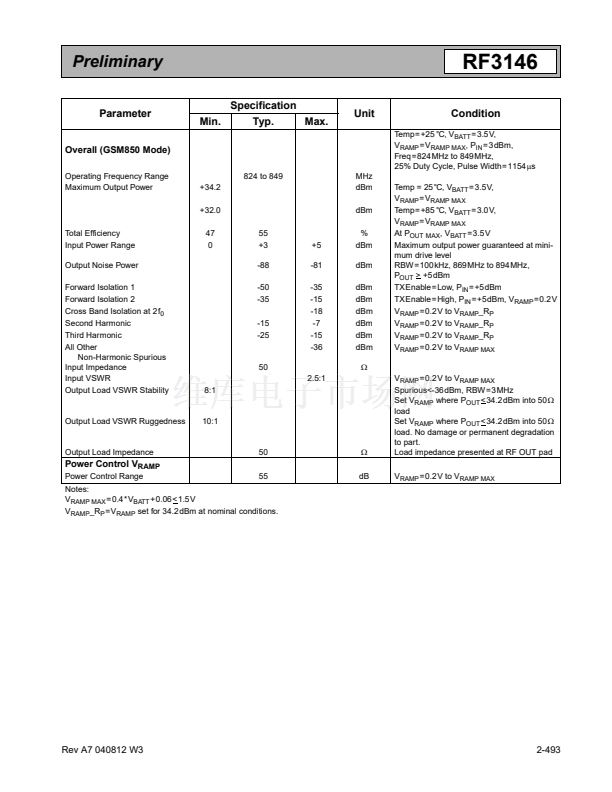

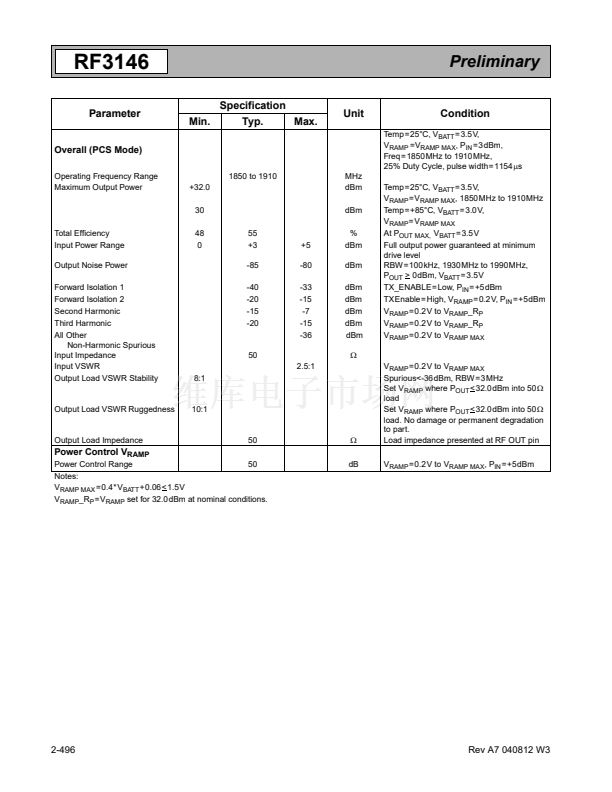

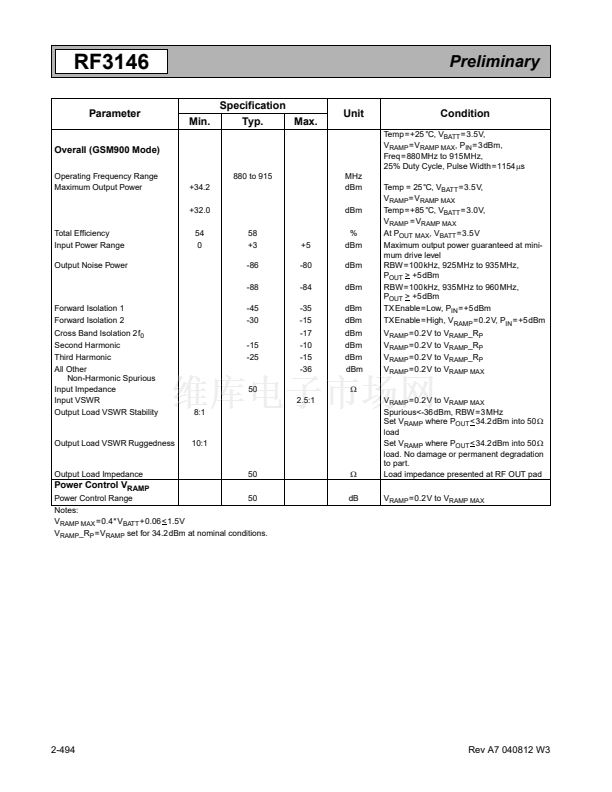

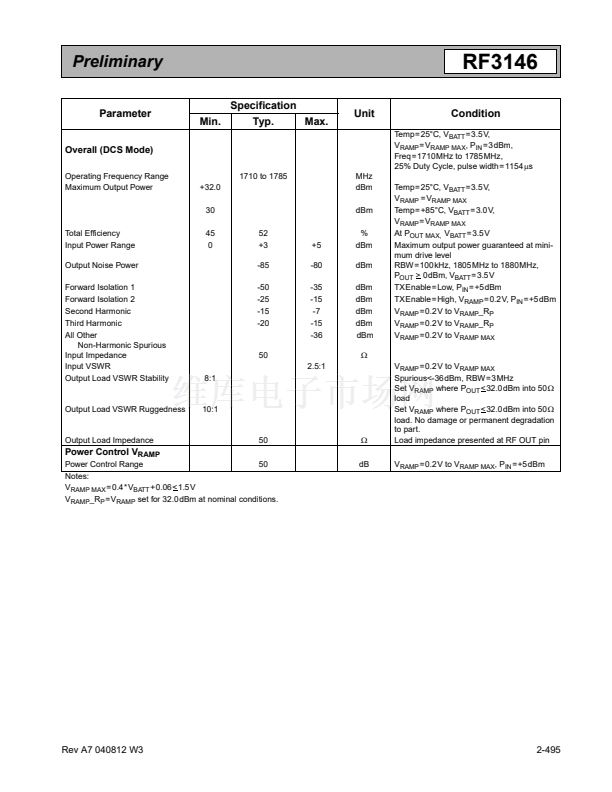

Features
鈥?Integrated V
REG
鈥?Complete Power Control Solution
鈥?+35dBm GSM Output Power at 3.5V

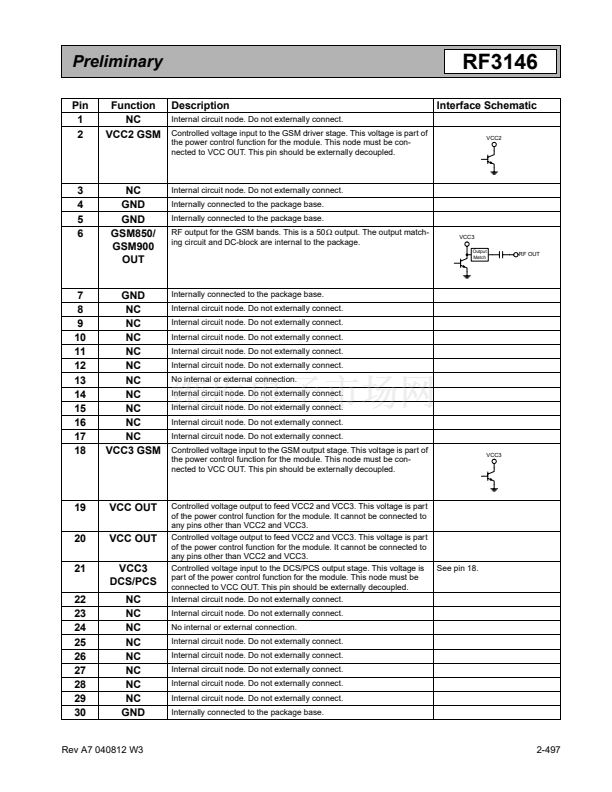

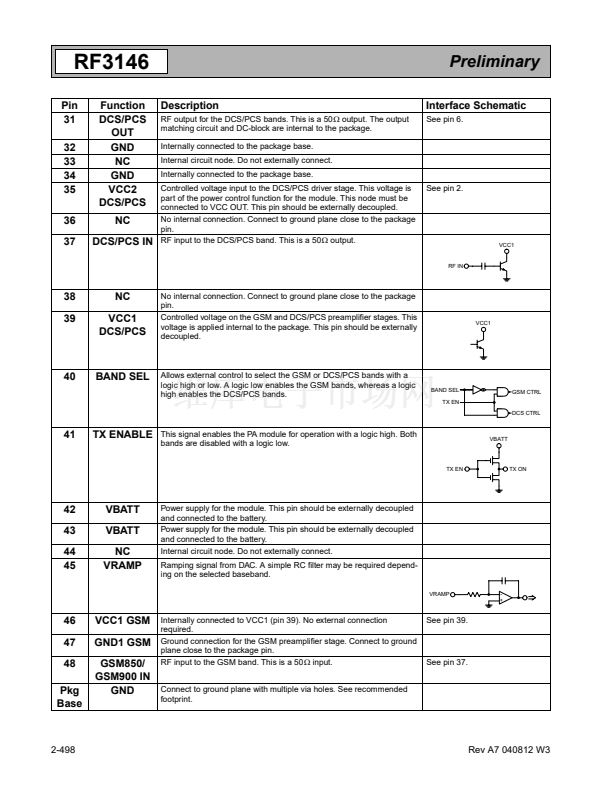

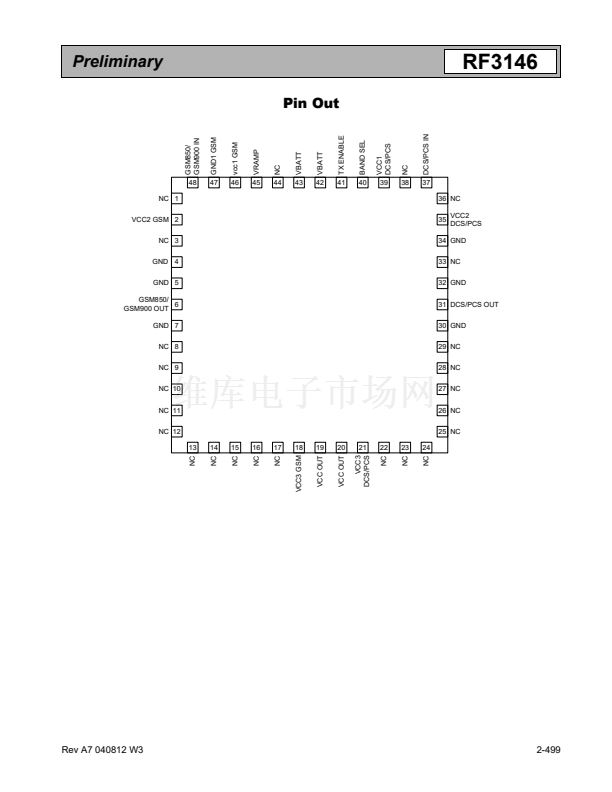

DCS/PCS IN 37
BAND SELECT 40
TX ENABLE 41
VBATT 42
VBATT 43
VRAMP 45
GSM IN 48
Fully Integrated
Power Control Circuit
31 DCS/PCS OUT
鈥?+33dBm DCS/PCS Output Power at 3.5V
鈥?60% GSM and 55% DCS/PCS
EFF
鈥?7mmx7mmx0.9mm Package Size
Ordering Information
RF3146
6 GSM OUT
RF3146 SB
RF3146 PCBA
Quad-Band GSM850/GSM900/DCS/PCS Power
Amp Module
Power Amp Module 5-Piece Sample Pack

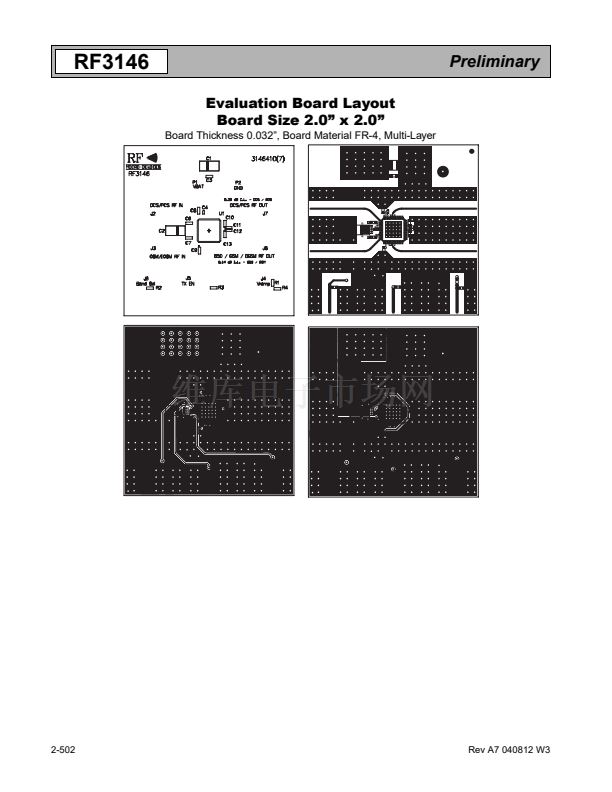

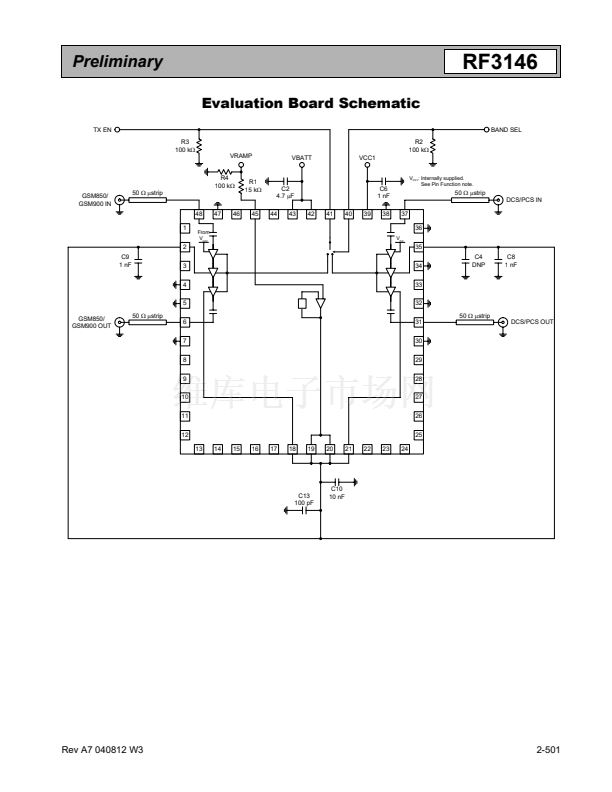

Fully Assembled Evaluation Board
Tel (336) 664 1233
Fax (336) 664 0454
http://www.rfmd.com

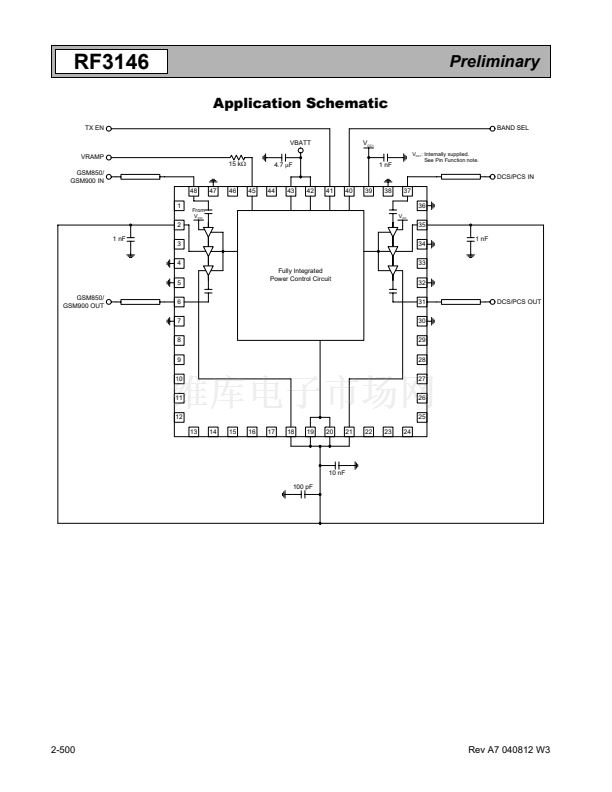

Functional Block Diagram
RF Micro Devices, Inc.
7628 Thorndike Road
Greensboro, NC 27409, USA
Rev A7 040812 W3
2-491
