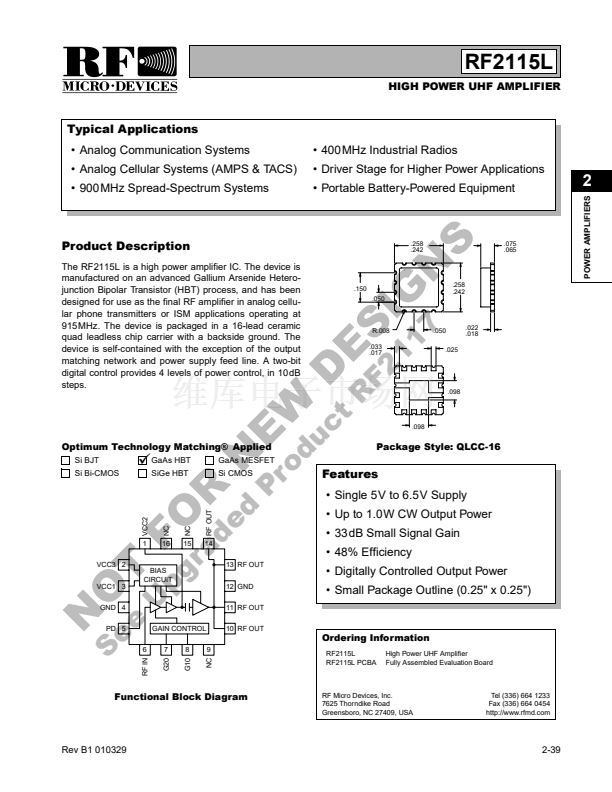

RF2115L

2

Typical Applications

鈥?Analog Communication Systems

鈥?Analog Cellular Systems (AMPS & TACS)

鈥?900MHz Spread-Spectrum Systems

鈥?400MHz Industrial Radios

鈥?Driver Stage for Higher Power Applications

鈥?Portable Battery-Powered Equipment

HIGH POWER UHF AMPLIFIER

2

POWER AMPLIFIERS

Product Description

The RF2115L is a high power amplifier IC. The device is

manufactured on an advanced Gallium Arsenide Hetero-

junction Bipolar Transistor (HBT) process, and has been

designed for use as the final RF amplifier in analog cellu-

lar phone transmitters or ISM applications operating at

915MHz. The device is packaged in a 16-lead ceramic

quad leadless chip carrier with a backside ground. The

device is self-contained with the exception of the output

matching network and power supply feed line. A two-bit

digital control provides 4 levels of power control, in 10dB

steps.

1

.258

.242

.075

.065

.150

.050

.258

.242

7

.098

R.008

.033

.017

.050

.025

R

F2

11

Features

鈥?48% Efficiency

Ordering Information

RF2115L

RF2115L PCBA

RF Micro Devices, Inc.

7625 Thorndike Road

Greensboro, NC 27409, USA

.022

.018

.098

Optimum Technology Matching廬 Applied

Si BJT

Si Bi-CMOS

ro

du

ct

眉

GaAs HBT

SiGe HBT

Package Style: QLCC-16

GaAs MESFET

Si CMOS

P

ad

ed

RF OUT

NC

15

14

13 RF OUT

12 GND

11 RF OUT

10 RF OUT

9

NC

8

G10

VCC2

NC

1

VCC3 2

VCC1 3

GND 4

PD 5

16

鈥?Single 5V to 6.5V Supply

鈥?Up to 1.0W CW Output Power

鈥?33dB Small Signal Gain

鈥?Digitally Controlled Output Power

鈥?Small Package Outline (0.25" x 0.25")

S

ee

U

pg

r

BIAS

CIRCUIT

GAIN CONTROL

7

G20

6

Functional Block Diagram

RF IN

High Power UHF Amplifier

Fully Assembled Evaluation Board

Tel (336) 664 1233

Fax (336) 664 0454

http://www.rfmd.com

Rev B1 010329

2-39
