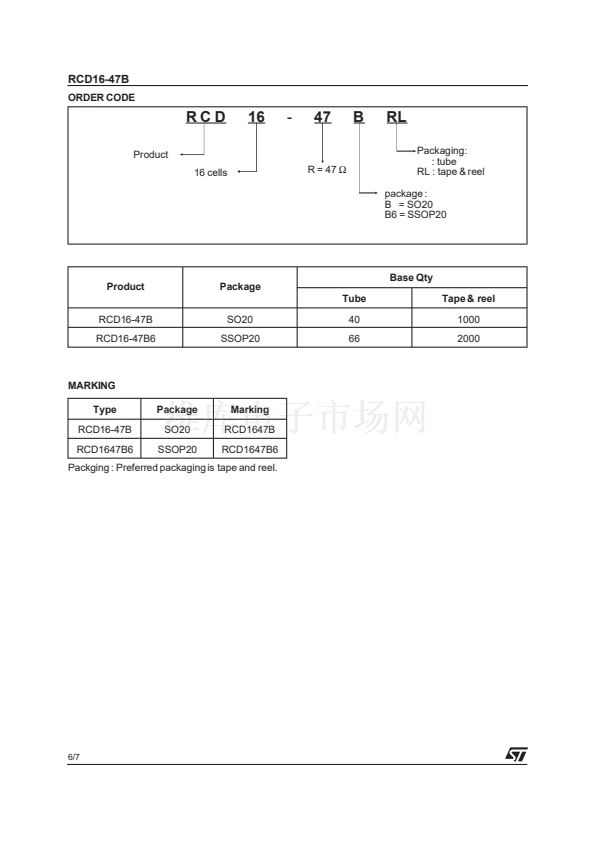

RCD16-47B6RL Datasheet

  • RCD16-47B6RL

  • RCD NETWORK FOR BUS TERMINATION

  • 69.36KB

  • 7頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

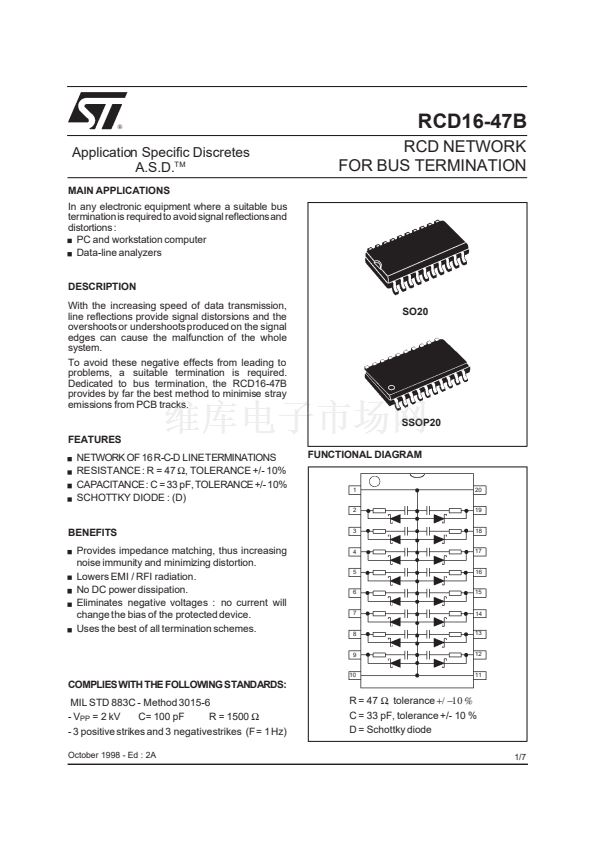

RCD16-47B
RCD NETWORK
FOR BUS TERMINATION
Application Specific Discretes
A.S.D.
TM
MAIN APPLICATIONS
In any electronic equipment where a suitable bus
terminationis requiredto avoid signal reflectionsand
distortions :
PC and workstation computer
Data-line analyzers

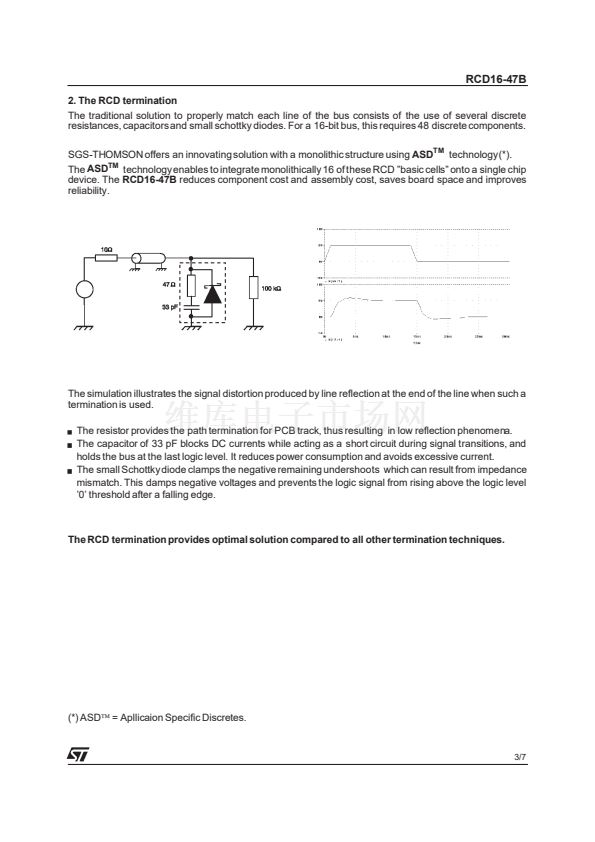

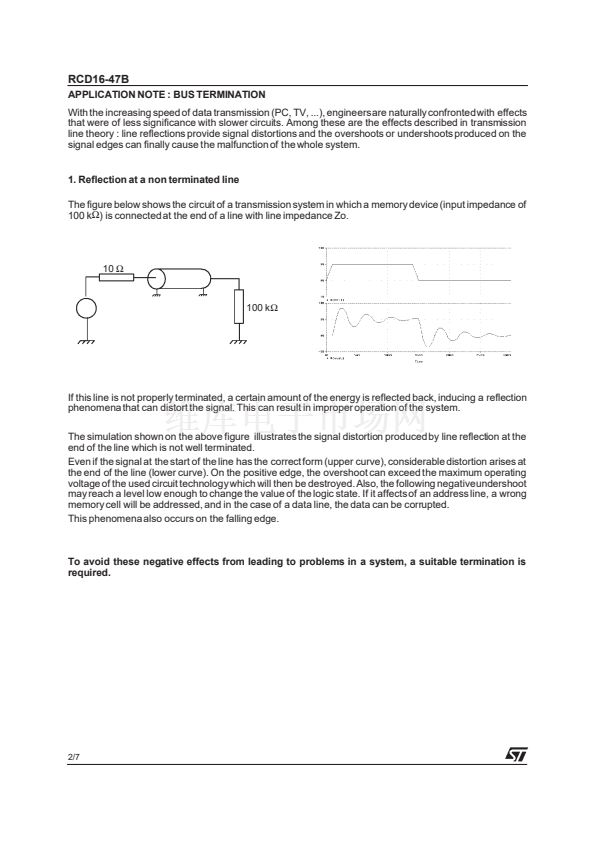

DESCRIPTION
With the increasing speed of data transmission,
line reflections provide signal distorsions and the
overshoots or undershootsproduced on the signal
edges can cause the malfunction of the whole
system.
To avoid these negative effects from leading to
problems, a suitable termination is required.
Dedicated to bus termination, the RCD16-47B
provides by far the best method to minimise stray
emissions from PCB tracks.

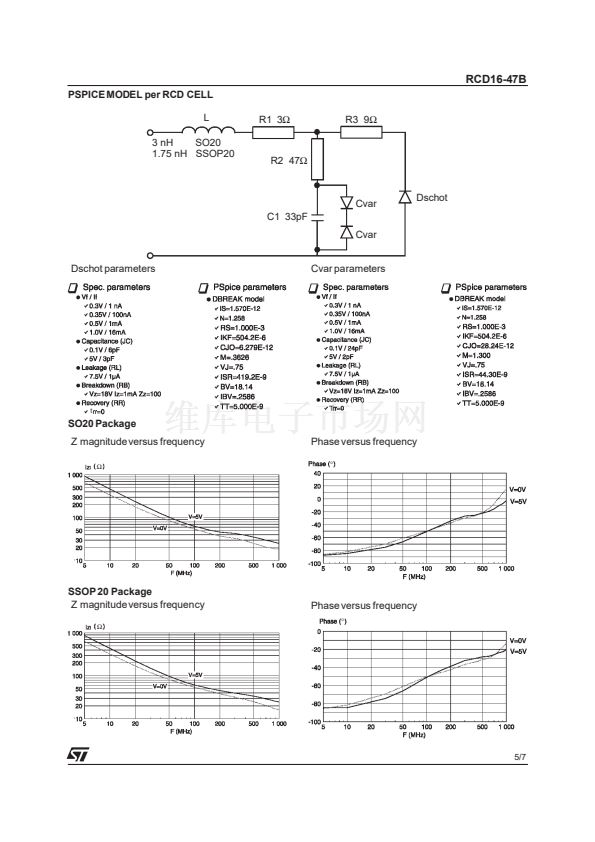

FEATURES
NETWORK OF 16R-C-D LINETERMINATIONS
RESISTANCE : R = 47
鈩?/div>
, TOLERANCE +/- 10%
CAPACITANCE: C = 33 pF, TOLERANCE +/- 10%
SCHOTTKY DIODE : (D)
BENEFITS
Provides impedance matching, thus increasing
noise immunity and minimizing distortion.
Lowers EMI / RFI radiation.
No DC power dissipation.
Eliminates negative voltages : no current will
change the bias of the protected device.
Uses the best of all termination schemes.

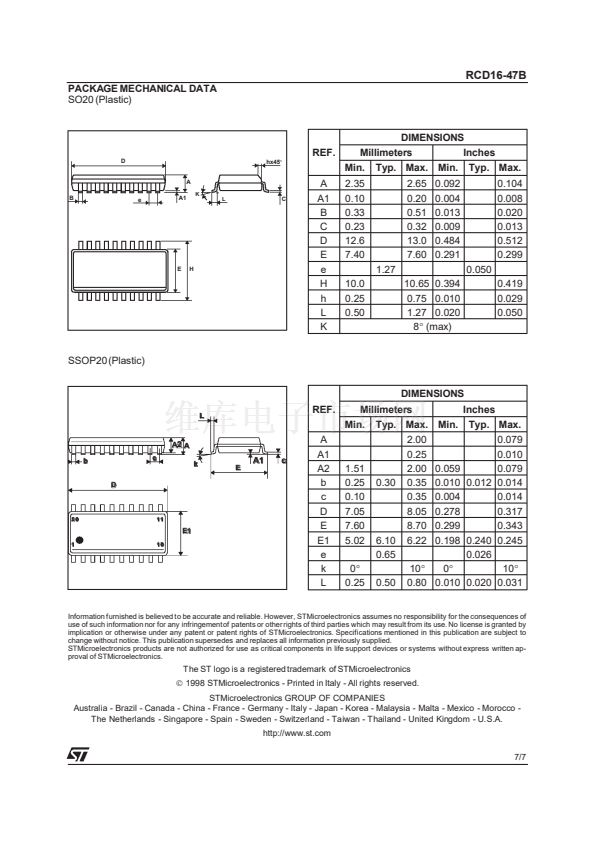

SO20
SSOP20
FUNCTIONAL DIAGRAM
1
2
20
19
3
4
5
6
18
17
16
15
7
8
14
13
9
10
12
11

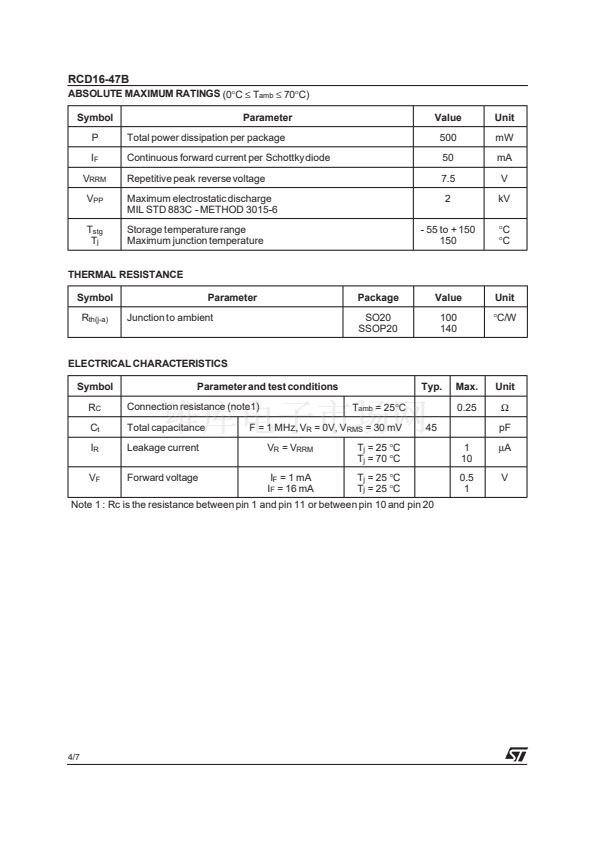

COMPLIESWITH THE FOLLOWING STANDARDS:
MIL STD 883C - Method 3015-6
C= 100 pF
R = 1500
鈩?/div>
- V
PP
= 2 kV
- 3 positive strikes and 3 negativestrikes (F= 1Hz)
October 1998 - Ed : 2A
R = 47
鈩?
tolerance
+/鈭?10 %
C = 33 pF, tolerance +/- 10 %
D = Schottky diode
1/7
