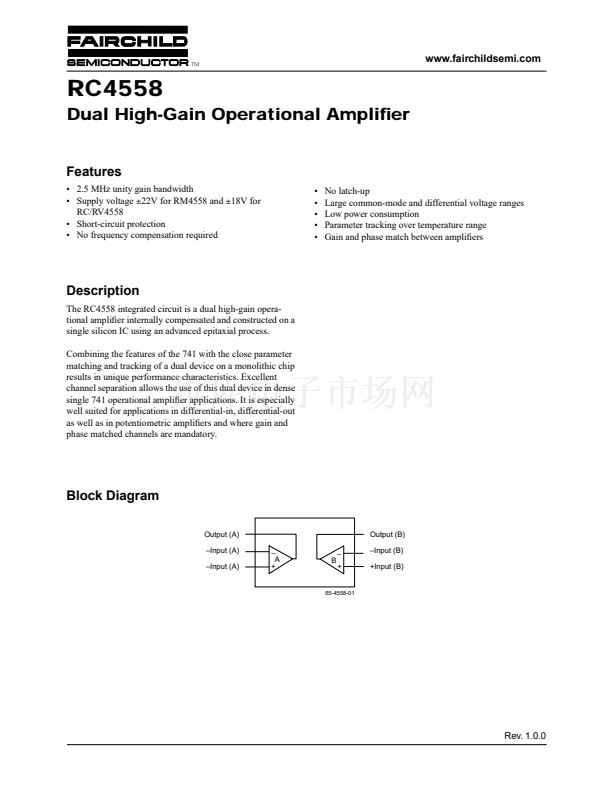

www.fairchildsemi.com
RC4558
Dual High-Gain Operational Ampli鏗乪r
Features
鈥?2.5 MHz unity gain bandwidth
鈥?Supply voltage
鹵22V
for RM4558 and
鹵18V
for
RC/RV4558
鈥?Short-circuit protection
鈥?No frequency compensation required
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
No latch-up
Large common-mode and differential voltage ranges
Low power consumption
Parameter tracking over temperature range
Gain and phase match between ampli鏗乪rs
Description
The RC4558 integrated circuit is a dual high-gain opera-
tional ampli鏗乪r internally compensated and constructed on a
single silicon IC using an advanced epitaxial process.
Combining the features of the 741 with the close parameter
matching and tracking of a dual device on a monolithic chip
results in unique performance characteristics. Excellent
channel separation allows the use of this dual device in dense
single 741 operational ampli鏗乪r applications. It is especially
well suited for applications in differential-in, differential-out
as well as in potentiometric ampli鏗乪rs and where gain and
phase matched channels are mandatory.
Block Diagram
Output (A)
鈥揑nput (A)
鈥揑nput (A)
_
A
+
_
B
+
Output (B)
鈥揑nput (B)
+Input (B)
65-4558-01
Rev. 1.0.0
