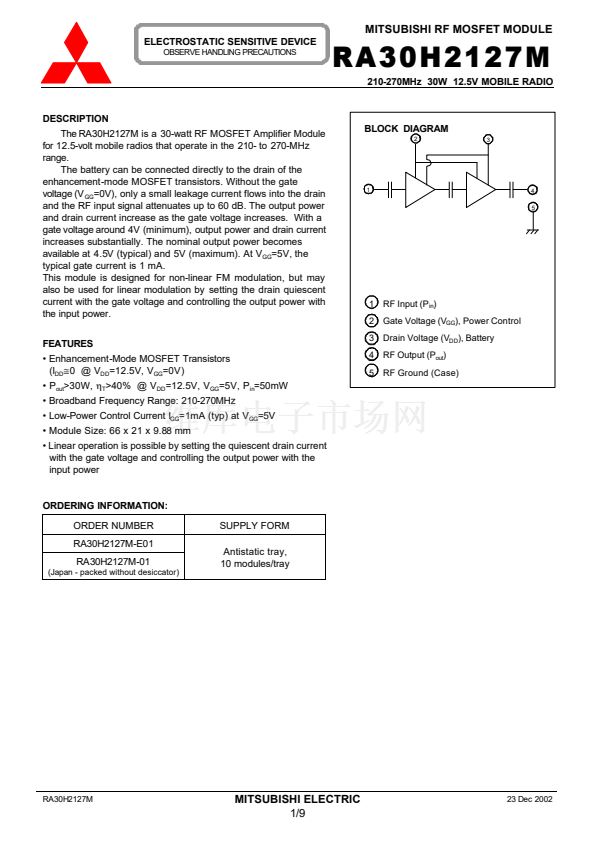

MITSUBISHI RF MOSFET MODULE
ELECTROSTATIC SENSITIVE DEVICE
OBSERVE HANDLING PRECAUTIONS
RA30H2127M
210-270MHz 30W 12.5V MOBILE RADIO
BLOCK DIAGRAM
2
3
DESCRIPTION
The RA30H2127M is a 30-watt RF MOSFET Amplifier Module
for 12.5-volt mobile radios that operate in the 210- to 270-MHz
range.
The battery can be connected directly to the drain of the
enhancement-mode MOSFET transistors. Without the gate
voltage (V
GG
=0V), only a small leakage current flows into the drain
and the RF input signal attenuates up to 60 dB. The output power
and drain current increase as the gate voltage increases. With a
gate voltage around 4V (minimum), output power and drain current
increases substantially. The nominal output power becomes
available at 4.5V (typical) and 5V (maximum). At V
GG
=5V, the
typical gate current is 1 mA.
This module is designed for non-linear FM modulation, but may
also be used for linear modulation by setting the drain quiescent
current with the gate voltage and controlling the output power with
the input power.
FEATURES
鈥?Enhancement-Mode MOSFET Transistors
(I
DD
鈮?
@ V
DD
=12.5V, V
GG
=0V)
鈥?P
out
>30W,
畏
T
>40% @ V
DD
=12.5V, V
GG
=5V, P
in
=50mW
鈥?Broadband Frequency Range: 210-270MHz
鈥?Low-Power Control Current I
GG
=1mA (typ) at V
GG
=5V
鈥?Module Size: 66 x 21 x 9.88 mm
鈥?Linear operation is possible by setting the quiescent drain current
with the gate voltage and controlling the output power with the
input power
1
4
5
1
2
3
4
5
RF Input (P
in
)
Gate Voltage (V
GG
), Power Control
Drain Voltage (V
DD
), Battery
RF Output (P
out
)
RF Ground (Case)
ORDERING INFORMATION:
ORDER NUMBER
RA30H2127M-E01
RA30H2127M-01
(Japan - packed without desiccator)
SUPPLY FORM
Antistatic tray,
10 modules/tray
RA30H2127M
MITSUBISHI ELECTRIC
1/9
23 Dec 2002
