typ. initial @ 2-4 V DC,
100 mA, for both silver and gold plated contacts.
鈩?/div>
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
INDEXING: 36潞-one contact models, 10 position max.; two contact
models, 5 position max.
OPERATING & STORAGE TEMPERATURE: -30潞C to 95潞C
Materials
HOUSING & BUSHING: 6/6 nylon (UL 94V-2).
ACTUATOR: 6/6 nylon (UL 94V-2).
CONTACTS & TERMINALS: Q contact material: Copper, silver plated.
See page L-40 for additional contact materials.
CONTACT SPRING: Music wire or stainless steel.
MOUNTING NUT: Steel, zinc plated.
TERMINAL SEAL: Epoxy.
NOTE:
Any models supplied with Q or B contact material are RoHS compliant. For the
latest information regarding RoHS compliance, please go to: www.ittcannon.com/rohs.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Custome Service Center.

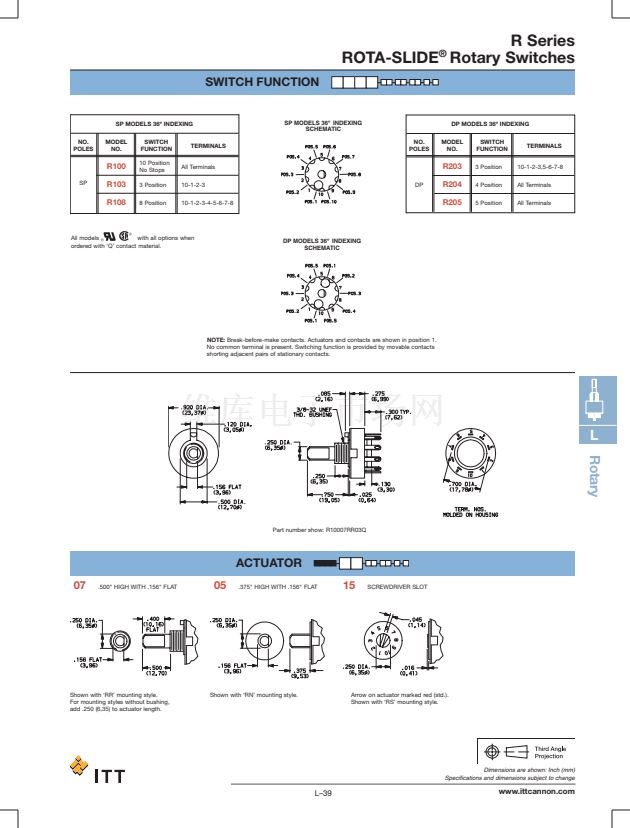

Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages L-39 and L-40. For additional options not shown in catalog, consult Customer Service Center.
L
Rotary
Switch Function
R100
SP, 36擄 Index, 10 pos. no stops
R103
SP, 36擄 Index, 3 pos.
R108
SP, 36擄 Index, 8 pos.
R203
DP, 36擄 Index, 3 pos.
R204
DP, 36擄 Index, 4 pos.
R205
DP, 36擄 Index, 5 pos.
Actuator
07
.500" high with .156" flat
05
.375" high with .156" flat
15
Screwdriver slot without bushing
Mounting Style
RR
3/8-32 threaded bushing
RN
PC without bushing
RS
PC without bushing
Terminations
03
Solder lug with hole
01
Solder lug with notch
02
PC Thru-hole
Contact Material
Q
Silver
B
Gold
Seal
NONE
No seal
E
Epoxy seal
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
L鈥?8
www.ittcannon.com
