R1160N151B-TR Datasheet

  • R1160N151B-TR

  • SOT23-5 3-MODE 200mA LDO REGULATOR

  • 27頁

  • RICOH

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

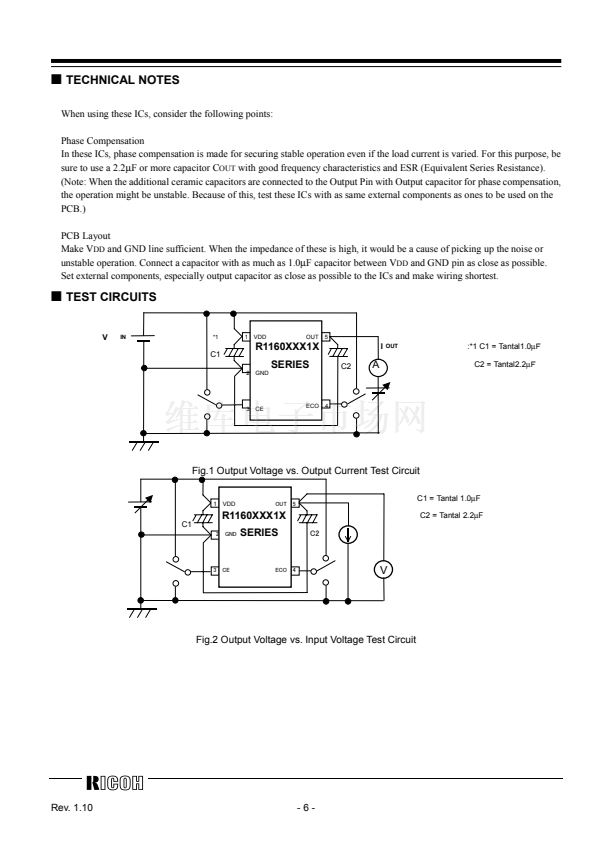

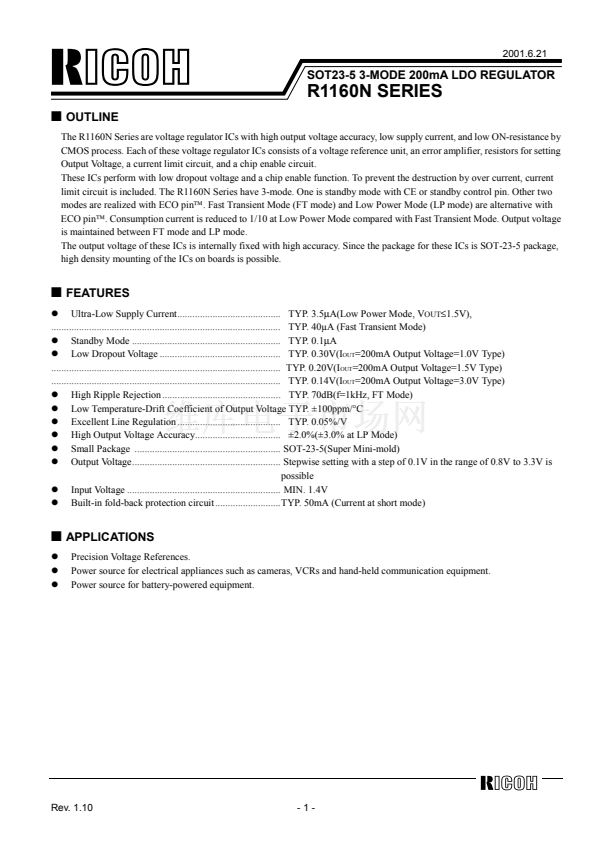

2001.6.21
SOT23-5 3-MODE 200mA LDO REGULATOR
R1160N SERIES
s
OUTLINE
The R1160N Series are voltage regulator ICs with high output voltage accuracy, low supply current, and low ON-resistance by
CMOS process. Each of these voltage regulator ICs consists of a voltage reference unit, an error amplifier, resistors for setting
Output Voltage, a current limit circuit, and a chip enable circuit.

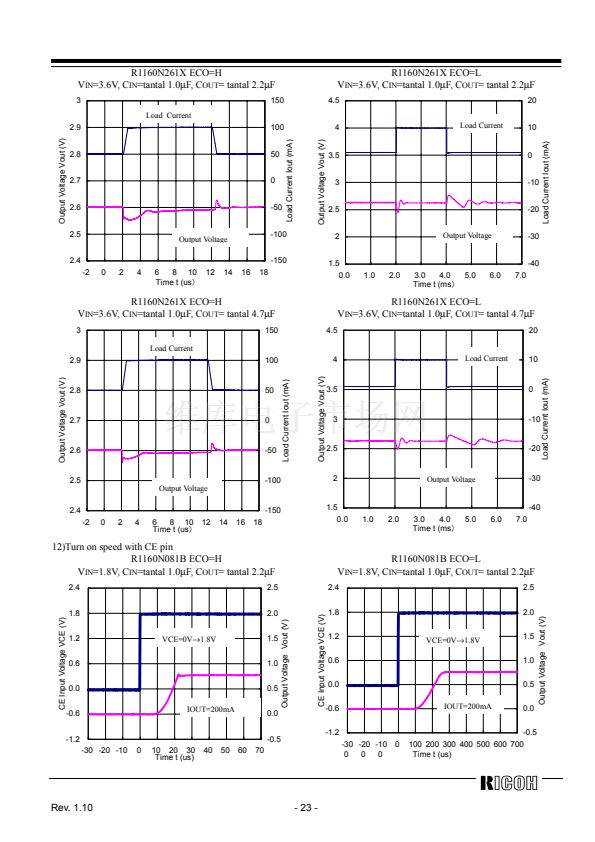

These ICs perform with low dropout voltage and a chip enable function. To prevent the destruction by over current, current

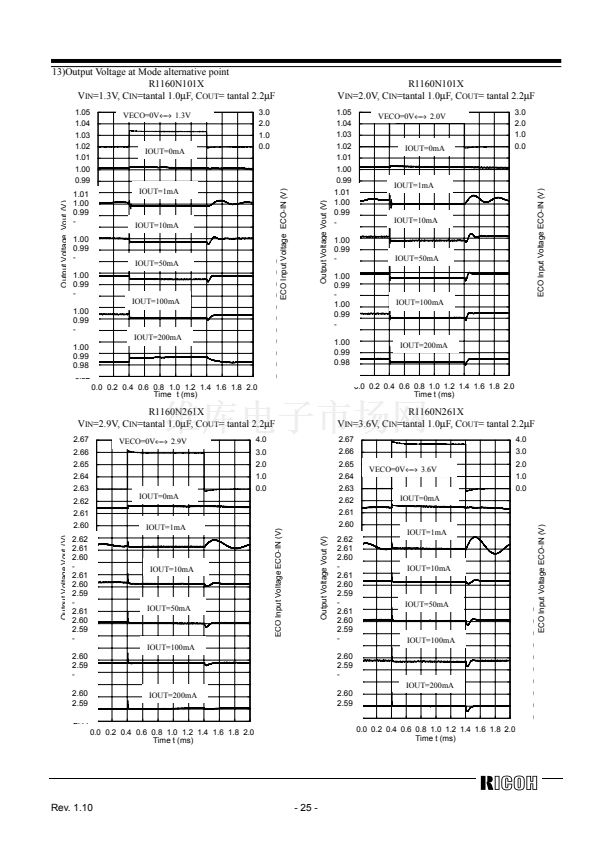

limit circuit is included. The R1160N Series have 3-mode. One is standby mode with CE or standby control pin. Other two
modes are realized with ECO pin餂? Fast Transient Mode (FT mode) and Low Power Mode (LP mode) are alternative with
ECO pin餂? Consumption current is reduced to 1/10 at Low Power Mode compared with Fast Transient Mode. Output voltage
is maintained between FT mode and LP mode.
The output voltage of these ICs is internally fixed with high accuracy. Since the package for these ICs is SOT-23-5 package,
high density mounting of the ICs on boards is possible.
s
FEATURES

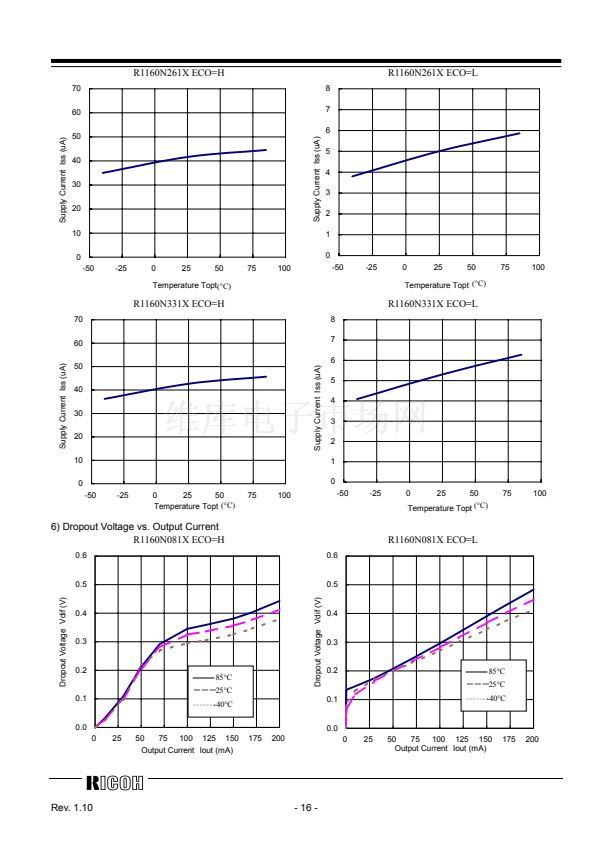

Ultra-Low Supply Current......................................... TYP. 3.5碌A(Low Power Mode, V
OUT
鈮?.5V),
........................................................................................... TYP. 40碌A (Fast Transient Mode)
Standby Mode ........................................................... TYP. 0.1碌A

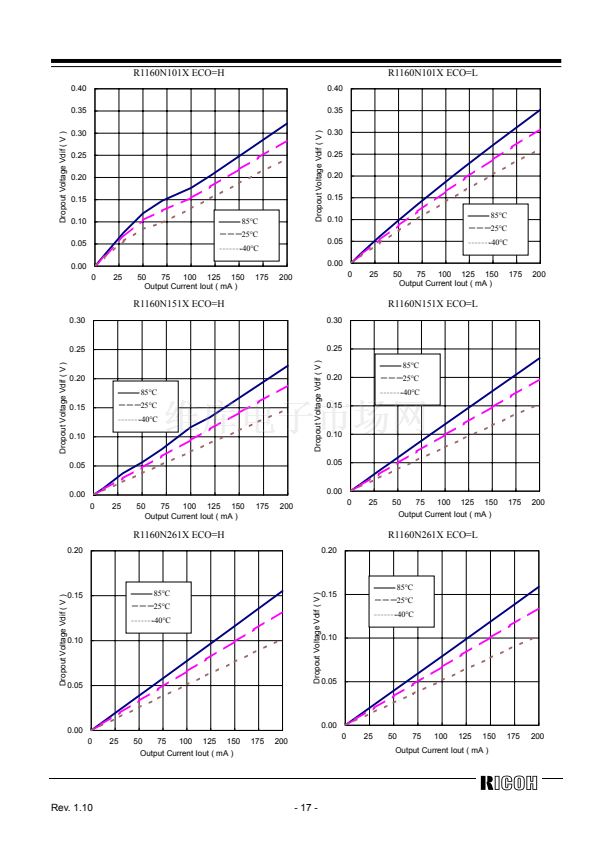

Low Dropout Voltage ................................................ TYP. 0.30V(I
OUT
=200mA Output Voltage=1.0V Type)
........................................................................................... TYP. 0.20V(I
OUT
=200mA Output Voltage=1.5V Type)
........................................................................................... TYP. 0.14V(I
OUT
=200mA Output Voltage=3.0V Type)

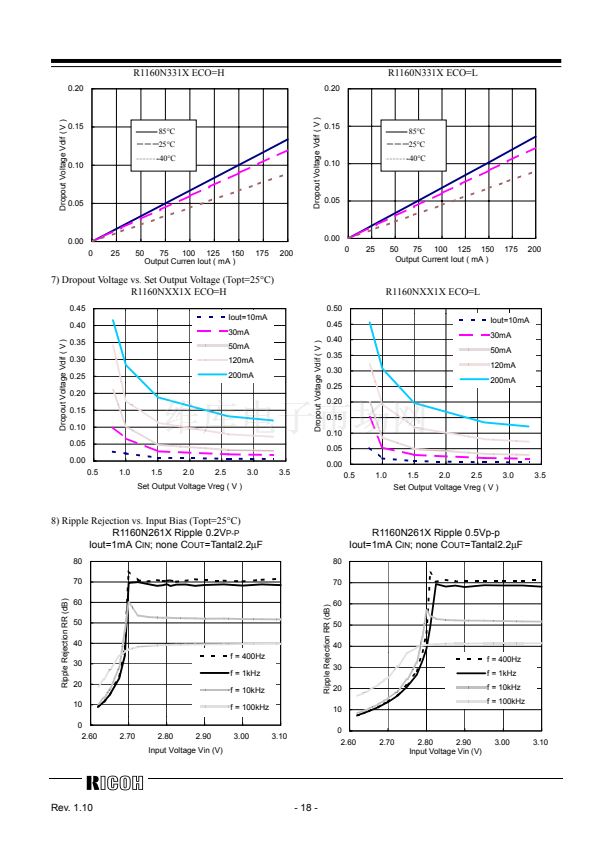

High Ripple Rejection ............................................... TYP. 70dB(f=1kHz, FT Mode)

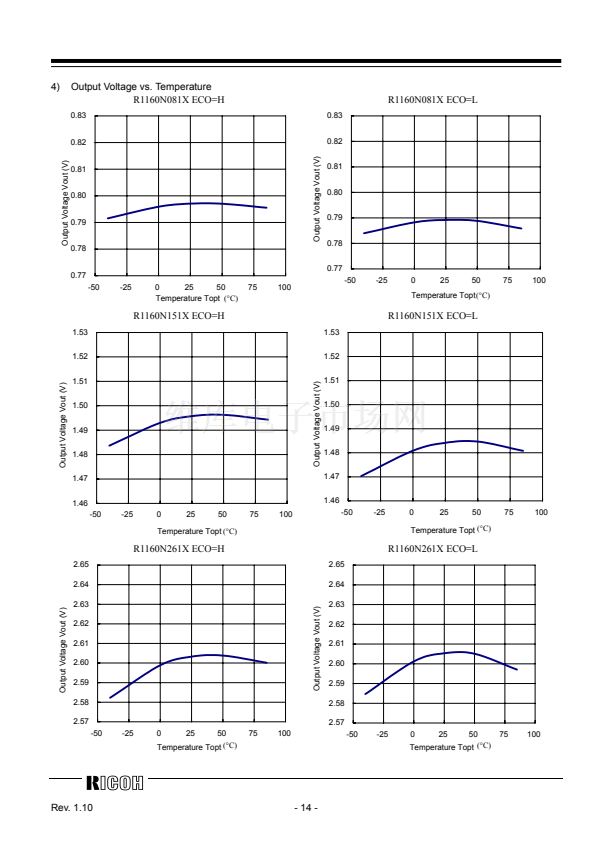

Low Temperature-Drift Coefficient of Output Voltage TYP. 鹵100ppm/擄C
Excellent Line Regulation ......................................... TYP. 0.05%/V
High Output Voltage Accuracy.................................. 鹵2.0%(鹵3.0% at LP Mode)
Small Package .......................................................... SOT-23-5(Super Mini-mold)
Output Voltage........................................................... Stepwise setting with a step of 0.1V in the range of 0.8V to 3.3V is
possible
Input Voltage ............................................................. MIN. 1.4V

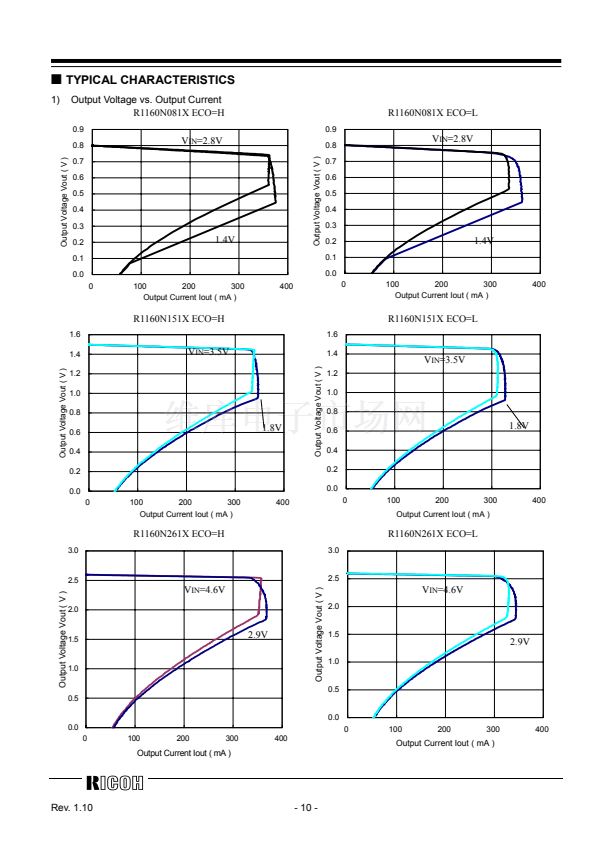

Built-in fold-back protection circuit ..........................TYP. 50mA (Current at short mode)
s
APPLICATIONS
Precision Voltage References.
Power source for electrical appliances such as cameras, VCRs and hand-held communication equipment.
Power source for battery-powered equipment.
Rev. 1.10
-1-
