QTLP670C-RAG Datasheet

  • QTLP670C-RAG

  • SURFACE MOUNT LED LAMP SUPER BRIGHT PLCC-4

  • 6頁

  • FAIRCHILD

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

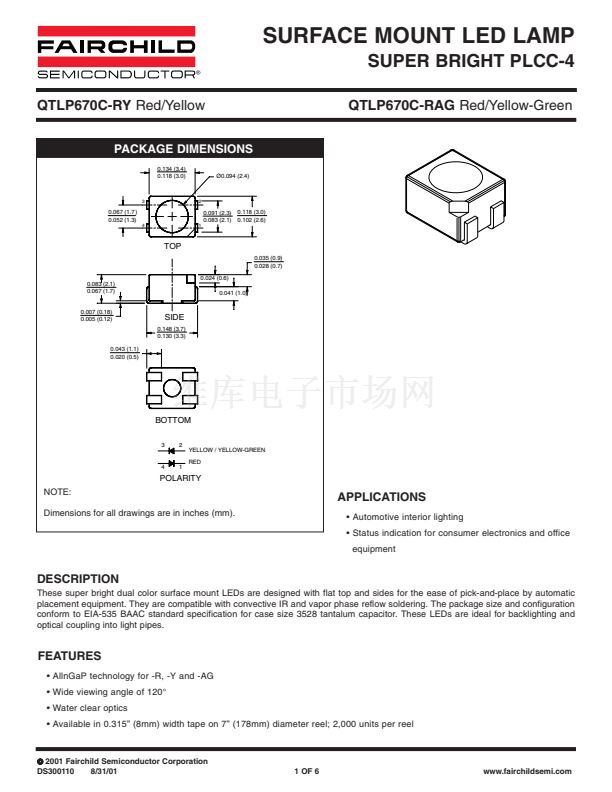

SURFACE MOUNT LED LAMP
SUPER BRIGHT PLCC-4
QTLP670C-RY
Red/Yellow
PACKAGE DIMENSIONS
0.134 (3.4)
0.118 (3.0)
脴0.094 (2.4)
QTLP670C-RAG
Red/Yellow-Green
3
2
0.067 (1.7 )
0.052 (1.3)
4
1
0.091 (2.3)
0.083 (2.1)
0.118 (3.0)
0.102 (2.6)
TOP
0.035 (0.9)
0.028 (0.7)
0.024 (0.6)
0.083 (2.1)
0.067 (1.7)
0.041 (1.0)
0.007 (0.18)
0.005 (0.12)
SIDE
0.148 (3.7)
0.130 (3.3)
0.043 (1.1)
0.020 (0.5)
BOTTOM
3
2
YELLOW / YELLOW-GREEN
RED
4
1
POLARITY
NOTE:
Dimensions for all drawings are in inches (mm).
APPLICATIONS
鈥?Automotive interior lighting
鈥?Status indication for consumer electronics and office
equipment
DESCRIPTION
These super bright dual color surface mount LEDs are designed with flat top and sides for the ease of pick-and-place by automatic
placement equipment. They are compatible with convective IR and vapor phase reflow soldering. The package size and configuration
conform to EIA-535 BAAC standard specification for case size 3528 tantalum capacitor. These LEDs are ideal for backlighting and
optical coupling into light pipes.
FEATURES
鈥?AllnGaP technology for -R, -Y and -AG
鈥?Wide viewing angle of 120擄
鈥?Water clear optics
鈥?Available in 0.315鈥?(8mm) width tape on 7鈥?(178mm) diameter reel; 2,000 units per reel
錚?/div>
2001 Fairchild Semiconductor Corporation
DS300110
8/31/01
1 OF 6
www.fairchildsemi.com
