Small Size and Low Profile
Industry Standard SOT-26 SMT Plastic Package
Typical Insertion Loss 0.7dB
Typical Amplitude Balance 0.3dB
1 Watt Power Handling
SOT-26

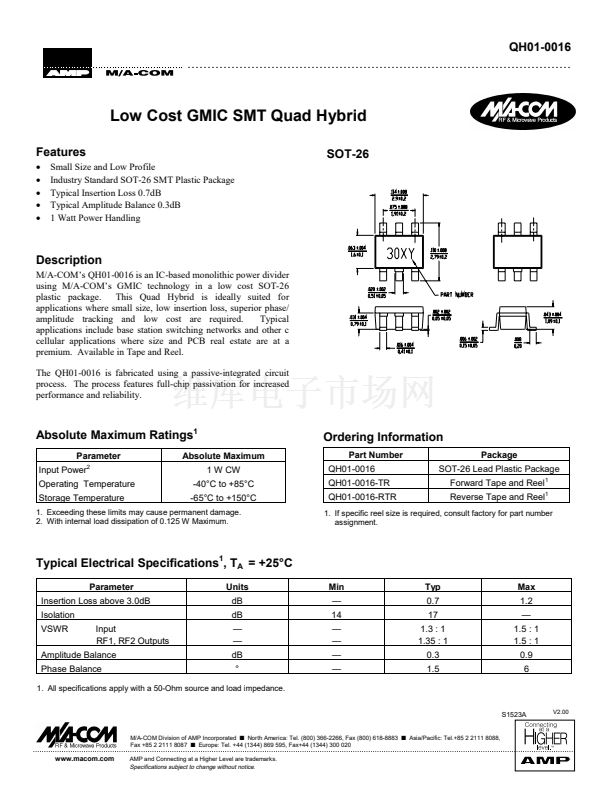

Description
M/A-COM鈥檚 QH01-0016 is an IC-based monolithic power divider
using M/A-COM鈥檚 GMIC technology in a low cost SOT-26
plastic package.
This Quad Hybrid is ideally suited for
applications where small size, low insertion loss, superior phase/
amplitude tracking and low cost are required.
Typical
applications include base station switching networks and other c
cellular applications where size and PCB real estate are at a
premium. Available in Tape and Reel.
The QH01-0016 is fabricated using a passive-integrated circuit
process. The process features full-chip passivation for increased
performance and reliability.
Absolute Maximum Ratings
1
Parameter
Input Power
2
Ordering Information
Part Number
QH01-0016
QH01-0016-TR
QH01-0016-RTR
Package
SOT-26 Lead Plastic Package
Forward Tape and Reel
1
Reverse Tape and Reel
1
1 W CW
Absolute Maximum
-40擄C to +85擄C
-65擄C to +150擄C
Operating Temperature
Storage Temperature
1. Exceeding these limits may cause permanent damage.
2. With internal load dissipation of 0.125 W Maximum.
1. If specific reel size is required, consult factory for part number
assignment.
Typical Electrical Specifications
1
, T
A
= +25擄C
Parameter
Insertion Loss above 3.0dB
Isolation
VSWR
Input
RF1, RF2 Outputs
Units
dB
dB
鈥?/div>
鈥?/div>
dB
擄
Min
鈥?/div>
14
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Typ
0.7
17
1.3 : 1
1.35 : 1
0.3
1.5
Max
1.2
鈥?/div>
1.5 : 1
1.5 : 1
0.9
6
Amplitude Balance
Phase Balance
1. All specifications apply with a 50-Ohm source and load impedance.
S1523A
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Pacific: Tel.+85 2 2111 8088,
Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax+44 (1344) 300 020
V2.00
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Specifications subject to change without notice.
