Signal Converters & Isolators
Threshold Relay PXL-10

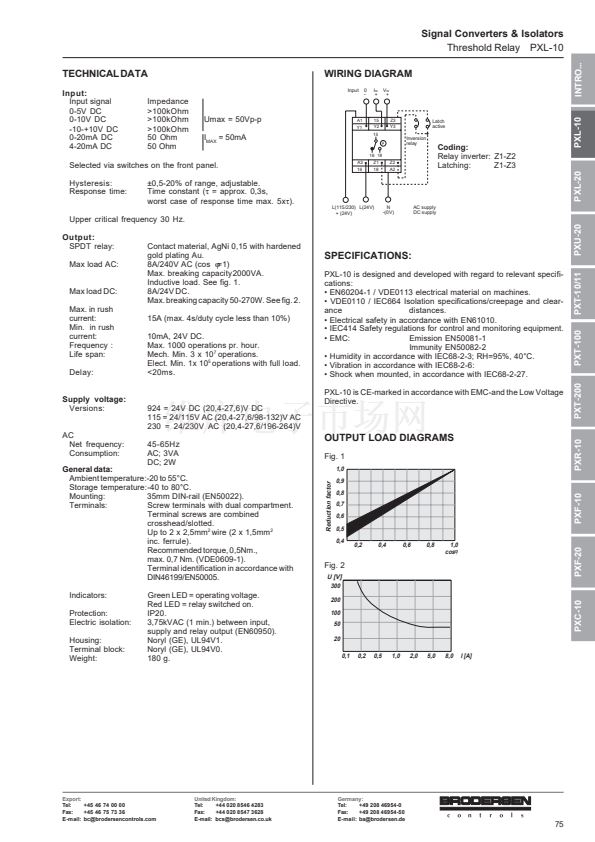

DESCRIPTION
A threshold relay for the monitoring or control of common types of
process signals. The process signal to be monitored is selected on
the front panel and the threshold value is also adjusted via a setpoint
potentiometer on the front of the relay. As the input signal attains the
threshold plus the hysteresis the output relay energises. When the
input signal drops and passes the threshold, minus hysteresis, the
relay de-energises. The hysteresis is adjustable on the front, 鹵0,5
- 20%.
By strapping 2 terminals, the relay can be inverted.
A red LED indicates if the relay is energised.
There is also a latch function where the relay after energising will
remain energised, regardless of input, until the latch jumper or the
operating voltage is disconnected. Typically used in safety circuits.
Features
鈥?Input 0 - 5V/0-10V/-10-+10VDC/0-20/4-20mA in one version.
鈥?Adjustable setpoint.
鈥?Hysteresis adjustable 鹵0,5-20%.
鈥?Automatic locking (Latch).
鈥?Inversion of relay function.
鈥?Output SPDT.
鈥?Operating voltage 24VDC, 24/115VAC or 24/230VAC.
OPERATION
Output signal
supply
hysteresis
setpoint
inv
latch
inv
VERSIONS/ORDERING CODES
Type:
Threshold relay
Supply voltage
24V DC
115V / 24V AC
230V AC / 24V AC
PXL-10
PXL-10
230
MECHANICAL DIMENSIONS
80.0 mm
924
115
230
104.0 mm
22.5 mm
47.98
74
